BTS3160D

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

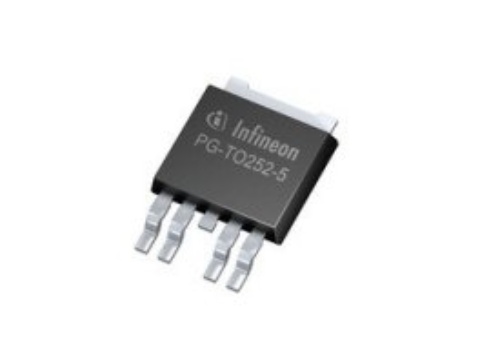

描述: The BTS3160D is a latching one channel low-side power switch in PG-TO-252-5-13 package providing embedded protective functions.

EAS/Avalanche Energy: 300.0mJ I[D ]: 7.8A I[SC] max: 130.0A Mounting: SMT V[DS] max: 40.0V Control Interface: Discrete Load Current: 9.7A Diagnostic Features: Output Status I[L(nom)]: 9.7A Recommended Operating Voltage max: 40.0V Operating Temperature max: 150.0°C E[AS](Energy capability): 300.0mJ t[off](Turn OFF time) max: 250.0µs t[on](Turn ON time) max: 250.0µs Classification: - Channels: 1.0 R[DS (on)](@ Tj = 25°C): 8.0mΩ R[DS (on)](@ Tj = 150°C) max: 18.0mΩ Diagnostics: - Protection strategy: Latch 更多

Nominal Load Current per channel: 9.7A I[L](Short Circuit Current): 70.0A Family: Classic HITFET™ 12V Currently planned availability until at least: 2033

BTS3207N

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: N channel vertical power FET in Smart SIPMOS technology. Fully protected by embedded protection functions.

EAS/Avalanche Energy: 150.0mJ I[D ]: 0.64A I[D(lim)] min: 5.0A Load Current: 0.64A Mounting: SMT P[tot] max: 3.8W V[DS] max: 42.0V Control Interface: Discrete I[L(nom)]: 0.64A Recommended Operating Voltage max: 42.0V Operating Temperature max: 150.0°C E[AS](Energy capability): 150.0mJ t[off](Turn OFF time) max: 100.0µs t[on](Turn ON time) max: 100.0µs Classification: - Channels: 1.0 R[DS (on)](@ Tj = 25°C): 500.0mΩ R[DS (on)](@ Tj = 150°C) max: 1200.0mΩ Diagnostics: - Protection strategy: Auto-restart 更多

Nominal Load Current per channel: 0.64A I[L](Short Circuit Current): 5.0A Family: Classic HITFET™ 12V Currently planned availability until at least: 2038

BTS3256D

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: The BTS 3256D is a single channel low-side power switch in PG-TO-252-5-11 package providing embedded protective functions

EAS/Avalanche Energy: 300.0mJ Features: ADJUSTABLE SLEWRATE Features: SWITCHING UP TO 12KHZ I[D ]: 7.5A I[D(lim)] min: 42.0A I[SC] max: 30.0A Mounting: SMT V[DS] max: 40.0V Load Current: 8.7A Diagnostic Features: Output Status Control Interface: Discrete I[L(nom)]: 8.7A Recommended Operating Voltage max: 40.0V Operating Temperature max: 150.0°C E[AS](Energy capability): 300.0mJ t[off](Turn OFF time) max: 24.0µs t[on](Turn ON time) max: 22.0µs Classification: - Channels: 1.0 R[DS (on)](@ Tj = 25°C): 10.0mΩ 更多

R[DS (on)](@ Tj = 150°C) max: 20.0mΩ Diagnostics: Digital Protection strategy: Auto-restart Nominal Load Current per channel: 8.7A I[L](Short Circuit Current): 42.0A Family: Classic HITFET™ 12V Currently planned availability until at least: 2033

BTS3205N

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

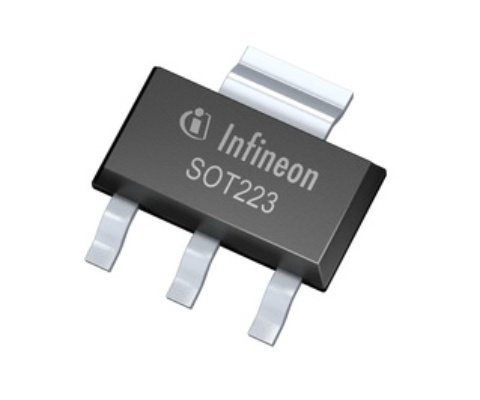

描述: The BTS3205N is a one channel low-side power switch in PG-SOT-223-4 package providing embedded protective functions.

EAS/Avalanche Energy: 65.0mJ I[D ]: 0.35A I[D(lim)] min: 0.6A Mounting: SMT P[tot] max: 0.78W V[DS] max: 42.0V Load Current: 0.52A Diagnostic Features: Output Status Control Interface: Discrete I[L(nom)]: 0.52A Recommended Operating Voltage max: 42.0V Operating Temperature max: 150.0°C E[AS](Energy capability): 65.0mJ t[off](Turn OFF time) max: 45.0µs t[on](Turn ON time) max: 38.0µs Classification: - Channels: 1.0 R[DS (on)](@ Tj = 25°C): 900.0mΩ R[DS (on)](@ Tj = 150°C) max: 2400.0mΩ Diagnostics: - 更多

Protection strategy: Auto-restart Nominal Load Current per channel: 0.52A I[L](Short Circuit Current): 0.6A Family: Classic HITFET™ 12V Currently planned availability until at least: 2038

BTS3405G

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

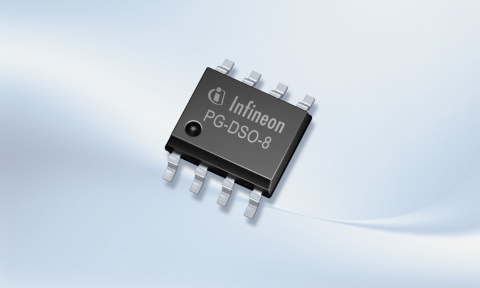

描述: The BTS3405G is a two channel low-side power switch in PG-DSO-8-25 package providing embedded protective functions.

EAS/Avalanche Energy: 65.0mJ I[D ]: 0.35A I[D(lim)] min: 0.6A Mounting: SMT P[tot] max: 0.78W V[DS] max: 42.0V Load Current: 0.4A Diagnostic Features: Output Status Control Interface: Discrete I[L(nom)]: 0.35A Recommended Operating Voltage max: 42.0V Operating Temperature max: 150.0°C E[AS](Energy capability): 65.0mJ t[off](Turn OFF time) max: 45.0µs t[on](Turn ON time) max: 38.0µs Classification: - Channels: 2.0 R[DS (on)](@ Tj = 25°C): 900.0mΩ R[DS (on)](@ Tj = 150°C) max: 2400.0mΩ Diagnostics: - 更多

Protection strategy: Auto-restart Nominal Load Current per channel: 0.35A I[L](Short Circuit Current): 0.6A Family: Classic HITFET™ 12V Currently planned availability until at least: 2038

BTS3410G

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: N channel vertical power FET in Smart SIPMOS technology. Fully protected by embedded protection functions.

EAS/Avalanche Energy: 150.0mJ I[D ]: 1.3A I[D(lim)] min: 5.0A Load Current: 1.3A Mounting: SMT P[tot] max: 0.8W V[DS] max: 42.0V Control Interface: Discrete I[L(nom)]: 1.3A Recommended Operating Voltage max: 42.0V Operating Temperature max: 150.0°C E[AS](Energy capability): 150.0mJ t[off](Turn OFF time) max: 100.0µs t[on](Turn ON time) max: 100.0µs Classification: - Channels: 2.0 R[DS (on)](@ Tj = 25°C): 190.0mΩ R[DS (on)](@ Tj = 150°C) max: 480.0mΩ Diagnostics: - Protection strategy: Auto-restart 更多

Nominal Load Current per channel: 1.3A I[L](Short Circuit Current): 5.0A Family: Classic HITFET™ 12V Currently planned availability until at least: 2038

BSP75N

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: N channel vertical power FET in Smart SIPMOS technology. Fully protected by embedded protection functions.

EAS/Avalanche Energy: 550.0mJ Features: 24V COMPATIBLE I[D ]: 0.7A I[D(lim)] min: 1.0A I[L(LIM)] min: 1.0A Load Current: 0.7A Mounting: SMT P[tot] max: 1.8W V[DS] max: 60.0V Control Interface: Discrete I[L(nom)]: 0.7A Operating Temperature max: 150.0°C E[AS](Energy capability): 550.0mJ t[off](Turn OFF time) max: 20.0µs t[on](Turn ON time) max: 20.0µs Channels: 1.0 R[DS (on)](@ Tj = 25°C): 490.0mΩ R[DS (on)](@ Tj = 150°C) max: 1350.0mΩ Protection strategy: Auto-restart Nominal Load Current per channel: 0.7A 更多

I[L](Short Circuit Current): 1.0A Recommended Operating Voltage max: 60.0V Family: Classic HITFET™ Classification: n.a Currently planned availability until at least: n.a Diagnostics: n.a

BTS3800SL

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

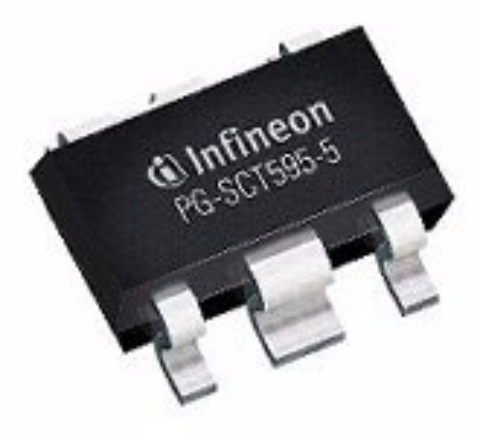

描述: The BTS3800SL is a single channel Low Side power switch with embedded protective functions in PG-SCT595 package.

EAS/Avalanche Energy: 65.0mJ I[D ]: 0.35A I[SC] max: 1.5A Mounting: SMT V[DS] max: 41.0V Load Current: 0.52A Control Interface: Discrete I[L(nom)]: 0.52A Recommended Operating Voltage max: 41.0V Operating Temperature max: 150.0°C E[AS](Energy capability): 65.0mJ t[off](Turn OFF time) max: 5.0µs t[on](Turn ON time) max: 5.0µs Classification: - Channels: 1.0 R[DS (on)](@ Tj = 25°C): 800.0mΩ R[DS (on)](@ Tj = 150°C) max: 1600.0mΩ Diagnostics: - Protection strategy: Latch Nominal Load Current per channel: 0.52A 更多

I[L](Short Circuit Current): 0.75A Currently planned availability until at least: 2037 Family: Classic HITFET™ 12V

BTS117

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: N channel vertical power FET in Smart SIPMOS® technology. Providing embedded protection functions.

EAS/Avalanche Energy: 1000.0mJ Features: 24V COMPATIBLE I[D ]: 3.5A I[D(lim)] min: 7.0A I[L(LIM)] min: 7.0A Load Current: 3.5A Mounting: THT P[tot] max: 50.0W V[DS] max: 60.0V I[L(nom)]: 3.5A Operating Temperature max: 150.0°C E[AS](Energy capability): 1000.0mJ t[off](Turn OFF time) max: 150.0µs t[on](Turn ON time) max: 70.0µs Family: Classic HITFET™ Channels: 1.0 R[DS (on)](@ Tj = 25°C): 90.0mΩ R[DS (on)](@ Tj = 150°C) max: 240.0mΩ Protection strategy: Latch Nominal Load Current per channel: 3.5A 更多

I[L](Short Circuit Current): 7.0A Recommended Operating Voltage max: 60.0V Classification: n.a Currently planned availability until at least: n.a Diagnostics: n.a

BTS117TC

数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: N channel vertical power FET in Smart SIPMOS® technology. Providing embedded protection functions.

EAS/Avalanche Energy: 1000.0mJ I[D ]: 3.5A I[D(lim)] min: 7.0A I[L(LIM)] min: 7.0A Load Current: 3.5A Mounting: SMT P[tot] max: 50.0W V[DS] max: 60.0V I[L(nom)]: 3.5A Operating Temperature max: 150.0°C E[AS](Energy capability): 1000.0mJ t[off](Turn OFF time) max: 150.0µs t[on](Turn ON time) max: 70.0µs Family: Classic HITFET™ Channels: 1.0 R[DS (on)](@ Tj = 25°C): 90.0mΩ R[DS (on)](@ Tj = 150°C) max: 240.0mΩ Protection strategy: Latch Nominal Load Current per channel: 3.5A I[L](Short Circuit Current): 7.0A 更多

Recommended Operating Voltage max: 60.0V Classification: n.a Currently planned availability until at least: n.a Diagnostics: n.a
