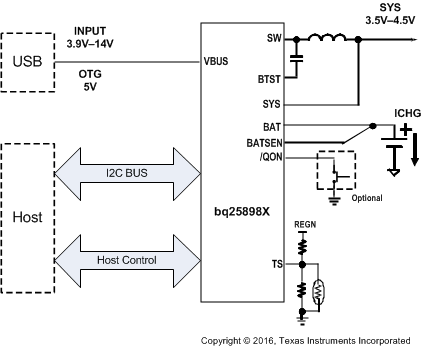

Number of series cells: 1 Charge current (max) (A): 4 Vin (max) (V): 14 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.84 Battery charge voltage (max) (V): 4.6 Absolute max Vin (max) (V): 22 Control topology: Switch-Mode Buck Control interface: I2C Vin (min) (V): 3.9 Rating: Catalog Operating temperature range (°C): -40 to 125 Number of series cells: 1 Charge current (max) (A): 4 Vin (max) (V): 14 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.84 Battery charge voltage (max) (V): 4.6 Absolute max Vin (max) (V): 22 Control topology: Switch-Mode Buck 更多

Number of series cells: 1 Charge current (max) (A): 3 Vin (max) (V): 14 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.84 Battery charge voltage (max) (V): 4.6 Absolute max Vin (max) (V): 22 Control topology: Switch-Mode Buck Control interface: I2C Vin (min) (V): 3.9 Rating: Catalog Operating temperature range (°C): -40 to 125 Number of series cells: 1 Charge current (max) (A): 3 Vin (max) (V): 14 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.84 Battery charge voltage (max) (V): 4.6 Absolute max Vin (max) (V): 22 Control topology: Switch-Mode Buck 更多

Number of series cells: 1 Charge current (max) (A): 4 Vin (max) (V): 14 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.84 Battery charge voltage (max) (V): 4.6 Absolute max Vin (max) (V): 22 Control topology: Switch-Mode Buck Control interface: I2C Vin (min) (V): 3.9 Rating: Catalog Operating temperature range (°C): -40 to 125 Number of series cells: 1 Charge current (max) (A): 4 Vin (max) (V): 14 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.84 Battery charge voltage (max) (V): 4.6 Absolute max Vin (max) (V): 22 Control topology: Switch-Mode Buck 更多

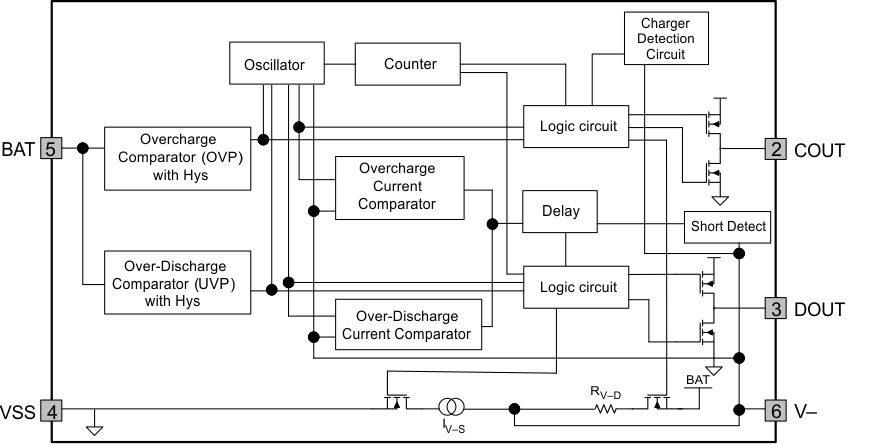

Function: Protection Number of series cells (min): 1 Number of series cells (max): 1 Operating current (typ) (µA): 4 Rating: Catalog Vin (max) (V): 8 Overvoltage protection: 4.25, 4.28, 4.4 Operating temperature range (°C): -40 to 85 Battery overvoltage protection (min) (V): 3.85 Battery overvoltage protection (max) (V): 4.6 Function: Protection Number of series cells (min): 1 Number of series cells (max): 1 Operating current (typ) (µA): 4 Rating: Catalog Vin (max) (V): 8 Overvoltage protection: 4.25, 4.28, 4.4 Operating temperature range (°C): -40 to 85 Battery overvoltage protection (min) (V): 3.85 Battery overvoltage protection (max) (V): 4.6

Function: Protection Number of series cells (min): 1 Number of series cells (max): 1 Operating current (typ) (µA): 4 Rating: Catalog Vin (max) (V): 8 Overvoltage protection: 4.275, 4.28, 4.425 Operating temperature range (°C): -40 to 85 Battery overvoltage protection (min) (V): 3.85 Battery overvoltage protection (max) (V): 4.6 Function: Protection Number of series cells (min): 1 Number of series cells (max): 1 Operating current (typ) (µA): 4 Rating: Catalog Vin (max) (V): 8 Overvoltage protection: 4.275, 4.28, 4.425 Operating temperature range (°C): -40 to 85 Battery overvoltage protection (min) (V): 3.85 Battery overvoltage protection (max) (V): 4.6

Function: Protection Number of series cells (min): 1 Number of series cells (max): 1 Operating current (typ) (µA): 4 Rating: Catalog Vin (max) (V): 8 Overvoltage protection: 4.425 Operating temperature range (°C): -40 to 85 Battery overvoltage protection (min) (V): 3.85 Battery overvoltage protection (max) (V): 4.6 Function: Protection Number of series cells (min): 1 Number of series cells (max): 1 Operating current (typ) (µA): 4 Rating: Catalog Vin (max) (V): 8 Overvoltage protection: 4.425 Operating temperature range (°C): -40 to 85 Battery overvoltage protection (min) (V): 3.85 Battery overvoltage protection (max) (V): 4.6

Cell chemistry: Li-Ion/Li-Polymer Number of series cells: Single Cell Communication interface: I2C Battery capacity (min) (mAh): 100 Battery capacity (max) (mAh): 8000 Implementation: System External capacity indication: None Features: Impedance Track™ algorithm Operating temperature range (°C): -40 to 85 Rating: Catalog Cell chemistry: Li-Ion/Li-Polymer Number of series cells: Single Cell Communication interface: I2C Battery capacity (min) (mAh): 100 Battery capacity (max) (mAh): 8000 Implementation: System External capacity indication: None Features: Impedance Track™ algorithm Operating temperature range (°C): -40 to 85 Rating: Catalog

Number of series cells: 1 Charge current (max) (A): 2 Vin (max) (V): 6.2 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.5 Battery charge voltage (max) (V): 4.44 Absolute max Vin (max) (V): 15 Control topology: Switch-Mode Buck Control interface: I2C Vin (min) (V): 3.9 Rating: Catalog Operating temperature range (°C): -40 to 85 Number of series cells: 1 Charge current (max) (A): 2 Vin (max) (V): 6.2 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.5 Battery charge voltage (max) (V): 4.44 Absolute max Vin (max) (V): 15 Control topology: Switch-Mode Buck 更多

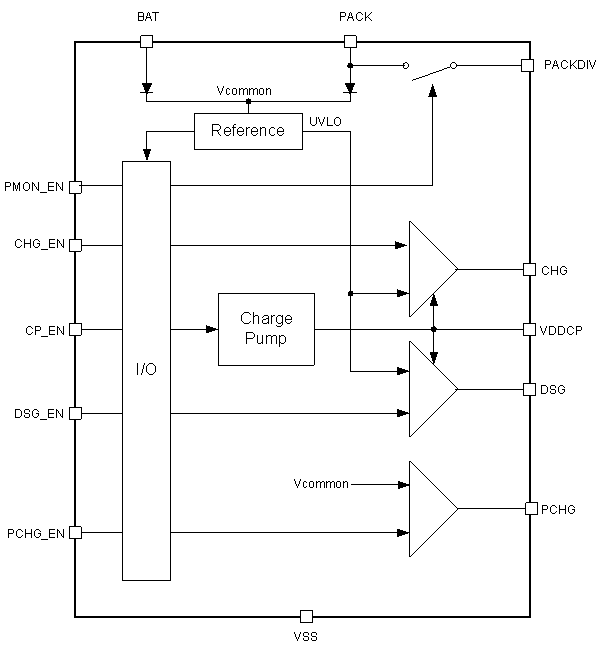

Number of series cells (min): 3 Number of series cells (max): 16 Features: High-side N-FET driver Operating current (typ) (µA): 40 Rating: Catalog Vin (max) (V): 75 Operating temperature range (°C): -40 to 85 Number of series cells (min): 3 Number of series cells (max): 16 Features: High-side N-FET driver Operating current (typ) (µA): 40 Rating: Catalog Vin (max) (V): 75 Operating temperature range (°C): -40 to 85

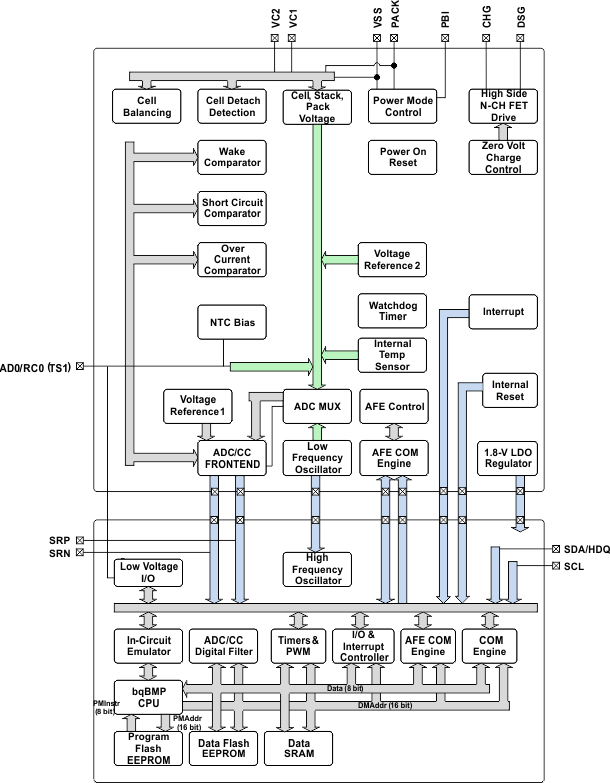

Cell chemistry: Li-Ion/Li-Polymer Number of series cells: 1-2 Cells Communication interface: HDQ, I2C Battery capacity (min) (mAh): 100 Battery capacity (max) (mAh): 32000 Implementation: Pack External capacity indication: None Operating temperature range (°C): -40 to 85 Cell balancing: External, Internal Rating: Catalog Cell chemistry: Li-Ion/Li-Polymer Number of series cells: 1-2 Cells Communication interface: HDQ, I2C Battery capacity (min) (mAh): 100 Battery capacity (max) (mAh): 32000 Implementation: Pack External capacity indication: None Operating temperature range (°C): -40 to 85 Cell balancing: External, Internal Rating: Catalog
