BQ25892


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 具有 NVDC 电源路径和 PSEL 的 I2C 单节 5A 降压电池充电器

Number of series cells: 1 Charge current (max) (A): 5 Vin (max) (V): 14 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.84 Battery charge voltage (max) (V): 4.6 Absolute max Vin (max) (V): 22 Control topology: Switch-Mode Buck Control interface: I2C Vin (min) (V): 3.9 Rating: Catalog Operating temperature range (°C): -40 to 85 Number of series cells: 1 Charge current (max) (A): 5 Vin (max) (V): 14 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.84 Battery charge voltage (max) (V): 4.6 Absolute max Vin (max) (V): 22 Control topology: Switch-Mode Buck
Control interface: I2C Vin (min) (V): 3.9 Rating: Catalog Operating temperature range (°C): -40 to 85

BQ25890


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 采用 Maxcharge™ 技术、支持高输入且具有 D+/D- 的 I2C 单节 5A 降压电池充电器

Number of series cells: 1 Charge current (max) (A): 5 Vin (max) (V): 14 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.84 Battery charge voltage (max) (V): 4.6 Absolute max Vin (max) (V): 22 Control topology: Switch-Mode Buck Control interface: I2C Vin (min) (V): 3.9 Rating: Catalog Operating temperature range (°C): -40 to 85 Number of series cells: 1 Charge current (max) (A): 5 Vin (max) (V): 14 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.84 Battery charge voltage (max) (V): 4.6 Absolute max Vin (max) (V): 22 Control topology: Switch-Mode Buck
Control interface: I2C Vin (min) (V): 3.9 Rating: Catalog Operating temperature range (°C): -40 to 85

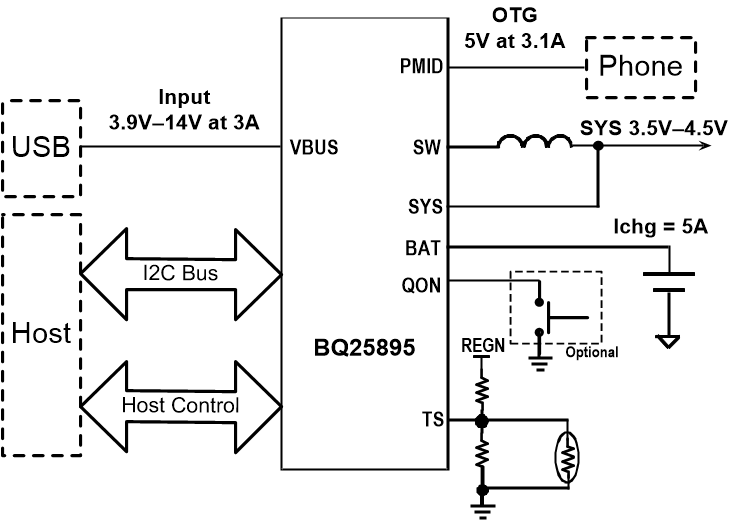

BQ25895


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 支持高输入电压和 3.1A 升压、支持 HVDCP 功能的 I2C 单节 5A 降压电池充电器

Number of series cells: 1 Charge current (max) (A): 5 Vin (max) (V): 14 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.84 Battery charge voltage (max) (V): 4.6 Absolute max Vin (max) (V): 22 Control topology: Switch-Mode Buck Control interface: I2C Vin (min) (V): 3.9 Rating: Catalog Operating temperature range (°C): -40 to 85 Number of series cells: 1 Charge current (max) (A): 5 Vin (max) (V): 14 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 3.84 Battery charge voltage (max) (V): 4.6 Absolute max Vin (max) (V): 22 Control topology: Switch-Mode Buck
Control interface: I2C Vin (min) (V): 3.9 Rating: Catalog Operating temperature range (°C): -40 to 85

BQ51052B


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 符合 Qi (WPC) 标准的 BQ51052B 集成无线电源锂离子电池充电器接收器

Rating: Catalog Operating temperature range (°C): 0 to 125 Rating: Catalog Operating temperature range (°C): 0 to 125

BQ34Z100-G1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 多化合物 Impedance Track™ 独立电量监测计 | 电池电量监测计

Cell chemistry: Lead Acid, Li-Ion/Li-Polymer, LiFePO4, NiCd, NiMH Number of series cells: 2-4 Cells, >4 Cells, Single Cell Communication interface: HDQ, I2C Battery capacity (min) (mAh): 100 Battery capacity (max) (mAh): 32000 Implementation: Pack, System External capacity indication: LED Features: Impedance Track™ algorithm, SHA-1 Authentication Operating temperature range (°C): -40 to 85 Rating: Catalog Cell chemistry: Lead Acid, Li-Ion/Li-Polymer, LiFePO4, NiCd, NiMH Number of series cells: 2-4 Cells, >4 Cells, Single Cell Communication interface: HDQ, I2C Battery capacity (min) (mAh): 100 Battery capacity (max) (mAh): 32000 Implementation: Pack, System External capacity indication: LED Features: Impedance Track™ algorithm, SHA-1 Authentication Operating temperature range (°C): -40 to 85 Rating: Catalog

BQ25101H


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 具有 4.35V 充电电压和充电指示功能的独立式单节电池 250mA 线性电池充电器

Number of series cells: 1 Charge current (max) (A): 0.25 Vin (max) (V): 6.5 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 4.35 Battery charge voltage (max) (V): 4.35 Absolute max Vin (max) (V): 30 Control topology: Linear Control interface: Standalone (RC-Settable) Vin (min) (V): 4.45 Rating: Catalog Operating temperature range (°C): 0 to 125 Number of series cells: 1 Charge current (max) (A): 0.25 Vin (max) (V): 6.5 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 4.35 Battery charge voltage (max) (V): 4.35 Absolute max Vin (max) (V): 30 Control topology: Linear
Control interface: Standalone (RC-Settable) Vin (min) (V): 4.45 Rating: Catalog Operating temperature range (°C): 0 to 125

BQ40Z60


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 完整的多节电池管理器 | 电池电量监测计

Cell chemistry: Li-Ion/Li-Polymer, LiFePO4 Number of series cells: 2-4 Cells Communication interface: SMBus Battery capacity (min) (mAh): 100 Battery capacity (max) (mAh): 29000 Implementation: Pack, System External capacity indication: LED Operating temperature range (°C): -40 to 85 Cell balancing: External, Internal Rating: Catalog Cell chemistry: Li-Ion/Li-Polymer, LiFePO4 Number of series cells: 2-4 Cells Communication interface: SMBus Battery capacity (min) (mAh): 100 Battery capacity (max) (mAh): 29000 Implementation: Pack, System External capacity indication: LED Operating temperature range (°C): -40 to 85 Cell balancing: External, Internal Rating: Catalog

BQ27532-G1


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 适用于 bq2425x 充电器的电池管理单元 Impedance Track™ 电量监测计

Cell chemistry: Li-Ion/Li-Polymer Number of series cells: Single Cell Communication interface: I2C Battery capacity (min) (mAh): 300 Battery capacity (max) (mAh): 8000 Implementation: System External capacity indication: None Features: Battery Management Unit, SHA-1 Authentication Operating temperature range (°C): -40 to 85 Rating: Catalog Cell chemistry: Li-Ion/Li-Polymer Number of series cells: Single Cell Communication interface: I2C Battery capacity (min) (mAh): 300 Battery capacity (max) (mAh): 8000 Implementation: System External capacity indication: None Features: Battery Management Unit, SHA-1 Authentication Operating temperature range (°C): -40 to 85 Rating: Catalog

BQ25101


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 具有 4.2V 充电电压和充电状态指示功能的独立型单节电池 250mA 线性电池充电器

Number of series cells: 1 Charge current (max) (A): 0.25 Vin (max) (V): 6.45 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 4.2 Battery charge voltage (max) (V): 4.2 Absolute max Vin (max) (V): 30 Control topology: Linear Control interface: Standalone (RC-Settable) Vin (min) (V): 4.45 Rating: Catalog Operating temperature range (°C): 0 to 125 Number of series cells: 1 Charge current (max) (A): 0.25 Vin (max) (V): 6.45 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 4.2 Battery charge voltage (max) (V): 4.2 Absolute max Vin (max) (V): 30 Control topology: Linear
Control interface: Standalone (RC-Settable) Vin (min) (V): 4.45 Rating: Catalog Operating temperature range (°C): 0 to 125

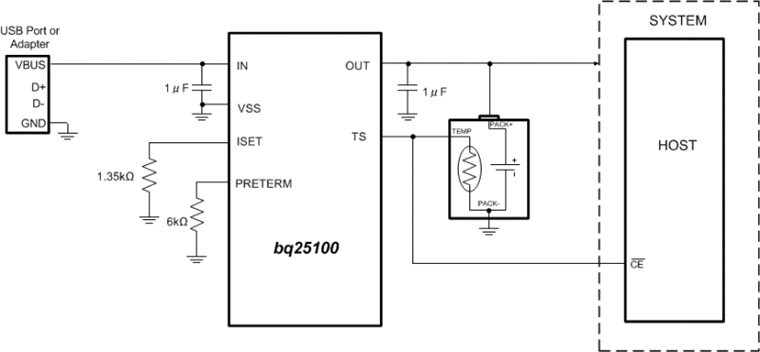

BQ25100H


数据:
分类: 微电路 / 半导体集成电路 / 模拟集成电路 / 其他模拟集成电路

描述: 具有 4.35V 充电电压和可编程预充电功能的独立型单节电池 250mA 线性电池充电器

Number of series cells: 1 Charge current (max) (A): 0.25 Vin (max) (V): 6.45 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 4.35 Battery charge voltage (max) (V): 4.35 Absolute max Vin (max) (V): 30 Control topology: Linear Control interface: Standalone (RC-Settable) Vin (min) (V): 4.45 Rating: Catalog Operating temperature range (°C): 0 to 125 Number of series cells: 1 Charge current (max) (A): 0.25 Vin (max) (V): 6.45 Cell chemistry: Li-Ion/Li-Polymer Battery charge voltage (min) (V): 4.35 Battery charge voltage (max) (V): 4.35 Absolute max Vin (max) (V): 30 Control topology: Linear
Control interface: Standalone (RC-Settable) Vin (min) (V): 4.45 Rating: Catalog Operating temperature range (°C): 0 to 125
