SN74LVC86A


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 4 通道、双输入、1.1V 至 3.6V XOR（异或）门

Technology family: LVC Supply voltage (min) (V): 1.65 Supply voltage (max) (V): 3.6 Number of channels: 4 Inputs per channel: 2 IOL (max) (mA): 24 Input type: Standard CMOS IOH (max) (mA): -24 Output type: Push-Pull Data rate (max) (Mbps): 100 Rating: Catalog Operating temperature range (°C): -40 to 125 Technology family: LVC Supply voltage (min) (V): 1.65 Supply voltage (max) (V): 3.6 Number of channels: 4 Inputs per channel: 2 IOL (max) (mA): 24 Input type: Standard CMOS IOH (max) (mA): -24
Output type: Push-Pull Data rate (max) (Mbps): 100 Rating: Catalog Operating temperature range (°C): -40 to 125

CD74HC30


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: Single 8-input, 2-V to 6-V 5.2 mA drive strength NAND gate

Technology family: HC Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Number of channels: 1 Inputs per channel: 8 IOL (max) (mA): 5.2 IOH (max) (mA): -5.2 Input type: Standard CMOS Output type: Push-Pull Features: High speed (tpd 10- 50ns) Data rate (max) (Mbps): 28 Rating: Catalog Operating temperature range (°C): -55 to 125 Technology family: HC Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Number of channels: 1 Inputs per channel: 8 IOL (max) (mA): 5.2 IOH (max) (mA): -5.2
Input type: Standard CMOS Output type: Push-Pull Features: High speed (tpd 10- 50ns) Data rate (max) (Mbps): 28 Rating: Catalog Operating temperature range (°C): -55 to 125

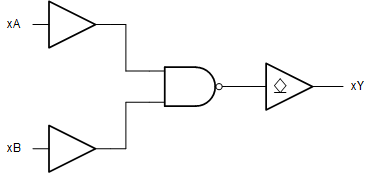

CD74HCT03


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 具有 TTL 兼容型 CMOS 输入和开漏输出的 4 通道、双输入、4.5V 至 5.5V 与非门

Technology family: HCT Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Number of channels: 4 Inputs per channel: 2 IOL (max) (mA): 0 IOH (max) (mA): 0 Input type: TTL-Compatible CMOS Output type: Open-drain Features: High speed (tpd 10- 50ns) Data rate (max) (Mbps): 25 Rating: Catalog Operating temperature range (°C): -55 to 125 Technology family: HCT Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Number of channels: 4 Inputs per channel: 2 IOL (max) (mA): 0 IOH (max) (mA): 0
Input type: TTL-Compatible CMOS Output type: Open-drain Features: High speed (tpd 10- 50ns) Data rate (max) (Mbps): 25 Rating: Catalog Operating temperature range (°C): -55 to 125

SN74HC164


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 8 位并行输出串行移位寄存器

Configuration: Serial-in, Parallel-out Bits (#): 8 Technology family: HC Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Input type: Standard CMOS Output type: Push-Pull Clock frequency (MHz): 24 IOL (max) (mA): 5.2 IOH (max) (mA): -5.2 Supply current (max) (µA): 80 Operating temperature range (°C): -40 to 125 Rating: Catalog Configuration: Serial-in, Parallel-out Bits (#): 8 Technology family: HC Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Input type: Standard CMOS Output type: Push-Pull
Clock frequency (MHz): 24 IOL (max) (mA): 5.2 IOH (max) (mA): -5.2 Supply current (max) (µA): 80 Operating temperature range (°C): -40 to 125 Rating: Catalog

SN74LVC74A


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 具有清零和预设功能的双通道上升沿触发 D 类触发器

Number of channels: 2 Technology family: LVC Supply voltage (min) (V): 1.65 Supply voltage (max) (V): 3.6 Input type: Standard CMOS Output type: Push-Pull Clock frequency (max) (MHz): 100 IOL (max) (mA): 24 IOH (max) (mA): -24 Supply current (max) (µA): 10 Operating temperature range (°C): -40 to 125 Rating: Catalog Number of channels: 2 Technology family: LVC Supply voltage (min) (V): 1.65 Supply voltage (max) (V): 3.6 Input type: Standard CMOS Output type: Push-Pull Clock frequency (max) (MHz): 100 IOL (max) (mA): 24
IOH (max) (mA): -24 Supply current (max) (µA): 10 Operating temperature range (°C): -40 to 125 Rating: Catalog

SN74LV32A


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 4 通道、双输入、2V 至 5.5V、高速 (7ns) 或门

Technology family: LV-A Supply voltage (min) (V): 2 Supply voltage (max) (V): 5.5 Number of channels: 4 Inputs per channel: 2 IOL (max) (mA): 12 IOH (max) (mA): -12 Input type: Standard CMOS Output type: Push-Pull Data rate (max) (Mbps): 70 Rating: Catalog Operating temperature range (°C): -40 to 125 Technology family: LV-A Supply voltage (min) (V): 2 Supply voltage (max) (V): 5.5 Number of channels: 4 Inputs per channel: 2 IOL (max) (mA): 12 IOH (max) (mA): -12 Input type: Standard CMOS
Output type: Push-Pull Data rate (max) (Mbps): 70 Rating: Catalog Operating temperature range (°C): -40 to 125

SN74AHC132


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 具有施密特触发输入的 4 通道、4 输入、2V 至 5.5V 与非门

Technology family: AHC Supply voltage (min) (V): 2 Supply voltage (max) (V): 5.5 Number of channels: 4 Inputs per channel: 4 IOL (max) (mA): 8 IOH (max) (mA): -8 Input type: Schmitt-Trigger Output type: Push-Pull Features: High speed (tpd 10- 50ns), Over-voltage tolerant inputs Data rate (max) (Mbps): 110 Rating: Catalog Operating temperature range (°C): -40 to 125 Technology family: AHC Supply voltage (min) (V): 2 Supply voltage (max) (V): 5.5 Number of channels: 4 Inputs per channel: 4 IOL (max) (mA): 8 IOH (max) (mA): -8
Input type: Schmitt-Trigger Output type: Push-Pull Features: High speed (tpd 10- 50ns), Over-voltage tolerant inputs Data rate (max) (Mbps): 110 Rating: Catalog Operating temperature range (°C): -40 to 125

SN74HCT32


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 具有 TTL 兼容输入的 4 通道、双输入、4.5V 至 5.5V 或门

Technology family: HCT Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Number of channels: 4 Inputs per channel: 2 IOL (max) (mA): 4 IOH (max) (mA): -4 Input type: TTL-Compatible CMOS Output type: Push-Pull Features: High speed (tpd 10- 50ns) Data rate (max) (Mbps): 25 Rating: Catalog Operating temperature range (°C): -40 to 85 Technology family: HCT Supply voltage (min) (V): 4.5 Supply voltage (max) (V): 5.5 Number of channels: 4 Inputs per channel: 2 IOL (max) (mA): 4 IOH (max) (mA): -4
Input type: TTL-Compatible CMOS Output type: Push-Pull Features: High speed (tpd 10- 50ns) Data rate (max) (Mbps): 25 Rating: Catalog Operating temperature range (°C): -40 to 85

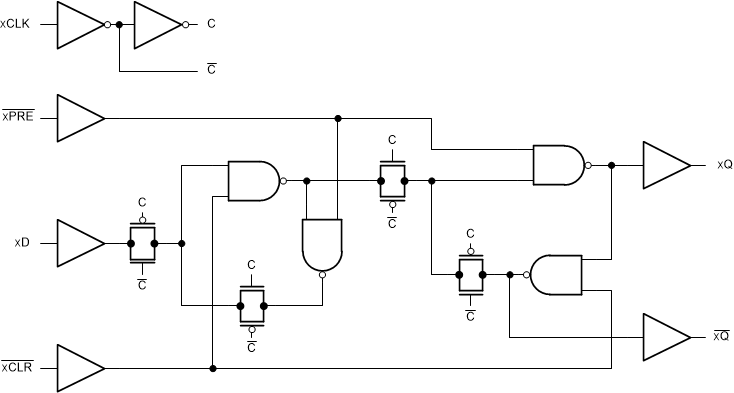

CD74HC74


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 具有设置和复位功能的高速 CMOS 逻辑双通道上升沿 D 类触发器

Number of channels: 2 Technology family: HC Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Input type: Standard CMOS Output type: Push-Pull Clock frequency (max) (MHz): 28 IOL (max) (mA): 5.2 IOH (max) (mA): -5.2 Supply current (max) (µA): 40 Operating temperature range (°C): -55 to 125 Rating: Catalog Number of channels: 2 Technology family: HC Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Input type: Standard CMOS Output type: Push-Pull Clock frequency (max) (MHz): 28 IOL (max) (mA): 5.2
IOH (max) (mA): -5.2 Supply current (max) (µA): 40 Operating temperature range (°C): -55 to 125 Rating: Catalog

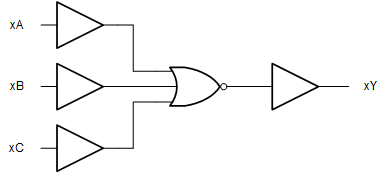

CD74HC27


数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 通用数字电路

描述: 3-ch, 3-input, 2-V to 6-V 5.2 mA drive strength NOR gate

Technology family: HC Number of channels: 3 Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Inputs per channel: 3 IOL (max) (mA): 5.2 IOH (max) (mA): -5.2 Output type: Push-Pull Input type: Standard CMOS Features: High speed (tpd 10- 50ns) Data rate (max) (Mbps): 28 Rating: Catalog Operating temperature range (°C): -55 to 125 Technology family: HC Number of channels: 3 Supply voltage (min) (V): 2 Supply voltage (max) (V): 6 Inputs per channel: 3 IOL (max) (mA): 5.2 IOH (max) (mA): -5.2
Output type: Push-Pull Input type: Standard CMOS Features: High speed (tpd 10- 50ns) Data rate (max) (Mbps): 28 Rating: Catalog Operating temperature range (°C): -55 to 125
