CC430F6137
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)

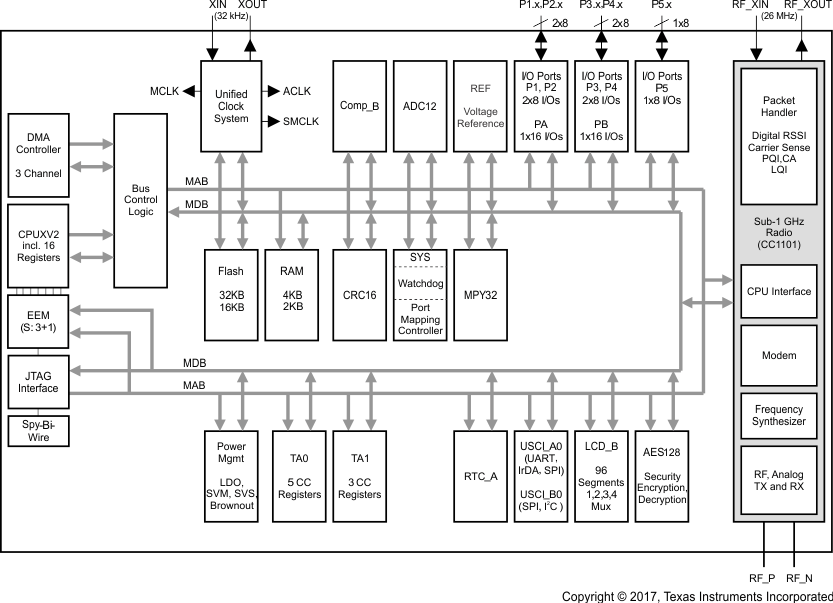

描述: 具有 32KB 闪存、4KB SRAM、低于 1GHz 无线电、AES-128、12 位 ADC、I2C/SPI/UART 和 96 段 LCD 的 20MHz MCU
Frequency (MHz): 20
Nonvolatile memory (kByte): 32
RAM (kByte): 2
ADC type: ADC10 - 8ch
Number of GPIOs: 44
UART: 1
Number of I2Cs: 1
SPI: 1
Timers - 16-bit: 2
Bootloader (BSL): UART
Operating temperature range (°C): -40 to 85
Rating: Catalog
Frequency (MHz): 20
Nonvolatile memory (kByte): 32
RAM (kByte): 2
ADC type: ADC10 - 8ch
Number of GPIOs: 44
UART: 1
Number of I2Cs: 1
SPI: 1
更多
Timers - 16-bit: 2
Bootloader (BSL): UART
Operating temperature range (°C): -40 to 85
Rating: Catalog
TMS320LF2402A
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: 16 位 DSP、40MHz 频率、8kw 闪存、64 引脚
CPU: C24x
Frequency (MHz): 40
Flash memory (kByte): 16
RAM (kByte): 2
ADC resolution (bps): 10
Sigma-delta filter: 8
PWM (Ch): 8
Number of ADC channels: 8
Operating temperature range (°C): -40 to 85
Rating: Catalog
CPU: C24x
Frequency (MHz): 40
Flash memory (kByte): 16
RAM (kByte): 2
ADC resolution (bps): 10
Sigma-delta filter: 8
PWM (Ch): 8
Number of ADC channels: 8
Operating temperature range (°C): -40 to 85
Rating: Catalog
TMS320LF2403A
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: 16 位 DSP、40MHz 频率、16kw 闪存、64 引脚
CPU: C24x
Frequency (MHz): 40
Flash memory (kByte): 32
RAM (kByte): 2
ADC resolution (bps): 10
CAN (#): 1
Sigma-delta filter: 8
PWM (Ch): 8
Number of ADC channels: 8
SPI: 1
Operating temperature range (°C): -40 to 125
Rating: Catalog
Communication interface: CAN, SPI, UART
CPU: C24x
Frequency (MHz): 40
Flash memory (kByte): 32
RAM (kByte): 2
ADC resolution (bps): 10
CAN (#): 1
Sigma-delta filter: 8
更多
PWM (Ch): 8
Number of ADC channels: 8
SPI: 1
Operating temperature range (°C): -40 to 125
Rating: Catalog
Communication interface: CAN, SPI, UART
TMS320F2800155
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: 具有 HRPWM、120MHz 频率、128KB 闪存且支持 CAN-FD 的 C2000™ 32 位 MCU
CPU: C28x
Frequency (MHz): 120
Flash memory (kByte): 128
RAM (kByte): 36
ADC resolution (bps): 12
Total processing (MIPS): 120
UART: 4
CAN (#): 2
PWM (Ch): 14
TI functional safety category: Functional Safety-Compliant
Number of ADC channels: 11, 17, 21
SPI: 1
QEP: 2
USB: No
Operating temperature range (°C): -40 to 125
Rating: Catalog
Communication interface: CAN, CAN FD, I2C, LIN, PMBUS, SCI, SPI, UART
CPU: C28x
Frequency (MHz): 120
Flash memory (kByte): 128
更多
RAM (kByte): 36
ADC resolution (bps): 12
Total processing (MIPS): 120
UART: 4
CAN (#): 2
PWM (Ch): 14
TI functional safety category: Functional Safety-Compliant
Number of ADC channels: 11, 17, 21
SPI: 1
QEP: 2
USB: No
Operating temperature range (°C): -40 to 125
Rating: Catalog
Communication interface: CAN, CAN FD, I2C, LIN, PMBUS, SCI, SPI, UART
SRAM (incl. Cache): 90.0kByte
CAN Nodes: 2
A/D Input Lines: 16
Program Memory: 1088.0kByte
Type of Memory: Flash
Number of ADC Modules: 2.0
Digital I/O Pins: 76
EEPROM Emulation(Data-Flash): yes
Timed I/O Pins: 32
Serial I/O Interfaces: 4
Type of Serial I/O Interfaces: UART
Type of Serial I/O Interfaces: SPI
Type of Serial I/O Interfaces: I²C
Type of Serial I/O Interfaces: I²S
Type of Serial I/O Interfaces: LIN
Type of Serial I/O Interfaces: CAN
Type of Serial I/O Interfaces: FlexRay™
DMA Channels: 16
Timer/Counter: 17
External Bus Interface: yes
更多
Fast Flash Programming: yes
Temperature: -40 to 125°C
Power Mode: 2
DSP Functionality: yes
On-chip Clock Generation: yes
I/O Operation Voltages: 3.3V
I/O Operation Voltages: 5.0V
Touch/LED Matrix Control: no
On-chip Voltage Regulator: yes
Real Time Clock: yes
Floating Point Unit: no
Watchdog Timer: yes
Oscillator Watchdog: yes
Additional Features: instruction cache
Qualification: Automotive
Budgetary Price €/1k: 16.11
MSPM0C1104-Q1
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: 具有 16KB 闪存、1KB SRAM、12 位 ADC、LIN 的汽车级 24MHz Arm® Cortex®-M0+ MCU
Frequency (MHz): 24
Flash memory (kByte): 16
RAM (kByte): 1
ADC type: 12-bit SAR
Number of ADC channels: 3, 8, 10
Number of GPIOs: 6, 14, 18
UART: 1
Number of I2Cs: 1
SPI: 1
Features: 5-V-tolerant I/Os, AEC Q100, DMA, General purpose, LIN
Operating temperature range (°C): -40 to 125
Rating: Automotive
TI functional safety category: Functional Safety Quality-Managed
Frequency (MHz): 24
Flash memory (kByte): 16
RAM (kByte): 1
ADC type: 12-bit SAR
Number of ADC channels: 3, 8, 10
Number of GPIOs: 6, 14, 18
UART: 1
更多
Number of I2Cs: 1
SPI: 1
Features: 5-V-tolerant I/Os, AEC Q100, DMA, General purpose, LIN
Operating temperature range (°C): -40 to 125
Rating: Automotive
TI functional safety category: Functional Safety Quality-Managed
TMS320F28P659SH-Q1
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: 汽车级 C2000 32 位 MCU、400MIPS、1xC28x + 1xCLA、FPU64、768kB 闪存、16 位 ADC
TI functional safety category: Functional Safety-Compliant
Operating temperature range (°C): -40 to 125
Rating: Automotive
TI functional safety category: Functional Safety-Compliant
Operating temperature range (°C): -40 to 125
Rating: Automotive
TMS320F28P650DH
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: C2000 32 位 MCU、600MIPS、2xC28x + 1xCLA CPU、FPU64、768kB 闪存、16 位 ADC
CPU: 2x C28x, CLA
Frequency (MHz): 200
Flash memory (kByte): 768
RAM (kByte): 248
ADC resolution (bps): 12, 16
Total processing (MIPS): 600
UART: 4
CAN (#): 3
Sigma-delta filter: 16
PWM (Ch): 36
TI functional safety category: Functional Safety-Compliant
Number of ADC channels: 24, 34, 36, 40
SPI: 4
QEP: 6
USB: 1
Operating temperature range (°C): -40 to 125
Rating: Catalog
Communication interface: CAN, CAN FD, FSI, I2C, LIN, PMBUS, SCI, SPI, UART, USB
CPU: 2x C28x, CLA
Frequency (MHz): 200
更多
Flash memory (kByte): 768
RAM (kByte): 248
ADC resolution (bps): 12, 16
Total processing (MIPS): 600
UART: 4
CAN (#): 3
Sigma-delta filter: 16
PWM (Ch): 36
TI functional safety category: Functional Safety-Compliant
Number of ADC channels: 24, 34, 36, 40
SPI: 4
QEP: 6
USB: 1
Operating temperature range (°C): -40 to 125
Rating: Catalog
Communication interface: CAN, CAN FD, FSI, I2C, LIN, PMBUS, SCI, SPI, UART, USB
TMS320LF2401A
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: 16 位 DSP、40MHz 频率、8kw 闪存、32 引脚
CPU: C24x
Frequency (MHz): 40
Flash memory (kByte): 16
RAM (kByte): 2
ADC resolution (bps): 10
Sigma-delta filter: 8
PWM (Ch): 8
Number of ADC channels: 5
Operating temperature range (°C): -40 to 125
Rating: Catalog
Communication interface: CAN, SPI, UART
CPU: C24x
Frequency (MHz): 40
Flash memory (kByte): 16
RAM (kByte): 2
ADC resolution (bps): 10
Sigma-delta filter: 8
PWM (Ch): 8
Number of ADC channels: 5
Operating temperature range (°C): -40 to 125
更多
Rating: Catalog
Communication interface: CAN, SPI, UART
TMS320LF2407A
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: 16 位 DSP、40MHz 频率、32kw 闪存、144 引脚
CPU: C24x
Frequency (MHz): 40
Flash memory (kByte): 64
RAM (kByte): 5
ADC resolution (bps): 10
CAN (#): 1
Sigma-delta filter: 8
PWM (Ch): 16
Number of ADC channels: 16
SPI: 1
Operating temperature range (°C): -40 to 125
Rating: Catalog
Communication interface: CAN, SPI, UART
CPU: C24x
Frequency (MHz): 40
Flash memory (kByte): 64
RAM (kByte): 5
ADC resolution (bps): 10
CAN (#): 1
Sigma-delta filter: 8
更多
PWM (Ch): 16
Number of ADC channels: 16
SPI: 1
Operating temperature range (°C): -40 to 125
Rating: Catalog
Communication interface: CAN, SPI, UART
