TLE9854QXW
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: MOTIX™ TLE9854QXW is the perfect fit for single-phase BLDC applications in high temperature
Solid Flash: 64.0kByte
RAM: 4.0kByte
Frequency: 40.0MHz
Interfaces: PWM + LIN
T[j] max: 175.0°C
Operational Amplifier: YES
Temperature: - 40°C - 175°C
Operating Voltage max: 28.0V
Clock Frequency max: 40.0MHz
Instruction Set Architecture: Arm® Cortex® M0
Currently planned availability until at least: 2038
Technology: MOTIX™ MCU (SoC)
Family: MOTIX™ 32-bit motor control SoC

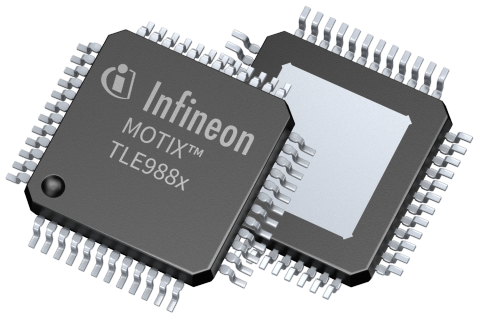

TLE9883-2QTW62S
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: The MOTIX™ TLE9883-2QTW62S is designed to drive up to four external power NFETs
Solid Flash: 256.0kByte
Frequency: 60.0MHz
RAM: 32.0kByte
T[j] max: 175.0°C
Clock Frequency max: 60.0MHz
GPIO: 14
High Voltage Monitor Input: 1
Instruction Set Architecture: Arm® Cortex®-M3
Low Side Switch: 0
MOSFET Drivers(Low Side): 2
MOSFET Drivers(High Side): 2
Operating Voltage max: 28.0V
Operational Amplifier: Yes
PN MOS DRIVER: No
Product Category: Microcontroller (MCU)
Interfaces: CAN FD
Temperature: - 40°C - 175°C
Technology: MOTIX™ MCU (SoC)
Currently planned availability until at least: 2038
Family: MOTIX™ 32-bit motor control SoC
TLE9862QXA40
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: The MOTIX™ TLE9862QXA40 provides a performance- and cost-optimized solution for BDC applications
Frequency: 40.0MHz
Interfaces: PWM + LIN
Operational Amplifier: Yes
RAM: 8.0kByte
Solid Flash: 256.0kByte
T[j] max: 150.0°C
Language: PSpice
Product Category: Microcontroller (MCU)
Temperature: - 40°C - 150°C
Operating Voltage max: 28.0V
Clock Frequency max: 40.0MHz
Instruction Set Architecture: Arm® Cortex®-M3
Currently planned availability until at least: 2038
Technology: MOTIX™ MCU (SoC)
Family: MOTIX™ 32-bit motor control SoC
TLE9869QXA20
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: The MOTIX™ TLE9869QXA20 comes with 128KB Flash, integrated H-Bridge and LIN Trx for DC motor control
Solid Flash: 128.0kByte
RAM: 6.0kByte
Frequency: 24.0MHz
High Side Switch: 0
Low Side Switch: 0
High Voltage Monitor Input: 1
GPIO: 10
Interfaces: PWM + LIN
Operational Amplifier: Yes
MOSFET Drivers(Low Side): 2
MOSFET Drivers(High Side): 2
PN MOS DRIVER: No
T[j] max: 150.0°C
Language: SPICE
Product Category: Microcontroller (MCU)
Temperature: - 40°C - 150°C
Operating Voltage max: 28.0V
Clock Frequency max: 24.0MHz
Instruction Set Architecture: Arm® Cortex®-M3
Currently planned availability until at least: 2038
更多
Technology: MOTIX™ MCU (SoC)
Family: MOTIX™ 32-bit motor control SoC
TLE9871QXA20
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: MOTIX™ TLE9871QXA20 supports low-cost BLDC applications and is typically used for water pump
Solid Flash: 36.0kByte
RAM: 3.0kByte
Frequency: 24.0MHz
High Side Switch: 0
Low Side Switch: 0
High Voltage Monitor Input: 1
GPIO: 10
Interfaces: PWM
Operational Amplifier: Yes
MOSFET Drivers(Low Side): 3
PN MOS DRIVER: No
MOSFET Drivers(High Side): 3
T[j] max: 150.0°C
Language: SPICE
Product Category: Microcontroller (MCU)
Temperature: - 40°C - 150°C
Operating Voltage max: 28.0V
Clock Frequency max: 24.0MHz
Instruction Set Architecture: Arm® Cortex®-M3
Technology: MOTIX™ MCU (SoC)
更多
Currently planned availability until at least: 2035
Family: MOTIX™ 32-bit motor control SoC
TLE9855QX
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: MOTIX™ TLE9855QX integrates an Arm® Cortex®-M0 with 96KB flash and a 2-phase bridge driver
Solid Flash: 96.0kByte
RAM: 4.0kByte
Frequency: 40.0MHz
Interfaces: PWM + LIN
T[j] max: 150.0°C
Operational Amplifier: YES
Temperature: - 40°C - 150°C
Operating Voltage max: 28.0V
Technology: MOTIX™ MCU
Clock Frequency max: 40.0MHz
Instruction Set Architecture: Arm® Cortex® M0

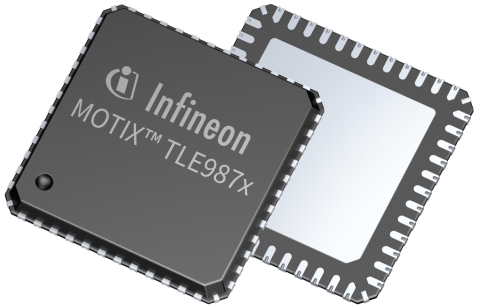

TLE9877QXW40
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: MOTIX™ TLE9877QXW40 offers reliable solutions for automotive applications such as pumps and fans
Solid Flash: 64.0kByte
RAM: 6.0kByte
Frequency: 40.0MHz
High Side Switch: 0
Low Side Switch: 0
High Voltage Monitor Input: 1
GPIO: 10
Interfaces: PWM + LIN
Operational Amplifier: Yes
MOSFET Drivers(Low Side): 3
PN MOS DRIVER: No
MOSFET Drivers(High Side): 3
T[j] max: 175.0°C
Language: SPICE
Product Category: Microcontroller (MCU)
Temperature: - 40°C - 175°C
Operating Voltage max: 28.0V
Clock Frequency max: 40.0MHz
Instruction Set Architecture: Arm® Cortex®-M3
Technology: MOTIX™ MCU (SoC)
更多
Currently planned availability until at least: 2035
Family: MOTIX™ 32-bit motor control SoC
TLE9877QXA40
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: MOTIX™ TLE9877QXA40 is the perfect fit for auxiliary water pumps and support sensorless FOC
RAM: 6.0kByte
Frequency: 40.0MHz
High Side Switch: 0
Low Side Switch: 0
High Voltage Monitor Input: 1
GPIO: 10
Interfaces: PWM + LIN
PN MOS DRIVER: No
Solid Flash: 64.0kByte
Operational Amplifier: Yes
MOSFET Drivers(Low Side): 3
MOSFET Drivers(High Side): 3
T[j] max: 150.0°C
Language: SPICE
Product Category: Microcontroller (MCU)
Temperature: - 40°C - 150°C
Operating Voltage max: 28.0V
Clock Frequency max: 40.0MHz
Instruction Set Architecture: Arm® Cortex®-M3
Technology: MOTIX™ MCU (SoC)
更多
Currently planned availability until at least: 2035
Family: MOTIX™ 32-bit motor control SoC
TLE9881-2QTW60
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: The MOTIX™ TLE9881-2QTW60 offers solutions for automotive applications such as coolant pumps
Clock Frequency max: 60.0MHz
GPIO: 14
High Voltage Monitor Input: 1
Instruction Set Architecture: Arm® Cortex®-M3
Interfaces: CAN2.0
Low Side Switch: 0
MOSFET Drivers(Low Side): 2
MOSFET Drivers(High Side): 2
Operating Voltage max: 28.0V
Operational Amplifier: Yes
PN MOS DRIVER: No
Product Category: Microcontroller (MCU)
RAM: 16.0kByte
Solid Flash: 128.0kByte
T[j] max: 175.0°C
Temperature: - 40°C - 175°C
Frequency: 60.0MHz
Technology: MOTIX™ MCU (SoC)
Currently planned availability until at least: 2038
Family: MOTIX™ 32-bit motor control SoC

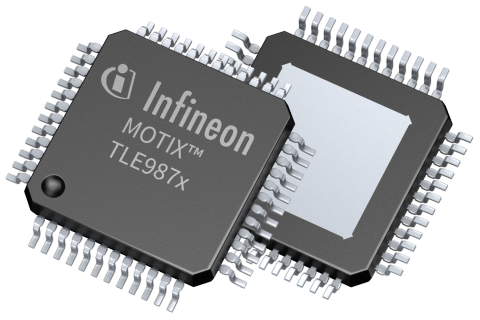

TLE9877QTW40
数据:
分类: 微电路 / 半导体集成电路 / 数字集成电路 / 微处理器(MPU) / 微控制器(MCU)
描述: MOTIX™ TLE9877QTW40 is the perfect fit for auxiliary pumps and fans applications
Solid Flash: 64.0kByte
RAM: 6.0Byte
Frequency: 40.0MHz
Operational Amplifier: Yes
Interfaces: PWM + LIN
T[j] max: 175.0°C
Language: PSpice
Temperature: - 40°C - 175°C
Operating Voltage max: 28.0V
Clock Frequency max: 40.0MHz
Instruction Set Architecture: Arm® Cortex®-M3
Product Category: Microcontroller (MCU)
Technology: MOTIX™ MCU (SoC)
Currently planned availability until at least: 2035
Family: MOTIX™ 32-bit motor control SoC
