TCAN4551-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有集成收发器的汽车控制局域网灵活数据速率 (CAN FD) 控制器

Protocols: CAN, CAN FD Number of channels: 1 Supply voltage (V): 5.5 to 30 Bus fault voltage (V): -58 to 58 Signaling rate (max) (bps): 8000000 Rating: Automotive Protocols: CAN, CAN FD Number of channels: 1 Supply voltage (V): 5.5 to 30 Bus fault voltage (V): -58 to 58 Signaling rate (max) (bps): 8000000 Rating: Automotive

THVD1520

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有 ±8kV IEC ESD 保护功能且速率高达 10Mbps 的 5V RS-485 收发器

Number of receivers: 1 Number of transmitters: 1 Duplex: Half Supply voltage (nom) (V): 5 Signaling rate (max) (Mbps): 10 IEC 61000-4-2 contact (±V): 8000 Fault protection (V): -18 to 18 Common-mode range (V): -7 to 12 Number of nodes: 256 Features: IEC ESD protection Isolated: No Supply current (max) (µA): 840 Rating: Catalog Operating temperature range (°C): -40 to 125 Number of receivers: 1 Number of transmitters: 1 Duplex: Half Supply voltage (nom) (V): 5 Signaling rate (max) (Mbps): 10 IEC 61000-4-2 contact (±V): 8000 更多

Fault protection (V): -18 to 18 Common-mode range (V): -7 to 12 Number of nodes: 256 Features: IEC ESD protection Isolated: No Supply current (max) (µA): 840 Rating: Catalog Operating temperature range (°C): -40 to 125

THVD2410

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有 IEC ESD 保护功能的 3.3V 至 5V、RS-485 ±70V 故障保护收发器

Number of receivers: 1 Number of transmitters: 1 Duplex: Half Supply voltage (nom) (V): 3.3, 5 Signaling rate (max) (Mbps): 0.5 IEC 61000-4-2 contact (±V): 12000 Fault protection (V): -70 to 70 Common-mode range (V): -25 to 25 Number of nodes: 256 Features: Extended common mode, Fault protection, IEC ESD protection Isolated: No Supply current (max) (µA): 5600 Rating: Catalog Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Capable Number of receivers: 1 Number of transmitters: 1 Duplex: Half Supply voltage (nom) (V): 3.3, 5 Signaling rate (max) (Mbps): 0.5 更多

IEC 61000-4-2 contact (±V): 12000 Fault protection (V): -70 to 70 Common-mode range (V): -25 to 25 Number of nodes: 256 Features: Extended common mode, Fault protection, IEC ESD protection Isolated: No Supply current (max) (µA): 5600 Rating: Catalog Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Capable

THVD1505

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 总线极性借助 IEC-ESD 保护校正 RS-485 收发器

Number of receivers: 1 Number of transmitters: 1 Duplex: Half Supply voltage (nom) (V): 5 Signaling rate (max) (Mbps): 1 IEC 61000-4-2 contact (±V): 8000 Fault protection (V): -18 to 18 Common-mode range (V): -7 to 12 Number of nodes: 256 Features: Auto polarity, IEC ESD protection Isolated: No Supply current (max) (µA): 1100 Rating: Catalog Operating temperature range (°C): -40 to 125 Number of receivers: 1 Number of transmitters: 1 Duplex: Half Supply voltage (nom) (V): 5 Signaling rate (max) (Mbps): 1 IEC 61000-4-2 contact (±V): 8000 更多

Fault protection (V): -18 to 18 Common-mode range (V): -7 to 12 Number of nodes: 256 Features: Auto polarity, IEC ESD protection Isolated: No Supply current (max) (µA): 1100 Rating: Catalog Operating temperature range (°C): -40 to 125

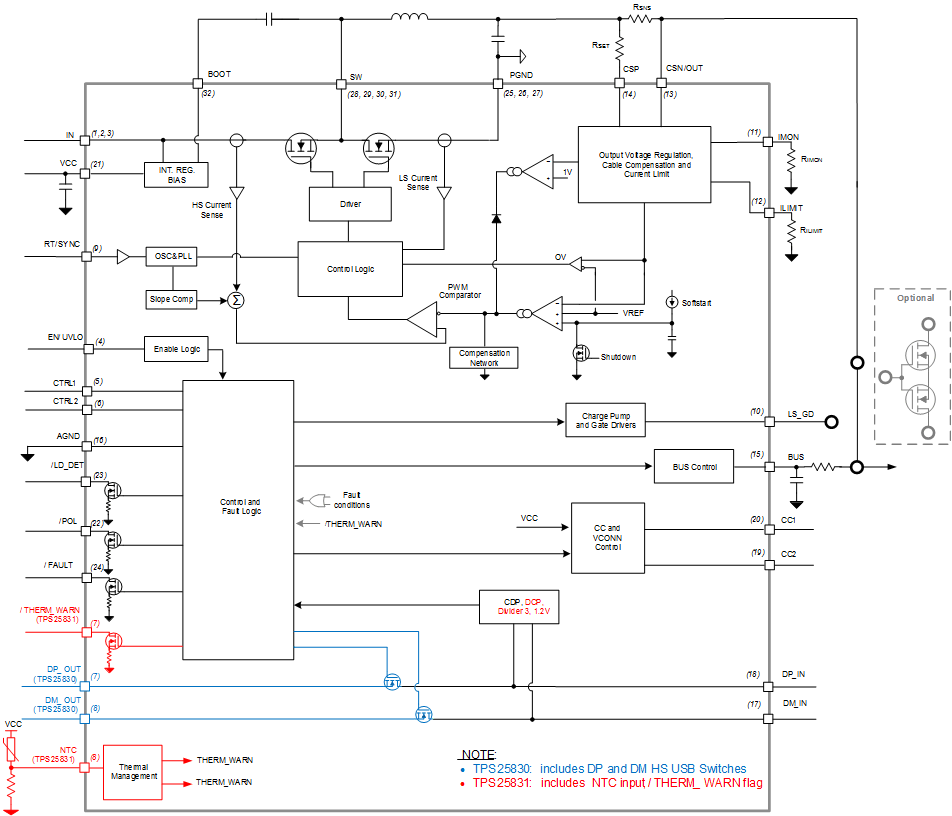

TPS25830-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有 BATT 短路保护和电缆补偿功能的 USB Type-C® 和 SDP/CDP 充电端口转换器

Function: Type-C, USB2, USB3 Type: CC controller, DC/DC converter Power role: Source Alternate mode: No External power-path control: No Data role: DFP Internal power path: 5 V 3 A TI functional safety category: Functional Safety-Capable Rating: Automotive Operating temperature range (°C): -40 to 125 Function: Type-C, USB2, USB3 Type: CC controller, DC/DC converter Power role: Source Alternate mode: No External power-path control: No Data role: DFP Internal power path: 5 V 3 A TI functional safety category: Functional Safety-Capable Rating: Automotive Operating temperature range (°C): -40 to 125

TPS25832-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有电缆补偿功能的 USB Type-C 和 SDP/CDP 充电端口转换器

Function: Type-C, USB2, USB3 Type: CC controller, DC/DC converter Power role: Source Alternate mode: No External power-path control: No Data role: DFP Internal power path: 5 V 3 A USB speed (Mbps): 10000 TI functional safety category: Functional Safety-Capable Rating: Automotive Operating temperature range (°C): -40 to 125 Function: Type-C, USB2, USB3 Type: CC controller, DC/DC converter Power role: Source Alternate mode: No External power-path control: No Data role: DFP Internal power path: 5 V 3 A USB speed (Mbps): 10000 TI functional safety category: Functional Safety-Capable 更多

Rating: Automotive Operating temperature range (°C): -40 to 125

TCAN1046V-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有待机和 1.8V IO 支持的汽车级高速双 CAN 收发器

Protocols: CAN, CAN FD Number of channels: 2 Supply voltage (V): 4.5 to 5.5 Bus fault voltage (V): -58 to 58 Signaling rate (max) (bps): 8000000 Rating: Automotive Protocols: CAN, CAN FD Number of channels: 2 Supply voltage (V): 4.5 to 5.5 Bus fault voltage (V): -58 to 58 Signaling rate (max) (bps): 8000000 Rating: Automotive

TCAN1044V-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有待机和 1.8V I/O 支持的汽车类故障保护高速 CAN 收发器

Protocols: CAN, CAN FD Number of channels: 1 Supply voltage (V): 4.5 to 5.5 Bus fault voltage (V): -58 to 58 Signaling rate (max) (bps): 8000000 Rating: Automotive Protocols: CAN, CAN FD Number of channels: 1 Supply voltage (V): 4.5 to 5.5 Bus fault voltage (V): -58 to 58 Signaling rate (max) (bps): 8000000 Rating: Automotive

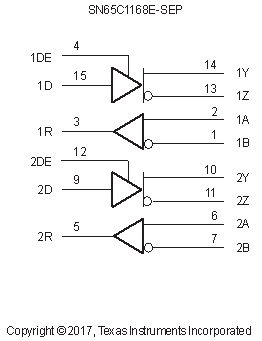

SN65C1168E-SEP

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 采用增强型航天塑料封装的抗辐射加固保障 RS-422 双路差分驱动器和接收器

Number of receivers: 2 Number of transmitters: 2 Duplex: Full Supply voltage (nom) (V): 5 Signaling rate (max) (Mbps): 10 IEC 61000-4-2 contact (±V): 8000 Fault protection (V): -10 to 15 Common-mode range (V): -7 to 7 Number of nodes: 32 Features: IEC ESD protection Isolated: No Supply current (max) (µA): 17000 Rating: Space Operating temperature range (°C): -55 to 125 Number of receivers: 2 Number of transmitters: 2 Duplex: Full Supply voltage (nom) (V): 5 Signaling rate (max) (Mbps): 10 IEC 61000-4-2 contact (±V): 8000 更多

Fault protection (V): -10 to 15 Common-mode range (V): -7 to 7 Number of nodes: 32 Features: IEC ESD protection Isolated: No Supply current (max) (µA): 17000 Rating: Space Operating temperature range (°C): -55 to 125

TPS25833-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有电缆补偿和热折返功能的 USB Type-C、DCP 充电端口转换器

Function: Type-C, USB2, USB3 Type: CC controller, DC/DC converter Power role: Source Alternate mode: No External power-path control: No Data role: Dataless Internal power path: 5 V 3 A USB speed (Mbps): 10000 TI functional safety category: Functional Safety-Capable Rating: Automotive Operating temperature range (°C): -40 to 125 Function: Type-C, USB2, USB3 Type: CC controller, DC/DC converter Power role: Source Alternate mode: No External power-path control: No Data role: Dataless Internal power path: 5 V 3 A USB speed (Mbps): 10000 TI functional safety category: Functional Safety-Capable 更多

Rating: Automotive Operating temperature range (°C): -40 to 125
