ISO1432

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有 EMC 保护功能的 12Mbps、全双工、5kVrms 隔离式 RS-485 和 RS-422 收发器

Rating: Catalog Integrated isolated power: No Isolation rating: Basic, Reinforced Duplex: Full Data rate (max) (Mbps): 12 Working isolation voltage (VIOWM) (Vrms): 1060 Surge isolation voltage (VIOSM) (VPK): 6000, 10000 Transient isolation voltage (VIOTM) (VPK): 7071 Withstand isolation voltage (VISO) (Vrms): 5000 VCC1 (min) (V): 1.71 VCC1 (max) (V): 5.5 VCC2 (min) (V): 3 VCC2 (max) (V): 5.5 Fail safe: Idle, Open, Short CMTI (min) (kV/µs): 85 Operating temperature range (°C): -40 to 125 Rating: Catalog Integrated isolated power: No Isolation rating: Basic, Reinforced Duplex: Full 更多

Data rate (max) (Mbps): 12 Working isolation voltage (VIOWM) (Vrms): 1060 Surge isolation voltage (VIOSM) (VPK): 6000, 10000 Transient isolation voltage (VIOTM) (VPK): 7071 Withstand isolation voltage (VISO) (Vrms): 5000 VCC1 (min) (V): 1.71 VCC1 (max) (V): 5.5 VCC2 (min) (V): 3 VCC2 (max) (V): 5.5 Fail safe: Idle, Open, Short CMTI (min) (kV/µs): 85 Operating temperature range (°C): -40 to 125

ISO1450

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有 EMC 保护功能的 50Mbps、半双工、5kVrms 隔离式 RS-485 和 RS-422 收发器

Rating: Catalog Integrated isolated power: No Isolation rating: Basic, Reinforced Duplex: Half Data rate (max) (Mbps): 50 Working isolation voltage (VIOWM) (Vrms): 1060 Surge isolation voltage (VIOSM) (VPK): 6000, 10000 Transient isolation voltage (VIOTM) (VPK): 7071 Withstand isolation voltage (VISO) (Vrms): 5000 ESD HBM (kV): 30 VCC1 (min) (V): 1.71 VCC1 (max) (V): 5.5 VCC2 (min) (V): 3 VCC2 (max) (V): 5.5 Fail safe: Idle, Open, Short CMTI (min) (kV/µs): 85 Operating temperature range (°C): -40 to 125 Creepage (min) (mm): 8 Clearance (min) (mm): 8 Rating: Catalog 更多

Integrated isolated power: No Isolation rating: Basic, Reinforced Duplex: Half Data rate (max) (Mbps): 50 Working isolation voltage (VIOWM) (Vrms): 1060 Surge isolation voltage (VIOSM) (VPK): 6000, 10000 Transient isolation voltage (VIOTM) (VPK): 7071 Withstand isolation voltage (VISO) (Vrms): 5000 ESD HBM (kV): 30 VCC1 (min) (V): 1.71 VCC1 (max) (V): 5.5 VCC2 (min) (V): 3 VCC2 (max) (V): 5.5 Fail safe: Idle, Open, Short CMTI (min) (kV/µs): 85 Operating temperature range (°C): -40 to 125 Creepage (min) (mm): 8 Clearance (min) (mm): 8

ISO1452

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有 EMC 保护功能的 50Mbps、全双工、5kVrms 隔离式 RS-485 和 RS-422 收发器

Rating: Catalog Integrated isolated power: No Isolation rating: Basic, Reinforced Duplex: Full Data rate (max) (Mbps): 50 Working isolation voltage (VIOWM) (Vrms): 1060 Surge isolation voltage (VIOSM) (VPK): 6000, 10000 Transient isolation voltage (VIOTM) (VPK): 7071 Withstand isolation voltage (VISO) (Vrms): 5000 ESD HBM (kV): 30 VCC1 (min) (V): 1.71 VCC1 (max) (V): 5.5 VCC2 (min) (V): 3 VCC2 (max) (V): 5.5 Fail safe: Idle, Open, Short CMTI (min) (kV/µs): 85 Operating temperature range (°C): -40 to 125 Creepage (min) (mm): 8 Clearance (min) (mm): 8 Rating: Catalog 更多

Integrated isolated power: No Isolation rating: Basic, Reinforced Duplex: Full Data rate (max) (Mbps): 50 Working isolation voltage (VIOWM) (Vrms): 1060 Surge isolation voltage (VIOSM) (VPK): 6000, 10000 Transient isolation voltage (VIOTM) (VPK): 7071 Withstand isolation voltage (VISO) (Vrms): 5000 ESD HBM (kV): 30 VCC1 (min) (V): 1.71 VCC1 (max) (V): 5.5 VCC2 (min) (V): 3 VCC2 (max) (V): 5.5 Fail safe: Idle, Open, Short CMTI (min) (kV/µs): 85 Operating temperature range (°C): -40 to 125 Creepage (min) (mm): 8 Clearance (min) (mm): 8

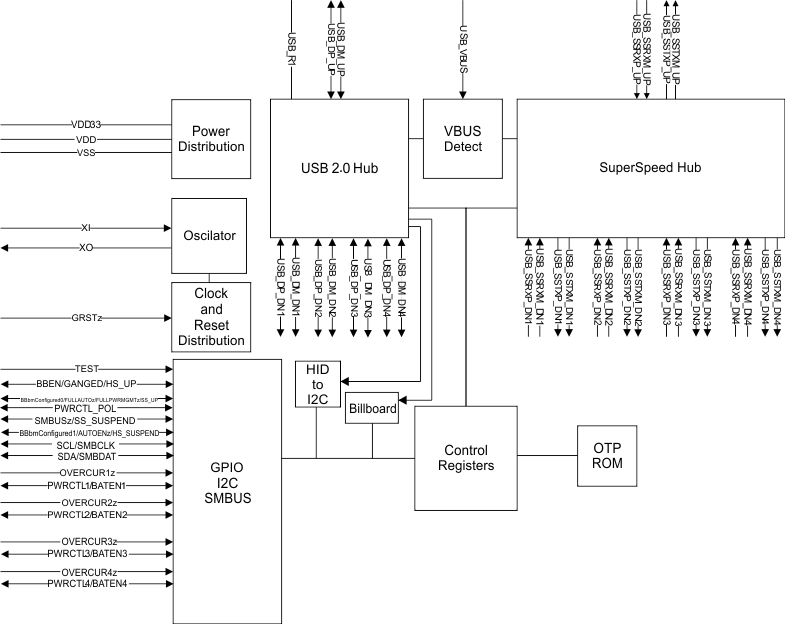

TUSB8044A

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有 USB 告示板的四端口 USB 3.2 x1 Gen1 集线器

Function: USB3 USB speed (Mbps): 5000 Type: Hub Supply voltage (V): 1.1, 3.3 Rating: Catalog Operating temperature range (°C): -40 to 85 Function: USB3 USB speed (Mbps): 5000 Type: Hub Supply voltage (V): 1.1, 3.3 Rating: Catalog Operating temperature range (°C): -40 to 85

THVD1410

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有 ±18kV IEC ESD 保护功能的 3.3V 至 5V RS-485 收发器

Number of receivers: 1 Number of transmitters: 1 Duplex: Half Supply voltage (nom) (V): 3.3, 5 Signaling rate (max) (Mbps): 0.5 IEC 61000-4-2 contact (±V): 18000 Fault protection (V): -18 to 18 Common-mode range (V): -15 to 15 Number of nodes: 256 Features: Extended common mode, IEC ESD protection Isolated: No Supply current (max) (µA): 2800 Rating: Catalog Operating temperature range (°C): -40 to 125 Number of receivers: 1 Number of transmitters: 1 Duplex: Half Supply voltage (nom) (V): 3.3, 5 Signaling rate (max) (Mbps): 0.5 IEC 61000-4-2 contact (±V): 18000 更多

Fault protection (V): -18 to 18 Common-mode range (V): -15 to 15 Number of nodes: 256 Features: Extended common mode, IEC ESD protection Isolated: No Supply current (max) (µA): 2800 Rating: Catalog Operating temperature range (°C): -40 to 125

THVD1419

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有浪涌保护功能的 3.3V 至 5V RS-485 收发器

Number of receivers: 1 Number of transmitters: 1 Duplex: Half Supply voltage (nom) (V): 3.3, 5 Signaling rate (max) (Mbps): 0.25 IEC 61000-4-2 contact (±V): 8000 Fault protection (V): -15 to 15 Common-mode range (V): -12 to 12 Number of nodes: 256 Features: Extended common mode, IEC ESD protection, Surge protection Isolated: No Supply current (max) (µA): 3000 Rating: Catalog Operating temperature range (°C): -40 to 125 Number of receivers: 1 Number of transmitters: 1 Duplex: Half Supply voltage (nom) (V): 3.3, 5 Signaling rate (max) (Mbps): 0.25 IEC 61000-4-2 contact (±V): 8000 更多

Fault protection (V): -15 to 15 Common-mode range (V): -12 to 12 Number of nodes: 256 Features: Extended common mode, IEC ESD protection, Surge protection Isolated: No Supply current (max) (µA): 3000 Rating: Catalog Operating temperature range (°C): -40 to 125

THVD1452

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有 ±18kV IEC ESD 保护功能的 3.3V 至 5V RS-485 收发器

Number of receivers: 1 Number of transmitters: 1 Duplex: Full Supply voltage (nom) (V): 3.3, 5 Signaling rate (max) (Mbps): 50 IEC 61000-4-2 contact (±V): 18000 Fault protection (V): -18 to 18 Common-mode range (V): -15 to 15 Number of nodes: 256 Features: Extended common mode, IEC ESD protection Isolated: No Supply current (max) (µA): 2800 Rating: Catalog Operating temperature range (°C): -40 to 125 Number of receivers: 1 Number of transmitters: 1 Duplex: Full Supply voltage (nom) (V): 3.3, 5 Signaling rate (max) (Mbps): 50 IEC 61000-4-2 contact (±V): 18000 更多

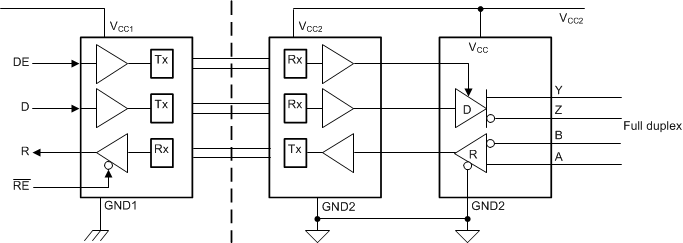

ISO1412

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有 EMC 保护功能的 500Kbps、全双工、5kVrms 隔离式 RS-485 和 RS-422 收发器

Rating: Catalog Integrated isolated power: No Isolation rating: Basic, Reinforced Duplex: Full Data rate (max) (Mbps): 0.5 Working isolation voltage (VIOWM) (Vrms): 1060 Surge isolation voltage (VIOSM) (VPK): 6000, 10000 Transient isolation voltage (VIOTM) (VPK): 7071 Withstand isolation voltage (VISO) (Vrms): 5000 VCC1 (min) (V): 1.71 VCC1 (max) (V): 5.5 VCC2 (min) (V): 3 VCC2 (max) (V): 5.5 Fail safe: Idle, Open, Short CMTI (min) (kV/µs): 85 Operating temperature range (°C): -40 to 125 Rating: Catalog Integrated isolated power: No Isolation rating: Basic, Reinforced Duplex: Full 更多

Data rate (max) (Mbps): 0.5 Working isolation voltage (VIOWM) (Vrms): 1060 Surge isolation voltage (VIOSM) (VPK): 6000, 10000 Transient isolation voltage (VIOTM) (VPK): 7071 Withstand isolation voltage (VISO) (Vrms): 5000 VCC1 (min) (V): 1.71 VCC1 (max) (V): 5.5 VCC2 (min) (V): 3 VCC2 (max) (V): 5.5 Fail safe: Idle, Open, Short CMTI (min) (kV/µs): 85 Operating temperature range (°C): -40 to 125

THVD1429

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有浪涌保护功能的 3.3V 至 5V RS-485 收发器

Number of receivers: 1 Number of transmitters: 1 Duplex: Half Supply voltage (nom) (V): 3.3, 5 Signaling rate (max) (Mbps): 20 IEC 61000-4-2 contact (±V): 8000 Fault protection (V): -15 to 15 Common-mode range (V): -12 to 12 Number of nodes: 256 Features: Extended common mode, IEC ESD protection, Surge protection Isolated: No Supply current (max) (µA): 3000 Rating: Catalog Operating temperature range (°C): -40 to 125 Number of receivers: 1 Number of transmitters: 1 Duplex: Half Supply voltage (nom) (V): 3.3, 5 Signaling rate (max) (Mbps): 20 IEC 61000-4-2 contact (±V): 8000 更多

TUSB217-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有直流升压、集成式 CDP 和宽电源的汽车 USB 2.0 高速信号调节器

Type: Redriver USB speed (Mbps): 480 Number of channels: 1 Supply voltage (max) (V): 6.5 Supply voltage (min) (V): 2.3 Input/output voltage (min) (V): 0 Input/output voltage (max) (V): 3.6 Configuration: USB 2.0 Single Port Rating: Automotive Operating temperature range (°C): -40 to 105 Supply current (max) (µA): 36000 ESD HBM (typ) (kV): 2 Bandwidth (MHz): 240 Type: Redriver USB speed (Mbps): 480 Number of channels: 1 Supply voltage (max) (V): 6.5 Supply voltage (min) (V): 2.3 Input/output voltage (min) (V): 0 Input/output voltage (max) (V): 3.6 更多

Configuration: USB 2.0 Single Port Rating: Automotive Operating temperature range (°C): -40 to 105 Supply current (max) (µA): 36000 ESD HBM (typ) (kV): 2 Bandwidth (MHz): 240
