ISO1500

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 1Mbps、半双工、3kVrms 超小型隔离式 RS-485 和 RS-422 收发器

Rating: Catalog Integrated isolated power: No Isolation rating: Basic Duplex: Half Data rate (max) (Mbps): 1 Working isolation voltage (VIOWM) (Vrms): 400 Surge isolation voltage (VIOSM) (VPK): 4000 Transient isolation voltage (VIOTM) (VPK): 4242 Withstand isolation voltage (VISO) (Vrms): 2500 ESD HBM (kV): 16 VCC1 (min) (V): 1.71 VCC1 (max) (V): 5.5 VCC2 (min) (V): 4.5 VCC2 (max) (V): 5.5 Fail safe: Idle, Open, Short CMTI (min) (kV/µs): 85 Operating temperature range (°C): -40 to 125 Creepage (min) (mm): 3.7 Clearance (min) (mm): 3.7 Rating: Catalog 更多

Integrated isolated power: No Isolation rating: Basic Duplex: Half Data rate (max) (Mbps): 1 Working isolation voltage (VIOWM) (Vrms): 400 Surge isolation voltage (VIOSM) (VPK): 4000 Transient isolation voltage (VIOTM) (VPK): 4242 Withstand isolation voltage (VISO) (Vrms): 2500 ESD HBM (kV): 16 VCC1 (min) (V): 1.71 VCC1 (max) (V): 5.5 VCC2 (min) (V): 4.5 VCC2 (max) (V): 5.5 Fail safe: Idle, Open, Short CMTI (min) (kV/µs): 85 Operating temperature range (°C): -40 to 125 Creepage (min) (mm): 3.7 Clearance (min) (mm): 3.7

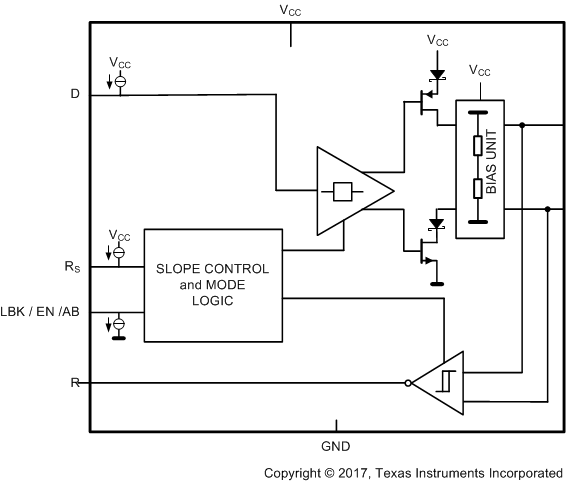

SN55HVD233-SEP

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 采用增强型航天塑料封装且具有待机模式的耐辐射 3.3V CAN 收发器

Protocols: CAN Number of channels: 1 Supply voltage (V): 3 to 3.6 Bus fault voltage (V): -16 to 16 Signaling rate (max) (bps): 1000000 Rating: Space Protocols: CAN Number of channels: 1 Supply voltage (V): 3 to 3.6 Bus fault voltage (V): -16 to 16 Signaling rate (max) (bps): 1000000 Rating: Space

ISO1410

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有 EMC 保护功能的 500Kbps、半双工、5kVrms 隔离式 RS-485 和 RS-422 收发器

Rating: Catalog Integrated isolated power: No Isolation rating: Basic, Reinforced Duplex: Half Data rate (max) (Mbps): 0.5 Working isolation voltage (VIOWM) (Vrms): 1060 Surge isolation voltage (VIOSM) (VPK): 6000, 10000 Transient isolation voltage (VIOTM) (VPK): 7071 Withstand isolation voltage (VISO) (Vrms): 5000 ESD HBM (kV): 30 VCC1 (min) (V): 1.71 VCC1 (max) (V): 5.5 VCC2 (min) (V): 3 VCC2 (max) (V): 5.5 Fail safe: Idle, Open, Short CMTI (min) (kV/µs): 85 Operating temperature range (°C): -40 to 125 Creepage (min) (mm): 8 Clearance (min) (mm): 8 Rating: Catalog 更多

Integrated isolated power: No Isolation rating: Basic, Reinforced Duplex: Half Data rate (max) (Mbps): 0.5 Working isolation voltage (VIOWM) (Vrms): 1060 Surge isolation voltage (VIOSM) (VPK): 6000, 10000 Transient isolation voltage (VIOTM) (VPK): 7071 Withstand isolation voltage (VISO) (Vrms): 5000 ESD HBM (kV): 30 VCC1 (min) (V): 1.71 VCC1 (max) (V): 5.5 VCC2 (min) (V): 3 VCC2 (max) (V): 5.5 Fail safe: Idle, Open, Short CMTI (min) (kV/µs): 85 Operating temperature range (°C): -40 to 125 Creepage (min) (mm): 8 Clearance (min) (mm): 8

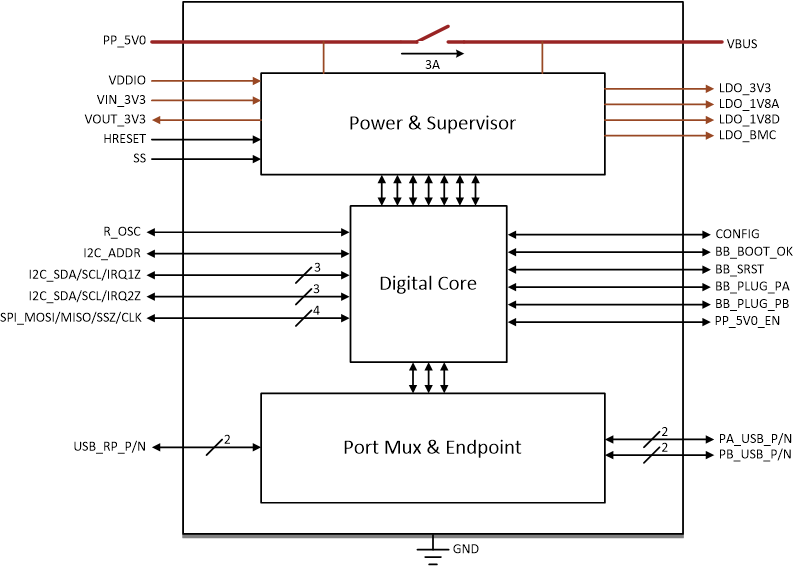

TPS65982BB

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 带集成 5V 负载开关且适用于 USB-C® 电力输送器件的双 USB 告示板

Function: USB2 Type: Passive switch External power-path control: No Internal power path: 5 V 3 A USB speed (Mbps): 480 Rating: Catalog Operating temperature range (°C): -10 to 85 Function: USB2 Type: Passive switch External power-path control: No Internal power path: 5 V 3 A USB speed (Mbps): 480 Rating: Catalog Operating temperature range (°C): -10 to 85

ISO1042-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有 70V 总线故障保护功能和灵活数据速率的汽车类隔离式 CAN 收发器

Rating: Automotive Isolation rating: Basic, Reinforced Data rate (max) (Mbps): 5 Working isolation voltage (VIOWM) (Vrms): 1060 Surge isolation voltage (VIOSM) (VPK): 6000, 10000 Transient isolation voltage (VIOTM) (VPK): 7071 Withstand isolation voltage (VISO) (Vrms): 5000 CMTI (min) (kV/µs): 85 Bus fault voltage (V): -70 to 70 Common-mode voltage (V): -30 to 30 Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Capable Rating: Automotive Isolation rating: Basic, Reinforced Data rate (max) (Mbps): 5 Working isolation voltage (VIOWM) (Vrms): 1060 Surge isolation voltage (VIOSM) (VPK): 6000, 10000 Transient isolation voltage (VIOTM) (VPK): 7071 Withstand isolation voltage (VISO) (Vrms): 5000 CMTI (min) (kV/µs): 85 更多

Bus fault voltage (V): -70 to 70 Common-mode voltage (V): -30 to 30 Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Capable

ISO1042

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有 70V 总线故障保护功能和灵活数据速率的隔离式 CAN 收发器

Rating: Catalog Isolation rating: Basic, Reinforced Data rate (max) (Mbps): 5 Working isolation voltage (VIOWM) (Vrms): 1060 Surge isolation voltage (VIOSM) (VPK): 6000, 10000 Transient isolation voltage (VIOTM) (VPK): 7071 Withstand isolation voltage (VISO) (Vrms): 5000 CMTI (min) (kV/µs): 85 Supply voltage (V): 1.71 to 5.5, 4.5 to 5.5 Bus fault voltage (V): -70 to 70 Common-mode voltage (V): -30 to 30 ESD HBM (kV): 16 Creepage (min) (mm): 8, 8.5 Clearance (min) (mm): 8, 8.5 Operating temperature range (°C): -40 to 125 Rating: Catalog Isolation rating: Basic, Reinforced Data rate (max) (Mbps): 5 Working isolation voltage (VIOWM) (Vrms): 1060 Surge isolation voltage (VIOSM) (VPK): 6000, 10000 更多

Transient isolation voltage (VIOTM) (VPK): 7071 Withstand isolation voltage (VISO) (Vrms): 5000 CMTI (min) (kV/µs): 85 Supply voltage (V): 1.71 to 5.5, 4.5 to 5.5 Bus fault voltage (V): -70 to 70 Common-mode voltage (V): -30 to 30 ESD HBM (kV): 16 Creepage (min) (mm): 8, 8.5 Clearance (min) (mm): 8, 8.5 Operating temperature range (°C): -40 to 125

TS3USBCA4

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: USB Type-C® SBU 多路复用器

Type: Passive mux Function: Type-C USB speed (Mbps): 480 Number of channels: 3 Supply voltage (max) (V): 5.5 Supply voltage (min) (V): 2.4 Ron (typ) (mΩ): 5000 Input/output voltage (min) (V): 0 Input/output voltage (max) (V): 5.5 Configuration: 3:1, 4:1 Features: SBU Multiplexer with MIC/AGND Rating: Catalog Operating temperature range (°C): -40 to 85 Supply current (max) (µA): 70 ESD HBM (typ) (kV): 2 Bandwidth (MHz): 500 Type: Passive mux Function: Type-C USB speed (Mbps): 480 Number of channels: 3 更多

Supply voltage (max) (V): 5.5 Supply voltage (min) (V): 2.4 Ron (typ) (mΩ): 5000 Input/output voltage (min) (V): 0 Input/output voltage (max) (V): 5.5 Configuration: 3:1, 4:1 Features: SBU Multiplexer with MIC/AGND Rating: Catalog Operating temperature range (°C): -40 to 85 Supply current (max) (µA): 70 ESD HBM (typ) (kV): 2 Bandwidth (MHz): 500

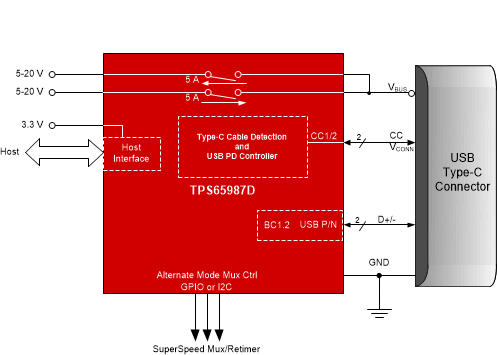

TPS65987D

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有集成电源开关的 USB Type-C® 和 USB-C® 电力输送控制器

Function: Type-C Type: PD controller Power role: DRP, Sink, Source Alternate mode: Yes External power-path control: GPIO, I2C Data role: DFP, DRD, UFP Internal power path: 20 V 5 A Rating: Catalog Dead battery support: Yes Operating temperature range (°C): -10 to 75 Function: Type-C Type: PD controller Power role: DRP, Sink, Source Alternate mode: Yes External power-path control: GPIO, I2C Data role: DFP, DRD, UFP Internal power path: 20 V 5 A Rating: Catalog Dead battery support: Yes Operating temperature range (°C): -10 to 75

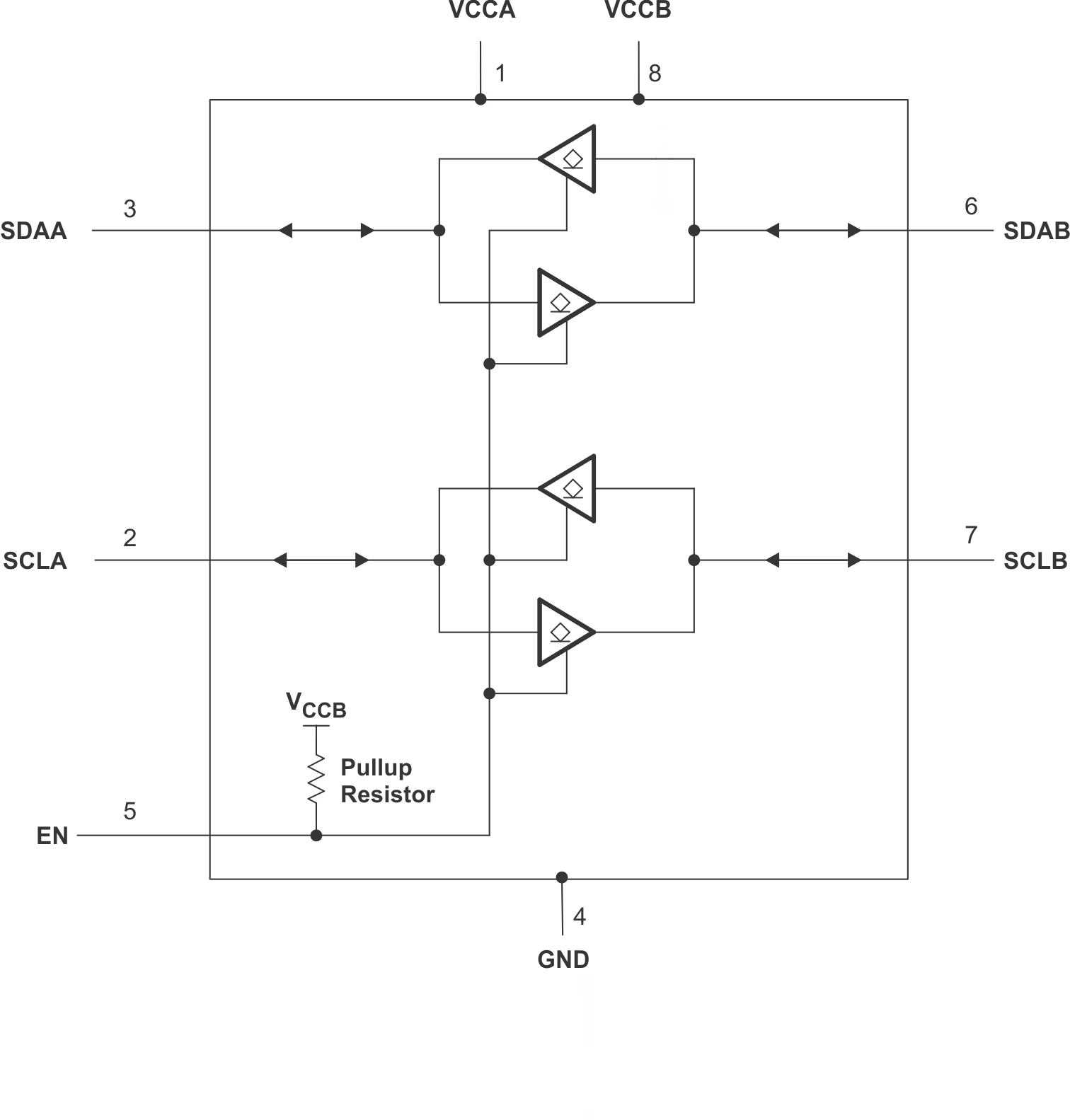

TCA9517-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有断电高阻抗的汽车类 2 位电平转换 400kHz I2C/SMBus 缓冲器/中继器

Features: Buffer, Enable pin Protocols: I2C Frequency (max) (MHz): 0.4 VCCA (min) (V): 0.9 VCCA (max) (V): 5.25 VCCB (min) (V): 2.7 VCCB (max) (V): 5.25 Supply restrictions: No rule Rating: Automotive TI functional safety category: Functional Safety-Capable Operating temperature range (°C): -40 to 125 Features: Buffer, Enable pin Protocols: I2C Frequency (max) (MHz): 0.4 VCCA (min) (V): 0.9 VCCA (max) (V): 5.25 VCCB (min) (V): 2.7 VCCB (max) (V): 5.25 Supply restrictions: No rule Rating: Automotive 更多

TI functional safety category: Functional Safety-Capable Operating temperature range (°C): -40 to 125

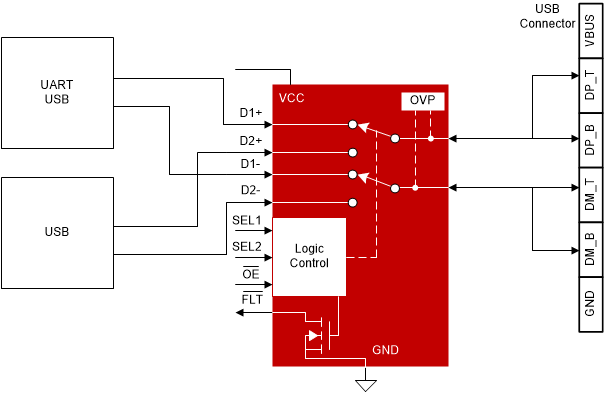

TS5USBC41

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 总线接口电路

描述: 具有 20V/24V OVP 功能的双通道 2:1 USB 2.0 多路复用器/多路信号分离器或单端交叉点开关

Type: Passive mux Function: USB 2.0 USB speed (Mbps): 480 Number of channels: 2 Supply voltage (max) (V): 5.5 Supply voltage (min) (V): 2.3 Ron (typ) (mΩ): 5600 Input/output voltage (min) (V): 0 Input/output voltage (max) (V): 18 Configuration: 2:1 SPDT Features: 20V Over Voltage Protection, Very low power consumption Rating: Catalog Operating temperature range (°C): -40 to 85 Supply current (max) (µA): 22 ESD HBM (typ) (kV): 2 Bandwidth (MHz): 1200 Type: Passive mux Function: USB 2.0 USB speed (Mbps): 480 Number of channels: 2 更多

Supply voltage (max) (V): 5.5 Supply voltage (min) (V): 2.3 Ron (typ) (mΩ): 5600 Input/output voltage (min) (V): 0 Input/output voltage (max) (V): 18 Configuration: 2:1 SPDT Features: 20V Over Voltage Protection, Very low power consumption Rating: Catalog Operating temperature range (°C): -40 to 85 Supply current (max) (µA): 22 ESD HBM (typ) (kV): 2 Bandwidth (MHz): 1200
