ADC3908S025

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 8 位、单通道、25MSPS ADC、单时钟周期延迟单输入或差分输入引脚控制

Sample rate (max) (Msps): 25 Resolution (Bits): 8 Number of input channels: 1 Interface type: Parallel CMOS, Serial CMOS Analog input BW (MHz): 150 Features: Differential Inputs, Input buffer, Low power, Power Down Rating: Catalog Peak-to-peak input voltage range (V): 1.9 Power consumption (typ) (mW): 39 Architecture: SAR SNR (dB): 49.8 ENOB (Bits): 8 SFDR (dB): 65 Operating temperature range (°C): -40 to 105 Input buffer: Yes Sample rate (max) (Msps): 25 Resolution (Bits): 8 Number of input channels: 1 Interface type: Parallel CMOS, Serial CMOS Analog input BW (MHz): 150 更多

Features: Differential Inputs, Input buffer, Low power, Power Down Rating: Catalog Peak-to-peak input voltage range (V): 1.9 Power consumption (typ) (mW): 39 Architecture: SAR SNR (dB): 49.8 ENOB (Bits): 8 SFDR (dB): 65 Operating temperature range (°C): -40 to 105 Input buffer: Yes

ADC3908S065

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 8 位、单通道、65MSPS ADC、单时钟周期延迟单输入或差分输入引脚控制

Sample rate (max) (Msps): 65 Resolution (Bits): 8 Number of input channels: 1 Interface type: Parallel CMOS, Serial CMOS Analog input BW (MHz): 150 Features: Differential Inputs, Input buffer, Low power, Power Down Rating: Catalog Peak-to-peak input voltage range (V): 1.9 Power consumption (typ) (mW): 49 Architecture: SAR SNR (dB): 49.8 ENOB (Bits): 8 SFDR (dB): 65 Operating temperature range (°C): -40 to 105 Input buffer: Yes Sample rate (max) (Msps): 65 Resolution (Bits): 8 Number of input channels: 1 Interface type: Parallel CMOS, Serial CMOS Analog input BW (MHz): 150 更多

Features: Differential Inputs, Input buffer, Low power, Power Down Rating: Catalog Peak-to-peak input voltage range (V): 1.9 Power consumption (typ) (mW): 49 Architecture: SAR SNR (dB): 49.8 ENOB (Bits): 8 SFDR (dB): 65 Operating temperature range (°C): -40 to 105 Input buffer: Yes

ADC3908S125

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 8 位、单通道、125MSPS ADC、单时钟周期延迟单输入或差分输入引脚控制

Sample rate (max) (Msps): 125 Resolution (Bits): 8 Number of input channels: 1 Interface type: Parallel CMOS, Serial CMOS Analog input BW (MHz): 150 Features: Differential Inputs, Input buffer, Low power, Power Down Rating: Catalog Peak-to-peak input voltage range (V): 1.9 Power consumption (typ) (mW): 60 Architecture: SAR SNR (dB): 49.8 ENOB (Bits): 8 SFDR (dB): 65 Operating temperature range (°C): -40 to 105 Input buffer: Yes Sample rate (max) (Msps): 125 Resolution (Bits): 8 Number of input channels: 1 Interface type: Parallel CMOS, Serial CMOS Analog input BW (MHz): 150 更多

Features: Differential Inputs, Input buffer, Low power, Power Down Rating: Catalog Peak-to-peak input voltage range (V): 1.9 Power consumption (typ) (mW): 60 Architecture: SAR SNR (dB): 49.8 ENOB (Bits): 8 SFDR (dB): 65 Operating temperature range (°C): -40 to 105 Input buffer: Yes

ADC3908D125

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 8 位、双通道、125MSPS ADC 单时钟周期延迟单输入或差分输入引脚控制

Sample rate (max) (Msps): 125 Resolution (Bits): 8 Number of input channels: 2 Interface type: Parallel CMOS, Serial CMOS Analog input BW (MHz): 150 Features: Differential Inputs, Input buffer, Low power, Power Down Rating: Catalog Peak-to-peak input voltage range (V): 1.9 Power consumption (typ) (mW): 90 Architecture: SAR SNR (dB): 49.8 ENOB (Bits): 8 SFDR (dB): 65 Operating temperature range (°C): -40 to 105 Input buffer: Yes Sample rate (max) (Msps): 125 Resolution (Bits): 8 Number of input channels: 2 Interface type: Parallel CMOS, Serial CMOS Analog input BW (MHz): 150 更多

Features: Differential Inputs, Input buffer, Low power, Power Down Rating: Catalog Peak-to-peak input voltage range (V): 1.9 Power consumption (typ) (mW): 90 Architecture: SAR SNR (dB): 49.8 ENOB (Bits): 8 SFDR (dB): 65 Operating temperature range (°C): -40 to 105 Input buffer: Yes

ADS127L21B

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有最大 0.8ppm INL 高线性度的 24 位、512kSPS 宽带宽 Δ-Σ ADC

Resolution (Bits): 24 Sample rate (max) (ksps): 1365 Number of input channels: 1 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Rating: Catalog TI functional safety category: Functional Safety-Capable Reference mode: External Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator, Small Size, Wideband Operating temperature range (°C): -40 to 125 Analog supply (min) (V): 2.85 Analog supply voltage (max) (V): 5.5 SNR (dB): 110 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 24 Sample rate (max) (ksps): 1365 更多

Number of input channels: 1 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Rating: Catalog TI functional safety category: Functional Safety-Capable Reference mode: External Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator, Small Size, Wideband Operating temperature range (°C): -40 to 125 Analog supply (min) (V): 2.85 Analog supply voltage (max) (V): 5.5 SNR (dB): 110 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5

ADS9212

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有集成模拟前端的 18 位 8MSPS 双通道同步采样 ADC

Resolution (Bits): 18 Sample rate (max) (ksps): 8000 Number of input channels: 2 Interface type: Enhanced SPI, Serial CMOS Architecture: SAR Input type: Differential, Single-ended Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 12 Input voltage range (min) (V): -12 Features: Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 220 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 92.3 Digital supply (min) (V): 1.75 Digital supply (max) (V): 1.85 Resolution (Bits): 18 更多

Sample rate (max) (ksps): 8000 Number of input channels: 2 Interface type: Enhanced SPI, Serial CMOS Architecture: SAR Input type: Differential, Single-ended Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 12 Input voltage range (min) (V): -12 Features: Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 220 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 92.3 Digital supply (min) (V): 1.75 Digital supply (max) (V): 1.85

AMC0386-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有集成电阻分压器和外部时钟的汽车级交流输入隔离式调制器

Rating: Automotive Operating temperature range (°C): -40 to 125 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1500 Transient isolation voltage (VIOTM) (VPK): 7000 Creepage (min) (mm): 8 Clearance (min) (mm): 8.5 Rating: Automotive Operating temperature range (°C): -40 to 125 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1500 Transient isolation voltage (VIOTM) (VPK): 7000 Creepage (min) (mm): 8 Clearance (min) (mm): 8.5

TAA3020

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有 104dB SNR 的立体声通道、768kHz Burr-Brown™ 音频模数转换器 (ADC)

Number of ADC channels: 2 Analog inputs: 2 Digital audio interface: I2S, L, TDM Control interface: I2C Sampling rate (max) (kHz): 768 ADC SNR (typ) (dB): 104 Rating: Catalog Analog outputs: 0 Operating temperature range (°C): -40 to 105 Number of ADC channels: 2 Analog inputs: 2 Digital audio interface: I2S, L, TDM Control interface: I2C Sampling rate (max) (kHz): 768 ADC SNR (typ) (dB): 104 Rating: Catalog Analog outputs: 0 Operating temperature range (°C): -40 to 105

TAA3040

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有 104dB SNR 的四通道、768kHz Burr-Brown™ 音频模数转换器 (ADC)

Number of ADC channels: 4 Analog inputs: 4 Digital audio interface: I2S, L, TDM Control interface: I2C, SPI Sampling rate (max) (kHz): 768 ADC SNR (typ) (dB): 104 Rating: Catalog Analog outputs: 0 Operating temperature range (°C): -40 to 105 Number of ADC channels: 4 Analog inputs: 4 Digital audio interface: I2S, L, TDM Control interface: I2C, SPI Sampling rate (max) (kHz): 768 ADC SNR (typ) (dB): 104 Rating: Catalog Analog outputs: 0 Operating temperature range (°C): -40 to 105

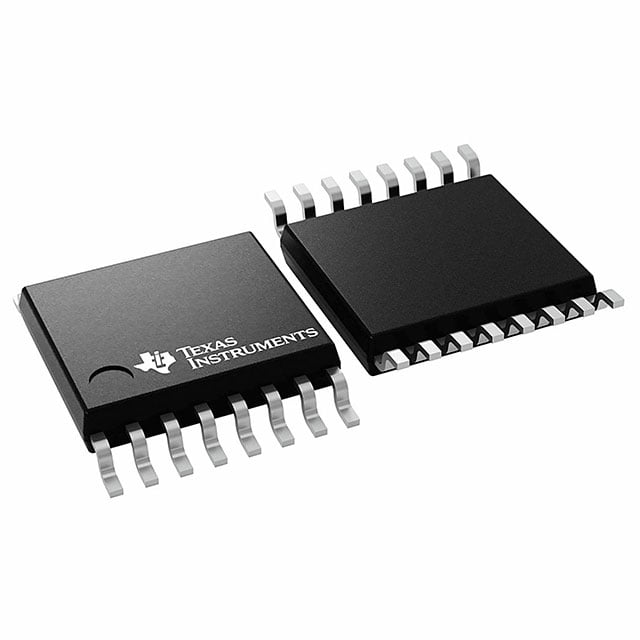

ADS8354IPWR

分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 16 位模数转换器 2 输入 2 SAR 16-TSSOP

位数: 16 采样率（每秒）: 700k 输入数: 2 输入类型: 差分数据接口: SPI 配置: S/H-ADC 比率 - S/H:ADC: 1：1 A/D 转换器数: 2 架构: SAR 参考类型: 外部，内部电压 - 供电，模拟: 5V 电压 - 供电，数字: 1.65V ~ 5.5V 特性: 同步采样工作温度: -40°C ~ 125°C 封装/外壳: 16-TSSOP（0.173，4.40mm 宽）供应商器件封装: 16-TSSOP 安装类型: 表面贴装型
