Device type: Current sensing Peak-to-peak input voltage range (V): 50mV Interface type: Serial CMOS Sample rate (max) (Msps): 21 Rating: Automotive CMTI (min) (kV/µs): 100 Number of input channels: 1 Architecture: Delta-Sigma SNR (dB): 82 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 48 SFDR (dB): 83 TI functional safety category: Functional Safety-Capable Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1500 Transient isolation voltage (VIOTM) (VPK): 7.07 Creepage (min) (mm): 8.5 Clearance (min) (mm): 8.5 Device type: Current sensing 更多

Device type: Current sensing Peak-to-peak input voltage range (V): 250mV Interface type: Serial CMOS Sample rate (max) (Msps): 21 Rating: Automotive CMTI (min) (kV/µs): 100 Number of input channels: 1 Architecture: Delta-Sigma SNR (dB): 82 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 48 SFDR (dB): 83 TI functional safety category: Functional Safety-Capable Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1500 Transient isolation voltage (VIOTM) (VPK): 7.07 Creepage (min) (mm): 8.5 Clearance (min) (mm): 8.5 Device type: Current sensing 更多

Device type: Transmitter Number of input channels: 16 Active supply current (typ) (mA): 3.6 Supply voltage (max) (V): 5.5 Operating temperature range (°C): 0 to 70 Interface type: Serial Rating: Catalog Device type: Transmitter Number of input channels: 16 Active supply current (typ) (mA): 3.6 Supply voltage (max) (V): 5.5 Operating temperature range (°C): 0 to 70 Interface type: Serial Rating: Catalog

Number of input channels: 2 Resolution (Bits): 22 Interface type: I2C, SPI Operating temperature range (°C): -40 to 85 Rating: Catalog Number of input channels: 2 Resolution (Bits): 22 Interface type: I2C, SPI Operating temperature range (°C): -40 to 85 Rating: Catalog

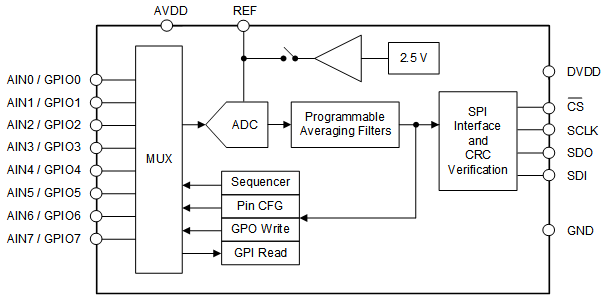

Resolution (Bits): 16 Sample rate (max) (ksps): 800 Number of input channels: 8 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, GPIO, Small Size Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 5 Analog supply (min) (V): 3 Analog supply voltage (max) (V): 5.5 SNR (dB): 85.3 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 16 更多

Resolution (Bits): 16 Sample rate (max) (ksps): 32 Number of input channels: 2 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Simultaneous Sampling Rating: Automotive TI functional safety category: Functional Safety-Capable Reference mode: Internal Input voltage range (max) (V): 2.4 Input voltage range (min) (V): -0.3 Features: PGA, Small Size Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 10.6 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 3.6 Digital supply (min) (V): 2.7 Digital supply (max) (V): 3.6 Resolution (Bits): 16 更多

Resolution (Bits): 16 Sample rate (max) (ksps): 32 Number of input channels: 4 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Simultaneous Sampling Rating: Automotive TI functional safety category: Functional Safety-Capable Reference mode: Internal Input voltage range (max) (V): 2.4 Input voltage range (min) (V): -0.3 Features: PGA, Small Size Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 19.8 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 3.6 Digital supply (min) (V): 2.7 Digital supply (max) (V): 3.6 Resolution (Bits): 16 更多

Resolution (Bits): 24 Sample rate (max) (ksps): 32 Number of input channels: 2 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Simultaneous Sampling Rating: Automotive TI functional safety category: Functional Safety-Capable Reference mode: Internal Input voltage range (max) (V): 2.4 Input voltage range (min) (V): -0.3 Features: PGA, Small Size Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 10.6 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 3.6 Digital supply (min) (V): 2.7 Digital supply (max) (V): 3.6 Resolution (Bits): 24 更多

Resolution (Bits): 24 Sample rate (max) (ksps): 1000 Number of input channels: 1 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Pseudo-Differential, Single-ended Rating: Catalog TI functional safety category: Functional Safety-Capable Reference mode: External Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator, Wideband Operating temperature range (°C): -40 to 125 Analog supply (min) (V): 2.85 Analog supply voltage (max) (V): 5.5 SNR (dB): 110 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 24 Sample rate (max) (ksps): 1000 更多

Sample rate (max) (Msps): 1600 Resolution (Bits): 12 Number of input channels: 2 Interface type: JESD204B, JESD204C Analog input BW (MHz): 6000 Features: Ultra High Speed Rating: Catalog Peak-to-peak input voltage range (V): 0.8 Power consumption (typ) (mW): 1760 Architecture: Folding Interpolating SNR (dB): 57.4 ENOB (Bits): 9 SFDR (dB): 64 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 1600 Resolution (Bits): 12 Number of input channels: 2 Interface type: JESD204B, JESD204C Analog input BW (MHz): 6000 更多
