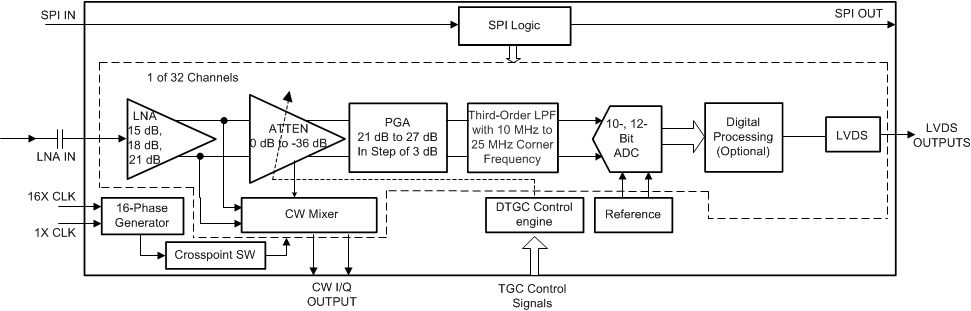

AFE5832LP
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 具有 18.5mW/通道功率、LVDS 接口和 CW 无源混频器的低功耗 32 通道超声波 AFE
Device type: Receiver
Number of input channels: 32
Active supply current (typ) (mA): 55
Operating temperature range (°C): 0 to 85
Interface type: LVDS
Features: Analog Front End (AFE)
Rating: Catalog
Device type: Receiver
Number of input channels: 32
Active supply current (typ) (mA): 55
Operating temperature range (°C): 0 to 85
Interface type: LVDS
Features: Analog Front End (AFE)
Rating: Catalog

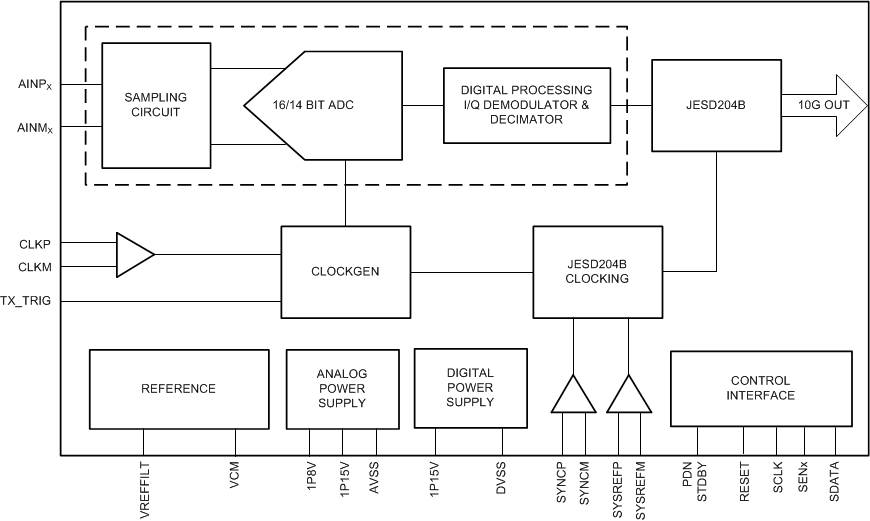

ADS52J65
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 具有 JESD204B 接口的 8 通道 16 位 125MSPS 模数转换器 (ADC)
Sample rate (max) (Msps): 125
Resolution (Bits): 16
Number of input channels: 8
Interface type: JESD204B
Analog input BW (MHz): 250
Features: High Performance
Rating: Catalog
Peak-to-peak input voltage range (V): 2
Power consumption (typ) (mW): 560
Architecture: Pipeline
SNR (dB): 78
ENOB (Bits): 13
SFDR (dB): 85
Operating temperature range (°C): -40 to 85
Input buffer: No
Sample rate (max) (Msps): 125
Resolution (Bits): 16
Number of input channels: 8
Interface type: JESD204B
Analog input BW (MHz): 250
更多
Features: High Performance
Rating: Catalog
Peak-to-peak input voltage range (V): 2
Power consumption (typ) (mW): 560
Architecture: Pipeline
SNR (dB): 78
ENOB (Bits): 13
SFDR (dB): 85
Operating temperature range (°C): -40 to 85
Input buffer: No

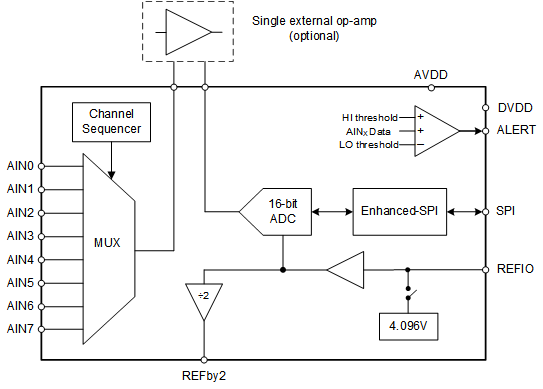

ADS8166
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 具有 VREF、VREF 缓冲器和直接传感器接口的 16 位、250kSPS、8 通道 SAR ADC
Resolution (Bits): 16
Sample rate (max) (ksps): 250
Number of input channels: 8
Interface type: Enhanced SPI, SPI
Architecture: SAR
Input type: Pseudo-Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5
Input voltage range (min) (V): 0
Features: Comparator
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 15
Analog supply (min) (V): 3
Analog supply voltage (max) (V): 5.5
SNR (dB): 92
Digital supply (min) (V): 1.65
Digital supply (max) (V): 5.5
Resolution (Bits): 16
更多
Sample rate (max) (ksps): 250
Number of input channels: 8
Interface type: Enhanced SPI, SPI
Architecture: SAR
Input type: Pseudo-Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5
Input voltage range (min) (V): 0
Features: Comparator
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 15
Analog supply (min) (V): 3
Analog supply voltage (max) (V): 5.5
SNR (dB): 92
Digital supply (min) (V): 1.65
Digital supply (max) (V): 5.5
ADS8167
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 具有 VREF、VREF 缓冲器和直接传感器接口的 16 位、500kSPS、8 通道 SAR ADC
Resolution (Bits): 16
Sample rate (max) (ksps): 500
Number of input channels: 8
Interface type: Enhanced SPI, SPI
Architecture: SAR
Input type: Pseudo-Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5
Input voltage range (min) (V): 0
Features: Comparator
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 20
Analog supply (min) (V): 3
Analog supply voltage (max) (V): 5.5
SNR (dB): 92
Digital supply (min) (V): 1.65
Digital supply (max) (V): 5.5
Resolution (Bits): 16
更多
Sample rate (max) (ksps): 500
Number of input channels: 8
Interface type: Enhanced SPI, SPI
Architecture: SAR
Input type: Pseudo-Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5
Input voltage range (min) (V): 0
Features: Comparator
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 20
Analog supply (min) (V): 3
Analog supply voltage (max) (V): 5.5
SNR (dB): 92
Digital supply (min) (V): 1.65
Digital supply (max) (V): 5.5
ADS8168
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 具有 VREF、VREF 缓冲器和直接传感器接口的 16 位、1MSPS、8 通道 SAR ADC
Resolution (Bits): 16
Sample rate (max) (ksps): 1000
Number of input channels: 8
Interface type: Enhanced SPI, SPI
Architecture: SAR
Input type: Pseudo-Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5
Input voltage range (min) (V): 0
Features: Comparator
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 30
Analog supply (min) (V): 3
Analog supply voltage (max) (V): 5.5
SNR (dB): 92
Digital supply (min) (V): 1.65
Digital supply (max) (V): 5.5
Resolution (Bits): 16
更多
Sample rate (max) (ksps): 1000
Number of input channels: 8
Interface type: Enhanced SPI, SPI
Architecture: SAR
Input type: Pseudo-Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5
Input voltage range (min) (V): 0
Features: Comparator
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 30
Analog supply (min) (V): 3
Analog supply voltage (max) (V): 5.5
SNR (dB): 92
Digital supply (min) (V): 1.65
Digital supply (max) (V): 5.5
Resolution (Bits): 16
Sample rate (max) (ksps): 20
Number of input channels: 1
Interface type: Serial
Architecture: Delta-Sigma Modulator
Input type: Differential
Rating: Catalog
Reference mode: Internal
Input voltage range (max) (V): 1
Input voltage range (min) (V): -1
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 13.8
Analog supply (min) (V): 3
Analog supply voltage (max) (V): 5.5
SNR (dB): 86
Digital supply (min) (V): 3
Digital supply (max) (V): 5.5
Resolution (Bits): 16
Sample rate (max) (ksps): 20
Number of input channels: 1
更多
Interface type: Serial
Architecture: Delta-Sigma Modulator
Input type: Differential
Rating: Catalog
Reference mode: Internal
Input voltage range (max) (V): 1
Input voltage range (min) (V): -1
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 13.8
Analog supply (min) (V): 3
Analog supply voltage (max) (V): 5.5
SNR (dB): 86
Digital supply (min) (V): 3
Digital supply (max) (V): 5.5

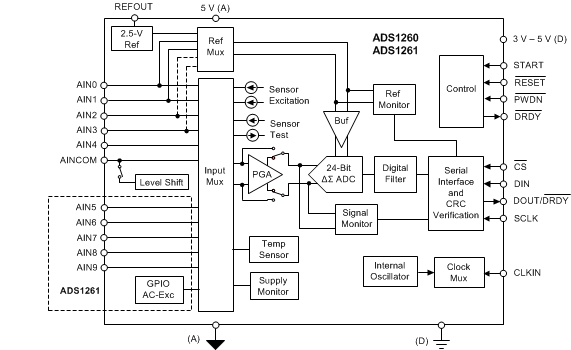

ADS1260
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 适用于工厂自动化且具有 PGA、VREF 和 IDAC 的 24 位 40kSPS 5 通道 Δ-Σ ADC
Resolution (Bits): 24
Sample rate (max) (ksps): 40
Number of input channels: 5
Interface type: SPI
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 2.5, 5
Input voltage range (min) (V): -2.5, 0
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 20
Analog supply (min) (V): 4.75
Analog supply voltage (max) (V): 5.25
Digital supply (min) (V): 2.7
Digital supply (max) (V): 5.25
Resolution (Bits): 24
Sample rate (max) (ksps): 40
Number of input channels: 5
更多
Interface type: SPI
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 2.5, 5
Input voltage range (min) (V): -2.5, 0
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 20
Analog supply (min) (V): 4.75
Analog supply voltage (max) (V): 5.25
Digital supply (min) (V): 2.7
Digital supply (max) (V): 5.25
ADS1284
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 用于地震监测和地球空间探测且具有 PGA 和低功耗模式的超高分辨率 4kSPS 2 通道 ADC
Resolution (Bits): 31
Sample rate (max) (ksps): 4
Number of input channels: 2
Interface type: SPI
Architecture: Delta-Sigma
Input type: Differential
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External
Input voltage range (max) (V): 1.15, 3.75
Input voltage range (min) (V): -1.9, 0.7
Features: PGA
Operating temperature range (°C): -40 to 85
Power consumption (typ) (mW): 12
Analog supply (min) (V): 0, 2.5
Analog supply voltage (max) (V): 2.5, 5
SNR (dB): 127
Digital supply (min) (V): 1.65
Digital supply (max) (V): 3.6
Resolution (Bits): 31
更多
Sample rate (max) (ksps): 4
Number of input channels: 2
Interface type: SPI
Architecture: Delta-Sigma
Input type: Differential
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External
Input voltage range (max) (V): 1.15, 3.75
Input voltage range (min) (V): -1.9, 0.7
Features: PGA
Operating temperature range (°C): -40 to 85
Power consumption (typ) (mW): 12
Analog supply (min) (V): 0, 2.5
Analog supply voltage (max) (V): 2.5, 5
SNR (dB): 127
Digital supply (min) (V): 1.65
Digital supply (max) (V): 3.6
ADS52J91
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 具有 LVDS 和 JESD 输出的 10 位、12 位和 14 位多通道低功耗 ADC
Sample rate (max) (Msps): 100
Resolution (Bits): 10, 14
Number of input channels: 8, 16, 32
Interface type: JESD204B, Serial LVDS
Analog input BW (MHz): 70
Features: Low Power
Rating: Catalog
Peak-to-peak input voltage range (V): 2
Power consumption (typ) (mW): 656
Architecture: SAR
SNR (dB): 73.5
ENOB (Bits): 10, 12, 14
SFDR (dB): 91.8
Operating temperature range (°C): 0 to 70
Input buffer: No
Sample rate (max) (Msps): 100
Resolution (Bits): 10, 14
Number of input channels: 8, 16, 32
Interface type: JESD204B, Serial LVDS
Analog input BW (MHz): 70
更多
Features: Low Power
Rating: Catalog
Peak-to-peak input voltage range (V): 2
Power consumption (typ) (mW): 656
Architecture: SAR
SNR (dB): 73.5
ENOB (Bits): 10, 12, 14
SFDR (dB): 91.8
Operating temperature range (°C): 0 to 70
Input buffer: No

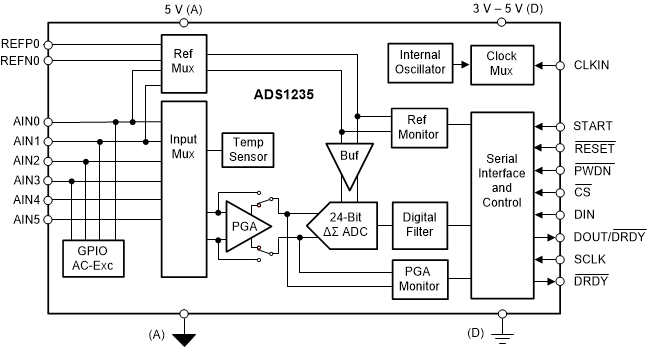

ADS1235
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 用于桥式传感器且具有 PGA 和交流激励的汽车类 24 位、7.2kSPS、3 通道差动、Δ-Σ ADC
Resolution (Bits): 24
Sample rate (max) (ksps): 7.2
Number of input channels: 5
Interface type: SPI
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External
Input voltage range (max) (V): 2.5, 5
Input voltage range (min) (V): -2.5, 0
Features: 50/60 Hz Rejection, GPIO, Oscillator, PGA, Temp Sensor
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 23
Analog supply (min) (V): -2.5, 4.75
Analog supply voltage (max) (V): 2.5, 5.25
Digital supply (min) (V): 2.7
Digital supply (max) (V): 5.25
Resolution (Bits): 24
Sample rate (max) (ksps): 7.2
更多
Number of input channels: 5
Interface type: SPI
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External
Input voltage range (max) (V): 2.5, 5
Input voltage range (min) (V): -2.5, 0
Features: 50/60 Hz Rejection, GPIO, Oscillator, PGA, Temp Sensor
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 23
Analog supply (min) (V): -2.5, 4.75
Analog supply voltage (max) (V): 2.5, 5.25
Digital supply (min) (V): 2.7
Digital supply (max) (V): 5.25
