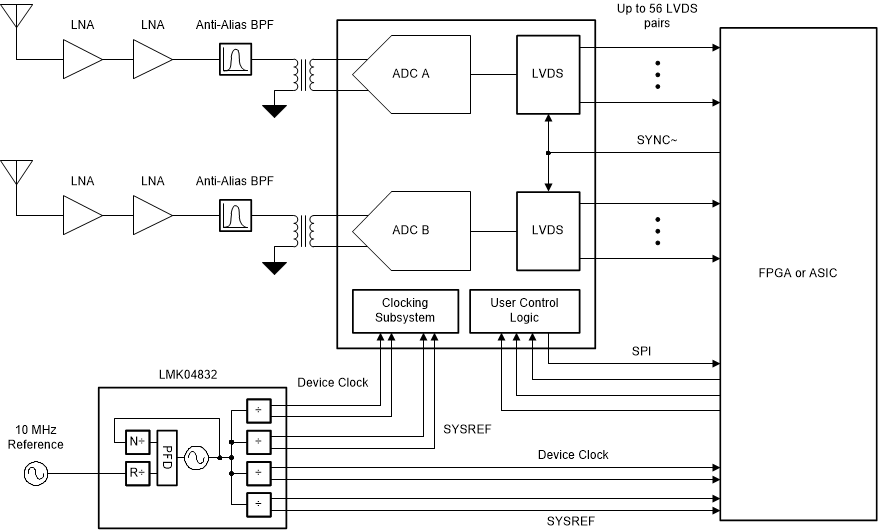

ADC12DL3200
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 12 位双通道 3.2GSPS 或单通道 6.4GSPS 射频采样数模转换器（LVDS 接口）
Sample rate (max) (Msps): 3200, 6400
Resolution (Bits): 12
Number of input channels: 1, 2
Interface type: DDR LVDS, Parallel LVDS
Analog input BW (MHz): 8000
Features: Ultra High Speed
Rating: Catalog
Peak-to-peak input voltage range (V): 0.8
Power consumption (typ) (mW): 3150
Architecture: Folding Interpolating
SNR (dB): 57.9
ENOB (Bits): 9
SFDR (dB): 78
Operating temperature range (°C): -40 to 85
Input buffer: Yes
Sample rate (max) (Msps): 3200, 6400
Resolution (Bits): 12
Number of input channels: 1, 2
Interface type: DDR LVDS, Parallel LVDS
Analog input BW (MHz): 8000
更多
Features: Ultra High Speed
Rating: Catalog
Peak-to-peak input voltage range (V): 0.8
Power consumption (typ) (mW): 3150
Architecture: Folding Interpolating
SNR (dB): 57.9
ENOB (Bits): 9
SFDR (dB): 78
Operating temperature range (°C): -40 to 85
Input buffer: Yes
ADS1119
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 具有 I2C 接口和外部基准输入电压的 16 位 1kSPS 4 通道通用 Δ-Σ ADC
Resolution (Bits): 16
Sample rate (max) (ksps): 1
Number of input channels: 4
Interface type: I2C
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: 50/60 Hz Rejection, Oscillator, PGA
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 1
Analog supply (min) (V): 2.3
Analog supply voltage (max) (V): 5.5
Digital supply (min) (V): 2.3
Digital supply (max) (V): 5.5
Resolution (Bits): 16
Sample rate (max) (ksps): 1
更多
Number of input channels: 4
Interface type: I2C
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: 50/60 Hz Rejection, Oscillator, PGA
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 1
Analog supply (min) (V): 2.3
Analog supply voltage (max) (V): 5.5
Digital supply (min) (V): 2.3
Digital supply (max) (V): 5.5
ADS8688AT
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 5V 双极输入、低温漂 VREF、宽温度范围 16 位 500kSPS 8 通道 SAR ADC
Resolution (Bits): 16
Sample rate (max) (ksps): 500
Number of input channels: 8
Interface type: SPI
Architecture: SAR
Input type: Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 10.24
Input voltage range (min) (V): -10.24
Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA
Operating temperature range (°C): -55 to 125
Power consumption (typ) (mW): 65
Analog supply (min) (V): 4.75
Analog supply voltage (max) (V): 5.25
SNR (dB): 92
Digital supply (min) (V): 1.65
Digital supply (max) (V): 5.25
Resolution (Bits): 16
更多
Sample rate (max) (ksps): 500
Number of input channels: 8
Interface type: SPI
Architecture: SAR
Input type: Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 10.24
Input voltage range (min) (V): -10.24
Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA
Operating temperature range (°C): -55 to 125
Power consumption (typ) (mW): 65
Analog supply (min) (V): 4.75
Analog supply voltage (max) (V): 5.25
SNR (dB): 92
Digital supply (min) (V): 1.65
Digital supply (max) (V): 5.25
ADS1219
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 具有 I2C 接口和外部基准输入电压的 24 位 1kSPS 4 通道通用 Δ-Σ ADC
Resolution (Bits): 24
Sample rate (max) (ksps): 1
Number of input channels: 4
Interface type: I2C
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: 50/60 Hz Rejection, Oscillator, PGA
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 1
Analog supply (min) (V): 2.3
Analog supply voltage (max) (V): 5.5
Digital supply (min) (V): 2.3
Digital supply (max) (V): 5.5
Resolution (Bits): 24
Sample rate (max) (ksps): 1
更多
Number of input channels: 4
Interface type: I2C
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: 50/60 Hz Rejection, Oscillator, PGA
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 1
Analog supply (min) (V): 2.3
Analog supply voltage (max) (V): 5.5
Digital supply (min) (V): 2.3
Digital supply (max) (V): 5.5
Applications: Optical-HRM
Number of input channels: 4
Resolution (Bits): 22
Number of LEDs: 4
Interface type: I2C
Operating temperature range (°C): -40 to 85
Rating: Catalog
Applications: Optical-HRM
Number of input channels: 4
Resolution (Bits): 22
Number of LEDs: 4
Interface type: I2C
Operating temperature range (°C): -40 to 85
Rating: Catalog

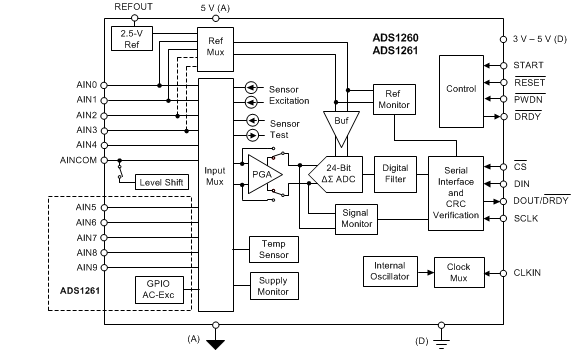

ADS1261
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 适用于工厂自动化且具有 PGA、VREF、IDAC 和交流激励的 24 位 40kSPS 10 通道 Δ-Σ ADC
Resolution (Bits): 24
Sample rate (max) (ksps): 40
Number of input channels: 10
Interface type: SPI
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 2.5, 5
Input voltage range (min) (V): -2.5, 0
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 20
Analog supply (min) (V): -2.5, 4.75
Analog supply voltage (max) (V): 2.5, 5.25
Digital supply (min) (V): 2.7
Digital supply (max) (V): 5.25
Resolution (Bits): 24
Sample rate (max) (ksps): 40
Number of input channels: 10
更多
Interface type: SPI
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 2.5, 5
Input voltage range (min) (V): -2.5, 0
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 20
Analog supply (min) (V): -2.5, 4.75
Analog supply voltage (max) (V): 2.5, 5.25
Digital supply (min) (V): 2.7
Digital supply (max) (V): 5.25
ADS112C04
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 具有 PGA、VREF、2 个 IDAC 和 I2C 接口的 16 位 2kSPS 4 通道低功耗小型 Δ-Σ ADC
Resolution (Bits): 16
Sample rate (max) (ksps): 2
Number of input channels: 4
Interface type: I2C
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 2.85, 5.6
Input voltage range (min) (V): -2.85, 0
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 1.4
Analog supply (min) (V): -2.5, 2.3
Analog supply voltage (max) (V): 2.5, 5.5
Digital supply (min) (V): 2.3
Digital supply (max) (V): 5.5
Resolution (Bits): 16
Sample rate (max) (ksps): 2
Number of input channels: 4
更多
Interface type: I2C
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 2.85, 5.6
Input voltage range (min) (V): -2.85, 0
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 1.4
Analog supply (min) (V): -2.5, 2.3
Analog supply voltage (max) (V): 2.5, 5.5
Digital supply (min) (V): 2.3
Digital supply (max) (V): 5.5
ADS122C04
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 具有 PGA、VREF、2 个 IDAC 和 I2C 接口的 24 位 2kSPS 4 通道低功耗小型 Δ-Σ ADC
Resolution (Bits): 24
Sample rate (max) (ksps): 2
Number of input channels: 4
Interface type: I2C
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 2.85, 5.6
Input voltage range (min) (V): -2.85, 0
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 1.4
Analog supply (min) (V): 2.3
Analog supply voltage (max) (V): 5.5
Digital supply (min) (V): 2.3
Digital supply (max) (V): 5.5
Resolution (Bits): 24
Sample rate (max) (ksps): 2
Number of input channels: 4
更多
Interface type: I2C
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External, Internal
Input voltage range (max) (V): 2.85, 5.6
Input voltage range (min) (V): -2.85, 0
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 1.4
Analog supply (min) (V): 2.3
Analog supply voltage (max) (V): 5.5
Digital supply (min) (V): 2.3
Digital supply (max) (V): 5.5

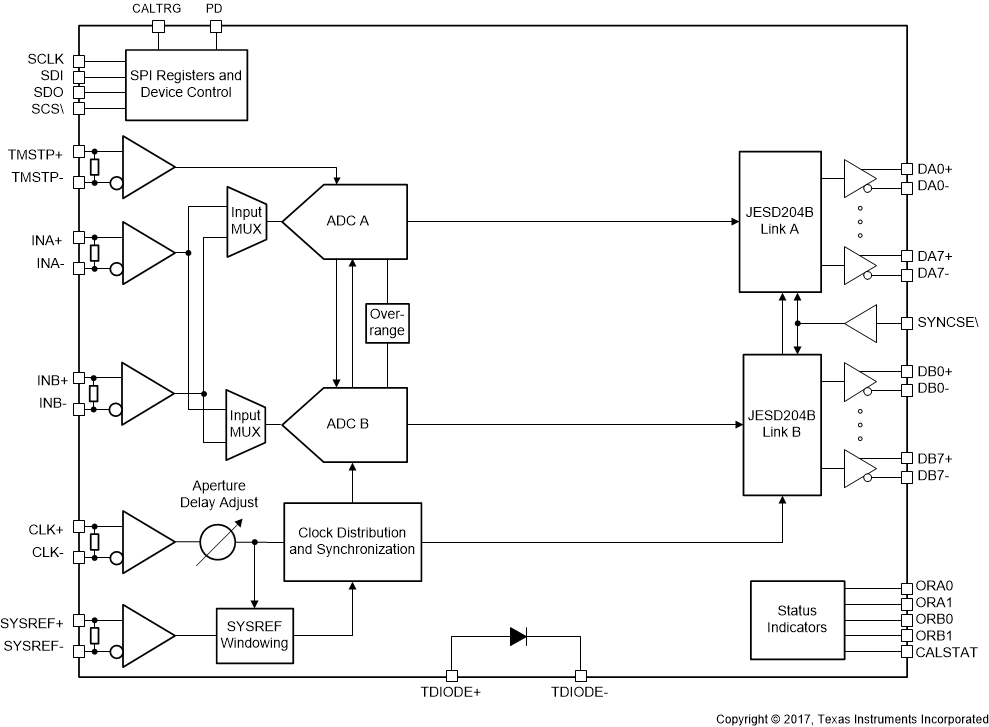

ADC08DJ3200
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 8 位双通道 3.2GSPS 或单通道 6.4GSPS 射频采样模数转换器 (ADC)
Sample rate (max) (Msps): 3200, 6400
Resolution (Bits): 8
Number of input channels: 1, 2
Interface type: JESD204B
Analog input BW (MHz): 8000
Features: Ultra High Speed
Rating: Catalog
Peak-to-peak input voltage range (V): 0.8
Power consumption (typ) (mW): 2800
Architecture: Folding Interpolating
SNR (dB): 49.4
ENOB (Bits): 7.8
SFDR (dB): 69
Operating temperature range (°C): -40 to 85
Input buffer: Yes
Sample rate (max) (Msps): 3200, 6400
Resolution (Bits): 8
Number of input channels: 1, 2
Interface type: JESD204B
Analog input BW (MHz): 8000
更多
Features: Ultra High Speed
Rating: Catalog
Peak-to-peak input voltage range (V): 0.8
Power consumption (typ) (mW): 2800
Architecture: Folding Interpolating
SNR (dB): 49.4
ENOB (Bits): 7.8
SFDR (dB): 69
Operating temperature range (°C): -40 to 85
Input buffer: Yes

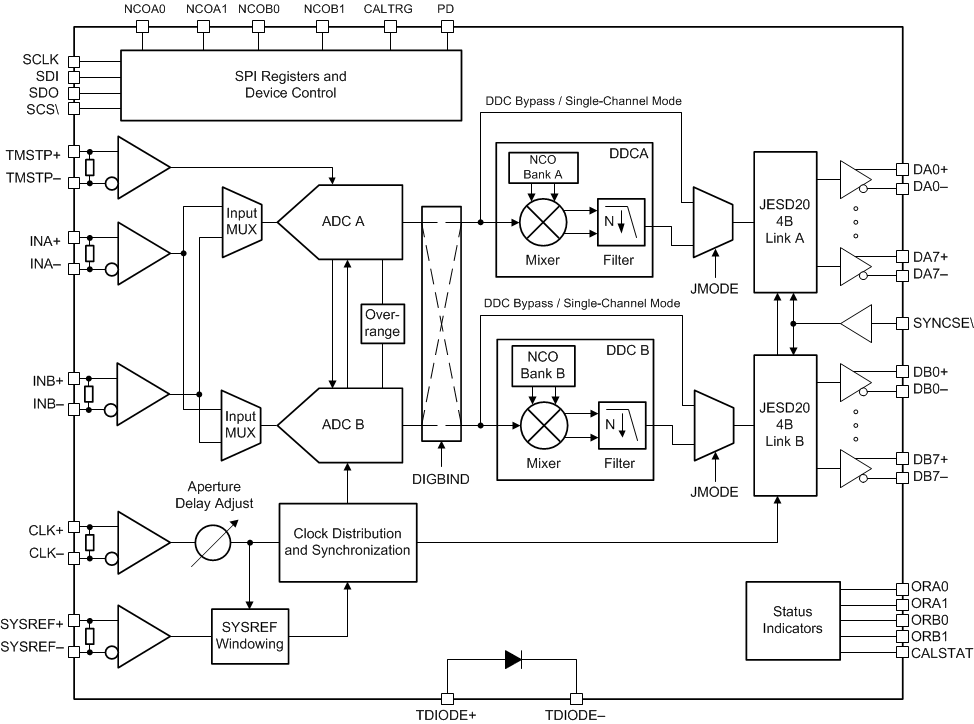

ADC12DJ2700
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 12 位双通道 2.7GSPS 或单通道 5.4GSPS 射频采样模数转换器 (ADC)
Sample rate (max) (Msps): 2700, 5400
Resolution (Bits): 12
Number of input channels: 1, 2
Interface type: JESD204B
Analog input BW (MHz): 8000
Features: Ultra High Speed
Rating: Catalog
Peak-to-peak input voltage range (V): 0.8
Power consumption (typ) (mW): 2700
Architecture: Folding Interpolating
SNR (dB): 57.7
ENOB (Bits): 9
SFDR (dB): 75
Operating temperature range (°C): -40 to 85
Input buffer: Yes
Sample rate (max) (Msps): 2700, 5400
Resolution (Bits): 12
Number of input channels: 1, 2
Interface type: JESD204B
Analog input BW (MHz): 8000
更多
Features: Ultra High Speed
Rating: Catalog
Peak-to-peak input voltage range (V): 0.8
Power consumption (typ) (mW): 2700
Architecture: Folding Interpolating
SNR (dB): 57.7
ENOB (Bits): 9
SFDR (dB): 75
Operating temperature range (°C): -40 to 85
Input buffer: Yes
