天天芯片 - 物料搜索

ADS8598H

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 采用单电源并具有双极性输入的 18 位 500kSPS 8 通道同步采样 ADC

Resolution (Bits): 18 Sample rate (max) (ksps): 500 Number of input channels: 8 Interface type: Byte-Wide, Parallel, SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 10 Input voltage range (min) (V): -10 Features: Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 88.5 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 94 Digital supply (min) (V): 2.3 Digital supply (max) (V): 5.25 Resolution (Bits): 18 更多

Sample rate (max) (ksps): 500 Number of input channels: 8 Interface type: Byte-Wide, Parallel, SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 10 Input voltage range (min) (V): -10 Features: Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 88.5 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 94 Digital supply (min) (V): 2.3 Digital supply (max) (V): 5.25

ADS8598S

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 采用单电源并具有双极性输入的 18 位 200kSPS 8 通道同步采样 ADC

Resolution (Bits): 18 Sample rate (max) (ksps): 200 Number of input channels: 8 Interface type: Byte-Wide, Parallel, SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 10 Input voltage range (min) (V): -10 Features: Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 88.5 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 94 Digital supply (min) (V): 2.3 Digital supply (max) (V): 5.25 Resolution (Bits): 18 更多

Sample rate (max) (ksps): 200 Number of input channels: 8 Interface type: Byte-Wide, Parallel, SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 10 Input voltage range (min) (V): -10 Features: Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 88.5 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 94 Digital supply (min) (V): 2.3 Digital supply (max) (V): 5.25

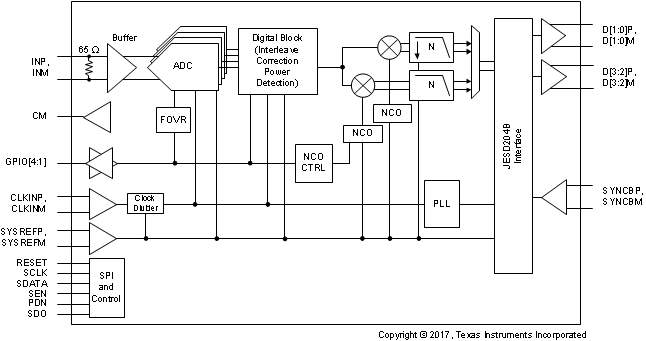

ADC31RF80

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 14 位 3GSPS 射频采样宽带接收器和反馈集成电路

Sample rate (max) (Msps): 3000 Resolution (Bits): 14 Number of input channels: 1 Interface type: JESD204B Analog input BW (MHz): 3200 Features: Ultra High Speed Rating: Catalog Peak-to-peak input voltage range (V): 1.35 Power consumption (typ) (mW): 3200 Architecture: Pipeline SNR (dB): 61.4 ENOB (Bits): 9.8 SFDR (dB): 71 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 3000 Resolution (Bits): 14 Number of input channels: 1 Interface type: JESD204B Analog input BW (MHz): 3200 更多

Features: Ultra High Speed Rating: Catalog Peak-to-peak input voltage range (V): 1.35 Power consumption (typ) (mW): 3200 Architecture: Pipeline SNR (dB): 61.4 ENOB (Bits): 9.8 SFDR (dB): 71 Operating temperature range (°C): -40 to 85 Input buffer: Yes

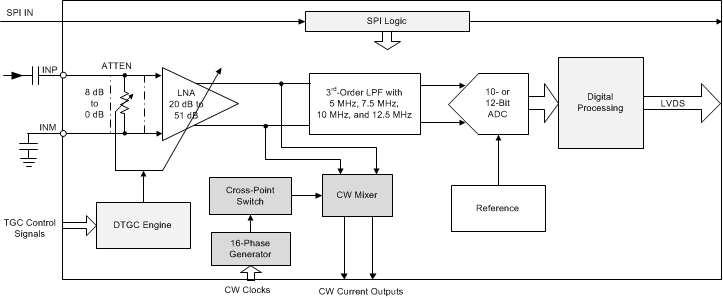

AFE5832

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有 42mW/通道功率、LVDS 接口和 CW 无源混频器的 32 通道超声波 AFE

Device type: Receiver Number of input channels: 32 Active supply current (typ) (mA): 40 Supply voltage (max) (V): 3.3 Operating temperature range (°C): 0 to 85 Interface type: LVDS Features: Analog Front End (AFE) Rating: Catalog Device type: Receiver Number of input channels: 32 Active supply current (typ) (mA): 40 Supply voltage (max) (V): 3.3 Operating temperature range (°C): 0 to 85 Interface type: LVDS Features: Analog Front End (AFE) Rating: Catalog

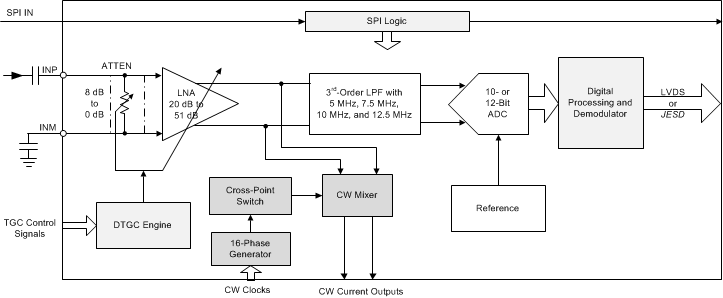

AFE58JD32

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有 42mW/通道功率、数字解调器以及 JESD204B 和 LVDS 接口的 32 通道超声波 AFE

Device type: Receiver Number of input channels: 32 Active supply current (typ) (mA): 40 Supply voltage (max) (V): 3.3 Operating temperature range (°C): -40 to 85 Interface type: JESD204B, LVDS Features: Analog Front End (AFE) Rating: Catalog Device type: Receiver Number of input channels: 32 Active supply current (typ) (mA): 40 Supply voltage (max) (V): 3.3 Operating temperature range (°C): -40 to 85 Interface type: JESD204B, LVDS Features: Analog Front End (AFE) Rating: Catalog

ADS122U04

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有 PGA、VREF、2 个 IDAC 和 UART 接口的 24 位 2kSPS 4 通道低功耗小型 Δ-Σ ADC

Resolution (Bits): 24 Sample rate (max) (ksps): 2 Number of input channels: 4 Interface type: UART Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 2.85, 5.6 Input voltage range (min) (V): -2.85, 0 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 1.4 Analog supply (min) (V): 2.3 Analog supply voltage (max) (V): 5.5 Digital supply (min) (V): 2.3 Digital supply (max) (V): 5.5 Resolution (Bits): 24 Sample rate (max) (ksps): 2 Number of input channels: 4 更多

Interface type: UART Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 2.85, 5.6 Input voltage range (min) (V): -2.85, 0 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 1.4 Analog supply (min) (V): 2.3 Analog supply voltage (max) (V): 5.5 Digital supply (min) (V): 2.3 Digital supply (max) (V): 5.5

ADS114S06B

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 适用于低成本应用且具有 PGA 和电压基准的 16 位、4kSPS、6 通道 Δ-Σ ADC

Resolution (Bits): 16 Sample rate (max) (ksps): 4 Number of input channels: 6 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 2.625, 5.25 Input voltage range (min) (V): -2.625, 0 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 1.75 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 Digital supply (min) (V): 2.7 Digital supply (max) (V): 3.6 Resolution (Bits): 16 Sample rate (max) (ksps): 4 Number of input channels: 6 更多

Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 2.625, 5.25 Input voltage range (min) (V): -2.625, 0 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 1.75 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 Digital supply (min) (V): 2.7 Digital supply (max) (V): 3.6

ADS114S08B

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 适用于低成本应用且具有 PGA 和电压基准的 16 位、4kSPS、12 通道 Δ-Σ ADC

Resolution (Bits): 16 Sample rate (max) (ksps): 4 Number of input channels: 12 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 2.625, 5.25 Input voltage range (min) (V): -2.625, 0 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 1.75 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 Digital supply (min) (V): 2.7 Digital supply (max) (V): 3.6 Resolution (Bits): 16 Sample rate (max) (ksps): 4 Number of input channels: 12 更多

AFE4900

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 适用于可穿戴光学和电生物传感的超低功耗集成型 AFE

Applications: 1-lead ECG, Optical-HRM Number of input channels: 3 Resolution (Bits): 22 Number of LEDs: 4 Interface type: I2C, SPI Operating temperature range (°C): -20 to 70 Rating: Catalog Applications: 1-lead ECG, Optical-HRM Number of input channels: 3 Resolution (Bits): 22 Number of LEDs: 4 Interface type: I2C, SPI Operating temperature range (°C): -20 to 70 Rating: Catalog

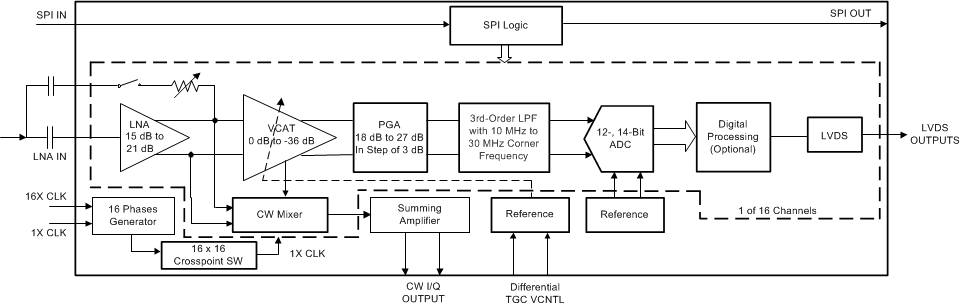

AFE5828

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有 102mW/通道功率、LVDS 接口和 CW 无源混频器的 16 通道超声波 AFE

Device type: Receiver Number of input channels: 16 Active supply current (typ) (mA): 260 Supply voltage (max) (V): 3.6 Operating temperature range (°C): 0 to 85 Interface type: LVDS Features: Analog Front End (AFE) Rating: Catalog Device type: Receiver Number of input channels: 16 Active supply current (typ) (mA): 260 Supply voltage (max) (V): 3.6 Operating temperature range (°C): 0 to 85 Interface type: LVDS Features: Analog Front End (AFE) Rating: Catalog
