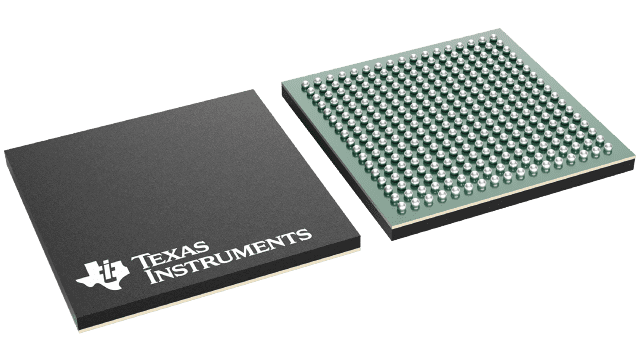

Device type: Receiver Number of input channels: 16 Active supply current (typ) (mA): 260 Supply voltage (max) (V): 3.6 Operating temperature range (°C): -40 to 85 Interface type: JESD204B, LVDS Features: Analog Front End (AFE) Rating: Catalog Device type: Receiver Number of input channels: 16 Active supply current (typ) (mA): 260 Supply voltage (max) (V): 3.6 Operating temperature range (°C): -40 to 85 Interface type: JESD204B, LVDS Features: Analog Front End (AFE) Rating: Catalog

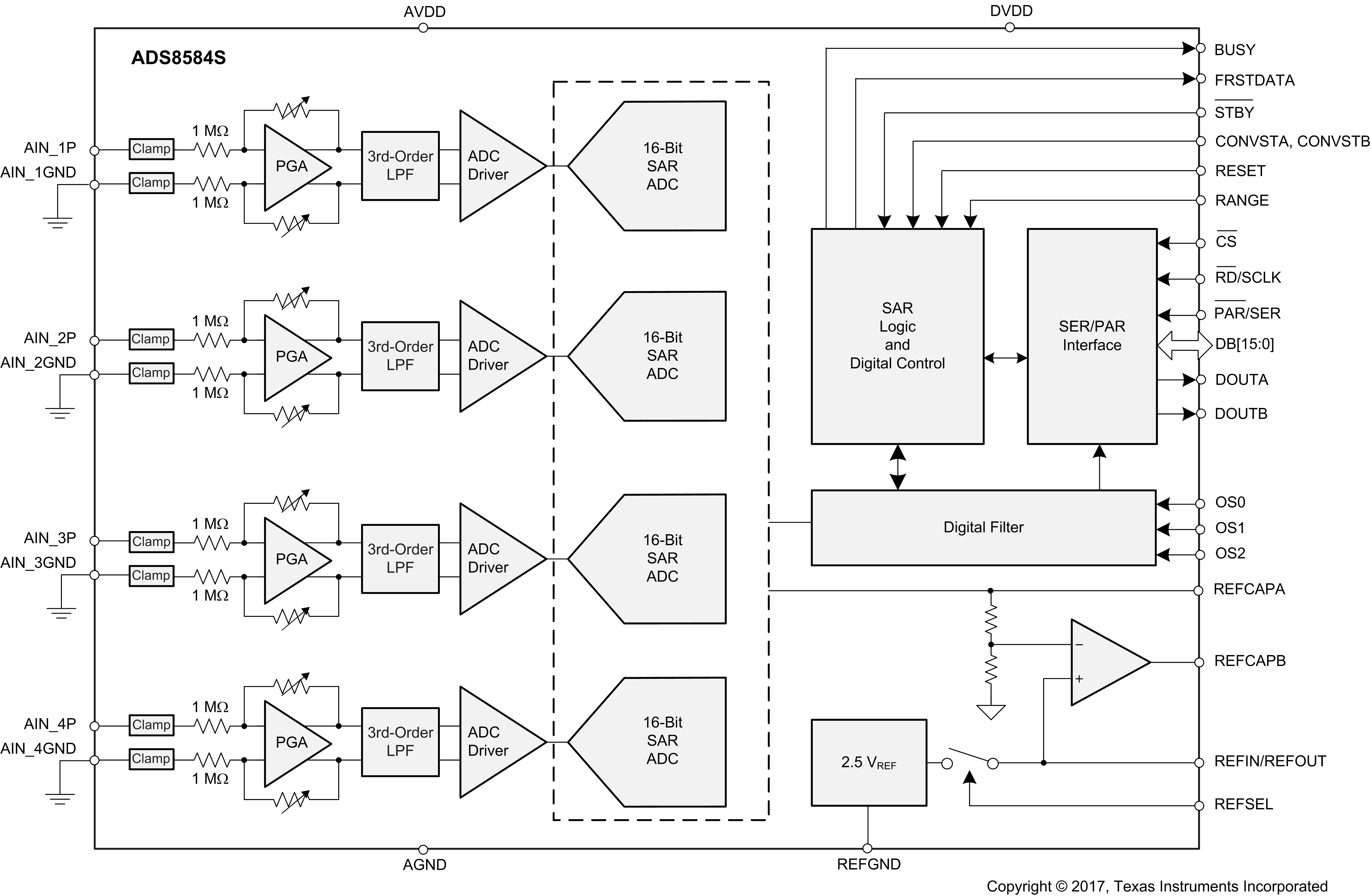

Resolution (Bits): 16 Sample rate (max) (ksps): 200 Number of input channels: 4 Interface type: Byte-Wide, Parallel, SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 10 Input voltage range (min) (V): -10 Features: Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 54.5 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 92.7 Digital supply (min) (V): 2.3 Digital supply (max) (V): 5.25 Resolution (Bits): 16 更多

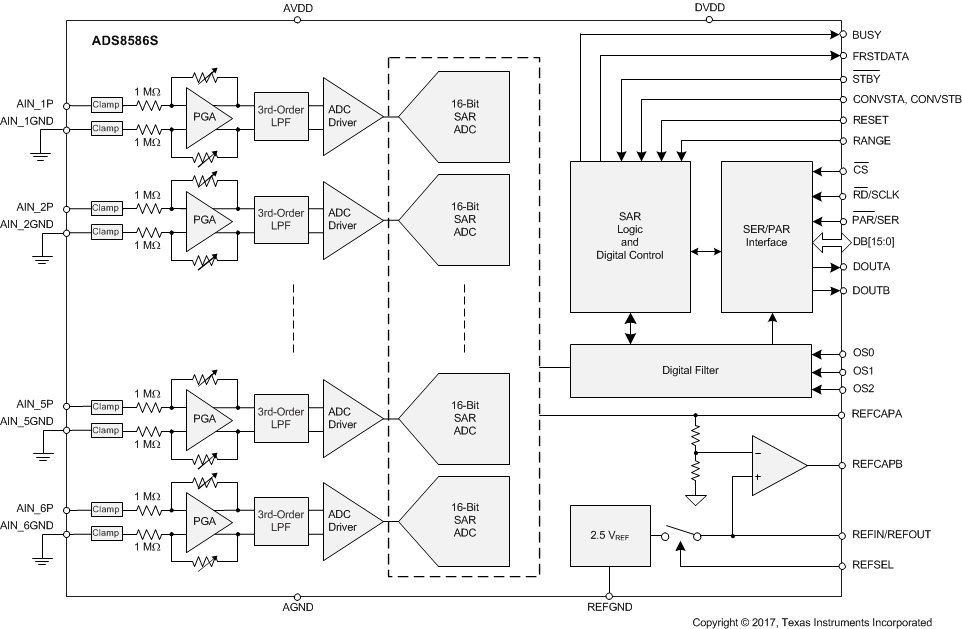

Resolution (Bits): 16 Sample rate (max) (ksps): 200 Number of input channels: 6 Interface type: Byte-Wide, Parallel, SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 10 Input voltage range (min) (V): -10 Features: Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 73 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 92.7 Digital supply (min) (V): 2.3 Digital supply (max) (V): 5.25 Resolution (Bits): 16 更多

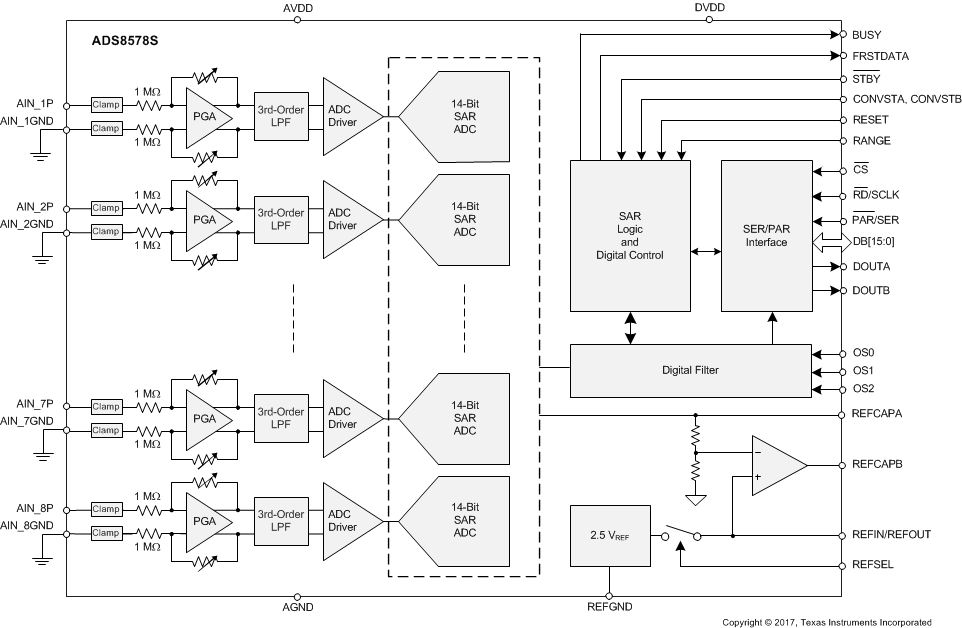

Resolution (Bits): 14 Sample rate (max) (ksps): 200 Number of input channels: 8 Interface type: Byte-Wide, Parallel, SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 10 Input voltage range (min) (V): -10 Features: Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 88.5 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 85.8 Digital supply (min) (V): 2.3 Digital supply (max) (V): 5 Resolution (Bits): 14 更多

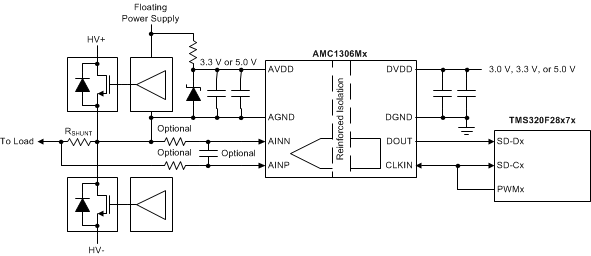

Device type: Current sensing Peak-to-peak input voltage range (V): 50mV Interface type: Serial CMOS Sample rate (max) (Msps): 10 Rating: Catalog CMTI (min) (kV/µs): 50 Number of input channels: 1 Architecture: Delta-Sigma SNR (dB): 85 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 28.7 SFDR (dB): 100 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1500 Transient isolation voltage (VIOTM) (VPK): 7 Creepage (min) (mm): 8.5 Clearance (min) (mm): 8.5 Device type: Current sensing Peak-to-peak input voltage range (V): 50mV 更多

Device type: Current sensing Peak-to-peak input voltage range (V): 50mV Interface type: Serial CMOS Sample rate (max) (Msps): 20 Rating: Catalog CMTI (min) (kV/µs): 50 Number of input channels: 1 Architecture: Delta-Sigma SNR (dB): 84.5 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 34.3 SFDR (dB): 98 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1500 Transient isolation voltage (VIOTM) (VPK): 7 Creepage (min) (mm): 8.5 Clearance (min) (mm): 8.5 Device type: Current sensing Peak-to-peak input voltage range (V): 50mV 更多

Device type: Current sensing Peak-to-peak input voltage range (V): 50mV Interface type: Serial CMOS Sample rate (max) (Msps): 10 Rating: Catalog CMTI (min) (kV/µs): 50 Number of input channels: 1 Architecture: Delta-Sigma SNR (dB): 85 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 29.4 SFDR (dB): 98 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1500 Transient isolation voltage (VIOTM) (VPK): 7 Creepage (min) (mm): 8.5 Clearance (min) (mm): 8.5 Device type: Current sensing Peak-to-peak input voltage range (V): 50mV 更多

Device type: Current sensing Peak-to-peak input voltage range (V): 50mV Interface type: Serial CMOS Sample rate (max) (Msps): 20 Rating: Catalog CMTI (min) (kV/µs): 50 Number of input channels: 1 Architecture: Delta-Sigma SNR (dB): 84.5 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 36 SFDR (dB): 98 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1500 Transient isolation voltage (VIOTM) (VPK): 7 Creepage (min) (mm): 8.5 Clearance (min) (mm): 8.5 Device type: Current sensing Peak-to-peak input voltage range (V): 50mV 更多

Device type: Current sensing Peak-to-peak input voltage range (V): 50mV Interface type: Serial CMOS Sample rate (max) (Msps): 21 Rating: Catalog CMTI (min) (kV/µs): 50 Number of input channels: 1 Architecture: Delta-Sigma SNR (dB): 82 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 45 SFDR (dB): 83 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1500 Transient isolation voltage (VIOTM) (VPK): 7 Creepage (min) (mm): 8.5 Clearance (min) (mm): 8.5 Device type: Current sensing Peak-to-peak input voltage range (V): 50mV 更多

Device type: Current sensing Peak-to-peak input voltage range (V): 50mV Interface type: Serial CMOS Sample rate (max) (Msps): 21 Rating: Catalog CMTI (min) (kV/µs): 50 Number of input channels: 1 Architecture: Delta-Sigma SNR (dB): 82 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 42.4 SFDR (dB): 83 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1500 Transient isolation voltage (VIOTM) (VPK): 7 Creepage (min) (mm): 8.5 Clearance (min) (mm): 8.5 Device type: Current sensing Peak-to-peak input voltage range (V): 50mV 更多
