Resolution (Bits): 24 Sample rate (max) (ksps): 64 Number of input channels: 8 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Pseudo-Differential Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: Internal Input voltage range (max) (V): 4 Input voltage range (min) (V): 0 Features: Daisy-Chainable, GPIO, Oscillator, PGA Operating temperature range (°C): -40 to 105 Power consumption (typ) (mW): 2 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 108 Digital supply (min) (V): 1.7 Digital supply (max) (V): 3.6 Resolution (Bits): 24 更多

Sample rate (max) (Msps): 500 Resolution (Bits): 14 Number of input channels: 4 Interface type: JESD204B Analog input BW (MHz): 900 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 1.9 Power consumption (typ) (mW): 2700 Architecture: Pipeline SNR (dB): 74.1 ENOB (Bits): 11.4 SFDR (dB): 97 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 500 Resolution (Bits): 14 Number of input channels: 4 Interface type: JESD204B Analog input BW (MHz): 900 更多

Resolution (Bits): 12 Sample rate (max) (ksps): 3.3 Number of input channels: 4 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: Automotive TI functional safety category: Functional Safety-Capable Reference mode: Internal Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Oscillator, PGA, Temp Sensor Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 0.3 Analog supply (min) (V): 2 Analog supply voltage (max) (V): 5.5 Digital supply (min) (V): 2 Digital supply (max) (V): 5.5 Resolution (Bits): 12 更多

Resolution (Bits): 16 Sample rate (max) (ksps): 0.86 Number of input channels: 4 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: Automotive TI functional safety category: Functional Safety-Capable Reference mode: Internal Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Oscillator, PGA, Temp Sensor Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 0.3 Analog supply (min) (V): 2 Analog supply voltage (max) (V): 5.5 Digital supply (min) (V): 2 Digital supply (max) (V): 5.5 Resolution (Bits): 16 更多

Resolution (Bits): 24 Sample rate (max) (ksps): 30 Number of input channels: 4 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Features: 50/60 Hz Rejection, GPIO, PGA Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 38 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 Digital supply (min) (V): 1.8 Digital supply (max) (V): 3.6 Resolution (Bits): 24 Sample rate (max) (ksps): 30 更多

Sample rate (max) (Msps): 1000 Resolution (Bits): 14 Number of input channels: 2 Interface type: JESD204B Analog input BW (MHz): 1200 Features: Ultra High Speed Rating: Catalog Peak-to-peak input voltage range (V): 1.9 Power consumption (typ) (mW): 2700 Architecture: Pipeline SNR (dB): 69.7 ENOB (Bits): 11.3 SFDR (dB): 89 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 1000 Resolution (Bits): 14 Number of input channels: 2 Interface type: JESD204B Analog input BW (MHz): 1200 更多

Resolution (Bits): 18 Sample rate (max) (ksps): 2000 Number of input channels: 1 Interface type: Enhanced SPI, SPI Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 15 Analog supply (min) (V): 1.65 Analog supply voltage (max) (V): 1.95 SNR (dB): 100 Digital supply (min) (V): 1.65 Digital supply (max) (V): 1.95 Resolution (Bits): 18 Sample rate (max) (ksps): 2000 更多

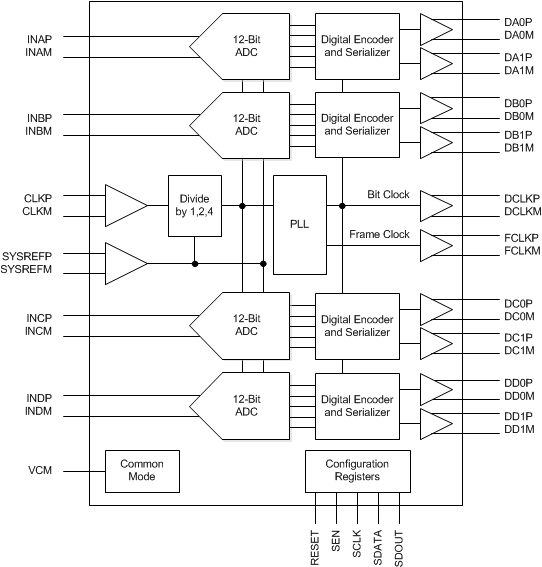

Sample rate (max) (Msps): 25 Resolution (Bits): 12 Number of input channels: 4 Interface type: Serial LVDS Analog input BW (MHz): 540 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 177 Architecture: Pipeline SNR (dB): 71.1 ENOB (Bits): 11.5 SFDR (dB): 93 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 25 Resolution (Bits): 12 Number of input channels: 4 Interface type: Serial LVDS Analog input BW (MHz): 540 更多

Sample rate (max) (Msps): 50 Resolution (Bits): 12 Number of input channels: 4 Interface type: Serial LVDS Analog input BW (MHz): 540 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 228 Architecture: Pipeline SNR (dB): 71 ENOB (Bits): 11.5 SFDR (dB): 95 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 50 Resolution (Bits): 12 Number of input channels: 4 Interface type: Serial LVDS Analog input BW (MHz): 540 更多

Sample rate (max) (Msps): 80 Resolution (Bits): 12 Number of input channels: 4 Interface type: Serial LVDS Analog input BW (MHz): 540 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 288 Architecture: Pipeline SNR (dB): 70.9 ENOB (Bits): 11.5 SFDR (dB): 93 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 80 Resolution (Bits): 12 Number of input channels: 4 Interface type: Serial LVDS Analog input BW (MHz): 540 更多
