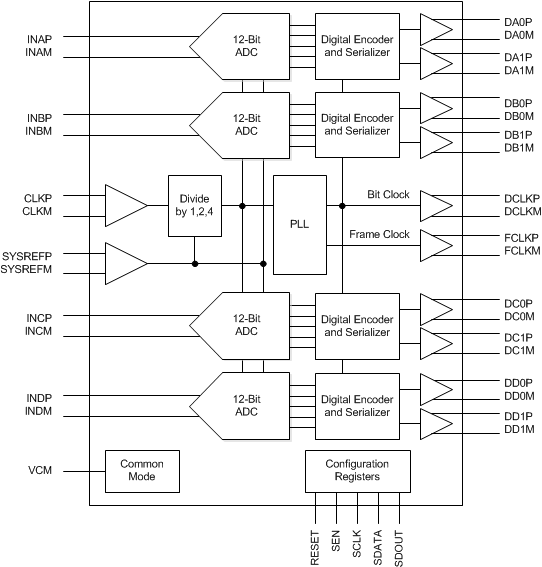

Sample rate (max) (Msps): 125 Resolution (Bits): 12 Number of input channels: 4 Interface type: Serial LVDS Analog input BW (MHz): 540 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 391 Architecture: Pipeline SNR (dB): 70.7 ENOB (Bits): 11.4 SFDR (dB): 94 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 125 Resolution (Bits): 12 Number of input channels: 4 Interface type: Serial LVDS Analog input BW (MHz): 540 更多

Sample rate (max) (Msps): 25 Resolution (Bits): 14 Number of input channels: 4 Interface type: Serial LVDS Analog input BW (MHz): 540 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 177 Architecture: Pipeline SNR (dB): 73.5 ENOB (Bits): 11.9 SFDR (dB): 92 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 25 Resolution (Bits): 14 Number of input channels: 4 Interface type: Serial LVDS Analog input BW (MHz): 540 更多

Sample rate (max) (Msps): 50 Resolution (Bits): 14 Number of input channels: 4 Interface type: Serial LVDS Analog input BW (MHz): 540 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 228 Architecture: Pipeline SNR (dB): 73.5 ENOB (Bits): 11.9 SFDR (dB): 92 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 50 Resolution (Bits): 14 Number of input channels: 4 Interface type: Serial LVDS Analog input BW (MHz): 540 更多

Sample rate (max) (Msps): 80 Resolution (Bits): 14 Number of input channels: 4 Interface type: Serial LVDS Analog input BW (MHz): 540 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 288 Architecture: Pipeline SNR (dB): 73.2 ENOB (Bits): 11.9 SFDR (dB): 92 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 80 Resolution (Bits): 14 Number of input channels: 4 Interface type: Serial LVDS Analog input BW (MHz): 540 更多

Sample rate (max) (Msps): 125 Resolution (Bits): 14 Number of input channels: 4 Interface type: Serial LVDS Analog input BW (MHz): 540 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 391 Architecture: Pipeline SNR (dB): 73 ENOB (Bits): 11.8 SFDR (dB): 93 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 125 Resolution (Bits): 14 Number of input channels: 4 Interface type: Serial LVDS Analog input BW (MHz): 540 更多

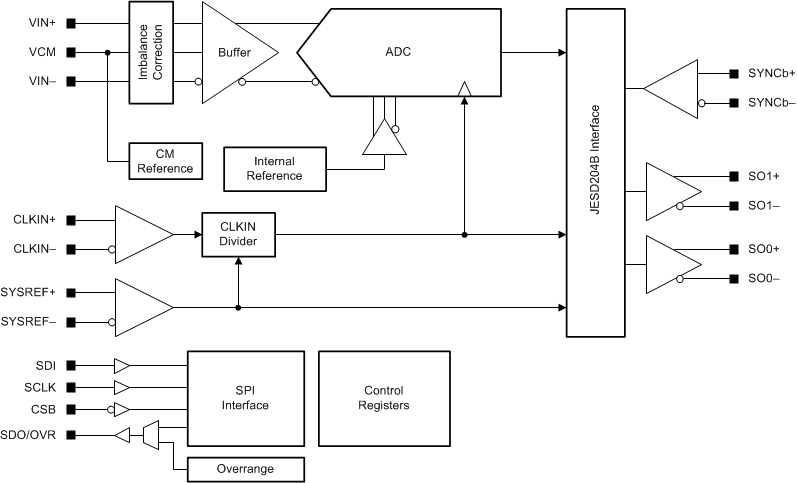

Sample rate (max) (Msps): 500 Resolution (Bits): 16 Number of input channels: 1 Interface type: JESD204B Analog input BW (MHz): 1300 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 1.7 Power consumption (typ) (mW): 915 Architecture: Pipeline SNR (dB): 70.6 ENOB (Bits): 11.3 SFDR (dB): 83 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 500 Resolution (Bits): 16 Number of input channels: 1 Interface type: JESD204B Analog input BW (MHz): 1300 更多

Device type: Current sensing Peak-to-peak input voltage range (V): 50mV Interface type: CMOS, Serial Sample rate (max) (Msps): 20 Rating: Catalog CMTI (min) (kV/µs): 15 Number of input channels: 1 Architecture: Delta-Sigma SNR (dB): 77 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 58 SFDR (dB): -80 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1500 Transient isolation voltage (VIOTM) (VPK): 7 Creepage (min) (mm): 8.5 Clearance (min) (mm): 8.5 Device type: Current sensing Peak-to-peak input voltage range (V): 50mV 更多

Device type: Current sensing Peak-to-peak input voltage range (V): 250mV Interface type: CMOS, Serial Sample rate (max) (Msps): 20 Rating: Catalog CMTI (min) (kV/µs): 15 Number of input channels: 1 Architecture: Delta-Sigma SNR (dB): 85 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 58.9 SFDR (dB): 90 Isolation rating: Reinforced Withstand isolation voltage (VISO) (Vrms): 5000 Working isolation voltage (VIOWM) (Vrms): 1500 Transient isolation voltage (VIOTM) (VPK): 7 Creepage (min) (mm): 8.5 Clearance (min) (mm): 8.5 Device type: Current sensing Peak-to-peak input voltage range (V): 250mV 更多

Sample rate (max) (Msps): 1000 Resolution (Bits): 16 Number of input channels: 2 Interface type: JESD204B Analog input BW (MHz): 1200 Features: Ultra High Speed Rating: Catalog Peak-to-peak input voltage range (V): 1.9 Power consumption (typ) (mW): 2700 Architecture: Pipeline SNR (dB): 70.9 ENOB (Bits): 11.5 SFDR (dB): 90 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 1000 Resolution (Bits): 16 Number of input channels: 2 Interface type: JESD204B Analog input BW (MHz): 1200 更多

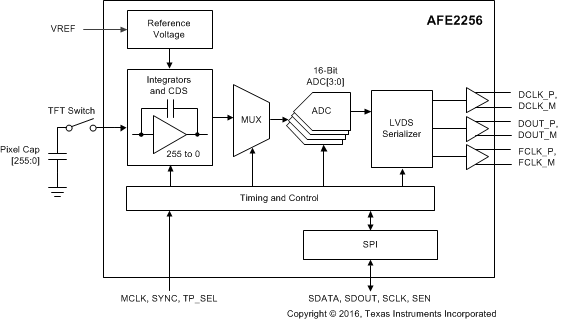

Number of input channels: 256 Resolution (Bits): 16 Features: Internal Reference Buffer, Nap Mode, Power Down, X-ray Interface type: SPI/LVDS Operating temperature range (°C): 0 to 85 Rating: Catalog Number of input channels: 256 Resolution (Bits): 16 Features: Internal Reference Buffer, Nap Mode, Power Down, X-ray Interface type: SPI/LVDS Operating temperature range (°C): 0 to 85 Rating: Catalog
