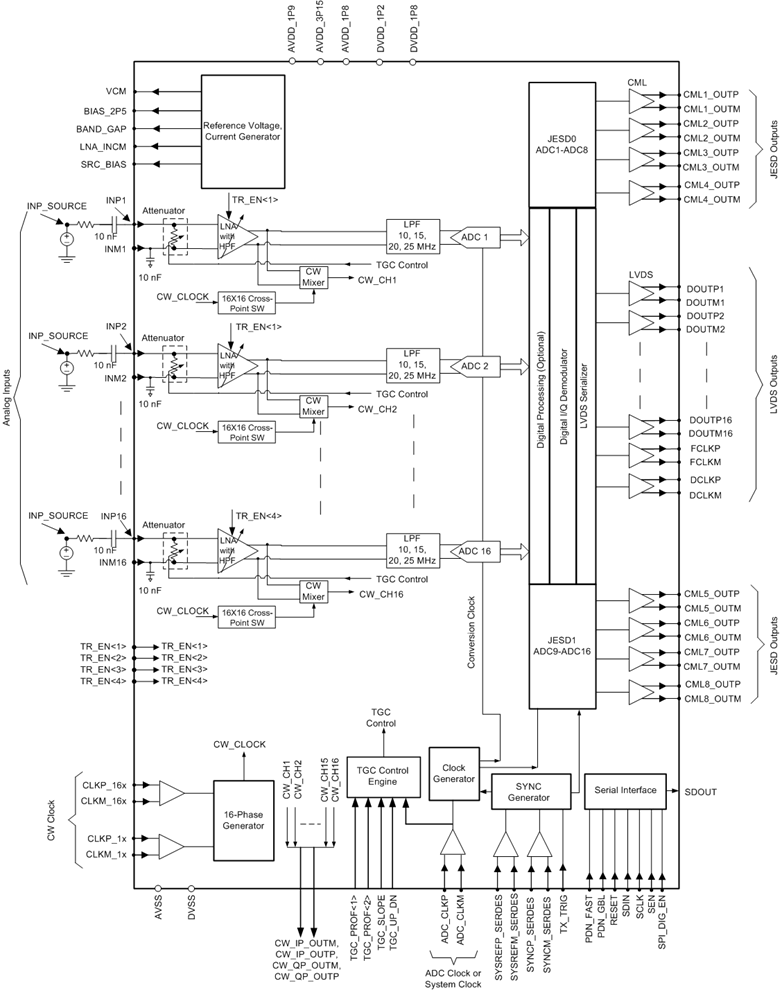

AFE58JD16

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 功耗为 90mW/通道、噪声为 0.95nV/√Hz 的 16 通道超声波模拟前端

Device type: Receiver Number of input channels: 16 Active supply current (typ) (mA): 20 Supply voltage (max) (V): 3.3 Operating temperature range (°C): -40 to 85 Interface type: JESD204B, LVDS Features: Analog Front End (AFE) Rating: Catalog Device type: Receiver Number of input channels: 16 Active supply current (typ) (mA): 20 Supply voltage (max) (V): 3.3 Operating temperature range (°C): -40 to 85 Interface type: JESD204B, LVDS Features: Analog Front End (AFE) Rating: Catalog

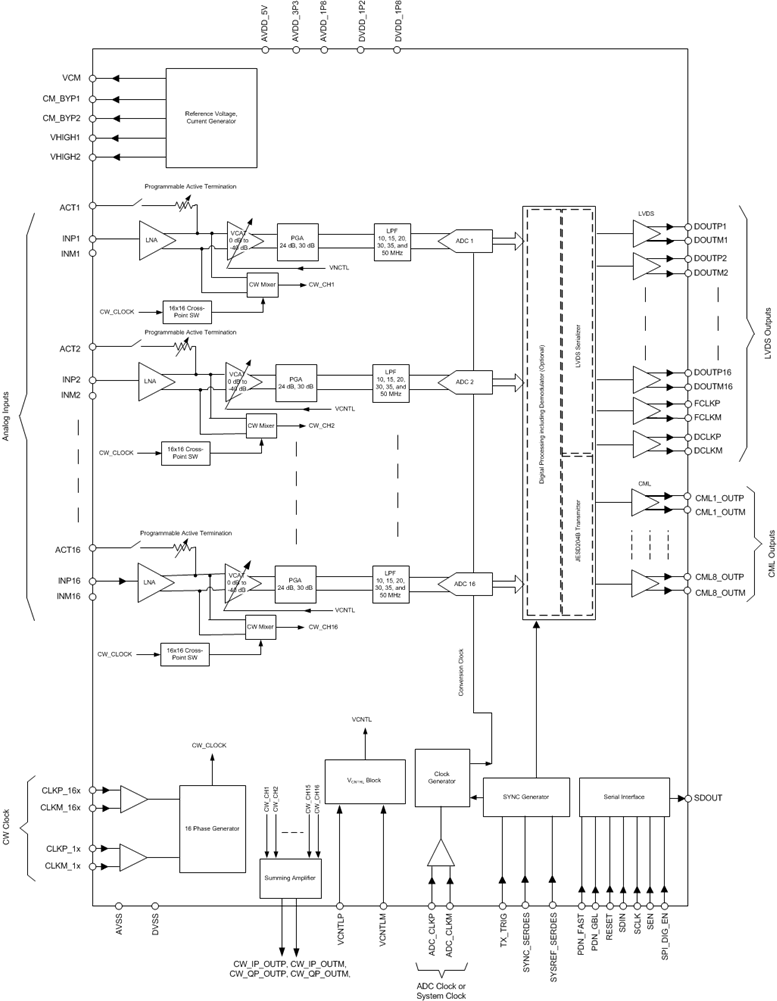

AFE58JD18

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 功耗为 140mW/通道、噪声为 0.75nV/√Hz 的 16 通道超声波模拟前端

Device type: Receiver Number of input channels: 16 Active supply current (typ) (mA): 274 Supply voltage (max) (V): 3.6 Operating temperature range (°C): -40 to 85 Interface type: JESD204B, LVDS Features: Analog Front End (AFE) Rating: Catalog Device type: Receiver Number of input channels: 16 Active supply current (typ) (mA): 274 Supply voltage (max) (V): 3.6 Operating temperature range (°C): -40 to 85 Interface type: JESD204B, LVDS Features: Analog Front End (AFE) Rating: Catalog

ADS8664

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 采用 5V 电源并具有 4 通道、500kSPS 和双极性输入的 12 位 SAR ADC

Resolution (Bits): 12 Sample rate (max) (ksps): 500 Number of input channels: 4 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Internal Input voltage range (max) (V): 10.24 Input voltage range (min) (V): -10.24 Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 65 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 73.8 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25 Resolution (Bits): 12 更多

Sample rate (max) (ksps): 500 Number of input channels: 4 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Internal Input voltage range (max) (V): 10.24 Input voltage range (min) (V): -10.24 Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 65 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 73.8 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25

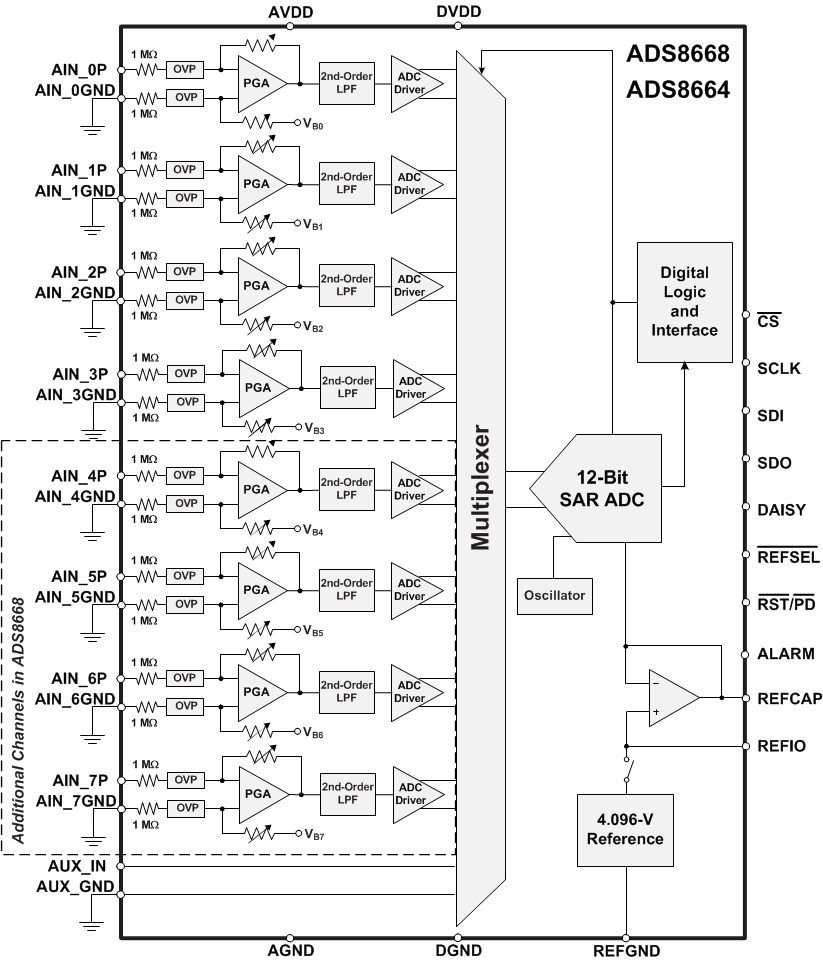

ADS8668

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 采用 5V 电源并具有双极性输入的 12 位、500kSPS 8 通道 SAR ADC

Resolution (Bits): 12 Sample rate (max) (ksps): 500 Number of input channels: 8 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Internal Input voltage range (max) (V): 10.24 Input voltage range (min) (V): -10.24 Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 65 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 73.8 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25 Resolution (Bits): 12 更多

Sample rate (max) (ksps): 500 Number of input channels: 8 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Internal Input voltage range (max) (V): 10.24 Input voltage range (min) (V): -10.24 Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 65 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 73.8 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25

ADS8674

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 采用 5V 电源并具有双极性输入的 14 位、500kSPS 4 通道 SAR ADC

Resolution (Bits): 14 Sample rate (max) (ksps): 500 Number of input channels: 4 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Internal Input voltage range (max) (V): 10.24 Input voltage range (min) (V): -10.24 Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 65 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 85 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25 Resolution (Bits): 14 更多

Sample rate (max) (ksps): 500 Number of input channels: 4 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Internal Input voltage range (max) (V): 10.24 Input voltage range (min) (V): -10.24 Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 65 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 85 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25

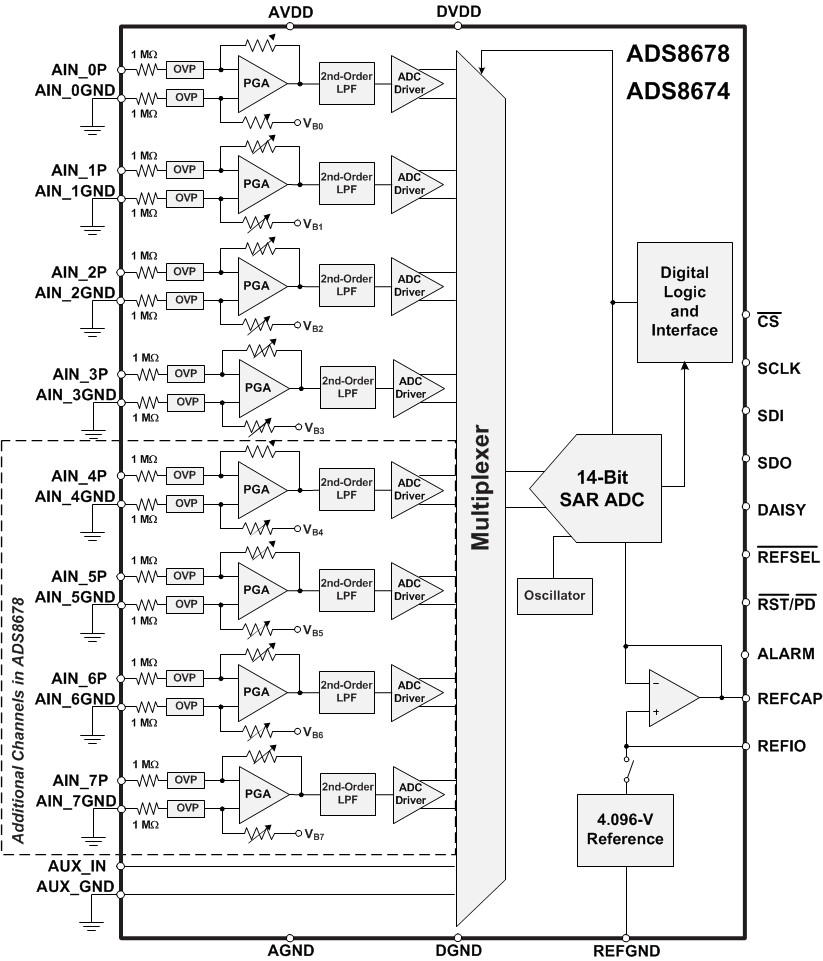

ADS8678

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 采用 5V 电源并具有双极性输入的 14 位、500kSPS 8 通道 SAR ADC

Resolution (Bits): 14 Sample rate (max) (ksps): 500 Number of input channels: 8 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Internal Input voltage range (max) (V): 10.24 Input voltage range (min) (V): -10.24 Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 65 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 85 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25 Resolution (Bits): 14 更多

Sample rate (max) (ksps): 500 Number of input channels: 8 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Internal Input voltage range (max) (V): 10.24 Input voltage range (min) (V): -10.24 Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 65 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 85 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25

ADS8684A

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 具有可编程 (±10/±5/±2.5V) 输入范围、警报功能和 +5V 电源的 16 位、500kSPS、4 通道 SAR ADC

Resolution (Bits): 16 Sample rate (max) (ksps): 500 Number of input channels: 4 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Internal Input voltage range (max) (V): 10.24 Input voltage range (min) (V): -10.24 Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 65 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 92 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25 Resolution (Bits): 16 更多

Sample rate (max) (ksps): 500 Number of input channels: 4 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Internal Input voltage range (max) (V): 10.24 Input voltage range (min) (V): -10.24 Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 65 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 92 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25

ADS8688A

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 采用 5V 电源和低温漂 VREF 的 16 位 500kSPS 双极输入 8 通道 SAR ADC

Resolution (Bits): 16 Sample rate (max) (ksps): 500 Number of input channels: 8 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 10.24 Input voltage range (min) (V): -10.24 Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 65 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 92 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25 Resolution (Bits): 16 更多

Sample rate (max) (ksps): 500 Number of input channels: 8 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 10.24 Input voltage range (min) (V): -10.24 Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 65 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 92 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25

ADS8694

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 采用 5V 电源并具有双极性输入的 18 位、500kSPS 4 通道 SAR ADC

Resolution (Bits): 18 Sample rate (max) (ksps): 500 Number of input channels: 4 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Internal Input voltage range (max) (V): 10.24 Input voltage range (min) (V): -10.24 Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 65 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 93.5 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25 Resolution (Bits): 18 更多

Sample rate (max) (ksps): 500 Number of input channels: 4 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Internal Input voltage range (max) (V): 10.24 Input voltage range (min) (V): -10.24 Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 65 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 93.5 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25

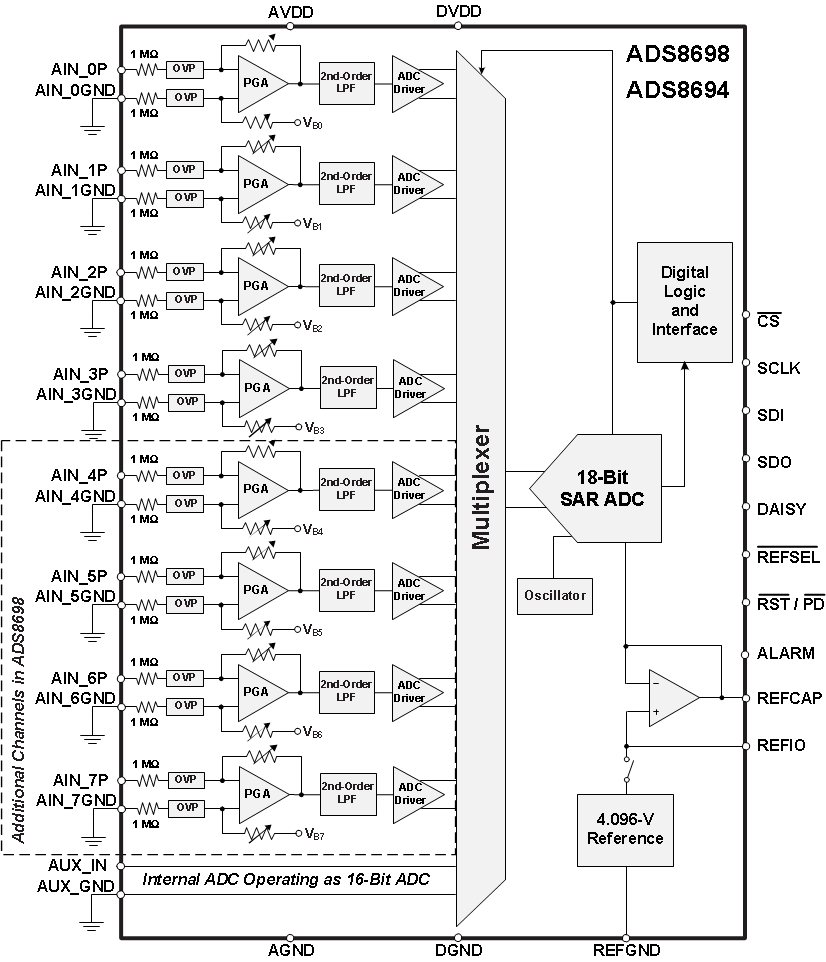

ADS8698

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器

描述: 采用 5V 电源并具有双极性输入的 18 位、500kSPS 8 通道 SAR ADC

Resolution (Bits): 18 Sample rate (max) (ksps): 500 Number of input channels: 8 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Internal Input voltage range (max) (V): 10.24 Input voltage range (min) (V): -10.24 Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 65 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 93.5 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25 Resolution (Bits): 18 更多

Sample rate (max) (ksps): 500 Number of input channels: 8 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Internal Input voltage range (max) (V): 10.24 Input voltage range (min) (V): -10.24 Features: Daisy-Chainable, Oscillator, Over-Voltage Protection, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 65 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 93.5 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25
