Resolution (Bits): 12 Sample rate (max) (ksps): 1000 Number of input channels: 8 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 10 Input voltage range (min) (V): -10 Features: Comparator Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 14.45 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 71.8 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25 Resolution (Bits): 12 更多

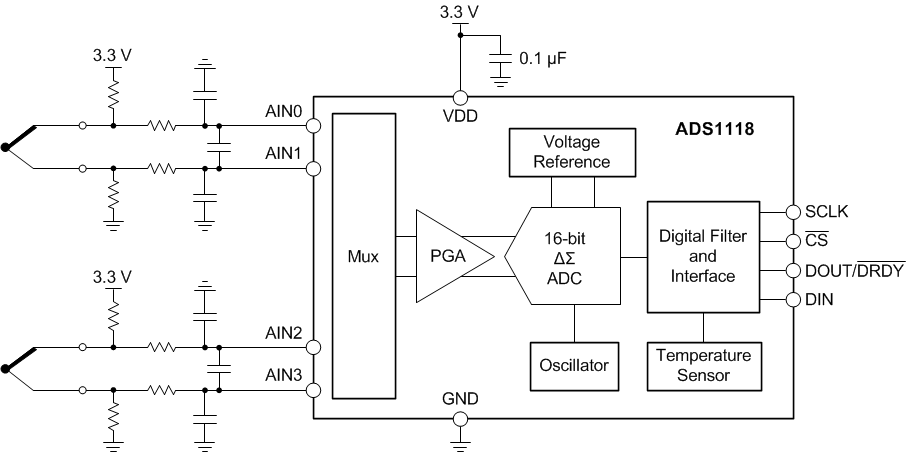

Resolution (Bits): 16 Sample rate (max) (ksps): 0.86 Number of input channels: 4 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Internal Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Oscillator, PGA, Small Size, Temp Sensor Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 0.3 Analog supply (min) (V): 2 Analog supply voltage (max) (V): 5.5 Digital supply (min) (V): 2 Digital supply (max) (V): 5.5 Resolution (Bits): 16 Sample rate (max) (ksps): 0.86 更多

Sample rate (max) (Msps): 65 Resolution (Bits): 12 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 600 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 183 Architecture: Pipeline SNR (dB): 70.9 ENOB (Bits): 11.3 SFDR (dB): 91 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 65 Resolution (Bits): 12 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 600 更多

Sample rate (max) (Msps): 125 Resolution (Bits): 12 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 600 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 277 Architecture: Pipeline SNR (dB): 70.9 ENOB (Bits): 11.3 SFDR (dB): 91 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 125 Resolution (Bits): 12 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 600 更多

Sample rate (max) (Msps): 250 Resolution (Bits): 12 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 600 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 470 Architecture: Pipeline SNR (dB): 70.5 ENOB (Bits): 11.15 SFDR (dB): 80.8 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 250 Resolution (Bits): 12 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 600 更多

Sample rate (max) (Msps): 800, 1600 Resolution (Bits): 12 Number of input channels: 1, 2 Interface type: Parallel LVDS Analog input BW (MHz): 2700 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 0.8 Power consumption (typ) (mW): 2500 Architecture: Folding Interpolating SNR (dB): 60.4 ENOB (Bits): 9.7 SFDR (dB): 74.3 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 800, 1600 Resolution (Bits): 12 Number of input channels: 1, 2 Interface type: Parallel LVDS Analog input BW (MHz): 2700 更多

Sample rate (max) (Msps): 125 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 800 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 1.5 Power consumption (typ) (mW): 310 Architecture: Pipeline SNR (dB): 68.8 ENOB (Bits): 11.1 SFDR (dB): 89 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 125 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 800 更多

Sample rate (max) (Msps): 65 Resolution (Bits): 14 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 600 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 183 Architecture: Pipeline SNR (dB): 73.6 ENOB (Bits): 11.5 SFDR (dB): 91 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 65 Resolution (Bits): 14 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 600 更多

Sample rate (max) (Msps): 125 Resolution (Bits): 14 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 600 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 277 Architecture: Pipeline SNR (dB): 73.6 ENOB (Bits): 11.5 SFDR (dB): 91 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 125 Resolution (Bits): 14 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 600 更多

Sample rate (max) (Msps): 160 Resolution (Bits): 14 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 600 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 332 Architecture: Pipeline SNR (dB): 73.6 ENOB (Bits): 11.5 SFDR (dB): 91 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 160 Resolution (Bits): 14 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 600 更多
