Applications: 5-lead ECG, 6-lead ECG, Patient monitoring Number of input channels: 6 Resolution (Bits): 24 Number of LEDs: 0 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog Applications: 5-lead ECG, 6-lead ECG, Patient monitoring Number of input channels: 6 Resolution (Bits): 24 Number of LEDs: 0 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog

Sample rate (max) (Msps): 1800, 3600 Resolution (Bits): 12 Number of input channels: 1, 2 Interface type: Parallel LVDS Analog input BW (MHz): 2800 Features: Ultra High Speed Rating: Catalog Peak-to-peak input voltage range (V): 0.8 Power consumption (typ) (mW): 4180 Architecture: Folding Interpolating SNR (dB): 58.6 ENOB (Bits): 9.4 SFDR (dB): 73 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 1800, 3600 Resolution (Bits): 12 Number of input channels: 1, 2 Interface type: Parallel LVDS Analog input BW (MHz): 2800 更多

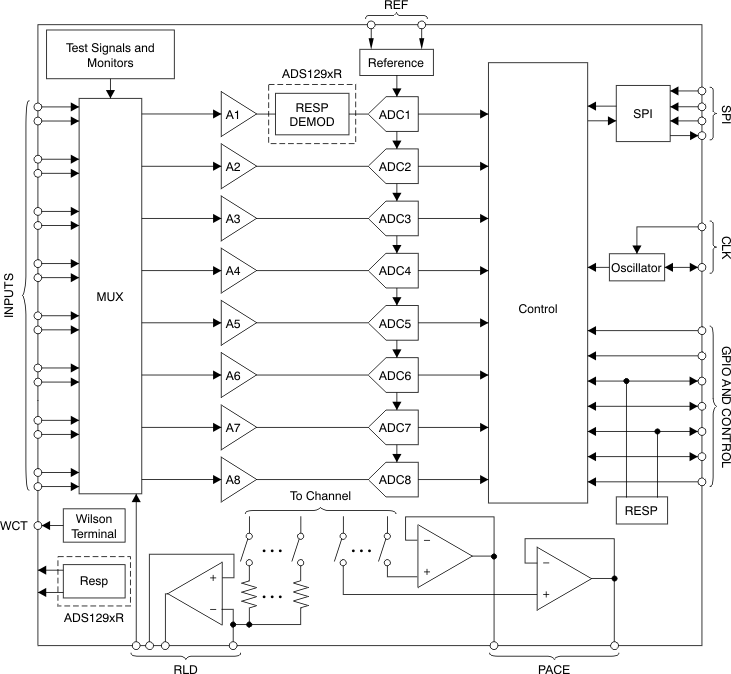

Applications: 12-lead ECG, 18-lead ECG, Patient monitoring Number of input channels: 8 Resolution (bps): 16 Interface type: SPI Operating temperature range (°C): 0 to 70 Rating: Catalog Applications: 12-lead ECG, 18-lead ECG, Patient monitoring Number of input channels: 8 Resolution (bps): 16 Interface type: SPI Operating temperature range (°C): 0 to 70 Rating: Catalog

Sample rate (max) (Msps): 160 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 800 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 200 Architecture: Pipeline SNR (dB): 70.2 ENOB (Bits): 11.2 SFDR (dB): 88 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 160 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 800 更多

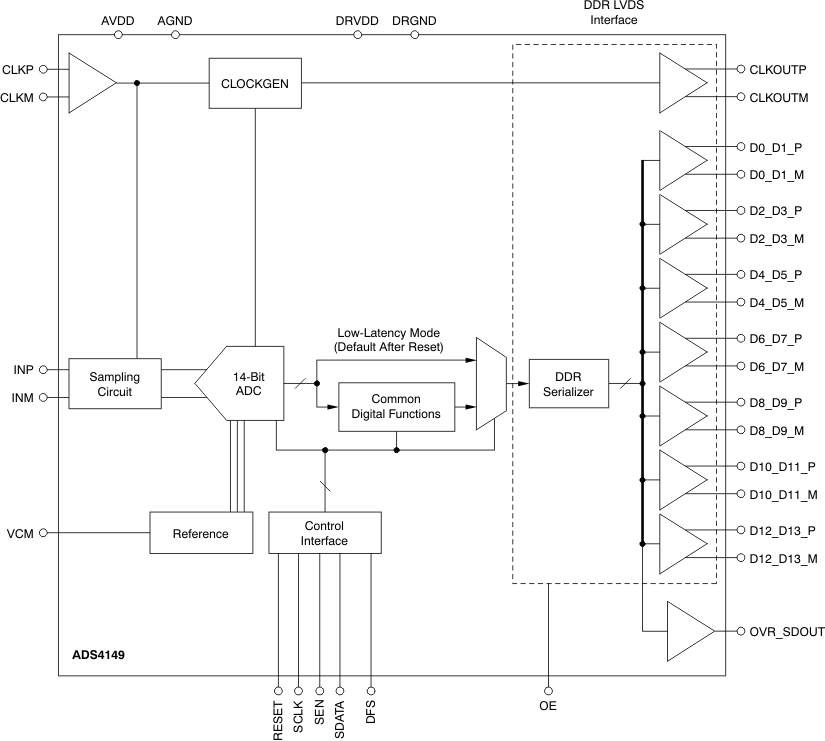

Sample rate (max) (Msps): 160 Resolution (Bits): 14 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 800 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 200 Architecture: Pipeline SNR (dB): 72.2 ENOB (Bits): 11.5 SFDR (dB): 88 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 160 Resolution (Bits): 14 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 800 更多

Resolution (Bits): 12 Sample rate (max) (ksps): 2000 Number of input channels: 2 Interface type: SPI Architecture: SAR Input type: Pseudo-Differential, Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Small Size Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 7.5 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.5 SNR (dB): 73 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 12 更多

Resolution (Bits): 10 Sample rate (max) (ksps): 2000 Number of input channels: 2 Interface type: SPI Architecture: SAR Input type: Pseudo-Differential, Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Small Size Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 7.5 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.5 SNR (dB): 61 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 10 更多

Resolution (Bits): 8 Sample rate (max) (ksps): 2000 Number of input channels: 2 Interface type: SPI Architecture: SAR Input type: Pseudo-Differential, Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Small Size Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 7.5 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.5 SNR (dB): 49 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 8 更多

Sample rate (max) (Msps): 1600, 3200 Resolution (Bits): 12 Number of input channels: 1, 2 Interface type: Parallel LVDS Analog input BW (MHz): 2800 Features: Ultra High Speed Rating: Catalog Peak-to-peak input voltage range (V): 0.8 Power consumption (typ) (mW): 3880 Architecture: Folding Interpolating SNR (dB): 58.5 ENOB (Bits): 9.4 SFDR (dB): 71 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 1600, 3200 Resolution (Bits): 12 Number of input channels: 1, 2 Interface type: Parallel LVDS Analog input BW (MHz): 2800 更多

Sample rate (max) (Msps): 200 Resolution (Bits): 11 Number of input channels: 1 Interface type: Parallel CMOS, Parallel LVDS Analog input BW (MHz): 550 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 310 Architecture: Pipeline SNR (dB): 66.3 ENOB (Bits): 10.6 SFDR (dB): 87.5 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 200 Resolution (Bits): 11 Number of input channels: 1 Interface type: Parallel CMOS, Parallel LVDS Analog input BW (MHz): 550 更多
