Resolution (Bits): 12 Sample rate (max) (ksps): 3.3 Number of input channels: 4 Interface type: I2C Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: Automotive TI functional safety category: Functional Safety-Capable Reference mode: Internal Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Comparator, Oscillator, PGA Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 0.9 Analog supply (min) (V): 2 Analog supply voltage (max) (V): 5.5 Digital supply (min) (V): 2 Digital supply (max) (V): 5.5 Resolution (Bits): 12 更多

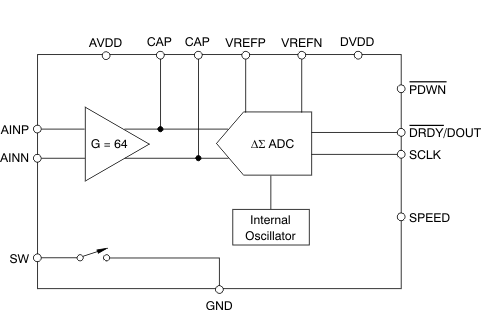

Resolution (Bits): 18 Sample rate (max) (ksps): 0.08 Number of input channels: 1 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Rating: Catalog Reference mode: External Input voltage range (max) (V): 0.041 Input voltage range (min) (V): 0 Features: 50/60 Hz Rejection, Oscillator, PGA Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 2.9 Analog supply (min) (V): 3 Analog supply voltage (max) (V): 5.3 Digital supply (min) (V): 3 Digital supply (max) (V): 5.3 Resolution (Bits): 18 Sample rate (max) (ksps): 0.08 Number of input channels: 1 更多

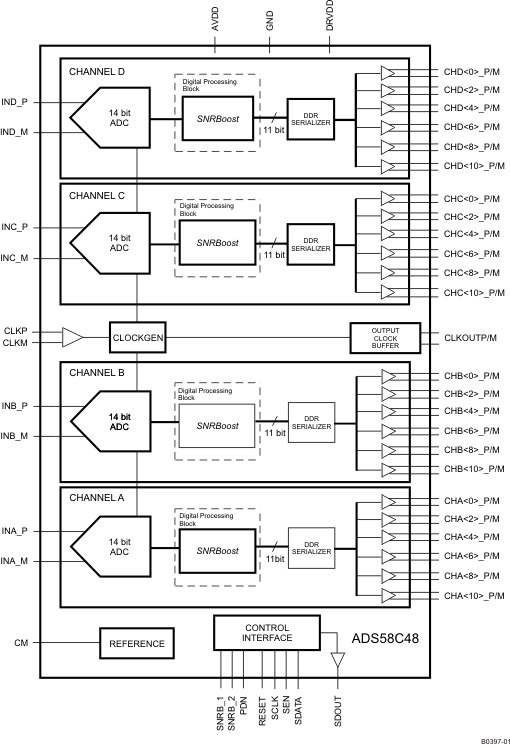

Sample rate (max) (Msps): 200 Resolution (Bits): 11 Number of input channels: 4 Interface type: Parallel CMOS, Parallel LVDS Analog input BW (MHz): 600 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 900 Architecture: Pipeline SNR (dB): 66.7 ENOB (Bits): 10.7 SFDR (dB): 84 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 200 Resolution (Bits): 11 Number of input channels: 4 Interface type: Parallel CMOS, Parallel LVDS Analog input BW (MHz): 600 更多

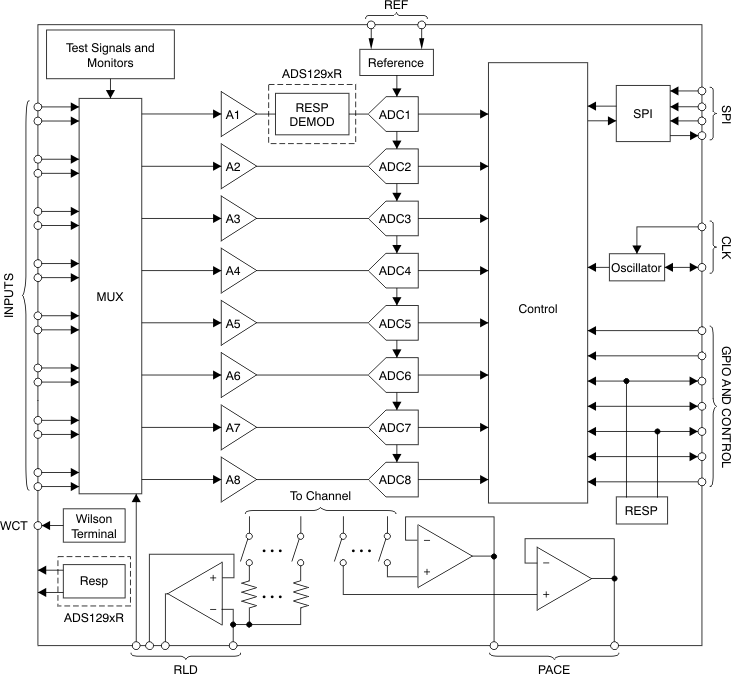

Applications: 12-lead ECG, 18-lead ECG, Patient monitoring Number of input channels: 8 Resolution (Bits): 24 Number of LEDs: 0 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog Applications: 12-lead ECG, 18-lead ECG, Patient monitoring Number of input channels: 8 Resolution (Bits): 24 Number of LEDs: 0 Interface type: SPI Operating temperature range (°C): -40 to 85 Rating: Catalog

Resolution (Bits): 14 Number of channels: 2 Sample rate (Msps): 40 Gain (min) (dB): -3.8 Gain (max) (dB): 18.4 Pd (typ) (mW): 356 Supply voltage (max) (V): 3.3 Operating temperature range (°C): -55 to 125 Output data format: LVDS Rating: Space Resolution (Bits): 14 Number of channels: 2 Sample rate (Msps): 40 Gain (min) (dB): -3.8 Gain (max) (dB): 18.4 Pd (typ) (mW): 356 Supply voltage (max) (V): 3.3 Operating temperature range (°C): -55 to 125 Output data format: LVDS Rating: Space

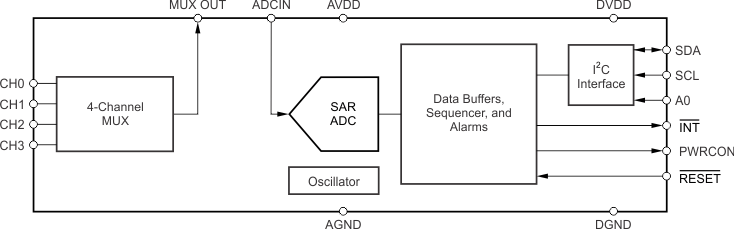

Resolution (Bits): 12 Sample rate (max) (ksps): 100 Number of input channels: 4 Interface type: I2C Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Supply Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Oscillator, Small Size Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 0.5 Analog supply (min) (V): 2.2 Analog supply voltage (max) (V): 5.5 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 12 Sample rate (max) (ksps): 100 更多

Resolution (Bits): 16 Sample rate (max) (ksps): 2 Number of input channels: 1 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Rating: Catalog Reference mode: External Input voltage range (max) (V): 2.125, 4.25 Input voltage range (min) (V): -2.125, 0 Features: 50/60 Hz Rejection, Oscillator, PGA, Temp Sensor Operating temperature range (°C): -40 to 105 Power consumption (typ) (mW): 2.3 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 16 Sample rate (max) (ksps): 2 Number of input channels: 1 更多

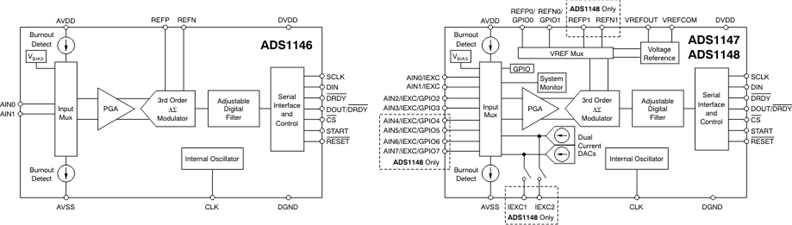

Resolution (Bits): 16 Sample rate (max) (ksps): 2 Number of input channels: 4 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 2.125, 4.25 Input voltage range (min) (V): -2.125, 0 Operating temperature range (°C): -40 to 105 Power consumption (typ) (mW): 2.3 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 16 Sample rate (max) (ksps): 2 Number of input channels: 4 更多

Resolution (Bits): 16 Sample rate (max) (ksps): 2 Number of input channels: 8 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 2.125, 4.25 Input voltage range (min) (V): -2.125, 0 Operating temperature range (°C): -40 to 105 Power consumption (typ) (mW): 2.3 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 16 Sample rate (max) (ksps): 2 Number of input channels: 8 更多

Device type: Other Number of input channels: 8 Active supply current (typ) (mA): 0.05 Supply voltage (max) (V): 10 Operating temperature range (°C): 0 to 70 Interface type: Serial Features: Time-of-flight Rating: Catalog Device type: Other Number of input channels: 8 Active supply current (typ) (mA): 0.05 Supply voltage (max) (V): 10 Operating temperature range (°C): 0 to 70 Interface type: Serial Features: Time-of-flight Rating: Catalog
