Sample rate (max) (Msps): 80
Resolution (Bits): 14
Number of input channels: 1
Interface type: Parallel CMOS
Analog input BW (MHz): 570
Features: High Performance
Rating: Catalog
Peak-to-peak input voltage range (V): 2.2
Power consumption (typ) (mW): 1850
Architecture: Pipeline
SNR (dB): 74.6
ENOB (Bits): 12.2
SFDR (dB): 94
Operating temperature range (°C): -40 to 85
Input buffer: No
Sample rate (max) (Msps): 80
Resolution (Bits): 14
Number of input channels: 1
Interface type: Parallel CMOS
Analog input BW (MHz): 570
更多
Features: High Performance
Rating: Catalog
Peak-to-peak input voltage range (V): 2.2
Power consumption (typ) (mW): 1850
Architecture: Pipeline
SNR (dB): 74.6
ENOB (Bits): 12.2
SFDR (dB): 94
Operating temperature range (°C): -40 to 85
Input buffer: No

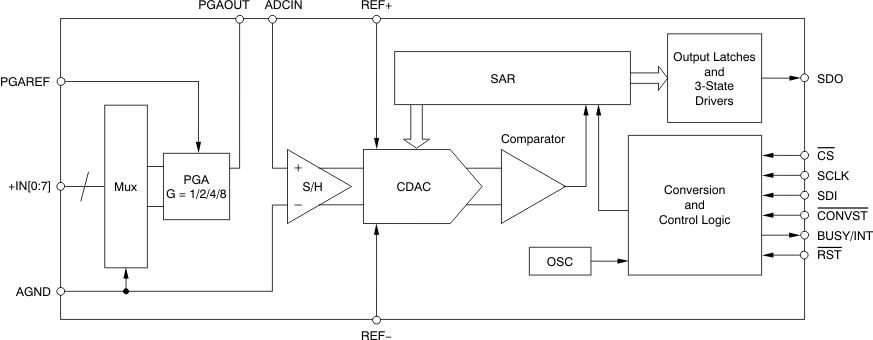

ADS8201
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 具有 PGA 和 SPI™ 的 2.2V 至 5.5V、低功耗、12 位、100kSPS、8 通道 DAS
Resolution (Bits): 12
Sample rate (max) (ksps): 100
Number of input channels: 8
Interface type: SPI
Architecture: SAR
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: Oscillator, PGA
Operating temperature range (°C): -40 to 85
Power consumption (typ) (mW): 1.32
Analog supply (min) (V): 2.2
Analog supply voltage (max) (V): 5.5
Digital supply (min) (V): 2.2
Digital supply (max) (V): 5.5
Resolution (Bits): 12
Sample rate (max) (ksps): 100
更多
Number of input channels: 8
Interface type: SPI
Architecture: SAR
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: External
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: Oscillator, PGA
Operating temperature range (°C): -40 to 85
Power consumption (typ) (mW): 1.32
Analog supply (min) (V): 2.2
Analog supply voltage (max) (V): 5.5
Digital supply (min) (V): 2.2
Digital supply (max) (V): 5.5
ADC10D1500
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 10 位、双通道 1.5GSPS 或单通道 3.0GSPS 模数转换器 (ADC)
Sample rate (max) (Msps): 1500, 3000
Resolution (Bits): 10
Number of input channels: 1, 2
Interface type: Parallel LVDS
Analog input BW (MHz): 2800
Features: Ultra High Speed
Rating: Catalog
Peak-to-peak input voltage range (V): 0.8
Power consumption (typ) (mW): 3140
Architecture: Folding Interpolating
SNR (dB): 57
ENOB (Bits): 9.1
SFDR (dB): 70
Operating temperature range (°C): -40 to 85
Input buffer: Yes
Sample rate (max) (Msps): 1500, 3000
Resolution (Bits): 10
Number of input channels: 1, 2
Interface type: Parallel LVDS
Analog input BW (MHz): 2800
更多
Features: Ultra High Speed
Rating: Catalog
Peak-to-peak input voltage range (V): 0.8
Power consumption (typ) (mW): 3140
Architecture: Folding Interpolating
SNR (dB): 57
ENOB (Bits): 9.1
SFDR (dB): 70
Operating temperature range (°C): -40 to 85
Input buffer: Yes
TLV2548-EP
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 具有串行输出、自动断电（软件和硬件）、低功耗、8 x FIFO 和 8 通道的 2 位 200kSPS ADC（增强型产品）
Resolution (Bits): 12
Sample rate (max) (ksps): 200
Number of input channels: 8
Interface type: SPI
Architecture: SAR
Input type: Single-ended
Multichannel configuration: Multiplexed
Rating: HiRel Enhanced Product
Reference mode: External, Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: Oscillator
Operating temperature range (°C): -55 to 125
Power consumption (typ) (mW): 3.3
Analog supply (min) (V): 3
Analog supply voltage (max) (V): 5.5
SNR (dB): 71
Digital supply (min) (V): 3
Digital supply (max) (V): 5.5
Resolution (Bits): 12
更多
Sample rate (max) (ksps): 200
Number of input channels: 8
Interface type: SPI
Architecture: SAR
Input type: Single-ended
Multichannel configuration: Multiplexed
Rating: HiRel Enhanced Product
Reference mode: External, Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: Oscillator
Operating temperature range (°C): -55 to 125
Power consumption (typ) (mW): 3.3
Analog supply (min) (V): 3
Analog supply voltage (max) (V): 5.5
SNR (dB): 71
Digital supply (min) (V): 3
Digital supply (max) (V): 5.5
Number of input channels: 64
Resolution (Bits): 14
Interface type: Serial
Operating temperature range (°C): -40 to 85
Rating: Catalog
Number of input channels: 64
Resolution (Bits): 14
Interface type: Serial
Operating temperature range (°C): -40 to 85
Rating: Catalog

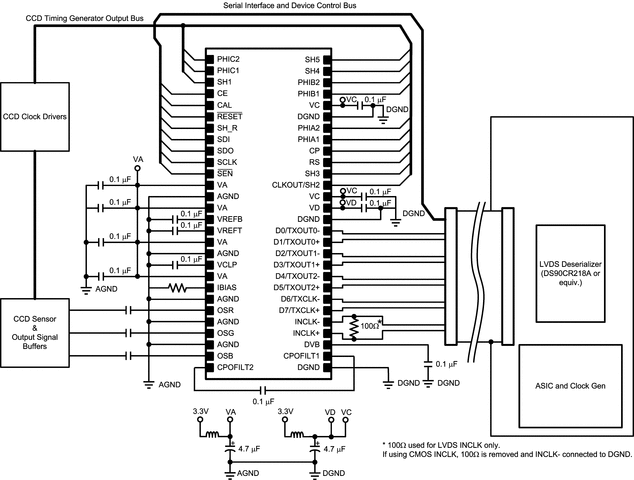

LM98722
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 具有 LVDS/CMOS 输出和集成 CCD/CIS 传感器定时发送器的 3 通道 16 位 45MSPS AFE
Resolution (Bits): 16
Number of channels: 3
Sample rate (Msps): 45
Gain (min) (dB): -4.3
Gain (max) (dB): 18.4
Pd (typ) (mW): 600
Supply voltage (max) (V): 3.3
Operating temperature range (°C): 0 to 70
Output data format: CMOS, LVDS
Rating: Catalog
Resolution (Bits): 16
Number of channels: 3
Sample rate (Msps): 45
Gain (min) (dB): -4.3
Gain (max) (dB): 18.4
Pd (typ) (mW): 600
Supply voltage (max) (V): 3.3
Operating temperature range (°C): 0 to 70
Output data format: CMOS, LVDS
Rating: Catalog
ADS1000-Q1
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 具有 PGA、振荡器和 I2C 的汽车类、12 位、128SPS、单通道 Δ-Σ ADC
Resolution (Bits): 12
Sample rate (max) (ksps): 0.128
Number of input channels: 1
Interface type: I2C
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Rating: Automotive
Reference mode: Supply
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: Oscillator, PGA, Small Size
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 0.21
Analog supply (min) (V): 2.7
Analog supply voltage (max) (V): 5.5
Digital supply (min) (V): 2.7
Digital supply (max) (V): 5.5
Resolution (Bits): 12
Sample rate (max) (ksps): 0.128
Number of input channels: 1
更多
Interface type: I2C
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Rating: Automotive
Reference mode: Supply
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: Oscillator, PGA, Small Size
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 0.21
Analog supply (min) (V): 2.7
Analog supply voltage (max) (V): 5.5
Digital supply (min) (V): 2.7
Digital supply (max) (V): 5.5
Resolution (Bits): 12
Sample rate (max) (ksps): 3.3
Number of input channels: 1
Interface type: I2C
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Rating: Catalog
Reference mode: Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: Oscillator, Small Size
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 0.3
Analog supply (min) (V): 2
Analog supply voltage (max) (V): 5.5
Digital supply (min) (V): 2
Digital supply (max) (V): 5.5
Resolution (Bits): 12
Sample rate (max) (ksps): 3.3
Number of input channels: 1
更多
Interface type: I2C
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Rating: Catalog
Reference mode: Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: Oscillator, Small Size
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 0.3
Analog supply (min) (V): 2
Analog supply voltage (max) (V): 5.5
Digital supply (min) (V): 2
Digital supply (max) (V): 5.5
ADS1014
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 具有 PGA、振荡器、电压基准、比较器和 I2C 的 12 位 3.3kSPS 单通道 Δ-Σ ADC
Resolution (Bits): 12
Sample rate (max) (ksps): 3.3
Number of input channels: 1
Interface type: I2C
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Rating: Catalog
Reference mode: Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: Comparator, Oscillator, PGA, Small Size
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 0.3
Analog supply (min) (V): 2
Analog supply voltage (max) (V): 5.5
Digital supply (min) (V): 2
Digital supply (max) (V): 5.5
Resolution (Bits): 12
Sample rate (max) (ksps): 3.3
Number of input channels: 1
更多
Interface type: I2C
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Rating: Catalog
Reference mode: Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: Comparator, Oscillator, PGA, Small Size
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 0.3
Analog supply (min) (V): 2
Analog supply voltage (max) (V): 5.5
Digital supply (min) (V): 2
Digital supply (max) (V): 5.5
ADS1015
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 模拟/数字(A/D)转换器
描述: 具有 PGA、振荡器、VREF、比较器、I2C 的 12 位 3.3kSPS 4 通道 Δ-Σ ADC
Resolution (Bits): 12
Sample rate (max) (ksps): 3.3
Number of input channels: 4
Interface type: I2C
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: Comparator, Oscillator, PGA, Small Size
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 0.3
Analog supply (min) (V): 2
Analog supply voltage (max) (V): 5.5
Digital supply (min) (V): 2
Digital supply (max) (V): 5.5
Resolution (Bits): 12
Sample rate (max) (ksps): 3.3
更多
Number of input channels: 4
Interface type: I2C
Architecture: Delta-Sigma
Input type: Differential, Single-ended
Multichannel configuration: Multiplexed
Rating: Catalog
Reference mode: Internal
Input voltage range (max) (V): 5.5
Input voltage range (min) (V): 0
Features: Comparator, Oscillator, PGA, Small Size
Operating temperature range (°C): -40 to 125
Power consumption (typ) (mW): 0.3
Analog supply (min) (V): 2
Analog supply voltage (max) (V): 5.5
Digital supply (min) (V): 2
Digital supply (max) (V): 5.5
