Resolution (Bits): 16 Sample rate (max) (ksps): 500 Number of input channels: 1 Interface type: SPI Architecture: SAR Input type: Single-ended Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Small Size Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 18 Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 5.5 SNR (dB): 93.9 Digital supply (min) (V): 2.375 Digital supply (max) (V): 5.5 Resolution (Bits): 16 Sample rate (max) (ksps): 500 更多

Sample rate (max) (Msps): 250 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 700 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 790 Architecture: Pipeline SNR (dB): 70.1 ENOB (Bits): 11.1 SFDR (dB): 92 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 250 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 700 更多

Sample rate (max) (Msps): 250 Resolution (Bits): 14 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 700 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 790 Architecture: Pipeline SNR (dB): 72.3 ENOB (Bits): 11.3 SFDR (dB): 92 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 250 Resolution (Bits): 14 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 700 更多

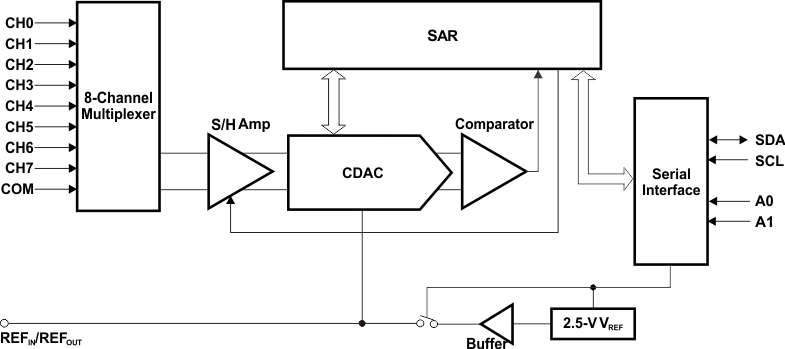

Resolution (Bits): 12 Sample rate (max) (ksps): 50 Number of input channels: 8 Interface type: I2C Architecture: SAR Input type: Pseudo-Differential, Single-ended Multichannel configuration: Multiplexed Rating: Automotive Reference mode: External, Internal Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 0.675 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 72 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 12 Sample rate (max) (ksps): 50 更多

Sample rate (max) (Msps): 80 Resolution (Bits): 16 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 125 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 3 Power consumption (typ) (mW): 2100 Architecture: Pipeline SNR (dB): 81 ENOB (Bits): 13 SFDR (dB): 98 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 80 Resolution (Bits): 16 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 125 更多

Sample rate (max) (Msps): 105 Resolution (Bits): 16 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 125 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 3 Power consumption (typ) (mW): 2100 Architecture: Pipeline SNR (dB): 80.8 ENOB (Bits): 12.9 SFDR (dB): 98 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 105 Resolution (Bits): 16 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 125 更多

Resolution (Bits): 12 Sample rate (max) (ksps): 200 Number of input channels: 11 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: HiRel Enhanced Product Reference mode: External, Internal Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Oscillator Operating temperature range (°C): -55 to 125 Power consumption (typ) (mW): 2.43 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.5 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.5 Resolution (Bits): 12 Sample rate (max) (ksps): 200 更多

Resolution (Bits): 12 Sample rate (max) (ksps): 200 Number of input channels: 11 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Automotive Reference mode: External Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 2.43 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.5 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.5 Resolution (Bits): 12 Sample rate (max) (ksps): 200 更多

Sample rate (max) (Msps): 155 Resolution (Bits): 14 Number of input channels: 1 Interface type: Parallel CMOS Analog input BW (MHz): 1100 Features: High Performance Rating: Space Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 967 Architecture: Pipeline SNR (dB): 70.1 ENOB (Bits): 11.3 SFDR (dB): 82.3 Operating temperature range (°C): -55 to 125 Input buffer: No Radiation, TID (typ) (krad): 100 Radiation, SEL (MeV·cm2/mg): 120 Sample rate (max) (Msps): 155 Resolution (Bits): 14 Number of input channels: 1 更多

Sample rate (max) (Msps): 80 Resolution (Bits): 14 Number of input channels: 2 Interface type: Parallel CMOS Analog input BW (MHz): 1000 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 600 Architecture: Pipeline SNR (dB): 74 ENOB (Bits): 12 SFDR (dB): 90 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 80 Resolution (Bits): 14 Number of input channels: 2 Interface type: Parallel CMOS Analog input BW (MHz): 1000 更多
