Sample rate (max) (Msps): 200 Resolution (Bits): 16 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 730 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 3 Power consumption (typ) (mW): 2160 Architecture: Pipeline SNR (dB): 75.8 ENOB (Bits): 12.1 SFDR (dB): 93 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 200 Resolution (Bits): 16 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 730 更多

Sample rate (max) (Msps): 130 Resolution (Bits): 16 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 1400 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2.4 Power consumption (typ) (mW): 755 Architecture: Pipeline SNR (dB): 78.5 ENOB (Bits): 12.7 SFDR (dB): 95.5 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 130 Resolution (Bits): 16 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 1400 更多

Sample rate (max) (Msps): 105 Resolution (Bits): 12 Number of input channels: 2 Interface type: Parallel CMOS Analog input BW (MHz): 1000 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 800 Architecture: Pipeline SNR (dB): 71 ENOB (Bits): 11.5 SFDR (dB): 90 Operating temperature range (°C): -45 to 85 Input buffer: No Sample rate (max) (Msps): 105 Resolution (Bits): 12 Number of input channels: 2 Interface type: Parallel CMOS Analog input BW (MHz): 1000 更多

Sample rate (max) (Msps): 170 Resolution (Bits): 16 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 730 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 3 Power consumption (typ) (mW): 2160 Architecture: Pipeline SNR (dB): 76.8 ENOB (Bits): 12.3 SFDR (dB): 95 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 170 Resolution (Bits): 16 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 730 更多

Resolution (Bits): 12 Sample rate (max) (ksps): 2000 Number of input channels: 6 Interface type: Parallel Architecture: SAR Input type: Differential, Pseudo-Differential Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 30 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.5 SNR (dB): 71.7 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.5 Resolution (Bits): 12 Sample rate (max) (ksps): 2000 更多

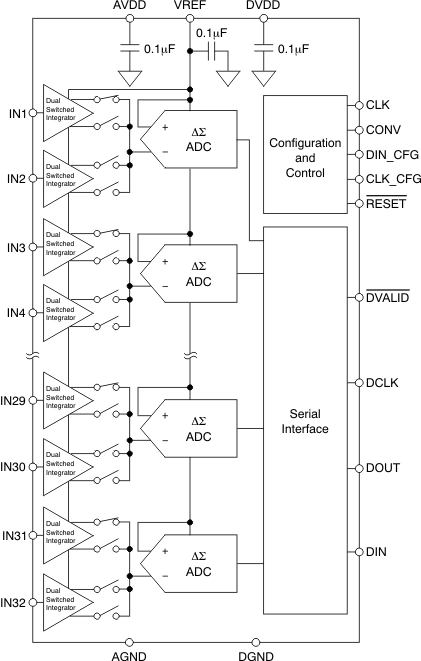

Number of input channels: 32 Resolution (Bits): 20 Features: Computed Tomography (CT) Operating temperature range (°C): 0 to 70 Interface type: Serial Rating: Catalog Number of input channels: 32 Resolution (Bits): 20 Features: Computed Tomography (CT) Operating temperature range (°C): 0 to 70 Interface type: Serial Rating: Catalog

Sample rate (max) (Msps): 210 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel CMOS, Parallel LVDS Analog input BW (MHz): 700 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 628 Architecture: Pipeline SNR (dB): 70.9 ENOB (Bits): 11.2 SFDR (dB): 92 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 210 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel CMOS, Parallel LVDS Analog input BW (MHz): 700 更多

Sample rate (max) (Msps): 210 Resolution (Bits): 14 Number of input channels: 1 Interface type: Parallel CMOS, Parallel LVDS Analog input BW (MHz): 700 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 628 Architecture: Pipeline SNR (dB): 73.4 ENOB (Bits): 11.4 SFDR (dB): 92 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 210 Resolution (Bits): 14 Number of input channels: 1 Interface type: Parallel CMOS, Parallel LVDS Analog input BW (MHz): 700 更多

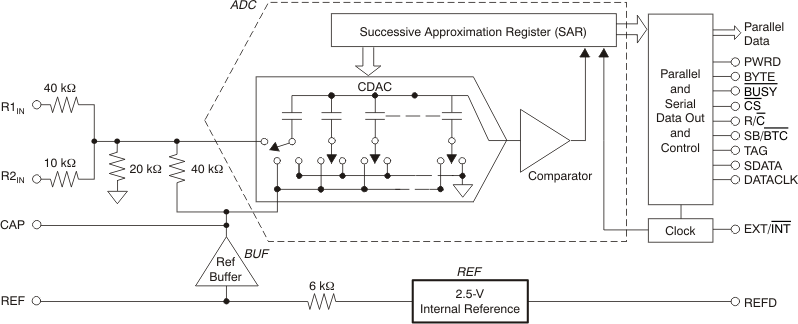

Resolution (Bits): 16 Sample rate (max) (ksps): 200 Number of input channels: 1 Interface type: Byte-Wide, Parallel, SPI Architecture: SAR Input type: Single-ended Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 10 Input voltage range (min) (V): -10 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 60 Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 5.5 SNR (dB): 89 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25 Resolution (Bits): 16 Sample rate (max) (ksps): 200 更多

Resolution (Bits): 16 Sample rate (max) (ksps): 500 Number of input channels: 1 Interface type: SPI Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Small Size Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 18 Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 5.5 SNR (dB): 96 Digital supply (min) (V): 2.375 Digital supply (max) (V): 5.5 Resolution (Bits): 16 Sample rate (max) (ksps): 500 更多
