Resolution (Bits): 8 Sample rate (max) (ksps): 1000 Number of input channels: 16 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 11.5 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 49 Digital supply (min) (V): 1.7 Digital supply (max) (V): 5.25 Resolution (Bits): 8 Sample rate (max) (ksps): 1000 更多

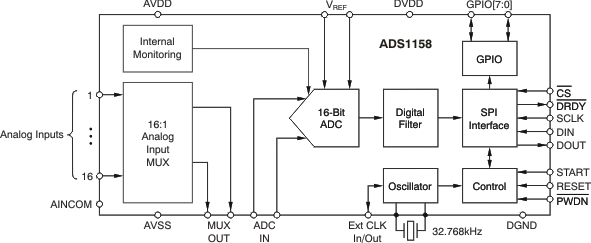

Resolution (Bits): 16 Sample rate (max) (ksps): 125 Number of input channels: 16 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External Input voltage range (max) (V): 2.85, 5.35 Input voltage range (min) (V): -2.7, 0 Features: GPIO, Oscillator Operating temperature range (°C): -40 to 105 Power consumption (typ) (mW): 42 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 Digital supply (min) (V): 2.5 Digital supply (max) (V): 3.6 Resolution (Bits): 16 Sample rate (max) (ksps): 125 更多

Resolution (Bits): 12 Sample rate (max) (ksps): 40 Number of input channels: 1 Interface type: SPI Architecture: SAR Input type: Single-ended Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 10 Input voltage range (min) (V): -10 Features: Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 155 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 74 Digital supply (min) (V): 4.75 Digital supply (max) (V): 5.25 Resolution (Bits): 12 Sample rate (max) (ksps): 40 更多

Resolution (Bits): 12 Sample rate (max) (ksps): 1000 Number of input channels: 1 Interface type: SPI Architecture: SAR Input type: Single-ended Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 13.7 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.5 SNR (dB): 73.9 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 12 Sample rate (max) (ksps): 1000 更多

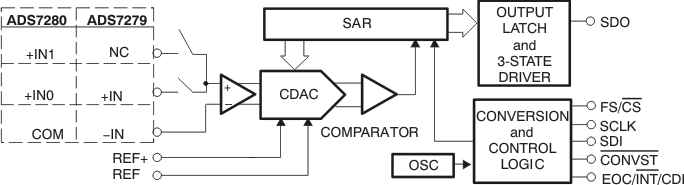

Resolution (Bits): 12 Sample rate (max) (ksps): 1000 Number of input channels: 2 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 13.7 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.5 SNR (dB): 73.9 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 12 更多

Resolution (Bits): 14 Sample rate (max) (ksps): 1000 Number of input channels: 1 Interface type: SPI Architecture: SAR Input type: Single-ended Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 13.7 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.5 SNR (dB): 85.9 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 14 Sample rate (max) (ksps): 1000 更多

Resolution (Bits): 14 Sample rate (max) (ksps): 1000 Number of input channels: 2 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 13.7 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.5 SNR (dB): 85.9 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 14 更多

Sample rate (max) (Msps): 105 Resolution (Bits): 11 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 1000 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 1000 Architecture: Pipeline SNR (dB): 67 ENOB (Bits): 10.9 SFDR (dB): 88 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 105 Resolution (Bits): 11 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 1000 更多

Sample rate (max) (Msps): 80 Resolution (Bits): 12 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 1000 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 800 Architecture: Pipeline SNR (dB): 71 ENOB (Bits): 11.5 SFDR (dB): 88 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 80 Resolution (Bits): 12 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 1000 更多

Sample rate (max) (Msps): 80 Resolution (Bits): 14 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 1000 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 800 Architecture: Pipeline SNR (dB): 74.2 ENOB (Bits): 12 SFDR (dB): 90 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 80 Resolution (Bits): 14 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 1000 更多
