Device type: Current sensing Peak-to-peak input voltage range (V): 250mV Interface type: Serial Sample rate (max) (Msps): 0.04 Rating: Catalog CMTI (min) (kV/µs): 15 Number of input channels: 1 Architecture: Delta-Sigma SNR (dB): 85 Operating temperature range (°C): -40 to 105 Power consumption (typ) (mW): 80 SFDR (dB): 95 Isolation rating: Basic Withstand isolation voltage (VISO) (Vrms): 4000 Working isolation voltage (VIOWM) (Vrms): 560 Transient isolation voltage (VIOTM) (VPK): 4 Creepage (min) (mm): 8 Clearance (min) (mm): 8 Device type: Current sensing Peak-to-peak input voltage range (V): 250mV 更多

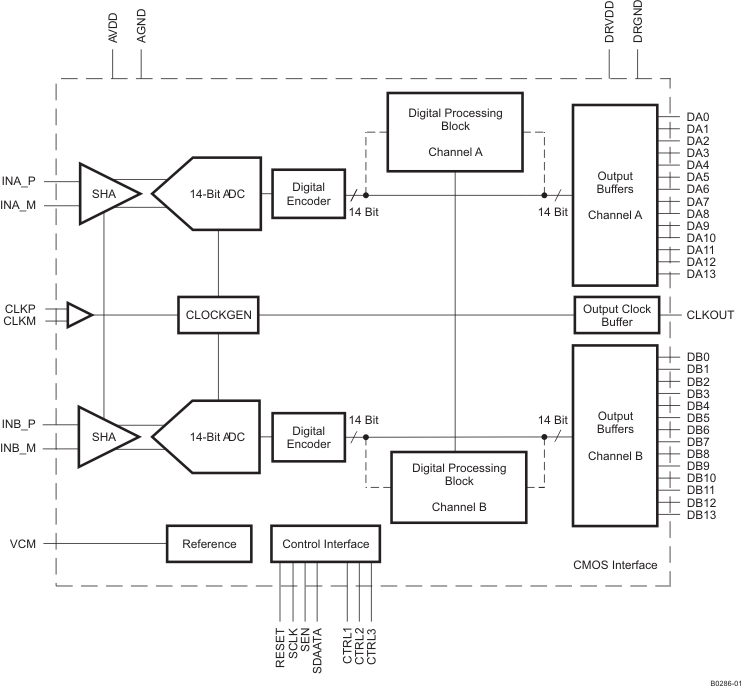

Sample rate (max) (Msps): 65 Resolution (Bits): 14 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 450 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 518 Architecture: Pipeline SNR (dB): 74.8 ENOB (Bits): 12 SFDR (dB): 94 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 65 Resolution (Bits): 14 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 450 更多

Sample rate (max) (Msps): 80 Resolution (Bits): 14 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 450 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 587 Architecture: Pipeline SNR (dB): 74.8 ENOB (Bits): 12 SFDR (dB): 93 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 80 Resolution (Bits): 14 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 450 更多

Sample rate (max) (Msps): 105 Resolution (Bits): 14 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 450 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 700 Architecture: Pipeline SNR (dB): 74.5 ENOB (Bits): 11.95 SFDR (dB): 92 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 105 Resolution (Bits): 14 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 450 更多

Sample rate (max) (Msps): 125 Resolution (Bits): 14 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 450 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 792 Architecture: Pipeline SNR (dB): 74.2 ENOB (Bits): 11.9 SFDR (dB): 88 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 125 Resolution (Bits): 14 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 450 更多

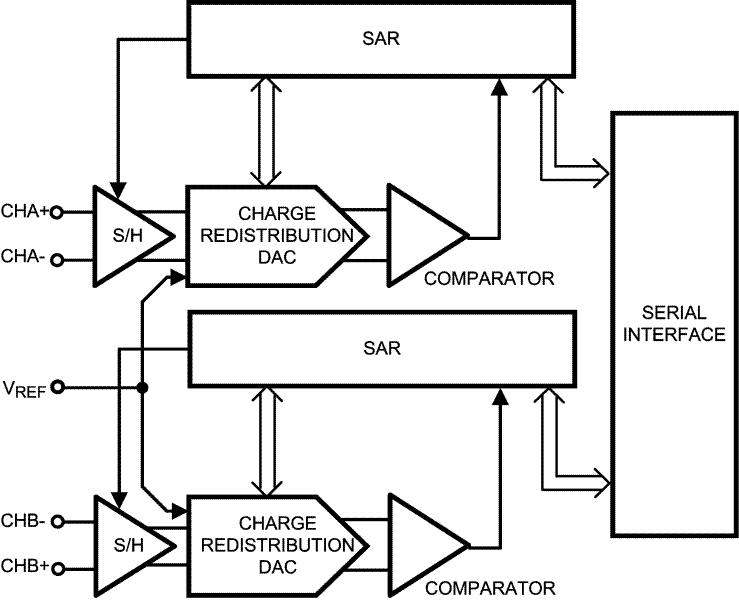

Resolution (Bits): 12 Sample rate (max) (ksps): 200 Number of input channels: 2 Interface type: Microwire (Serial I/O), SPI Architecture: SAR Input type: Differential Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 105 Power consumption (typ) (mW): 8.6 Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 5.5 SNR (dB): 73.2 Digital supply (min) (V): 4.5 Digital supply (max) (V): 5.5 Resolution (Bits): 12 Sample rate (max) (ksps): 200 更多

Resolution (Bits): 12 Sample rate (max) (ksps): 500 Number of input channels: 2 Interface type: Microwire (Serial I/O), SPI Architecture: SAR Input type: Differential Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 105 Power consumption (typ) (mW): 11 Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 5.5 SNR (dB): 73.2 Digital supply (min) (V): 4.5 Digital supply (max) (V): 5.5 Resolution (Bits): 12 Sample rate (max) (ksps): 500 更多

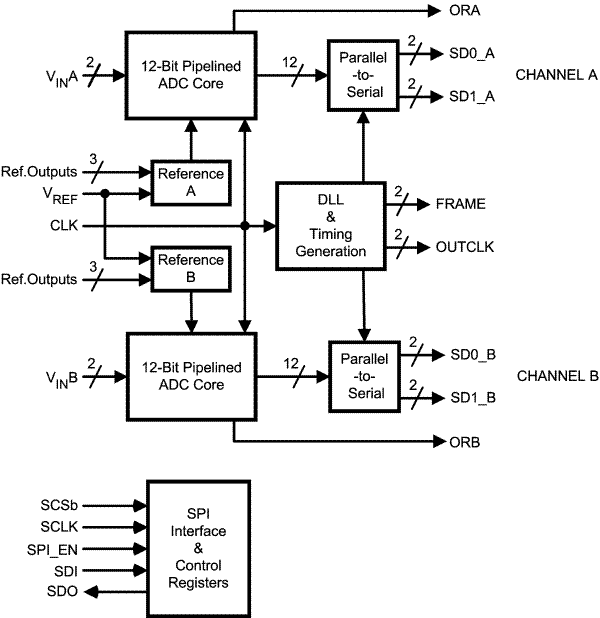

Sample rate (max) (Msps): 125 Resolution (Bits): 12 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 1000 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 1000 Architecture: Pipeline SNR (dB): 71 ENOB (Bits): 11.5 SFDR (dB): 88 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 125 Resolution (Bits): 12 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 1000 更多

Resolution (Bits): 8 Sample rate (max) (ksps): 189 Number of input channels: 1 Interface type: I2C Architecture: SAR Input type: Single-ended Rating: Catalog Reference mode: Supply Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Oscillator, Small Size Operating temperature range (°C): -40 to 105 Power consumption (typ) (mW): 0.26 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.5 SNR (dB): 49.8 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.5 Resolution (Bits): 8 Sample rate (max) (ksps): 189 更多

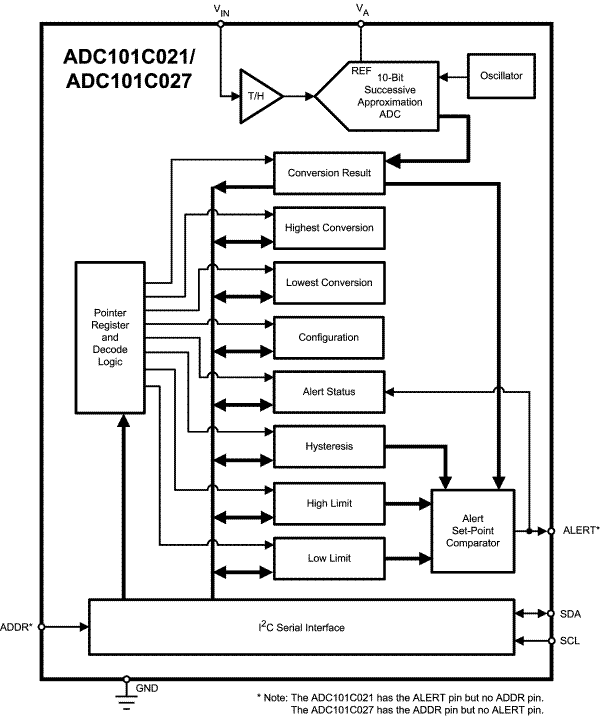

Resolution (Bits): 10 Sample rate (max) (ksps): 125 Number of input channels: 1 Interface type: I2C Architecture: SAR Input type: Single-ended Rating: Catalog Reference mode: Supply Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Oscillator, Small Size Operating temperature range (°C): -40 to 105 Power consumption (typ) (mW): 0.26 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.5 SNR (dB): 61.8 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 10 Sample rate (max) (ksps): 125 更多
