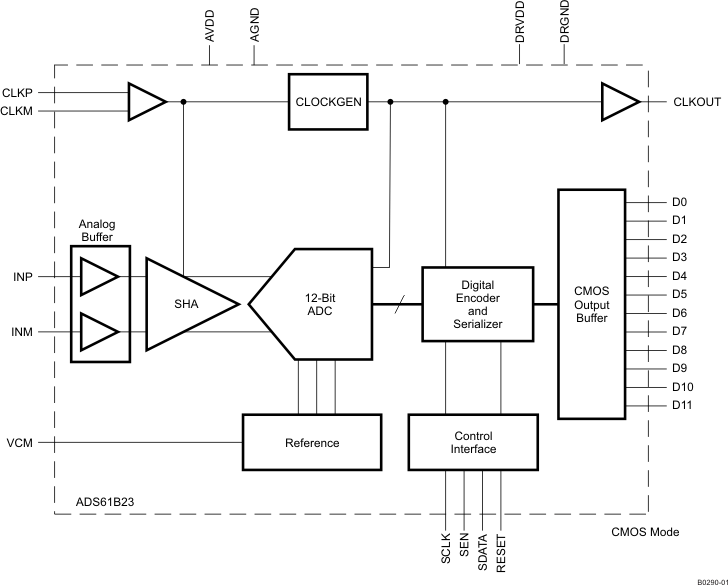

Sample rate (max) (Msps): 80 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 450 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 351 Architecture: Pipeline SNR (dB): 70.2 ENOB (Bits): 11.3 SFDR (dB): 87 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 80 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 450 更多

Sample rate (max) (Msps): 125 Resolution (Bits): 11 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 450 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 740 Architecture: Pipeline SNR (dB): 67.2 ENOB (Bits): 10.8 SFDR (dB): 89 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 125 Resolution (Bits): 11 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 450 更多

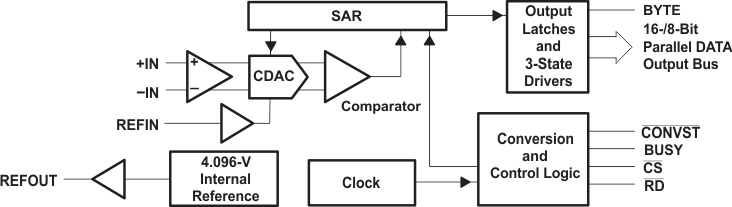

Resolution (Bits): 16 Sample rate (max) (ksps): 1000 Number of input channels: 1 Interface type: Byte-Wide, Parallel Architecture: SAR Input type: Pseudo-Differential, Single-ended Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 4.096 Input voltage range (min) (V): 0 Features: Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 220 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 93 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 16 Sample rate (max) (ksps): 1000 更多

Sample rate (max) (Msps): 50 Resolution (Bits): 12 Number of input channels: 8 Interface type: Parallel LVDS Analog input BW (MHz): 520 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 512 Architecture: Pipeline SNR (dB): 70 ENOB (Bits): 11.3 SFDR (dB): 85 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 50 Resolution (Bits): 12 Number of input channels: 8 Interface type: Parallel LVDS Analog input BW (MHz): 520 更多

Sample rate (max) (Msps): 200 Resolution (Bits): 11 Number of input channels: 1 Interface type: Parallel CMOS Analog input BW (MHz): 700 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 1230 Architecture: Pipeline SNR (dB): 67.1 ENOB (Bits): 10.8 SFDR (dB): 86 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 200 Resolution (Bits): 11 Number of input channels: 1 Interface type: Parallel CMOS Analog input BW (MHz): 700 更多

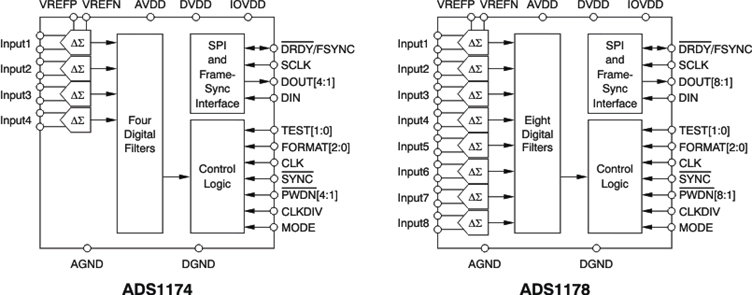

Resolution (Bits): 16 Sample rate (max) (ksps): 52 Number of input channels: 4 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Features: Daisy-Chainable Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 135 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 97 Digital supply (min) (V): 1.65 Digital supply (max) (V): 1.95 Resolution (Bits): 16 更多

Resolution (Bits): 16 Sample rate (max) (ksps): 52 Number of input channels: 8 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Features: Daisy-Chainable Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 245 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 97 Digital supply (min) (V): 1.65 Digital supply (max) (V): 1.95 Resolution (Bits): 16 更多

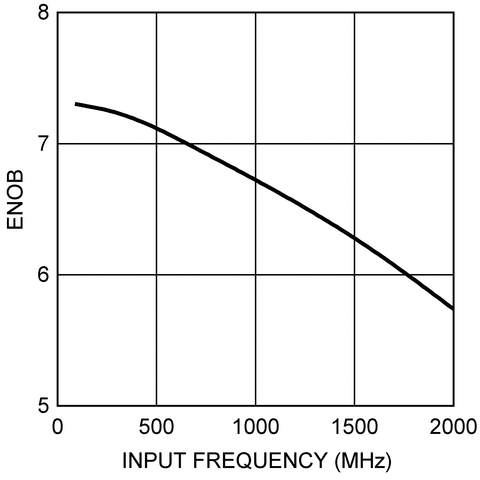

Sample rate (max) (Msps): 3000 Resolution (Bits): 8 Number of input channels: 1 Interface type: Parallel CMOS Analog input BW (MHz): 3000 Features: Ultra High Speed Rating: Catalog Peak-to-peak input voltage range (V): 0.81 Power consumption (typ) (mW): 1600 Architecture: Folding Interpolating SNR (dB): 45.3 ENOB (Bits): 7.2 SFDR (dB): 55.4 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 3000 Resolution (Bits): 8 Number of input channels: 1 Interface type: Parallel CMOS Analog input BW (MHz): 3000 更多

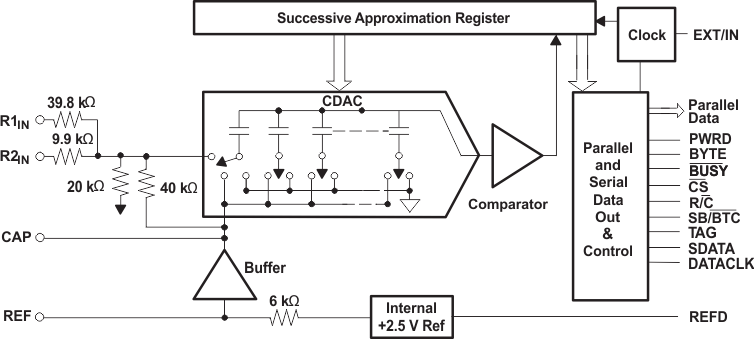

Resolution (Bits): 12 Sample rate (max) (ksps): 40 Number of input channels: 1 Interface type: Byte-Wide, Parallel, SPI Architecture: SAR Input type: Single-ended Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 10 Input voltage range (min) (V): -10 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 155 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 74 Digital supply (min) (V): 4.75 Digital supply (max) (V): 5.25 Resolution (Bits): 12 Sample rate (max) (ksps): 40 更多

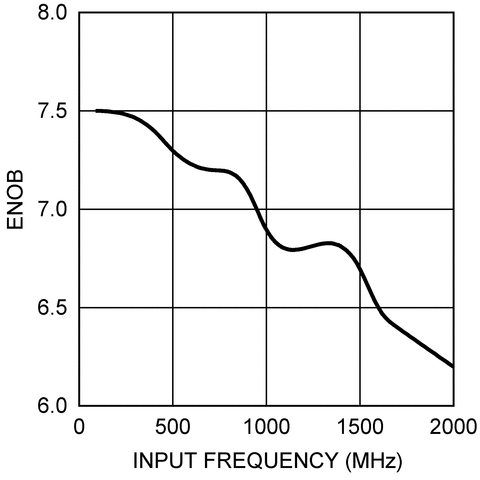

Sample rate (max) (Msps): 1000, 2000 Resolution (Bits): 8 Number of input channels: 1, 2 Interface type: Parallel LVDS Analog input BW (MHz): 2000 Features: Ultra High Speed Rating: Catalog Peak-to-peak input voltage range (V): 0.87 Power consumption (typ) (mW): 1600 Architecture: Folding Interpolating SNR (dB): 46.8 ENOB (Bits): 7.4 SFDR (dB): 58 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 1000, 2000 Resolution (Bits): 8 Number of input channels: 1, 2 Interface type: Parallel LVDS Analog input BW (MHz): 2000 更多
