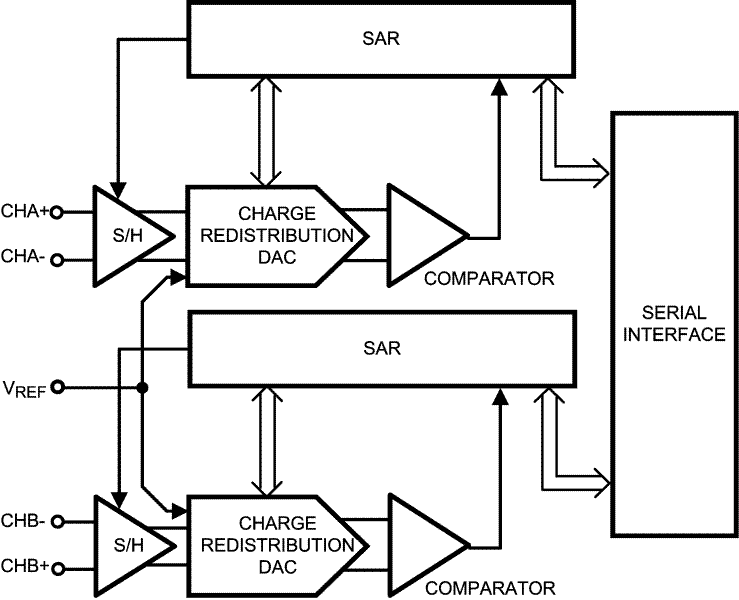

Resolution (Bits): 12 Sample rate (max) (ksps): 1000 Number of input channels: 2 Interface type: Microwire (Serial I/O), SPI Architecture: SAR Input type: Differential Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 105 Power consumption (typ) (mW): 20 Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 5.5 SNR (dB): 73.2 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 12 Sample rate (max) (ksps): 1000 更多

Sample rate (max) (Msps): 125 Resolution (Bits): 11 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 450 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 740 Architecture: Pipeline SNR (dB): 67.2 ENOB (Bits): 10.8 SFDR (dB): 89 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 125 Resolution (Bits): 11 Number of input channels: 2 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 450 更多

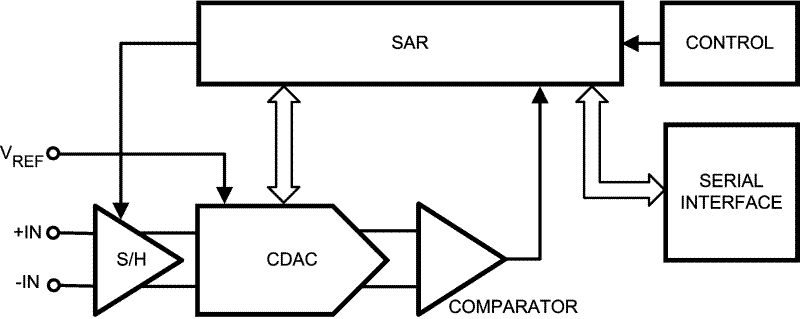

Resolution (Bits): 14 Sample rate (max) (ksps): 250 Number of input channels: 1 Interface type: Microwire (Serial I/O), SPI Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 4.8 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.5 SNR (dB): 84.3 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.5 Resolution (Bits): 14 Sample rate (max) (ksps): 250 Number of input channels: 1 更多

Resolution (Bits): 31 Sample rate (max) (ksps): 4 Number of input channels: 1 Interface type: SPI Architecture: Delta-Sigma Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 2.7, 5 Input voltage range (min) (V): -2.7, 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 12 Analog supply (min) (V): -2.5, 0 Analog supply voltage (max) (V): 2.5, 5 SNR (dB): 130 Digital supply (min) (V): 1.65 Digital supply (max) (V): 3.6 Resolution (Bits): 31 Sample rate (max) (ksps): 4 Number of input channels: 1 更多

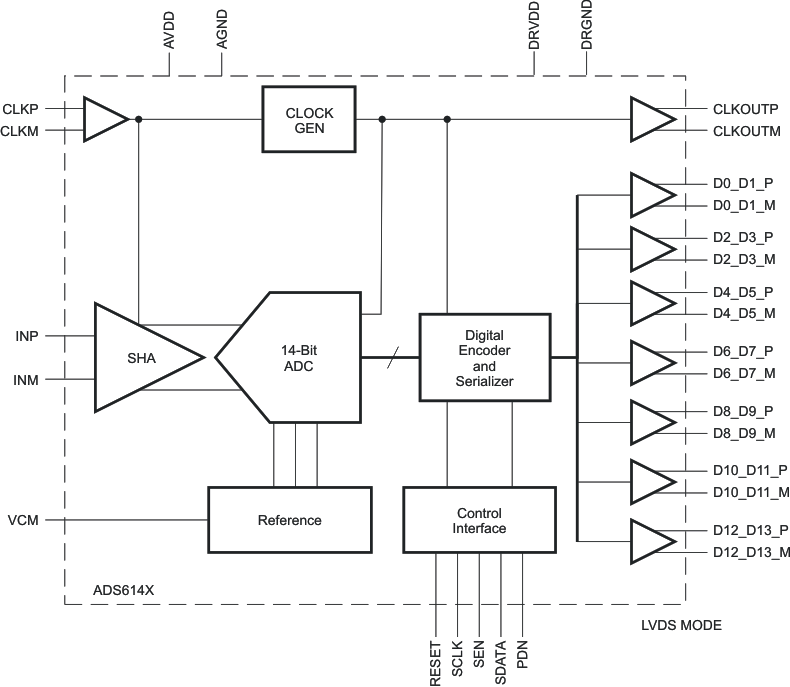

Sample rate (max) (Msps): 65 Resolution (Bits): 14 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 500 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 285 Architecture: Pipeline SNR (dB): 74.7 ENOB (Bits): 12 SFDR (dB): 95 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 65 Resolution (Bits): 14 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 500 更多

Sample rate (max) (Msps): 65 Resolution (Bits): 10 Number of input channels: 2 Interface type: Parallel CMOS Analog input BW (MHz): 300 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 330 Architecture: Pipeline SNR (dB): 61.7 ENOB (Bits): 9.9 SFDR (dB): 86 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 65 Resolution (Bits): 10 Number of input channels: 2 Interface type: Parallel CMOS Analog input BW (MHz): 300 更多

Sample rate (max) (Msps): 65 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 500 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 285 Architecture: Pipeline SNR (dB): 71.8 ENOB (Bits): 11.56 SFDR (dB): 95 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 65 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 500 更多

Sample rate (max) (Msps): 80 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 500 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 318 Architecture: Pipeline SNR (dB): 71.8 ENOB (Bits): 11.55 SFDR (dB): 93 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 80 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 500 更多

Sample rate (max) (Msps): 105 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 500 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 374 Architecture: Pipeline SNR (dB): 71.5 ENOB (Bits): 11.5 SFDR (dB): 91 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 105 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 500 更多

Sample rate (max) (Msps): 125 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 500 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 417 Architecture: Pipeline SNR (dB): 71.5 ENOB (Bits): 11.4 SFDR (dB): 90 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 125 Resolution (Bits): 12 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 500 更多
