Sample rate (max) (Msps): 80 Resolution (Bits): 14 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 500 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 760 Architecture: Pipeline SNR (dB): 74.4 ENOB (Bits): 11.9 SFDR (dB): 92 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 80 Resolution (Bits): 14 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 500 更多

Sample rate (max) (Msps): 105 Resolution (Bits): 14 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 500 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 900 Architecture: Pipeline SNR (dB): 73.8 ENOB (Bits): 11.7 SFDR (dB): 91 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 105 Resolution (Bits): 14 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 500 更多

Sample rate (max) (Msps): 125 Resolution (Bits): 14 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 500 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 1000 Architecture: Pipeline SNR (dB): 73.7 ENOB (Bits): 11.7 SFDR (dB): 87 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 125 Resolution (Bits): 14 Number of input channels: 2 Interface type: Serial LVDS Analog input BW (MHz): 500 更多

Sample rate (max) (Msps): 80 Resolution (Bits): 14 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 500 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 318 Architecture: Pipeline SNR (dB): 74.6 ENOB (Bits): 12 SFDR (dB): 93 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 80 Resolution (Bits): 14 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 500 更多

Sample rate (max) (Msps): 125 Resolution (Bits): 14 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 500 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 417 Architecture: Pipeline SNR (dB): 73.9 ENOB (Bits): 11.7 SFDR (dB): 90 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 125 Resolution (Bits): 14 Number of input channels: 1 Interface type: DDR LVDS, Parallel CMOS Analog input BW (MHz): 500 更多

Resolution (Bits): 16 Sample rate (max) (ksps): 250 Number of input channels: 1 Interface type: Byte-Wide, Parallel Architecture: SAR Input type: Single-ended Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 10 Input voltage range (min) (V): -10 Features: Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 155 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 92 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.25 Resolution (Bits): 16 Sample rate (max) (ksps): 250 更多

Sample rate (max) (Msps): 105 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel CMOS Analog input BW (MHz): 1000 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 400 Architecture: Pipeline SNR (dB): 71 ENOB (Bits): 11.5 SFDR (dB): 90 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 105 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel CMOS Analog input BW (MHz): 1000 更多

Sample rate (max) (Msps): 105 Resolution (Bits): 14 Number of input channels: 1 Interface type: Parallel CMOS Analog input BW (MHz): 1000 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 400 Architecture: Pipeline SNR (dB): 74 ENOB (Bits): 11.9 SFDR (dB): 90 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 105 Resolution (Bits): 14 Number of input channels: 1 Interface type: Parallel CMOS Analog input BW (MHz): 1000 更多

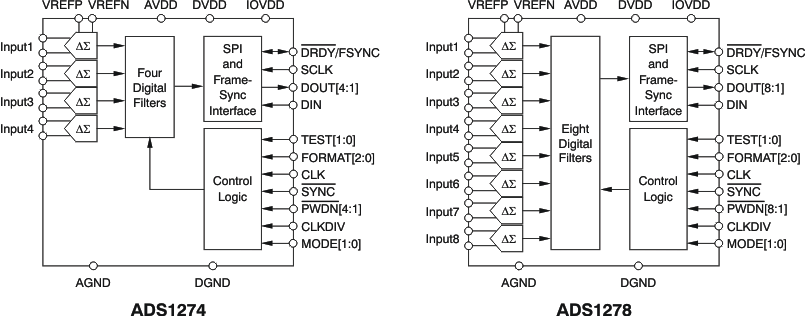

Resolution (Bits): 24 Sample rate (max) (ksps): 144 Number of input channels: 4 Interface type: SPI Architecture: Delta-Sigma Input type: Differential Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Wideband Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 275 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 111 Digital supply (min) (V): 1.65 Digital supply (max) (V): 2.2 Resolution (Bits): 24 更多

Resolution (Bits): 24 Sample rate (max) (ksps): 144 Number of input channels: 8 Interface type: SPI Architecture: Delta-Sigma Input type: Differential Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Wideband Operating temperature range (°C): -40 to 105 Power consumption (typ) (mW): 530 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 111 Digital supply (min) (V): 1.65 Digital supply (max) (V): 2.2 Resolution (Bits): 24 更多
