Sample rate (max) (Msps): 125 Resolution (Bits): 11 Number of input channels: 1 Interface type: Parallel CMOS Analog input BW (MHz): 750 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2.3 Power consumption (typ) (mW): 780 Architecture: Pipeline SNR (dB): 66.7 ENOB (Bits): 10.8 SFDR (dB): 84 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 125 Resolution (Bits): 11 Number of input channels: 1 Interface type: Parallel CMOS Analog input BW (MHz): 750 更多

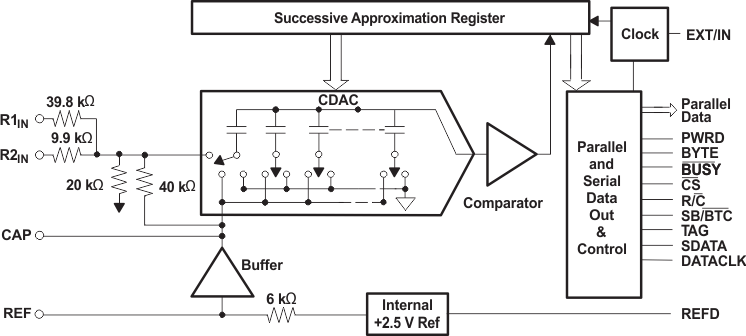

Resolution (Bits): 16 Sample rate (max) (ksps): 40 Number of input channels: 1 Interface type: Byte-Wide, Parallel Architecture: SAR Input type: Single-ended Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 10 Input voltage range (min) (V): -10 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 155 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 89.9 Digital supply (min) (V): 4.75 Digital supply (max) (V): 5.25 Resolution (Bits): 16 Sample rate (max) (ksps): 40 更多

Resolution (Bits): 16 Sample rate (max) (ksps): 1000 Number of input channels: 1 Interface type: SPI Architecture: SAR Input type: Single-ended Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 13.2 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.5 SNR (dB): 93 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 16 Sample rate (max) (ksps): 1000 更多

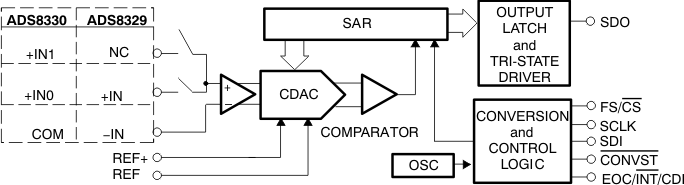

Resolution (Bits): 16 Sample rate (max) (ksps): 1000 Number of input channels: 2 Interface type: SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 13.2 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.5 SNR (dB): 93 Digital supply (min) (V): 1.65 Digital supply (max) (V): 5.5 Resolution (Bits): 16 更多

Sample rate (max) (Msps): 210 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel CMOS, Parallel LVDS Analog input BW (MHz): 800 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 1230 Architecture: Pipeline SNR (dB): 70.7 ENOB (Bits): 11.4 SFDR (dB): 86 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 210 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel CMOS, Parallel LVDS Analog input BW (MHz): 800 更多

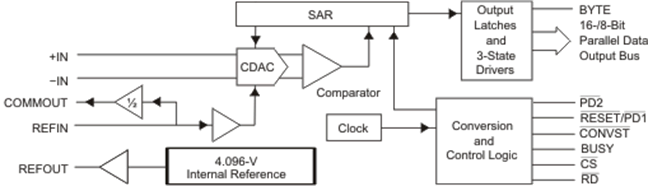

Resolution (Bits): 16 Sample rate (max) (ksps): 4000 Number of input channels: 1 Interface type: Byte-Wide, Parallel Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 4.1 Input voltage range (min) (V): 4.1 Features: Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 155 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 93 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 16 Sample rate (max) (ksps): 4000 更多

Sample rate (max) (Msps): 170 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel CMOS Analog input BW (MHz): 1100 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 715 Architecture: Pipeline SNR (dB): 67.5 ENOB (Bits): 10.9 SFDR (dB): 85.4 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 170 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel CMOS Analog input BW (MHz): 1100 更多

Sample rate (max) (Msps): 500 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 2000 Features: High Performance Rating: HiRel Enhanced Product Peak-to-peak input voltage range (V): 2.2 Power consumption (typ) (mW): 2250 Architecture: Pipeline SNR (dB): 65.4 ENOB (Bits): 10.5 SFDR (dB): 90 Operating temperature range (°C): -55 to 125 Input buffer: Yes Sample rate (max) (Msps): 500 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 2000 更多

Sample rate (max) (Msps): 210 Resolution (Bits): 14 Number of input channels: 1 Interface type: Parallel CMOS, Parallel LVDS Analog input BW (MHz): 800 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2.2 Power consumption (typ) (mW): 1230 Architecture: Pipeline SNR (dB): 73.6 ENOB (Bits): 11.8 SFDR (dB): 87 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 210 Resolution (Bits): 14 Number of input channels: 1 Interface type: Parallel CMOS, Parallel LVDS Analog input BW (MHz): 800 更多

Sample rate (max) (Msps): 500 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 2000 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2.2 Power consumption (typ) (mW): 2250 Architecture: Pipeline SNR (dB): 65.4 ENOB (Bits): 10.4 SFDR (dB): 90 Operating temperature range (°C): -40 to 85 Input buffer: Yes Sample rate (max) (Msps): 500 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 2000 更多
