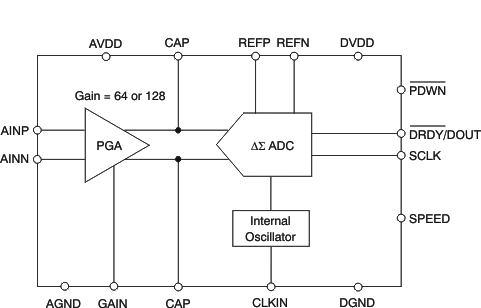

Resolution (Bits): 20 Sample rate (max) (ksps): 0.08 Number of input channels: 1 Interface type: SPI Architecture: Delta-Sigma Input type: Differential, Single-ended Rating: Catalog Reference mode: External Input voltage range (max) (V): 0.039 Input voltage range (min) (V): 0 Features: 50/60 Hz Rejection, Oscillator, PGA Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 2.9 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.3 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.3 Resolution (Bits): 20 Sample rate (max) (ksps): 0.08 Number of input channels: 1 更多

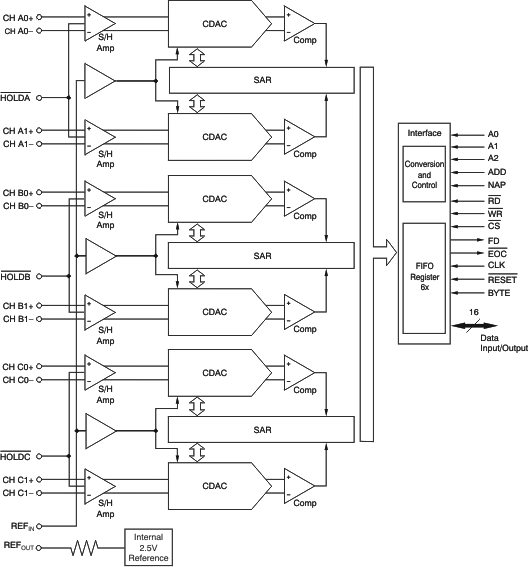

Resolution (Bits): 16 Sample rate (max) (ksps): 250 Number of input channels: 6 Interface type: Byte-Wide, Parallel Architecture: SAR Input type: Pseudo-Differential Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 2.6 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 190 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 88 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.5 Resolution (Bits): 16 Sample rate (max) (ksps): 250 更多

Resolution (Bits): 12 Sample rate (max) (ksps): 0.128 Number of input channels: 1 Interface type: I2C Architecture: Delta-Sigma Input type: Differential, Single-ended Rating: Catalog Reference mode: Supply Input voltage range (max) (V): 5.5 Input voltage range (min) (V): 0 Features: Oscillator, PGA, Small Size Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 0.21 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.5 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.5 Resolution (Bits): 12 Sample rate (max) (ksps): 0.128 Number of input channels: 1 更多

Sample rate (max) (Msps): 170 Resolution (Bits): 14 Number of input channels: 1 Interface type: Parallel CMOS, Parallel LVDS Analog input BW (MHz): 500 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 1100 Architecture: Pipeline SNR (dB): 74.3 ENOB (Bits): 12 SFDR (dB): 90 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 170 Resolution (Bits): 14 Number of input channels: 1 Interface type: Parallel CMOS, Parallel LVDS Analog input BW (MHz): 500 更多

Sample rate (max) (Msps): 170 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel CMOS, Parallel LVDS Analog input BW (MHz): 500 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 1100 Architecture: Pipeline SNR (dB): 71.2 ENOB (Bits): 11.5 SFDR (dB): 87 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 170 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel CMOS, Parallel LVDS Analog input BW (MHz): 500 更多

Resolution (Bits): 10 Number of channels: 6 Sample rate (Msps): 65 Gain (min) (dB): 0 Gain (max) (dB): 26 Pd (typ) (mW): 1040 Supply voltage (max) (V): 3.6 Operating temperature range (°C): 0 to 70 Output data format: CMOS Rating: Catalog Resolution (Bits): 10 Number of channels: 6 Sample rate (Msps): 65 Gain (min) (dB): 0 Gain (max) (dB): 26 Pd (typ) (mW): 1040 Supply voltage (max) (V): 3.6 Operating temperature range (°C): 0 to 70 Output data format: CMOS Rating: Catalog

Sample rate (max) (Msps): 210 Resolution (Bits): 13 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 500 Features: High Performance Rating: HiRel Enhanced Product Peak-to-peak input voltage range (V): 2.2 Power consumption (typ) (mW): 2250 Architecture: Pipeline SNR (dB): 69.8 ENOB (Bits): 11.4 SFDR (dB): 84 Operating temperature range (°C): -55 to 125 Input buffer: Yes Sample rate (max) (Msps): 210 Resolution (Bits): 13 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 500 更多

Sample rate (max) (Msps): 250 Resolution (Bits): 13 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 500 Features: High Performance Rating: HiRel Enhanced Product Peak-to-peak input voltage range (V): 2.2 Power consumption (typ) (mW): 2250 Architecture: Pipeline SNR (dB): 69.3 ENOB (Bits): 11.2 SFDR (dB): 85 Operating temperature range (°C): -55 to 125 Input buffer: Yes Sample rate (max) (Msps): 250 Resolution (Bits): 13 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 500 更多

Sample rate (max) (Msps): 155 Resolution (Bits): 14 Number of input channels: 1 Interface type: Parallel CMOS Analog input BW (MHz): 1100 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 967 Architecture: Pipeline SNR (dB): 72.3 ENOB (Bits): 11.6 SFDR (dB): 89.7 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 155 Resolution (Bits): 14 Number of input channels: 1 Interface type: Parallel CMOS Analog input BW (MHz): 1100 更多

Sample rate (max) (Msps): 190 Resolution (Bits): 14 Number of input channels: 1 Interface type: Parallel CMOS, Parallel LVDS Analog input BW (MHz): 500 Features: High Performance Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 1130 Architecture: Pipeline SNR (dB): 73.8 ENOB (Bits): 11.8 SFDR (dB): 90 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 190 Resolution (Bits): 14 Number of input channels: 1 Interface type: Parallel CMOS, Parallel LVDS Analog input BW (MHz): 500 更多
