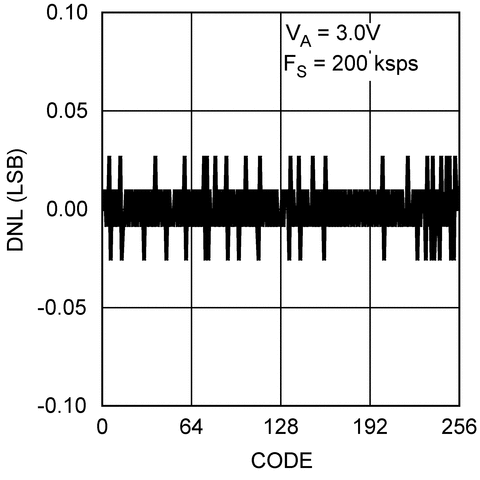

Resolution (Bits): 8 Sample rate (max) (ksps): 200 Number of input channels: 2 Interface type: Microwire (Serial I/O), SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Supply Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 1.6 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 49.6 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 8 Sample rate (max) (ksps): 200 更多

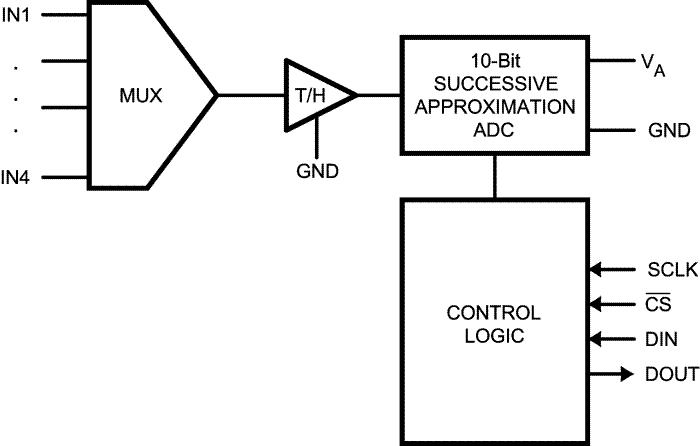

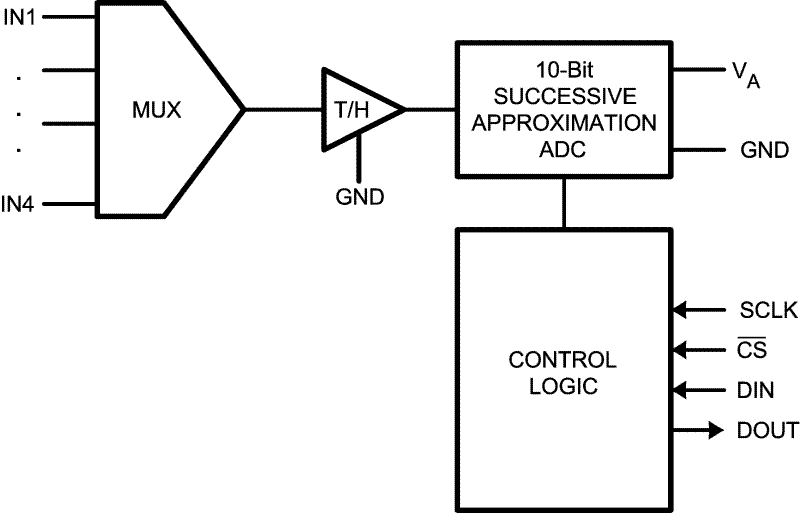

Resolution (Bits): 10 Sample rate (max) (ksps): 200 Number of input channels: 4 Interface type: Microwire (Serial I/O), SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Supply Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 1.94 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 61.8 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 10 Sample rate (max) (ksps): 200 更多

Resolution (Bits): 10 Sample rate (max) (ksps): 200 Number of input channels: 4 Interface type: Microwire (Serial I/O), SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Automotive Reference mode: Supply Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 1.94 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 61.8 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 10 Sample rate (max) (ksps): 200 更多

Resolution (Bits): 10 Sample rate (max) (ksps): 500 Number of input channels: 4 Interface type: Microwire (Serial I/O), SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Supply Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 2.7 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 62.7 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 10 Sample rate (max) (ksps): 500 更多

Sample rate (max) (Msps): 40 Resolution (Bits): 12 Number of input channels: 4 Interface type: Parallel LVDS Analog input BW (MHz): 300 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 1 Power consumption (typ) (mW): 607 Architecture: Pipeline SNR (dB): 70.5 ENOB (Bits): 11.3 SFDR (dB): 87 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 40 Resolution (Bits): 12 Number of input channels: 4 Interface type: Parallel LVDS Analog input BW (MHz): 300 更多

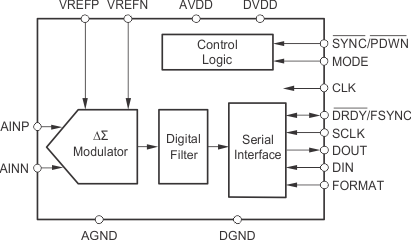

Resolution (Bits): 24 Sample rate (max) (ksps): 105 Number of input channels: 1 Interface type: SPI Architecture: Delta-Sigma Input type: Differential Rating: Catalog Reference mode: External Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Features: Daisy-Chainable, Wideband Operating temperature range (°C): -40 to 105 Power consumption (typ) (mW): 92 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 109 Digital supply (min) (V): 1.65 Digital supply (max) (V): 3.6 Resolution (Bits): 24 Sample rate (max) (ksps): 105 更多

Resolution (Bits): 18 Sample rate (max) (ksps): 600 Number of input channels: 1 Interface type: SPI Architecture: SAR Input type: Pseudo-Differential, Single-ended Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 4.2 Input voltage range (min) (V): 0 Features: Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 115 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 91 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 18 Sample rate (max) (ksps): 600 更多

Resolution (Bits): 16 Sample rate (max) (ksps): 1250 Number of input channels: 1 Interface type: Byte-Wide, Parallel Architecture: SAR Input type: Pseudo-Differential, Single-ended Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 4.2 Input voltage range (min) (V): 0 Features: Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 155 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 86 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 16 Sample rate (max) (ksps): 1250 更多

Resolution (Bits): 16 Sample rate (max) (ksps): 1250 Number of input channels: 1 Interface type: Serial Architecture: Delta-Sigma Input type: Differential Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 4.6 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 330 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 91 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 16 Sample rate (max) (ksps): 1250 Number of input channels: 1 更多

Resolution (Bits): 18 Sample rate (max) (ksps): 600 Number of input channels: 1 Interface type: SPI Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 4.2 Input voltage range (min) (V): 0 Features: Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 115 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 96 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 18 Sample rate (max) (ksps): 600 更多
