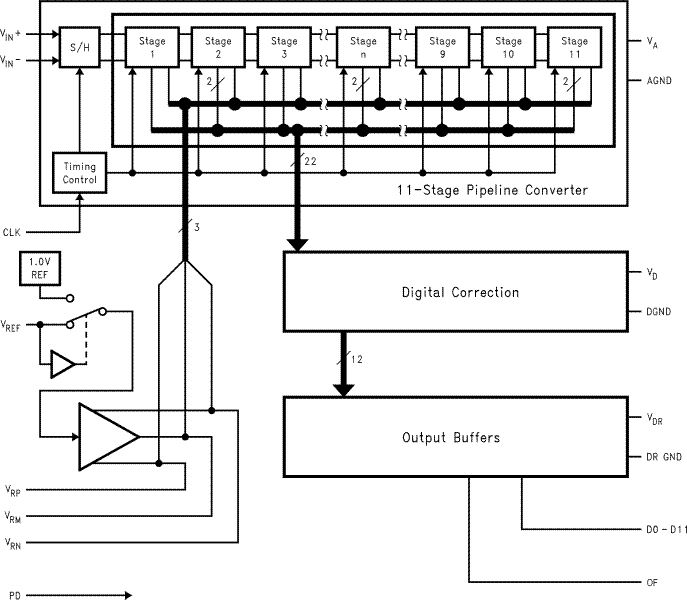

Sample rate (max) (Msps): 80 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel CMOS, TTL Analog input BW (MHz): 450 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 425 Architecture: Pipeline SNR (dB): 66 ENOB (Bits): 10.7 SFDR (dB): 80 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 80 Resolution (Bits): 12 Number of input channels: 1 Interface type: Parallel CMOS, TTL Analog input BW (MHz): 450 更多

Interface type: SPI Architecture: Delta-Sigma Rating: Catalog Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 4 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 Interface type: SPI Architecture: Delta-Sigma Rating: Catalog Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 4 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25

Sample rate (max) (Msps): 65 Resolution (Bits): 12 Number of input channels: 4 Interface type: Serial LVDS Analog input BW (MHz): 300 Features: Low Power Rating: Catalog Peak-to-peak input voltage range (V): 2 Power consumption (typ) (mW): 828 Architecture: Pipeline SNR (dB): 69.3 ENOB (Bits): 11.2 SFDR (dB): 83.3 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 65 Resolution (Bits): 12 Number of input channels: 4 Interface type: Serial LVDS Analog input BW (MHz): 300 更多

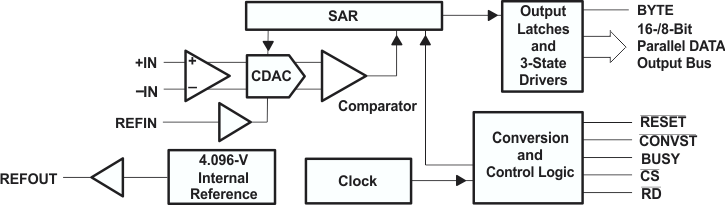

Resolution (Bits): 16 Sample rate (max) (ksps): 1250 Number of input channels: 1 Interface type: Byte-Wide, Parallel Architecture: SAR Input type: Differential Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 4.2 Input voltage range (min) (V): 4.2 Features: Oscillator Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 155 Analog supply (min) (V): 4.75 Analog supply voltage (max) (V): 5.25 SNR (dB): 90 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 16 Sample rate (max) (ksps): 1250 更多

Resolution (Bits): 8 Sample rate (max) (ksps): 500 Number of input channels: 2 Interface type: Microwire (Serial I/O), SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Supply Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 2.2 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 49.5 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 8 Sample rate (max) (ksps): 500 更多

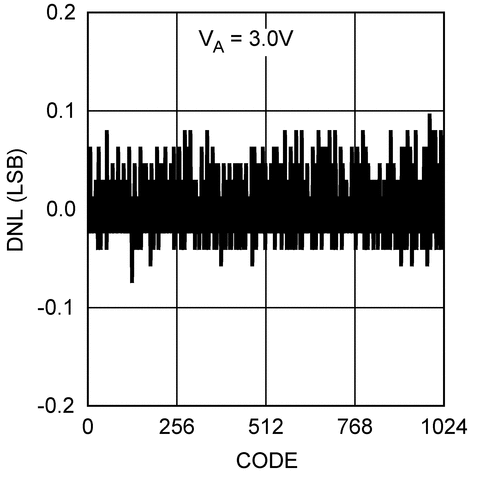

Resolution (Bits): 10 Sample rate (max) (ksps): 500 Number of input channels: 2 Interface type: Microwire (Serial I/O), SPI Architecture: SAR Input type: Single-ended Multichannel configuration: Multiplexed Rating: Catalog Reference mode: Supply Input voltage range (max) (V): 5.25 Input voltage range (min) (V): 0 Operating temperature range (°C): -40 to 85 Power consumption (typ) (mW): 2.7 Analog supply (min) (V): 2.7 Analog supply voltage (max) (V): 5.25 SNR (dB): 62.7 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.25 Resolution (Bits): 10 Sample rate (max) (ksps): 500 更多

Resolution (Bits): 16 Number of input channels: 4 Interface type: Serial Architecture: Delta-Sigma Modulator Input type: Differential, Single-ended Multichannel configuration: Simultaneous Sampling Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 5 Input voltage range (min) (V): 0 Features: Oscillator Operating temperature range (°C): -40 to 105 Power consumption (typ) (mW): 122 Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 5.5 SNR (dB): 89 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.5 Resolution (Bits): 16 Number of input channels: 4 更多

Number of input channels: 4 Resolution (Bits): 20 Features: Computed Tomography (CT) Operating temperature range (°C): -40 to 85 Interface type: Serial Rating: Catalog Number of input channels: 4 Resolution (Bits): 20 Features: Computed Tomography (CT) Operating temperature range (°C): -40 to 85 Interface type: Serial Rating: Catalog

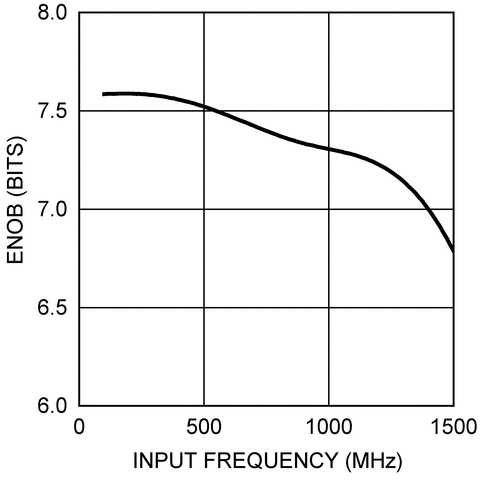

Sample rate (max) (Msps): 1000 Resolution (Bits): 8 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 1700 Features: Ultra High Speed Rating: Catalog Peak-to-peak input voltage range (V): 0.8 Power consumption (typ) (mW): 1430 Architecture: Folding Interpolating SNR (dB): 48 ENOB (Bits): 7.5 SFDR (dB): 58.5 Operating temperature range (°C): -40 to 85 Input buffer: No Sample rate (max) (Msps): 1000 Resolution (Bits): 8 Number of input channels: 1 Interface type: Parallel LVDS Analog input BW (MHz): 1700 更多

Resolution (Bits): 16 Number of input channels: 1 Interface type: Serial Architecture: Delta-Sigma Modulator Input type: Differential Rating: Catalog Reference mode: External, Internal Input voltage range (max) (V): 0.25 Input voltage range (min) (V): -0.25 Features: Oscillator, Small Size Operating temperature range (°C): -40 to 125 Power consumption (typ) (mW): 33 Analog supply (min) (V): 4.5 Analog supply voltage (max) (V): 5.5 SNR (dB): 85 Digital supply (min) (V): 2.7 Digital supply (max) (V): 5.5 Resolution (Bits): 16 Number of input channels: 1 Interface type: Serial 更多
