DAC71416


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有集成内部基准电压的 14 通道 16 位高电压输出 DAC

Resolution (Bits): 14 Number of DAC channels: 16 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): -10 to 10, -2.5 to 2.5, -20 to 20, -5 to 5 INL (max) (±LSB): 1 Settling time (µs): 12 Reference type: Int Architecture: R-2R Rating: Catalog Features: Integrated Temp Sensor Power consumption (typ) (mW): 530 Operating temperature range (°C): -40 to 125 Resolution (Bits): 14 Number of DAC channels: 16 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): -10 to 10, -2.5 to 2.5, -20 to 20, -5 to 5 INL (max) (±LSB): 1 Settling time (µs): 12
Reference type: Int Architecture: R-2R Rating: Catalog Features: Integrated Temp Sensor Power consumption (typ) (mW): 530 Operating temperature range (°C): -40 to 125

DAC81408


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有集成内部基准电压的 8 通道 16 位高电压输出 DAC

Resolution (Bits): 16 Number of DAC channels: 8 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): -10 to 10, -2.5 to 2.5, -20 to 20, -5 to 5 INL (max) (±LSB): 1 Settling time (µs): 20 Reference type: Int Architecture: R-2R Rating: Catalog Features: Integrated Temp Sensor Power consumption (typ) (mW): 315 Operating temperature range (°C): -40 to 125 Resolution (Bits): 16 Number of DAC channels: 8 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): -10 to 10, -2.5 to 2.5, -20 to 20, -5 to 5 INL (max) (±LSB): 1 Settling time (µs): 20
Reference type: Int Architecture: R-2R Rating: Catalog Features: Integrated Temp Sensor Power consumption (typ) (mW): 315 Operating temperature range (°C): -40 to 125

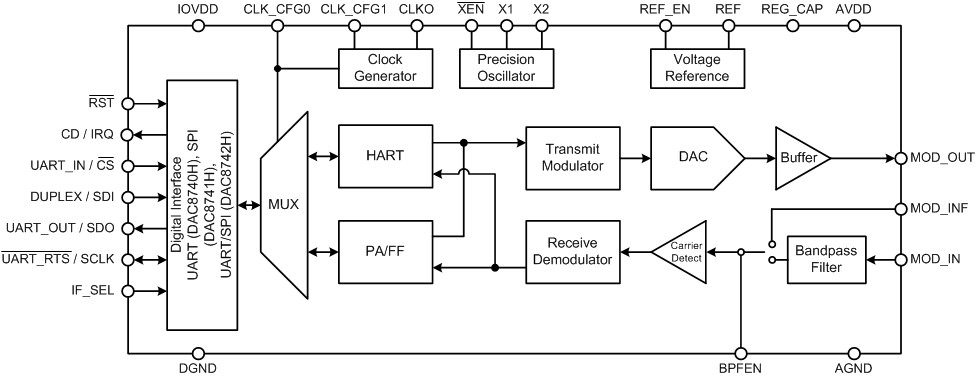

DAC8741H


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 符合 HART®、FOUNDATION Fieldbus™ 和 PROFIBUS PA 标准且具有 SPI 接口的调制解调器

Interface type: SPI Reference type: Ext, Int Rating: Catalog Operating temperature range (°C): -55 to 125 Product type: Special-function DAC Interface type: SPI Reference type: Ext, Int Rating: Catalog Operating temperature range (°C): -55 to 125 Product type: Special-function DAC

DAC53608


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 采用微型 QFN 封装的 10 位、8 通道、I2C、电压输出 DAC

Resolution (Bits): 10 Number of DAC channels: 8 Interface type: I2C Output type: Buffered Voltage Output voltage range (V): 0 to 5 INL (max) (±LSB): 1 Settling time (µs): 10 Reference type: Ext Architecture: String Rating: Catalog Features: Cost Optimized, Low Power Power consumption (typ) (mW): 0.1 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC Resolution (Bits): 10 Number of DAC channels: 8 Interface type: I2C Output type: Buffered Voltage Output voltage range (V): 0 to 5 INL (max) (±LSB): 1
Settling time (µs): 10 Reference type: Ext Architecture: String Rating: Catalog Features: Cost Optimized, Low Power Power consumption (typ) (mW): 0.1 Operating temperature range (°C): -40 to 125 Product type: General-purpose DAC

DAC71408


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有集成内部基准电压的 8 通道 14 位高电压输出 DAC

Resolution (Bits): 14 Number of DAC channels: 8 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): -10 to 10, -2.5 to 2.5, -20 to 20, -5 to 5 INL (max) (±LSB): 1 Settling time (µs): 12 Reference type: Int Architecture: R-2R Rating: Catalog Features: Integrated Temp Sensor Power consumption (typ) (mW): 315 Operating temperature range (°C): -40 to 125 Resolution (Bits): 14 Number of DAC channels: 8 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): -10 to 10, -2.5 to 2.5, -20 to 20, -5 to 5 INL (max) (±LSB): 1 Settling time (µs): 12
Reference type: Int Architecture: R-2R Rating: Catalog Features: Integrated Temp Sensor Power consumption (typ) (mW): 315 Operating temperature range (°C): -40 to 125

DAC81416


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有集成内部基准电压的 16 通道 16 位高电压输出 DAC

Resolution (Bits): 16 Number of DAC channels: 16 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): -10 to 10, -2.5 to 2.5, -20 to 20, -5 to 5 INL (max) (±LSB): 1 Settling time (µs): 12 Reference type: Int Architecture: R-2R Rating: Catalog Features: Integrated Temp Sensor Power consumption (typ) (mW): 530 Operating temperature range (°C): -40 to 125 Resolution (Bits): 16 Number of DAC channels: 16 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): -10 to 10, -2.5 to 2.5, -20 to 20, -5 to 5 INL (max) (±LSB): 1 Settling time (µs): 12
Reference type: Int Architecture: R-2R Rating: Catalog Features: Integrated Temp Sensor Power consumption (typ) (mW): 530 Operating temperature range (°C): -40 to 125

DAC80504


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 采用 QFN 封装、具有精密内部基准电压的真正 16 位、4 通道、SPI、电压输出 DAC

Resolution (Bits): 16 Number of DAC channels: 4 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): 0 to 5.5 INL (max) (±LSB): 1 Settling time (µs): 4 Reference type: Int Architecture: R-2R Rating: Catalog Features: Small Size Sample/update rate (Msps): 1 Power consumption (typ) (mW): 15 Operating temperature range (°C): -40 to 125 Product type: Precision DAC Resolution (Bits): 16 Number of DAC channels: 4 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): 0 to 5.5
INL (max) (±LSB): 1 Settling time (µs): 4 Reference type: Int Architecture: R-2R Rating: Catalog Features: Small Size Sample/update rate (Msps): 1 Power consumption (typ) (mW): 15 Operating temperature range (°C): -40 to 125 Product type: Precision DAC

DAC80508


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有精密内部基准电压的真正 16 位、8 通道、SPI、电压输出 DAC

Resolution (Bits): 16 Number of DAC channels: 8 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): 0 to 5.5 INL (max) (±LSB): 1 Settling time (µs): 5 Reference type: Int Architecture: R-2R Rating: Catalog Sample/update rate (Msps): 0.2 Power consumption (typ) (mW): 33 Operating temperature range (°C): -40 to 125 Product type: Precision DAC Resolution (Bits): 16 Number of DAC channels: 8 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): 0 to 5.5 INL (max) (±LSB): 1
Settling time (µs): 5 Reference type: Int Architecture: R-2R Rating: Catalog Sample/update rate (Msps): 0.2 Power consumption (typ) (mW): 33 Operating temperature range (°C): -40 to 125 Product type: Precision DAC

DAC8742H


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 符合 HART®、FOUNDATION Fieldbus™ 和 PROFIBUS PA 标准且具有 UART/SPI 接口的调制解调器

Interface type: SPI, UART Reference type: Ext, Int Rating: Catalog Operating temperature range (°C): -55 to 125 Product type: Special-function DAC Interface type: SPI, UART Reference type: Ext, Int Rating: Catalog Operating temperature range (°C): -55 to 125 Product type: Special-function DAC

DAC8771


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有自适应电源管理功能的单通道 16 位电压和电流输出 DAC

Resolution (Bits): 16 Number of DAC channels: 1 Interface type: SPI Output type: Buffered Current, Buffered Voltage Output voltage range (V): -10 to 10, -12 to 12, -5 to 5, 0 to 5, 0 to 6 INL (max) (±LSB): 12 Settling time (µs): 10 Reference type: Ext, Int Architecture: String Rating: Catalog Features: Integrated Buck Boost Converter, Low Power Sample/update rate (Msps): 0.033 Power consumption (typ) (mW): 530 Operating temperature range (°C): -40 to 125 Product type: Special-function DAC Resolution (Bits): 16 Number of DAC channels: 1 Interface type: SPI Output type: Buffered Current, Buffered Voltage Output voltage range (V): -10 to 10, -12 to 12, -5 to 5, 0 to 5, 0 to 6
INL (max) (±LSB): 12 Settling time (µs): 10 Reference type: Ext, Int Architecture: String Rating: Catalog Features: Integrated Buck Boost Converter, Low Power Sample/update rate (Msps): 0.033 Power consumption (typ) (mW): 530 Operating temperature range (°C): -40 to 125 Product type: Special-function DAC
