DAC7565
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器
描述: 具有 2.5V、2ppm/°C 内部基准电压和复位至零标度功能的 12 位、四通道、超低毛刺脉冲、电压输出 DAC
Resolution (Bits): 12
Number of DAC channels: 4
Interface type: SPI
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
INL (max) (±LSB): 1
Settling time (µs): 8
Reference type: Ext, Int
Architecture: String
Rating: Catalog
Features: Low glitch, Reset to Mid-Scale
Sample/update rate (Msps): 0.2
Power consumption (typ) (mW): 2.9
Operating temperature range (°C): -40 to 105
Product type: General-purpose DAC
Resolution (Bits): 12
Number of DAC channels: 4
Interface type: SPI
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
更多
INL (max) (±LSB): 1
Settling time (µs): 8
Reference type: Ext, Int
Architecture: String
Rating: Catalog
Features: Low glitch, Reset to Mid-Scale
Sample/update rate (Msps): 0.2
Power consumption (typ) (mW): 2.9
Operating temperature range (°C): -40 to 105
Product type: General-purpose DAC
DAC8164
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器
描述: 具有 2.5V、2ppm/°C 内部基准电压和复位至零标度功能的 14 位、四通道、超低毛刺脉冲、电压输出 DAC
Resolution (Bits): 14
Number of DAC channels: 4
Interface type: SPI
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
INL (max) (±LSB): 2
Settling time (µs): 8
Reference type: Ext, Int
Architecture: String
Rating: Catalog
Features: Low glitch
Sample/update rate (Msps): 0.2
Power consumption (typ) (mW): 2.9
Operating temperature range (°C): -40 to 105
Product type: Precision DAC
Resolution (Bits): 14
Number of DAC channels: 4
Interface type: SPI
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
更多
INL (max) (±LSB): 2
Settling time (µs): 8
Reference type: Ext, Int
Architecture: String
Rating: Catalog
Features: Low glitch
Sample/update rate (Msps): 0.2
Power consumption (typ) (mW): 2.9
Operating temperature range (°C): -40 to 105
Product type: Precision DAC

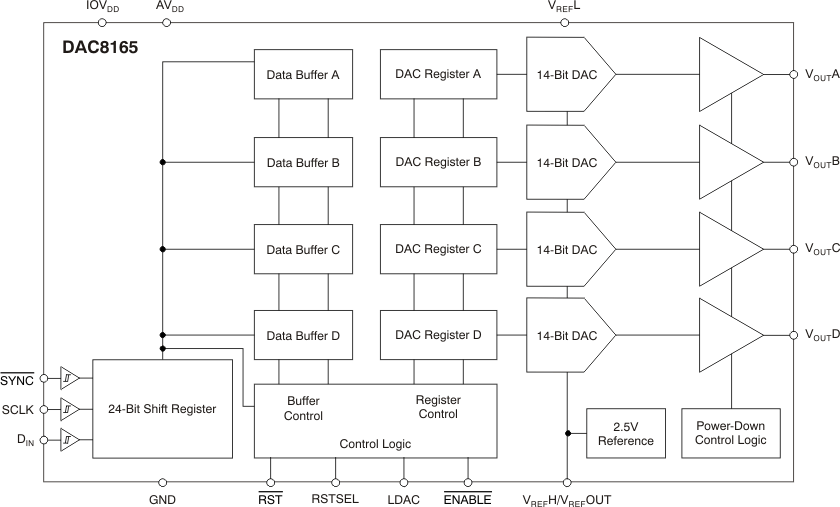

DAC8165
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器
描述: 具有 2.5V、2ppm/°C 内部基准电压和复位至零标度功能的 14 位、四通道、超低毛刺脉冲、电压输出 DAC
Resolution (Bits): 14
Number of DAC channels: 4
Interface type: SPI
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
INL (max) (±LSB): 2
Settling time (µs): 8
Reference type: Ext, Int
Architecture: String
Rating: Catalog
Features: Low glitch
Sample/update rate (Msps): 0.2
Power consumption (typ) (mW): 2.9
Operating temperature range (°C): -40 to 105
Product type: Precision DAC
Resolution (Bits): 14
Number of DAC channels: 4
Interface type: SPI
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
更多
INL (max) (±LSB): 2
Settling time (µs): 8
Reference type: Ext, Int
Architecture: String
Rating: Catalog
Features: Low glitch
Sample/update rate (Msps): 0.2
Power consumption (typ) (mW): 2.9
Operating temperature range (°C): -40 to 105
Product type: Precision DAC
Resolution (Bits): 10
Number of DAC channels: 1
Interface type: I2C
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
INL (max) (±LSB): 2
Settling time (µs): 6
Reference type: Ext
Architecture: String
Rating: Catalog
Features: Low Power
Sample/update rate (Msps): 0.18
Power consumption (typ) (mW): 0.38
Operating temperature range (°C): -40 to 125
Product type: General-purpose DAC
Resolution (Bits): 10
Number of DAC channels: 1
Interface type: I2C
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
更多
INL (max) (±LSB): 2
Settling time (µs): 6
Reference type: Ext
Architecture: String
Rating: Catalog
Features: Low Power
Sample/update rate (Msps): 0.18
Power consumption (typ) (mW): 0.38
Operating temperature range (°C): -40 to 125
Product type: General-purpose DAC
Resolution (Bits): 10
Number of DAC channels: 1
Interface type: I2C
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
INL (max) (±LSB): 2
Settling time (µs): 6
Reference type: Ext
Architecture: String
Rating: Catalog
Features: Low Power
Sample/update rate (Msps): 0.18
Power consumption (typ) (mW): 0.38
Operating temperature range (°C): -40 to 125
Product type: General-purpose DAC
Resolution (Bits): 10
Number of DAC channels: 1
Interface type: I2C
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
更多
INL (max) (±LSB): 2
Settling time (µs): 6
Reference type: Ext
Architecture: String
Rating: Catalog
Features: Low Power
Sample/update rate (Msps): 0.18
Power consumption (typ) (mW): 0.38
Operating temperature range (°C): -40 to 125
Product type: General-purpose DAC
Resolution (Bits): 8
Number of DAC channels: 1
Interface type: I2C
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
INL (max) (±LSB): 0.6
Settling time (µs): 4.5
Reference type: Ext
Architecture: String
Rating: Catalog
Sample/update rate (Msps): 0.18
Power consumption (typ) (mW): 0.38
Operating temperature range (°C): -40 to 125
Product type: General-purpose DAC
Resolution (Bits): 8
Number of DAC channels: 1
Interface type: I2C
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
INL (max) (±LSB): 0.6
更多
Settling time (µs): 4.5
Reference type: Ext
Architecture: String
Rating: Catalog
Sample/update rate (Msps): 0.18
Power consumption (typ) (mW): 0.38
Operating temperature range (°C): -40 to 125
Product type: General-purpose DAC
Resolution (Bits): 8
Number of DAC channels: 1
Interface type: I2C
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
INL (max) (±LSB): 0.6
Settling time (µs): 4.5
Reference type: Ext
Architecture: String
Rating: Catalog
Features: Low Power
Sample/update rate (Msps): 0.18
Power consumption (typ) (mW): 0.38
Operating temperature range (°C): -40 to 125
Product type: General-purpose DAC
Resolution (Bits): 8
Number of DAC channels: 1
Interface type: I2C
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
更多
INL (max) (±LSB): 0.6
Settling time (µs): 4.5
Reference type: Ext
Architecture: String
Rating: Catalog
Features: Low Power
Sample/update rate (Msps): 0.18
Power consumption (typ) (mW): 0.38
Operating temperature range (°C): -40 to 125
Product type: General-purpose DAC
Resolution (Bits): 12
Number of DAC channels: 1
Interface type: I2C
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
INL (max) (±LSB): 8
Settling time (µs): 8.5
Reference type: Ext
Architecture: String
Rating: Catalog
Features: Low Power
Sample/update rate (Msps): 0.18
Power consumption (typ) (mW): 0.38
Operating temperature range (°C): -40 to 125
Product type: General-purpose DAC
Resolution (Bits): 12
Number of DAC channels: 1
Interface type: I2C
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
更多
INL (max) (±LSB): 8
Settling time (µs): 8.5
Reference type: Ext
Architecture: String
Rating: Catalog
Features: Low Power
Sample/update rate (Msps): 0.18
Power consumption (typ) (mW): 0.38
Operating temperature range (°C): -40 to 125
Product type: General-purpose DAC
Resolution (Bits): 12
Number of DAC channels: 1
Interface type: I2C
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
INL (max) (±LSB): 8
Settling time (µs): 8.5
Reference type: Ext
Architecture: String
Rating: Catalog
Features: Low Power
Sample/update rate (Msps): 0.18
Power consumption (typ) (mW): 0.38
Operating temperature range (°C): -40 to 125
Product type: General-purpose DAC
Resolution (Bits): 12
Number of DAC channels: 1
Interface type: I2C
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
更多
INL (max) (±LSB): 8
Settling time (µs): 8.5
Reference type: Ext
Architecture: String
Rating: Catalog
Features: Low Power
Sample/update rate (Msps): 0.18
Power consumption (typ) (mW): 0.38
Operating temperature range (°C): -40 to 125
Product type: General-purpose DAC

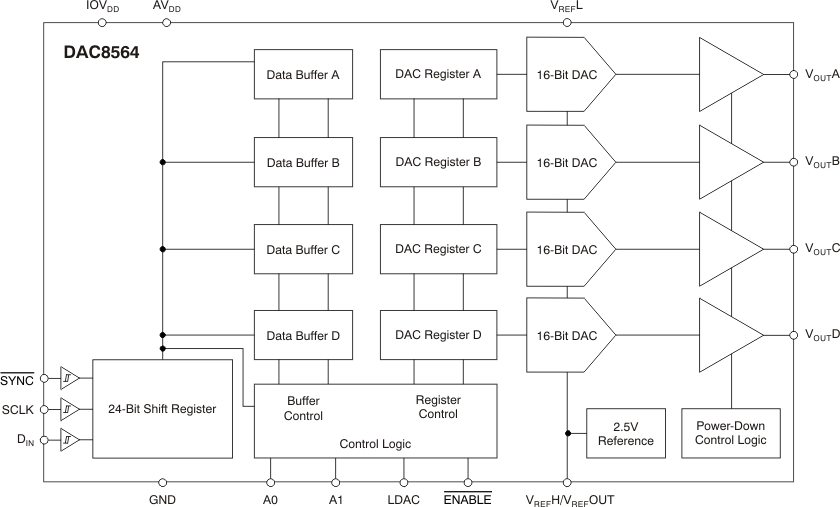

DAC8564
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器
描述: 具有 2.5V、2ppm/C 内部基准的 16 位、四通道、超低毛刺脉冲、电压输出 DAC
Resolution (Bits): 16
Number of DAC channels: 4
Interface type: SPI
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
INL (max) (±LSB): 8
Settling time (µs): 8
Reference type: Ext, Int
Architecture: String
Rating: Catalog
Features: Low Power
Sample/update rate (Msps): 0.2
Power consumption (typ) (mW): 3.1
Operating temperature range (°C): -40 to 105
Product type: Precision DAC
Resolution (Bits): 16
Number of DAC channels: 4
Interface type: SPI
Output type: Buffered Voltage
Output voltage range (V): 0 to 5.5
更多
INL (max) (±LSB): 8
Settling time (µs): 8
Reference type: Ext, Int
Architecture: String
Rating: Catalog
Features: Low Power
Sample/update rate (Msps): 0.2
Power consumption (typ) (mW): 3.1
Operating temperature range (°C): -40 to 105
Product type: Precision DAC
