TLC5620


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有串行输入、可编程 1x 或 2x 输出、同步更新、低功耗的 8 位、10us 四通道 DAC

Resolution (Bits): 8 Number of DAC channels: 4 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): 0 to 5 INL (max) (±LSB): 1 Settling time (µs): 10 Reference type: Ext Architecture: String Rating: Catalog Sample/update rate (Msps): 0.048 Power consumption (typ) (mW): 8 Operating temperature range (°C): -40 to 85 Product type: General-purpose DAC Resolution (Bits): 8 Number of DAC channels: 4 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): 0 to 5 INL (max) (±LSB): 1
Settling time (µs): 10 Reference type: Ext Architecture: String Rating: Catalog Sample/update rate (Msps): 0.048 Power consumption (typ) (mW): 8 Operating temperature range (°C): -40 to 85 Product type: General-purpose DAC

TLC5628


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有串行输入、可编程 1x 或 2x 输出、同步更新、低功耗的 8 位、10us 八通道 DAC

Resolution (Bits): 8 Number of DAC channels: 8 Interface type: SPI Output type: Buffered Voltage Settling time (µs): 10 Reference type: Ext Architecture: String Rating: Catalog Output range (max) (mA/V): 5 Output range (min) (mA/V): 0 Sample/update rate (Msps): 0.045 Power consumption (typ) (mW): 15 Operating temperature range (°C): -40 to 85 Resolution (Bits): 8 Number of DAC channels: 8 Interface type: SPI Output type: Buffered Voltage Settling time (µs): 10 Reference type: Ext Architecture: String
Rating: Catalog Output range (max) (mA/V): 5 Output range (min) (mA/V): 0 Sample/update rate (Msps): 0.045 Power consumption (typ) (mW): 15 Operating temperature range (°C): -40 to 85

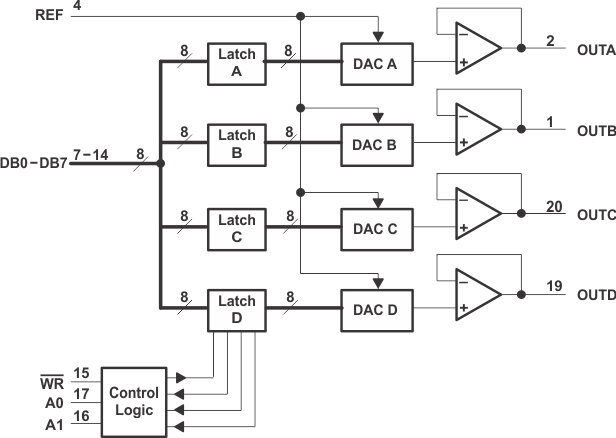

TLC7226


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有并行输入、单/双电源的 8 位、5us 四通道 DAC

Resolution (Bits): 8 Number of DAC channels: 4 Interface type: Parallel Output type: Buffered Voltage Output voltage range (V): 0 to 10 INL (max) (±LSB): 1 Settling time (µs): 5 Reference type: Ext Architecture: R-2R Rating: Catalog Sample/update rate (Msps): 0.143 Power consumption (typ) (mW): 90 Operating temperature range (°C): -40 to 85 Product type: General-purpose DAC Resolution (Bits): 8 Number of DAC channels: 4 Interface type: Parallel Output type: Buffered Voltage Output voltage range (V): 0 to 10 INL (max) (±LSB): 1
Settling time (µs): 5 Reference type: Ext Architecture: R-2R Rating: Catalog Sample/update rate (Msps): 0.143 Power consumption (typ) (mW): 90 Operating temperature range (°C): -40 to 85 Product type: General-purpose DAC

TLV5620


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有串行输入、可编程 1x 或 2x 输出、同步更新的 8 位、10us 四通道 DAC

Resolution (Bits): 8 Number of DAC channels: 4 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): 0 to 5 INL (max) (±LSB): 1 Settling time (µs): 10 Reference type: Ext Architecture: String Rating: Catalog Sample/update rate (Msps): 0.048 Power consumption (typ) (mW): 6 Operating temperature range (°C): -40 to 85 Product type: General-purpose DAC Resolution (Bits): 8 Number of DAC channels: 4 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): 0 to 5 INL (max) (±LSB): 1
Settling time (µs): 10 Reference type: Ext Architecture: String Rating: Catalog Sample/update rate (Msps): 0.048 Power consumption (typ) (mW): 6 Operating temperature range (°C): -40 to 85 Product type: General-purpose DAC

TLV5628


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 具有串行输入、可编程 1x 或 2x 输出、低功耗的 8 位、10us 八通道 DAC

Resolution (Bits): 8 Number of DAC channels: 8 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): 0 to 5 INL (max) (±LSB): 1 Settling time (µs): 10 Reference type: Ext Architecture: String Rating: Catalog Sample/update rate (Msps): 0.045 Power consumption (typ) (mW): 12 Operating temperature range (°C): -40 to 85 Product type: General-purpose DAC Resolution (Bits): 8 Number of DAC channels: 8 Interface type: SPI Output type: Buffered Voltage Output voltage range (V): 0 to 5 INL (max) (±LSB): 1
Settling time (µs): 10 Reference type: Ext Architecture: String Rating: Catalog Sample/update rate (Msps): 0.045 Power consumption (typ) (mW): 12 Operating temperature range (°C): -40 to 85 Product type: General-purpose DAC

DAC8043


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: CMOS 12 位串行输入乘法数模转换器

Resolution (Bits): 12 Number of DAC channels: 1 Interface type: SPI Output type: Unbuffered Current INL (max) (±LSB): 1 Settling time (µs): 1 Reference type: Ext Architecture: Multiplying DAC Rating: Catalog Sample/update rate (Msps): 0.284 Power consumption (typ) (mW): 2.5 Operating temperature range (°C): -40 to 85 Resolution (Bits): 12 Number of DAC channels: 1 Interface type: SPI Output type: Unbuffered Current INL (max) (±LSB): 1 Settling time (µs): 1 Reference type: Ext Architecture: Multiplying DAC
Rating: Catalog Sample/update rate (Msps): 0.284 Power consumption (typ) (mW): 2.5 Operating temperature range (°C): -40 to 85

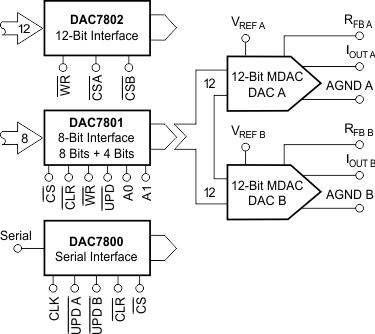

DAC7801


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 双单片 CMOS 12 位乘数模转换器

Resolution (Bits): 12 Number of DAC channels: 2 Interface type: Parallel Output type: Unbuffered Current INL (max) (±LSB): 0.5 Settling time (µs): 0.8 Reference type: Ext Architecture: Multiplying DAC Rating: Catalog Sample/update rate (Msps): 1.25 Power consumption (typ) (mW): 1 Operating temperature range (°C): -40 to 85 Resolution (Bits): 12 Number of DAC channels: 2 Interface type: Parallel Output type: Unbuffered Current INL (max) (±LSB): 0.5 Settling time (µs): 0.8 Reference type: Ext Architecture: Multiplying DAC
Rating: Catalog Sample/update rate (Msps): 1.25 Power consumption (typ) (mW): 1 Operating temperature range (°C): -40 to 85

DAC7802


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 双单片 CMOS 12 位乘数模转换器

Resolution (Bits): 12 Number of DAC channels: 2 Interface type: Parallel Output type: Unbuffered Current INL (max) (±LSB): 0.5 Settling time (µs): 0.8 Reference type: Ext Architecture: Multiplying DAC Rating: Catalog Sample/update rate (Msps): 1.25 Power consumption (typ) (mW): 1 Operating temperature range (°C): -40 to 85 Resolution (Bits): 12 Number of DAC channels: 2 Interface type: Parallel Output type: Unbuffered Current INL (max) (±LSB): 0.5 Settling time (µs): 0.8 Reference type: Ext Architecture: Multiplying DAC
Rating: Catalog Sample/update rate (Msps): 1.25 Power consumption (typ) (mW): 1 Operating temperature range (°C): -40 to 85

DAC813


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 兼容微处理器的 12 位数模转换器

Resolution (Bits): 12 Number of DAC channels: 1 Interface type: Parallel Output type: Buffered Voltage INL (max) (±LSB): 0.25 Settling time (µs): 4 Reference type: Ext, Int Architecture: R-2R Rating: Catalog Sample/update rate (Msps): 0.167 Power consumption (typ) (mW): 270 Operating temperature range (°C): -40 to 85 Resolution (Bits): 12 Number of DAC channels: 1 Interface type: Parallel Output type: Buffered Voltage INL (max) (±LSB): 0.25 Settling time (µs): 4 Reference type: Ext, Int Architecture: R-2R
Rating: Catalog Sample/update rate (Msps): 0.167 Power consumption (typ) (mW): 270 Operating temperature range (°C): -40 to 85

DAC7800


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 数字/模拟(D/A)转换器

描述: 双单片 CMOS 12 位乘数模转换器

Resolution (Bits): 12 Number of DAC channels: 2 Interface type: SPI Output type: Unbuffered Current INL (max) (±LSB): 0.5 Settling time (µs): 0.8 Reference type: Ext Architecture: Multiplying DAC Rating: Catalog Sample/update rate (Msps): 1.25 Power consumption (typ) (mW): 1 Operating temperature range (°C): -40 to 85 Resolution (Bits): 12 Number of DAC channels: 2 Interface type: SPI Output type: Unbuffered Current INL (max) (±LSB): 0.5 Settling time (µs): 0.8 Reference type: Ext Architecture: Multiplying DAC
Rating: Catalog Sample/update rate (Msps): 1.25 Power consumption (typ) (mW): 1 Operating temperature range (°C): -40 to 85
