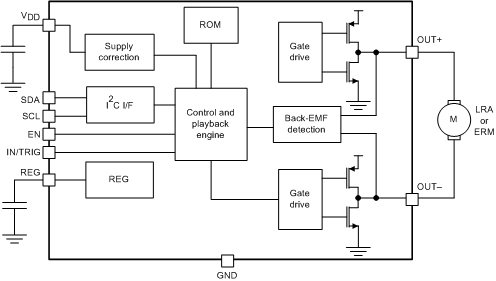

Haptic actuator type: ERM, LRA Features: Integrated haptic effects, Smart loop Input signal: Analog, I2C, PWM Vs (min) (V): 2 Vs (max) (V): 5.2 Vout (max) (V): 5.5 Peak-to-peak output voltage (max) (V): 10.4 Iq (typ) (mA): 0.5 Shutdown current (ISD) (µA): 4 Startup time (ms): 0.7 Operating temperature range (°C): -40 to 85 Rating: Catalog Haptic actuator type: ERM, LRA Features: Integrated haptic effects, Smart loop Input signal: Analog, I2C, PWM Vs (min) (V): 2 Vs (max) (V): 5.2 Vout (max) (V): 5.5 Peak-to-peak output voltage (max) (V): 10.4 Iq (typ) (mA): 0.5 更多

Number of full bridges: 2 Vs (min) (V): 8.2 Vs ABS (max) (V): 47 Full-scale current (A): 1.6 Peak output current (A): 1.8 RDS(ON) (HS + LS) (mΩ): 1280 Sleep current (µA): 10 Control mode: STEP/DIR Control interface: Hardware (GPIO) Microstepping levels: 32 Features: Current Regulation Rating: Automotive Operating temperature range (°C): -40 to 125 Number of full bridges: 2 Vs (min) (V): 8.2 Vs ABS (max) (V): 47 Full-scale current (A): 1.6 Peak output current (A): 1.8 RDS(ON) (HS + LS) (mΩ): 1280 Sleep current (µA): 10 更多

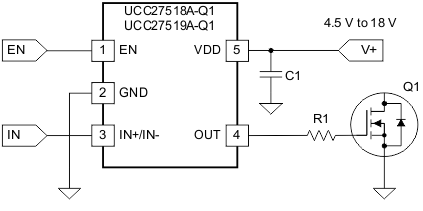

Number of channels: 1 Power switch: GaNFET, IGBT, MOSFET Peak output current (A): 4 Input supply voltage (min) (V): 4.5 Input supply voltage (max) (V): 18 Features: Enable pin Operating temperature range (°C): -40 to 125 Rise time (ns): 8 Fall time (ns): 7 Propagation delay time (µs): 0.017 Input threshold: CMOS Channel input logic: Non-Inverting Input negative voltage (V): -5 Rating: Automotive Undervoltage lockout (typ) (V): 4 Driver configuration: Non-Inverting Number of channels: 1 Power switch: GaNFET, IGBT, MOSFET Peak output current (A): 4 Input supply voltage (min) (V): 4.5 更多

Number of full bridges: 1 Vs (min) (V): 1.8 Vs ABS (max) (V): 12 Peak output current (A): 1.9 RDS(ON) (HS + LS) (mΩ): 280 Sleep current (µA): 0.03 Control mode: PH/EN Control interface: Hardware (GPIO) Rating: Catalog Operating temperature range (°C): -40 to 85 Number of full bridges: 1 Vs (min) (V): 1.8 Vs ABS (max) (V): 12 Peak output current (A): 1.9 RDS(ON) (HS + LS) (mΩ): 280 Sleep current (µA): 0.03 Control mode: PH/EN Control interface: Hardware (GPIO) Rating: Catalog Operating temperature range (°C): -40 to 85

Number of channels: 1 Power switch: IGBT, MOSFET Peak output current (A): 5 Input supply voltage (min) (V): 10 Input supply voltage (max) (V): 32 Features: Split Output Operating temperature range (°C): -40 to 140 Rise time (ns): 15 Fall time (ns): 7 Propagation delay time (µs): 0.017 Input threshold: CMOS Channel input logic: Non-Inverting, Single Input negative voltage (V): -5 Rating: Automotive Undervoltage lockout (typ) (V): 8 Driver configuration: Single input Number of channels: 1 Power switch: IGBT, MOSFET Peak output current (A): 5 Input supply voltage (min) (V): 10 更多

Number of full bridges: 1 Vs (min) (V): 2 Vs ABS (max) (V): 7 Peak output current (A): 9.5 RDS(ON) (HS + LS) (mΩ): 65 Sleep current (µA): 1 Control mode: Independent 1/2-Bridge, PWM Control interface: Hardware (GPIO) Features: Current sense Amplifier, Voltage Regulator Rating: Catalog Operating temperature range (°C): -40 to 85 Number of full bridges: 1 Vs (min) (V): 2 Vs ABS (max) (V): 7 Peak output current (A): 9.5 RDS(ON) (HS + LS) (mΩ): 65 Sleep current (µA): 1 Control mode: Independent 1/2-Bridge, PWM Control interface: Hardware (GPIO) Features: Current sense Amplifier, Voltage Regulator 更多

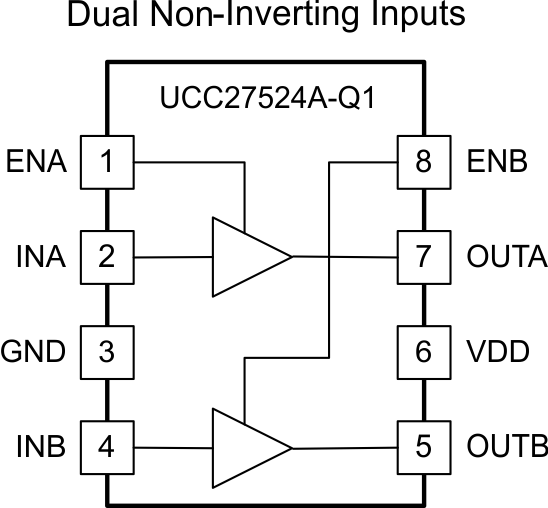

Number of channels: 2 Power switch: GaNFET, IGBT, MOSFET Peak output current (A): 5 Input supply voltage (min) (V): 4.5 Input supply voltage (max) (V): 18 Features: Enable pin Operating temperature range (°C): -40 to 140 Rise time (ns): 7 Fall time (ns): 6 Propagation delay time (µs): 0.013 Input threshold: CMOS, TTL Channel input logic: Dual, Non-Inverting Input negative voltage (V): -5 Rating: Automotive Undervoltage lockout (typ) (V): 4 Driver configuration: Dual, Non-Inverting Number of channels: 2 Power switch: GaNFET, IGBT, MOSFET Peak output current (A): 5 Input supply voltage (min) (V): 4.5 更多

Rating: Catalog Architecture: Gate driver Control interface: 3xPWM, 6xPWM Gate drive (A): 1.7 Vs (min) (V): 6 Vs ABS (max) (V): 65 Features: Current sense Amplifier, SPI/I2C Operating temperature range (°C): -40 to 125 Rating: Catalog Architecture: Gate driver Control interface: 3xPWM, 6xPWM Gate drive (A): 1.7 Vs (min) (V): 6 Vs ABS (max) (V): 65 Features: Current sense Amplifier, SPI/I2C Operating temperature range (°C): -40 to 125

Number of full bridges: 1 Vs (min) (V): 8 Vs ABS (max) (V): 40 Peak output current (A): 3 RDS(ON) (HS + LS) (mΩ): 830 Sleep current (µA): 10 Control mode: Independent 1/2-Bridge, PWM Control interface: Hardware (GPIO) Features: Current Regulation, Current sense Amplifier Rating: Catalog Operating temperature range (°C): -40 to 85 Number of full bridges: 1 Vs (min) (V): 8 Vs ABS (max) (V): 40 Peak output current (A): 3 RDS(ON) (HS + LS) (mΩ): 830 Sleep current (µA): 10 Control mode: Independent 1/2-Bridge, PWM Control interface: Hardware (GPIO) Features: Current Regulation, Current sense Amplifier 更多

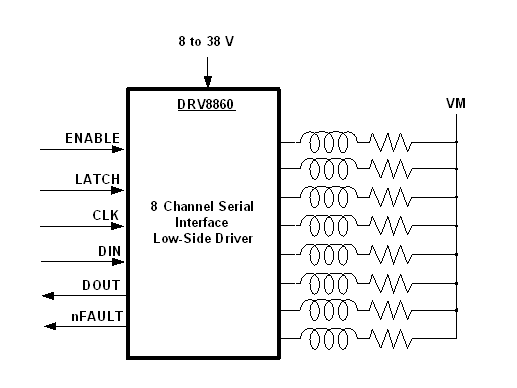

Vs (min) (V): 8 Vs ABS (max) (V): 40 Full-scale current (A): 0.33 Peak output current (A): 0.62 RDS(ON) (HS + LS) (mΩ): 1500 Control mode: Serial Control interface: Serial Features: Open-Load Detection Rating: Catalog Operating temperature range (°C): -40 to 85 Vs (min) (V): 8 Vs ABS (max) (V): 40 Full-scale current (A): 0.33 Peak output current (A): 0.62 RDS(ON) (HS + LS) (mΩ): 1500 Control mode: Serial Control interface: Serial Features: Open-Load Detection Rating: Catalog Operating temperature range (°C): -40 to 85
