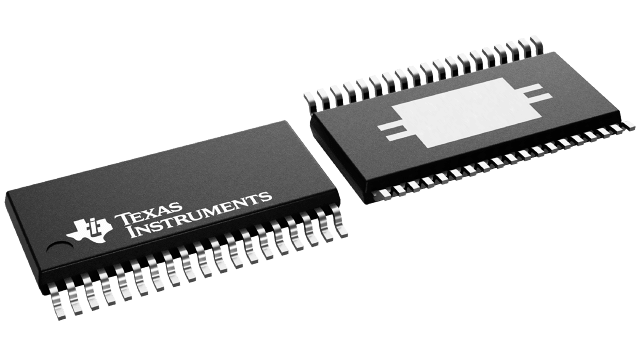

DRV8332-HT


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 适用于高温应用（-55°C 至 +175°C）的最大 70V 的 9.7A 峰值三相电动机驱动器

Rating: High Temp Architecture: Integrated FET Control interface: 3xPWM RDS(ON) (HS + LS) (mΩ): 220 Peak output current (A): 13 Vs (min) (V): 10.8 Vs ABS (max) (V): 70 Features: Integrated FETs Operating temperature range (°C): -55 to 175 Rating: High Temp Architecture: Integrated FET Control interface: 3xPWM RDS(ON) (HS + LS) (mΩ): 220 Peak output current (A): 13 Vs (min) (V): 10.8 Vs ABS (max) (V): 70 Features: Integrated FETs Operating temperature range (°C): -55 to 175

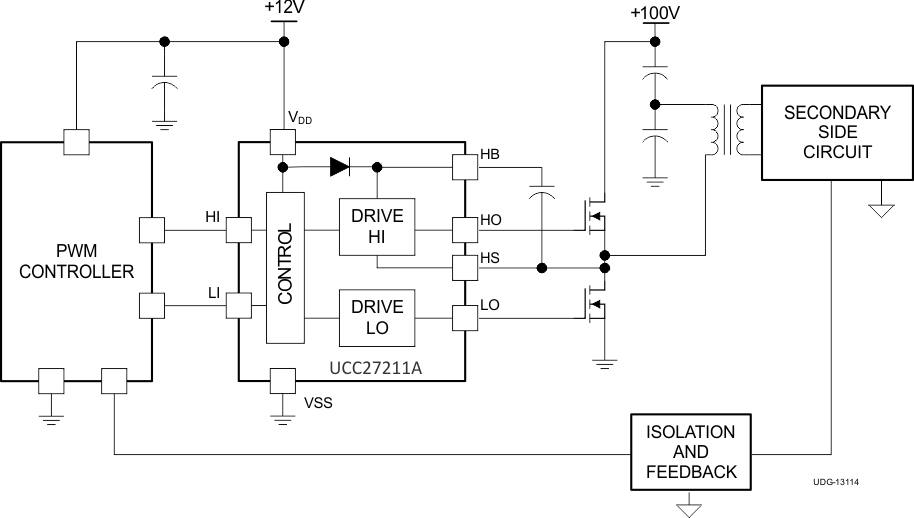

UCC27211A


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 8V UVLO 和负电压处理能力的 4A、120V 半桥栅极驱动器

Bootstrap supply voltage (max) (V): 110 Power switch: MOSFET Input supply voltage (min) (V): 8 Input supply voltage (max) (V): 17 Peak output current (A): 4 Operating temperature range (°C): -40 to 150 Undervoltage lockout (typ) (V): 8 Rating: Catalog Propagation delay time (µs): 0.02 Rise time (ns): 8 Fall time (ns): 7 Iq (mA): 0.001 Input threshold: TTL Channel input logic: TTL Switch node voltage (V): -12 Features: Negative voltage handling Driver configuration: Dual, Noninverting, TTL compatible Bootstrap supply voltage (max) (V): 110 Power switch: MOSFET Input supply voltage (min) (V): 8
Input supply voltage (max) (V): 17 Peak output current (A): 4 Operating temperature range (°C): -40 to 150 Undervoltage lockout (typ) (V): 8 Rating: Catalog Propagation delay time (µs): 0.02 Rise time (ns): 8 Fall time (ns): 7 Iq (mA): 0.001 Input threshold: TTL Channel input logic: TTL Switch node voltage (V): -12 Features: Negative voltage handling Driver configuration: Dual, Noninverting, TTL compatible

UCC27517A-Q1


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 5V UVLO 和双输入结构的汽车类 4A/4A 单通道栅极驱动器

Number of channels: 1 Power switch: GaNFET, IGBT, MOSFET Peak output current (A): 4 Input supply voltage (min) (V): 4.5 Input supply voltage (max) (V): 18 Features: Hysteretic Logic Operating temperature range (°C): -40 to 125 Rise time (ns): 9 Fall time (ns): 7 Propagation delay time (µs): 0.013 Input threshold: CMOS, TTL Channel input logic: Inverting, Non-Inverting Input negative voltage (V): -5 Rating: Automotive Undervoltage lockout (typ) (V): 4 Driver configuration: Inverting, Non-Inverting Number of channels: 1 Power switch: GaNFET, IGBT, MOSFET Peak output current (A): 4 Input supply voltage (min) (V): 4.5
Input supply voltage (max) (V): 18 Features: Hysteretic Logic Operating temperature range (°C): -40 to 125 Rise time (ns): 9 Fall time (ns): 7 Propagation delay time (µs): 0.013 Input threshold: CMOS, TTL Channel input logic: Inverting, Non-Inverting Input negative voltage (V): -5 Rating: Automotive Undervoltage lockout (typ) (V): 4 Driver configuration: Inverting, Non-Inverting

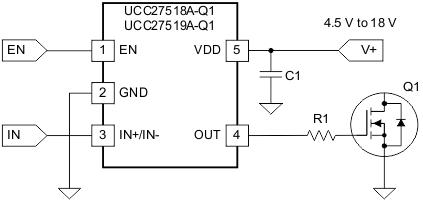

UCC27518A-Q1


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 5V UVLO、使能功能和反相 CMOS 输入的汽车类 4A/4A 单通道栅极驱动器

Number of channels: 1 Power switch: GaNFET, IGBT, MOSFET Peak output current (A): 4 Input supply voltage (min) (V): 4.5 Input supply voltage (max) (V): 18 Features: Enable pin Operating temperature range (°C): -40 to 125 Rise time (ns): 8 Fall time (ns): 7 Propagation delay time (µs): 0.017 Input threshold: CMOS Channel input logic: Inverting Input negative voltage (V): -5 Rating: Automotive Undervoltage lockout (typ) (V): 4 Driver configuration: Inverting Number of channels: 1 Power switch: GaNFET, IGBT, MOSFET Peak output current (A): 4 Input supply voltage (min) (V): 4.5
Input supply voltage (max) (V): 18 Features: Enable pin Operating temperature range (°C): -40 to 125 Rise time (ns): 8 Fall time (ns): 7 Propagation delay time (µs): 0.017 Input threshold: CMOS Channel input logic: Inverting Input negative voltage (V): -5 Rating: Automotive Undervoltage lockout (typ) (V): 4 Driver configuration: Inverting

UCC27531-Q1


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 8V UVLO、35V VDD 和分离输出的汽车类 2.5A/5A 单通道栅极驱动器

Number of channels: 1 Power switch: IGBT, MOSFET, SiCFET Peak output current (A): 5 Input supply voltage (min) (V): 10 Input supply voltage (max) (V): 32 Features: Split Output Operating temperature range (°C): -40 to 125 Rise time (ns): 15 Fall time (ns): 7 Propagation delay time (µs): 0.017 Input threshold: CMOS, TTL Channel input logic: Non-Inverting, Single Input negative voltage (V): -5 Rating: Automotive Undervoltage lockout (typ) (V): 8 Driver configuration: Non-Inverting, Single Number of channels: 1 Power switch: IGBT, MOSFET, SiCFET Peak output current (A): 5 Input supply voltage (min) (V): 10
Input supply voltage (max) (V): 32 Features: Split Output Operating temperature range (°C): -40 to 125 Rise time (ns): 15 Fall time (ns): 7 Propagation delay time (µs): 0.017 Input threshold: CMOS, TTL Channel input logic: Non-Inverting, Single Input negative voltage (V): -5 Rating: Automotive Undervoltage lockout (typ) (V): 8 Driver configuration: Non-Inverting, Single

UCC27517A


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 5V UVLO 和负输入电压处理能力的 4A/4A 单通道栅极驱动器

Number of channels: 1 Power switch: GaNFET, IGBT, MOSFET Peak output current (A): 4 Input supply voltage (min) (V): 4.5 Input supply voltage (max) (V): 18 Features: Hysteretic Logic Operating temperature range (°C): -40 to 125 Rise time (ns): 9 Fall time (ns): 7 Propagation delay time (µs): 0.013 Input threshold: CMOS, TTL Channel input logic: Inverting, Non-Inverting Input negative voltage (V): -5 Rating: Catalog Undervoltage lockout (typ) (V): 4 Driver configuration: Inverting, Non-Inverting Number of channels: 1 Power switch: GaNFET, IGBT, MOSFET Peak output current (A): 4 Input supply voltage (min) (V): 4.5
Input supply voltage (max) (V): 18 Features: Hysteretic Logic Operating temperature range (°C): -40 to 125 Rise time (ns): 9 Fall time (ns): 7 Propagation delay time (µs): 0.013 Input threshold: CMOS, TTL Channel input logic: Inverting, Non-Inverting Input negative voltage (V): -5 Rating: Catalog Undervoltage lockout (typ) (V): 4 Driver configuration: Inverting, Non-Inverting

UCC27524A


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 5V UVLO、使能功能和负输入电压处理能力的 5A/5A 双通道栅极驱动器

Number of channels: 2 Power switch: GaNFET, IGBT, MOSFET Peak output current (A): 5 Input supply voltage (min) (V): 4.5 Input supply voltage (max) (V): 18 Features: Enable pin Operating temperature range (°C): -40 to 140 Rise time (ns): 7 Fall time (ns): 6 Propagation delay time (µs): 0.013 Input threshold: CMOS, TTL Channel input logic: Dual, Non-Inverting Input negative voltage (V): -5 Rating: Catalog Undervoltage lockout (typ) (V): 4 Driver configuration: Dual, Non-Inverting Number of channels: 2 Power switch: GaNFET, IGBT, MOSFET Peak output current (A): 5 Input supply voltage (min) (V): 4.5
Input supply voltage (max) (V): 18 Features: Enable pin Operating temperature range (°C): -40 to 140 Rise time (ns): 7 Fall time (ns): 6 Propagation delay time (µs): 0.013 Input threshold: CMOS, TTL Channel input logic: Dual, Non-Inverting Input negative voltage (V): -5 Rating: Catalog Undervoltage lockout (typ) (V): 4 Driver configuration: Dual, Non-Inverting

UCC27527


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 5V UVLO、使能功能和双 CMOS 输入的 5A/5A 双通道栅极驱动器

Number of channels: 2 Power switch: GaNFET, IGBT, MOSFET Peak output current (A): 5 Input supply voltage (min) (V): 4.5 Input supply voltage (max) (V): 18 Features: Negative Voltage Handling on Input Operating temperature range (°C): -40 to 140 Rise time (ns): 7 Fall time (ns): 6 Propagation delay time (µs): 0.017 Input threshold: CMOS Channel input logic: Dual, Flexible, Inverting, Non-Inverting Input negative voltage (V): -5 Rating: Catalog Undervoltage lockout (typ) (V): 4 Driver configuration: Dual, Flexible, Inverting, Non-Inverting Number of channels: 2 Power switch: GaNFET, IGBT, MOSFET Peak output current (A): 5 Input supply voltage (min) (V): 4.5
Input supply voltage (max) (V): 18 Features: Negative Voltage Handling on Input Operating temperature range (°C): -40 to 140 Rise time (ns): 7 Fall time (ns): 6 Propagation delay time (µs): 0.017 Input threshold: CMOS Channel input logic: Dual, Flexible, Inverting, Non-Inverting Input negative voltage (V): -5 Rating: Catalog Undervoltage lockout (typ) (V): 4 Driver configuration: Dual, Flexible, Inverting, Non-Inverting

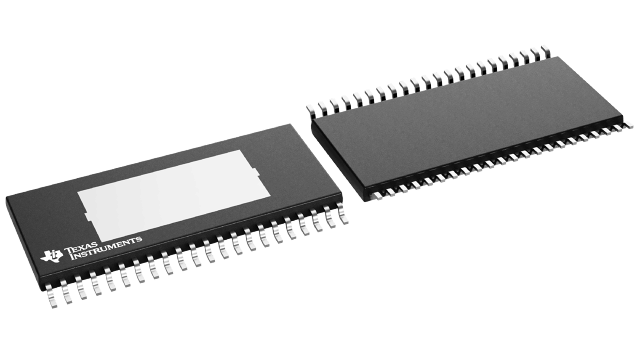

DRV8711


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 1/256 微步进和失速检测功能的 52V、双极步进电机栅极驱动器

Number of full bridges: 2 Vs (min) (V): 8 Vs ABS (max) (V): 60 Sleep current (µA): 65 Control mode: PWM, STEP/DIR Control interface: Hardware (GPIO), SPI Microstepping levels: 256 Features: Stall Detection, Voltage Regulator Rating: Catalog Operating temperature range (°C): -40 to 85 Number of full bridges: 2 Vs (min) (V): 8 Vs ABS (max) (V): 60 Sleep current (µA): 65 Control mode: PWM, STEP/DIR Control interface: Hardware (GPIO), SPI Microstepping levels: 256 Features: Stall Detection, Voltage Regulator Rating: Catalog Operating temperature range (°C): -40 to 85

UCC27512-EP


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有 5V UVLO、采用 SON 封装的增强型产品 4A/8A 单通道栅极驱动器

Number of channels: 1 Power switch: GaNFET, IGBT, MOSFET Peak output current (A): 8 Input supply voltage (min) (V): 4.5 Input supply voltage (max) (V): 18 Features: Hysteretic Logic Operating temperature range (°C): -55 to 125 Rise time (ns): 9 Fall time (ns): 7 Propagation delay time (µs): 0.013 Input threshold: CMOS, TTL Channel input logic: Inverting, Non-Inverting Input negative voltage (V): 0 Rating: HiRel Enhanced Product Undervoltage lockout (typ) (V): 4 Driver configuration: Inverting, Non-Inverting Number of channels: 1 Power switch: GaNFET, IGBT, MOSFET Peak output current (A): 8 Input supply voltage (min) (V): 4.5
Input supply voltage (max) (V): 18 Features: Hysteretic Logic Operating temperature range (°C): -55 to 125 Rise time (ns): 9 Fall time (ns): 7 Propagation delay time (µs): 0.013 Input threshold: CMOS, TTL Channel input logic: Inverting, Non-Inverting Input negative voltage (V): 0 Rating: HiRel Enhanced Product Undervoltage lockout (typ) (V): 4 Driver configuration: Inverting, Non-Inverting
