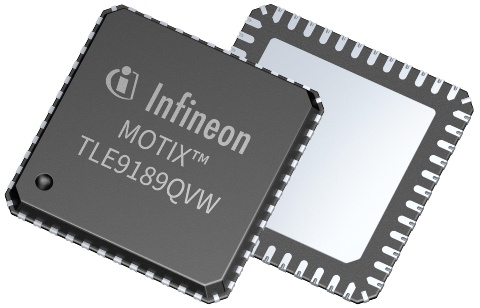

TLE9189QVW

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: TLE9189QVW is an advanced gate driver IC designed for controlling six external N-channel power MOSFETs for 3-phase motor drive applications in the automotive sector with ISO 26262 ASIL D compliance.

Channels: 3.0 Configuration: 3-phase Output Current: Configurable via SPI Current Sense Amplifier: 3 Voltage range GHx,SHx: Max. 40 V Qualification: Automotive Classification: ISO 26262-compliant Supply Voltage max: 36.0V Driving Capability: 200nC at 20 kHz Operating Voltage max: 36.0V Technology: MOTIX™ Driver Temperature: - 40°C - 175°C Temperature max: 175.0°C Family: MOTIX™ gate driver ICs Currently planned availability until at least: 2038

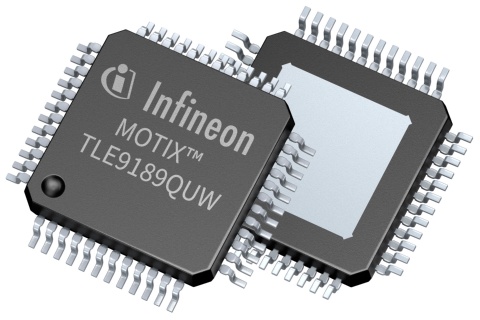

TLE9189QUW

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: TLE9189QUW is an advanced gate driver IC designed for controlling six external N-channel power MOSFETs for 3-phase motor drive applications in the automotive sector with ISO26262 ASIL D compliance.

Channels: 3.0 Classification: ISO 26262-compliant Configuration: 3-phase Output Current: Configurable via SPI Current Sense Amplifier: 3 Voltage range GHx,SHx: Max. 40 V Qualification: Automotive Supply Voltage max: 36.0V Temperature max: 175.0°C Driving Capability: 200nC at 20 kHz Operating Voltage max: 36.0V Technology: MOTIX™ Driver Temperature: - 40°C - 175°C Family: MOTIX™ gate driver ICs Currently planned availability until at least: 2038

6EDL04N065PT

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 650 V three-phase gate driver with Over Current Protection (OCP), Enable (EN), Fault and Integrated Bootstrap Diode (BSD)

Voltage Class: 650.0V Output Current(Source): 0.165A Output Current(Sink): 0.375A Channels: 6.0 Configuration: Three Phase Qualification: Industrial Isolation Type: Functional levelshift Package: PG-DSO-28 Turn On Propagation Delay: 490.0ns Turn Off Propagation Delay: 530.0ns Input Vcc max: 17.5V V[BS] UVLO(On): 9.0V V[BS] UVLO(Off): 8.1V

6EDL04I065PT

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 650 V three-phase gate driver with Over Current Protection (OCP), Enable (EN), Fault and Integrated Bootstrap Diode (BSD)

Voltage Class: 650.0V Output Current(Source): 0.165A Output Current(Sink): 0.375A Channels: 6.0 Configuration: Three Phase Qualification: Industrial Isolation Type: Functional levelshift Package: PG-DSO-28 Turn On Propagation Delay: 490.0ns Turn Off Propagation Delay: 490.0ns Input Vcc max: 17.5V V[BS] UVLO(On): 11.7V V[BS] UVLO(Off): 9.8V

6EDL04I065NT

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 650 V three-phase gate driver with Over Current Protection (OCP), Enable (EN), Fault and Integrated Bootstrap Diode (BSD)

Voltage Class: 650.0V Output Current(Source): 0.165A Output Current(Sink): 0.375A Channels: 6.0 Configuration: Three Phase Qualification: Industrial Isolation Type: Functional levelshift Package: PG-DSO-28 Turn On Propagation Delay: 490.0ns Turn Off Propagation Delay: 490.0ns Input Vcc max: 17.5V V[BS] UVLO(On): 11.7V V[BS] UVLO(Off): 9.8V

6EDL04I065NR

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 650 V three-phase gate driver with Over Current Protection (OCP), Enable (EN), Fault and Integrated Bootstrap Diode (BSD)

Channels: 6.0 Configuration: Three Phase Input Vcc max: 17.5V Isolation Type: Functional levelshift Output Current(Source): 0.165A Output Current(Sink): 0.375A Package: PG-TSSOP-25 Qualification: Industrial Turn Off Propagation Delay: 490.0ns Turn On Propagation Delay: 490.0ns V[BS] UVLO(Off): 9.8V V[BS] UVLO(On): 11.7V Voltage Class: 650.0V

6EDL04I065PR

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 650 V three-phase gate driver with Over Current Protection (OCP), Enable (EN), Fault and Integrated Bootstrap Diode (BSD)

6EDL04N065PR

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 650 V three-phase gate driver with Over Current Protection (OCP), Enable (EN), Fault and Integrated Bootstrap Diode (BSD)

Channels: 6.0 Configuration: Three Phase Input Vcc max: 17.5V Isolation Type: Functional levelshift Output Current(Source): 0.165A Output Current(Sink): 0.375A Package: PG-TSSOP-25 Qualification: Industrial Turn Off Propagation Delay: 530.0ns Turn On Propagation Delay: 490.0ns V[BS] UVLO(Off): 8.1V V[BS] UVLO(On): 9.0V Voltage Class: 650.0V

6EDL04N03PR

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 300 V three-phase gate driver with Over Current Protection (OCP), Enable (EN), Fault and Integrated Bootstrap Diode (BSD)

Channels: 6.0 Configuration: Three Phase Input Vcc max: 17.5V Isolation Type: Functional levelshift Output Current(Source): 0.165A Output Current(Sink): 0.375A Package: PG-TSSOP-25 Qualification: Industrial Turn Off Propagation Delay: 530.0ns Turn On Propagation Delay: 490.0ns V[BS] UVLO max: 9.0V V[BS] UVLO(Off): 8.1V V[BS] UVLO(On): 9.0V Voltage Class: 300.0V

SN74LVC1G16

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 具有开漏输出和施密特触发输入的单通道、1.2V 至 5.5V 反相器

Technology family: LVC Supply voltage (min) (V): 1.1 Supply voltage (max) (V): 5.5V Number of channels: 1 IOL (max) (mA): 32 Input type: Schmitt-Trigger Output type: Open drain Rating: Catalog Operating temperature range (°C): -40 to 125 Technology family: LVC Supply voltage (min) (V): 1.1 Supply voltage (max) (V): 5.5V Number of channels: 1 IOL (max) (mA): 32 Input type: Schmitt-Trigger Output type: Open drain Rating: Catalog Operating temperature range (°C): -40 to 125
