NUD3105LT1G

制造商: ONSEMI
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
状态: Obsolete Compliance: Pb A H P Number of Drivers: 1 VCC Max (V): 6 V(BR)GSS Max (V): 6 V(BR)DSS Max (V): 6 ID Max (A): 0.5 rDS(on) Max (Ω): 0.9 Tj Max (°C): 150 Package Type: SOT-23 (TO-236) 2.90x1.30x1.00, 1.90P MSL Type: 1 MSL Temp (°C): 260 ON Target: N Reference Price: Price N/A

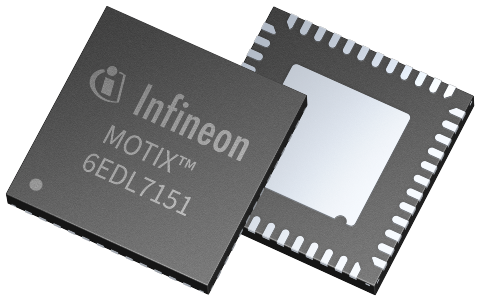

6EDL7151


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: MOTIX™ 6EDL7151 3-Phase Smart Gate Driver

Configuration: Three Phase Channels: 6.0 Isolation Type: Functional levelshift Operating Voltage max: 70.0V Technology: MOTIX™ Driver Qualification: Industrial Temperature: - 40°C - 125°C

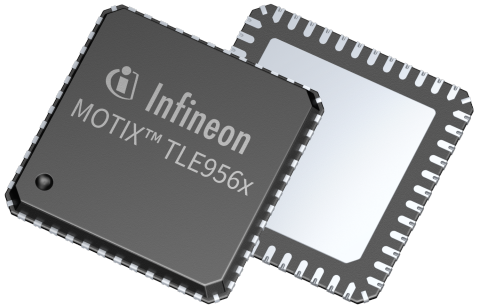

TLE9563-3QXW


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: MOTIX™ TLE9563-3QXW is an AEC Q100 Grade 0-qualified multi-functional system IC for BLDC motor control with integrated gate driver, power supply and communication interface

Qualification: Automotive Classification: ISO 26262-ready Currently planned availability until at least: 2038 Operating Voltage max: 28.0V Channels: 6.0 Configuration: Three Phase Current Sense Amplifier: 1xCSA Driving Capability: 90nC at 20kHz Output Drivers: 1 x Dual-stage Charge Pump Output Drivers: 3 x High-Side Switch 150 mA Transceiver: 1 x CAN FD ISO 11898 - 2 Voltage Regulator Output: 5V / 250 mA Wake-up Inputs: Wake Pins Wake-up Inputs: CAN Temperature max: 175.0°C Temperature: -40 °C 175°C Technology: MOTIX™ SBC Family: MOTIX™ motor system ICs (SBC)

TLE9564QXW


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: MOTIX™ TLE9564QXW is an AEC Q100 Grade 0-qualified multi-functional system IC for BLDC motor control with integrated gate driver, power supply and communication interface

Family: MOTIX™ motor system ICs (SBC) Qualification: Automotive Classification: ISO 26262-ready Currently planned availability until at least: 2038 Operating Voltage max: 5.5V Channels: 6.0 Configuration: Three Phase Current Sense Amplifier: 1xCSA Driving Capability: 90 nC at 20 kHz Output Drivers: 1 x Dual-stage Charge Pump Output Drivers: 3 x High-Side Switch 150 mA Voltage Regulator Output((VCC1)): 5 V / 250 mA Wake-up Inputs: Wake Pins Temperature max: 175.0°C Temperature: - 40°C - 175°C Transceiver: 1 x LIN2.2 / J2602 Wake-up Inputs: LIN Technology: MOTIX™ SBC

1ED21271S65F


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 650 V high-side gate driver IC with over current protection (OCP), multi-function RCIN/Fault/Enable (RFE) and integrated bootstrap diode (BSD)

Channels: 1.0 Configuration: High-side Input Vcc max: 22.0V Isolation Type: Functional levelshift Qualification: Industrial Package: PG-DSO-8 Turn Off Propagation Delay: 55.0ns Turn On Propagation Delay: 55.0ns Voltage Class: 650.0V V[BS] UVLO(On): 7.2V V[BS] UVLO(Off): 6.8V Output Current(Sink): 4.0A Output Current(Source): 4.0A V[CC] UVLO(Off): 6.8V V[CC] UVLO(On): 7.2V

1ED2147S65F


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 650 V high-side gate driver IC with over current protection (OCP), multi-function RCIN/Fault/Enable (RFE) and integrated bootstrap diode (BSD)

Channels: 1.0 Configuration: High-side Input Vcc max: 22.0V Isolation Type: Functional levelshift Qualification: Industrial Package: PG-DSO-8 Turn Off Propagation Delay: 55.0ns Turn On Propagation Delay: 55.0ns Voltage Class: 650.0V V[BS] UVLO(On): 7.2V V[BS] UVLO(Off): 6.8V Output Current(Sink): 4.0A Output Current(Source): 4.0A V[CC] UVLO(Off): 6.8V V[CC] UVLO(On): 7.2V

1ED2127S65F


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 650 V high-side gate driver IC with over current protection (OCP), multi-function RCIN/Fault/Enable (RFE) and integrated bootstrap diode (BSD)

Channels: 1.0 Configuration: High-side Input Vcc max: 22.0V Isolation Type: Functional levelshift Qualification: Industrial Package: PG-DSO-8 Turn Off Propagation Delay: 55.0ns Turn On Propagation Delay: 55.0ns Voltage Class: 650.0V V[BS] UVLO(On): 10.0V V[BS] UVLO(Off): 8.7V Output Current(Sink): 4.0A Output Current(Source): 4.0A V[CC] UVLO(Off): 8.7V V[CC] UVLO(On): 10.0V

1ED21471S65F


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: 650 V high-side gate driver IC with over current protection (OCP), multi-function RCIN/Fault/Enable (RFE) and integrated bootstrap diode (BSD)

Channels: 1.0 Configuration: High-side Input Vcc max: 22.0V Isolation Type: Functional levelshift Qualification: Industrial Package: PG-DSO-8 Turn Off Propagation Delay: 55.0ns Turn On Propagation Delay: 55.0ns Voltage Class: 650.0V V[BS] UVLO(On): 10.0V V[BS] UVLO(Off): 8.7V Output Current(Sink): 4.0A Output Current(Source): 4.0A V[CC] UVLO(Off): 8.7V V[CC] UVLO(On): 10.0V

TLE9185QXWV33


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: MOTIX™ TLE9185QXW V33 is an AEC Q100 Grade 0-qualified three-phase gate driver IC with integrated power supply and divers support features in a PG-VQFN-48 power package

Qualification: Automotive Classification: ISO26262-ready Supply Voltage max: 28.0V Driving Capability: 90 nC at 20 kHz Current Sense Amplifier: 1xCSA Temperature max: 175.0°C Temperature: -40 °C 175 °C Currently planned availability until at least: 2038 Technology: MOTIX™ Driver Family: MOTIX™ gate driver ICs

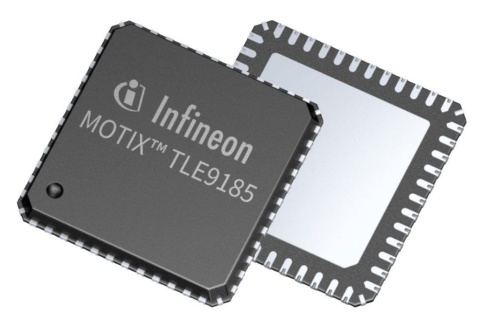

TLE9185QXW


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器

描述: MOTIX™ TLE9185QXW is an AEC Q100 Grade 0-qualified three-phase gate driver IC with integrated power supply and divers support features in a PG-VQFN-48 power package

Qualification: Automotive Classification: ISO26262-ready Supply Voltage max: 28.0V Driving Capability: 90 nC at 20 kHz Current Sense Amplifier: 1xCSA Temperature max: 175.0°C Temperature: -40 °C 175 °C Currently planned availability until at least: 2038 Technology: MOTIX™ Driver Family: MOTIX™ gate driver ICs
