Function: Fanout, Level translator Additive RMS jitter (typ) (fs): 51 Output frequency (max) (MHz): 3100 Number of outputs: 7 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 3.3 Output skew (ps): 50 Features: Pin programmable Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: HCSL, LVCMOS, LVDS, LVPECL Input type: CML, HCSL, HSTL, LVCMOS, LVDS, LVPECL, LVTTL, SSTL, XTAL Function: Fanout, Level translator Additive RMS jitter (typ) (fs): 51 Output frequency (max) (MHz): 3100 Number of outputs: 7 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 3.3 Output skew (ps): 50 Features: Pin programmable 更多

Function: Fanout, Level translator Additive RMS jitter (typ) (fs): 51 Output frequency (max) (MHz): 3100 Number of outputs: 5 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 3.3 Output skew (ps): 50 Features: Pin programmable Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: HCSL, LVCMOS, LVDS, LVPECL Input type: CML, HCSL, HSTL, LVCMOS, LVDS, LVPECL, LVTTL, SSTL, XTAL Function: Fanout, Level translator Additive RMS jitter (typ) (fs): 51 Output frequency (max) (MHz): 3100 Number of outputs: 5 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 3.3 Output skew (ps): 50 Features: Pin programmable 更多

Function: Fanout, Level translator Additive RMS jitter (typ) (fs): 51 Output frequency (max) (MHz): 3100 Number of outputs: 9 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 3.3 Output skew (ps): 50 Features: Pin programmable Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: HCSL, LVCMOS, LVDS, LVPECL Input type: CML, HCSL, HSTL, LVCMOS, LVDS, LVPECL, LVTTL, SSTL, XTAL Function: Fanout, Level translator Additive RMS jitter (typ) (fs): 51 Output frequency (max) (MHz): 3100 Number of outputs: 9 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 3.3 Output skew (ps): 50 Features: Pin programmable 更多

Function: Level translator, Single-ended Additive RMS jitter (typ) (fs): 30 Output frequency (max) (MHz): 200 Number of outputs: 10 Output supply voltage (V): 1.5, 1.8, 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 25 Features: Pin control Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: LVCMOS Input type: LVCMOS Function: Level translator, Single-ended Additive RMS jitter (typ) (fs): 30 Output frequency (max) (MHz): 200 Number of outputs: 10 Output supply voltage (V): 1.5, 1.8, 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 25 Features: Pin control 更多

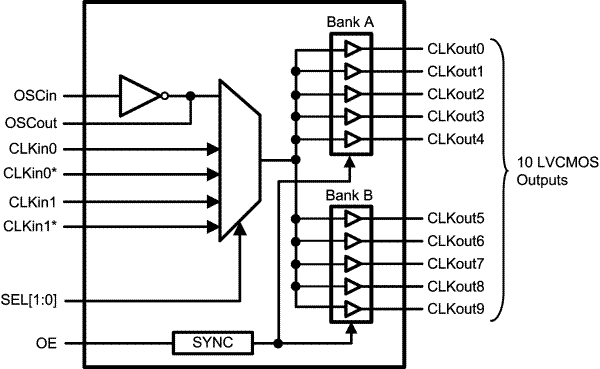

Function: Single-ended Additive RMS jitter (typ) (fs): 25 Output frequency (max) (MHz): 200 Number of outputs: 10 Output supply voltage (V): 1.5, 1.8, 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 50 Features: 1:10 fanout, Level translation Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: LVCMOS Input type: HCSL, LVCMOS, LVDS, LVPECL, SSTL, XTAL Function: Single-ended Additive RMS jitter (typ) (fs): 25 Output frequency (max) (MHz): 200 Number of outputs: 10 Output supply voltage (V): 1.5, 1.8, 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 50 Features: 1:10 fanout, Level translation 更多

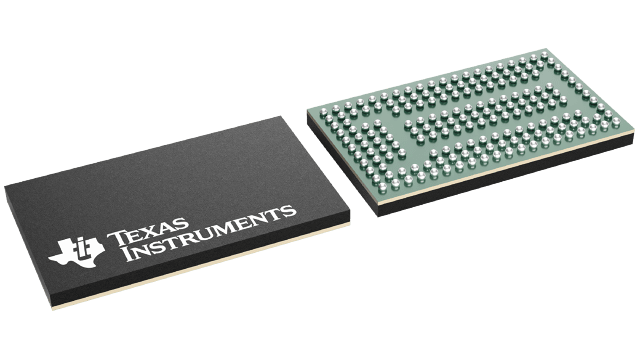

Function: Memory interface Additive RMS jitter (typ) (fs): 30 Output frequency (max) (MHz): 945 Number of outputs: 60 Output supply voltage (V): 1.35 Core supply voltage (V): 1.35 Features: DDR3 register Operating temperature range (°C): 0 to 85 Rating: Catalog Output type: CMOS Input type: CMOS Function: Memory interface Additive RMS jitter (typ) (fs): 30 Output frequency (max) (MHz): 945 Number of outputs: 60 Output supply voltage (V): 1.35 Core supply voltage (V): 1.35 Features: DDR3 register Operating temperature range (°C): 0 to 85 Rating: Catalog 更多

Function: Single-ended Output frequency (max) (MHz): 0.00012 Number of outputs: 4 Output supply voltage (V): 5 Core supply voltage (V): 5 Output skew (ps): 10000 Features: 1:4 fanout Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: TTL Input type: TTL Function: Single-ended Output frequency (max) (MHz): 0.00012 Number of outputs: 4 Output supply voltage (V): 5 Core supply voltage (V): 5 Output skew (ps): 10000 Features: 1:4 fanout Operating temperature range (°C): -40 to 85 Rating: Catalog 更多

Function: Clock divider Additive RMS jitter (typ) (fs): 50 Output frequency (max) (MHz): 3100 Number of outputs: 12 Output supply voltage (V): 3.3 Core supply voltage (V): 3.3 Output skew (ps): 3 Features: Pin programmable, uWire Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: LVCMOS, LVDS, LVPECL Input type: LVDS Function: Clock divider Additive RMS jitter (typ) (fs): 50 Output frequency (max) (MHz): 3100 Number of outputs: 12 Output supply voltage (V): 3.3 Core supply voltage (V): 3.3 Output skew (ps): 3 Features: Pin programmable, uWire 更多

Function: Fanout, Level translator Additive RMS jitter (typ) (fs): 51 Output frequency (max) (MHz): 3100 Number of outputs: 11 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 3.3 Output skew (ps): 50 Features: Pin programmable Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: HCSL, LVDS, LVPECL Input type: CML, HCSL, HSTL, LVCMOS, LVDS, LVPECL, LVTTL, SSTL, XTAL Function: Fanout, Level translator Additive RMS jitter (typ) (fs): 51 Output frequency (max) (MHz): 3100 Number of outputs: 11 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 3.3 Output skew (ps): 50 Features: Pin programmable 更多

Function: Differential Additive RMS jitter (typ) (fs): 171 Output frequency (max) (MHz): 800 Number of outputs: 12 Output supply voltage (V): 2.5 Core supply voltage (V): 2.5 Output skew (ps): 35 Features: 2:12 fanout, Universal inputs Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: LVDS Input type: LVCMOS, LVDS, LVPECL Function: Differential Additive RMS jitter (typ) (fs): 171 Output frequency (max) (MHz): 800 Number of outputs: 12 Output supply voltage (V): 2.5 Core supply voltage (V): 2.5 Output skew (ps): 35 Features: 2:12 fanout, Universal inputs 更多
