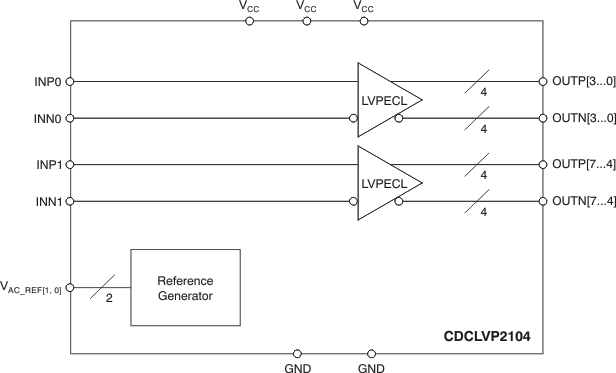

Function: Differential Additive RMS jitter (typ) (fs): 89 Output frequency (max) (MHz): 2000 Number of outputs: 8 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 15 Features: 2:8 fanout Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: LVPECL Input type: LVCMOS, LVDS, LVPECL Function: Differential Additive RMS jitter (typ) (fs): 89 Output frequency (max) (MHz): 2000 Number of outputs: 8 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 15 Features: 2:8 fanout 更多

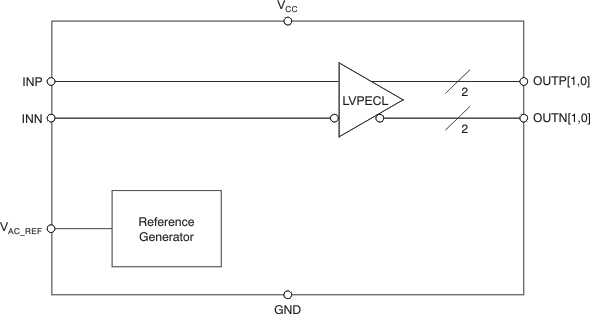

Function: Differential Additive RMS jitter (typ) (fs): 90 Output frequency (max) (MHz): 2000 Number of outputs: 2 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 10 Features: 1:2 fanout Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: LVPECL Input type: LVCMOS, LVDS, LVPECL Function: Differential Additive RMS jitter (typ) (fs): 90 Output frequency (max) (MHz): 2000 Number of outputs: 2 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 10 Features: 1:2 fanout 更多

Function: Differential Additive RMS jitter (typ) (fs): 89 Output frequency (max) (MHz): 2000 Number of outputs: 4 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 10 Features: 2:4 fanout Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: LVPECL Input type: LVCMOS, LVDS, LVPECL Function: Differential Additive RMS jitter (typ) (fs): 89 Output frequency (max) (MHz): 2000 Number of outputs: 4 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 10 Features: 2:4 fanout 更多

Function: Differential Additive RMS jitter (typ) (fs): 57 Output frequency (max) (MHz): 2000 Number of outputs: 4 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 15 Features: 2:4 fanout Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: LVPECL Input type: LVCMOS, LVDS, LVPECL Function: Differential Additive RMS jitter (typ) (fs): 57 Output frequency (max) (MHz): 2000 Number of outputs: 4 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 15 Features: 2:4 fanout 更多

Function: Differential Additive RMS jitter (typ) (fs): 57 Output frequency (max) (MHz): 2000 Number of outputs: 12 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 25 Features: 2:12 fanout Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: LVPECL Input type: LVCMOS, LVDS, LVPECL Function: Differential Additive RMS jitter (typ) (fs): 57 Output frequency (max) (MHz): 2000 Number of outputs: 12 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 25 Features: 2:12 fanout 更多

Function: Differential Additive RMS jitter (typ) (fs): 124 Output frequency (max) (MHz): 2000 Number of outputs: 12 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 20 Features: 2:12 fanout Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: LVPECL Input type: LVCMOS, LVDS, LVPECL Function: Differential Additive RMS jitter (typ) (fs): 124 Output frequency (max) (MHz): 2000 Number of outputs: 12 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 20 Features: 2:12 fanout 更多

Function: Memory interface Additive RMS jitter (typ) (fs): 40 Output frequency (max) (MHz): 810 Number of outputs: 60 Output supply voltage (V): 1.35 Core supply voltage (V): 1.35 Features: DDR3 register Operating temperature range (°C): 0 to 85 Rating: Catalog Output type: CMOS Input type: CMOS Function: Memory interface Additive RMS jitter (typ) (fs): 40 Output frequency (max) (MHz): 810 Number of outputs: 60 Output supply voltage (V): 1.35 Core supply voltage (V): 1.35 Features: DDR3 register Operating temperature range (°C): 0 to 85 Rating: Catalog 更多

Function: Differential Additive RMS jitter (typ) (fs): 57 Output frequency (max) (MHz): 2000 Number of outputs: 16 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 30 Features: 2:16 fanout Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: LVPECL Input type: LVCMOS, LVDS, LVPECL Function: Differential Additive RMS jitter (typ) (fs): 57 Output frequency (max) (MHz): 2000 Number of outputs: 16 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 30 Features: 2:16 fanout 更多

Function: Differential Additive RMS jitter (typ) (fs): 124 Output frequency (max) (MHz): 2000 Number of outputs: 16 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 25 Features: 2:16 fanout Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: LVPECL Input type: LVCMOS, LVDS, LVPECL Function: Differential Additive RMS jitter (typ) (fs): 124 Output frequency (max) (MHz): 2000 Number of outputs: 16 Output supply voltage (V): 2.5, 3.3 Core supply voltage (V): 2.5, 3.3 Output skew (ps): 25 Features: 2:16 fanout 更多

Function: Memory interface Output frequency (max) (MHz): 410 Number of outputs: 25 Output supply voltage (V): 1.5, 1.8 Core supply voltage (V): 1.5, 1.8 Features: DDR2 register Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: SSTL-15, SSTL-18 Input type: SSTL-15, SSTL-18 Function: Memory interface Output frequency (max) (MHz): 410 Number of outputs: 25 Output supply voltage (V): 1.5, 1.8 Core supply voltage (V): 1.5, 1.8 Features: DDR2 register Operating temperature range (°C): -40 to 85 Rating: Catalog Output type: SSTL-15, SSTL-18 Input type: SSTL-15, SSTL-18
