状态: 量产中
Compliance: Pb A H P
Power Switch: MOSFET / IGBT
Number of Outputs: 2
Topology: Half-Bridge
Isolation Type: Junction Isolation
Vin Max (V): 25.3
VCC Max (V): 25
Rise Time (ns): 25
Fall Time (ns): 26
Drive Source Current Typ (A): 2
Drive Sink Current Typ (A): 2.5
Turn On Prop. Delay Typ (ns): 95
Turn Off Prop. Delay Typ (ns): 95
Delay Matching: ~NA~
Package Type: SOIC-14
MSL Type: 1
MSL Temp (°C): 260
ON Target: No
参考价格: $1.4222
状态: 量产中
Compliance: Pb A H P
Power Switch: IGBT
Number of Outputs: 1
Topology: Single
Isolation Type: Non-Isolated
Vin Max (V): -
VCC Max (V): -
Rise Time (ns): -
Fall Time (ns): -
Drive Source Current Typ (A): -
Drive Sink Current Typ (A): -
Turn On Prop. Delay Typ (ns): -
Turn Off Prop. Delay Typ (ns): -
Delay Matching: -
Package Type: SOIC-8
MSL Type: 3
MSL Temp (°C): 225
ON Target: Yes
参考价格: $0.6067
状态: 量产中
Compliance: Pb A H P
Power Switch: ~NA~
Number of Outputs: 1
Topology: Single
Isolation Type: ~NA~
Vin Max (V): -5 / 18
VCC Max (V): 28
Rise Time (ns): ~NA~
Fall Time (ns): ~NA~
Drive Source Current Typ (A): ~NA~
Drive Sink Current Typ (A): ~NA~
Turn On Prop. Delay Typ (ns): 17000
Turn Off Prop. Delay Typ (ns): 17000
Delay Matching: ~NA~
Package Type: SOIC-8
MSL Type: 3
MSL Temp (°C): 225
ON Target: No
参考价格: Price N/A
FAN3100CSX
制造商: ONSEMI数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: CMOS 输入、单通道反相或同相输出、3 A 峰值灌电流、3 A 源电流低端栅极驱动器
状态: 量产中
Compliance: Pb A H P
Power Switch: MOSFET
Number of Outputs: 1
Topology: Single
Isolation Type: Non-Isolated
Vin Max (V): -
VCC Max (V): 18
Rise Time (ns): 13
Fall Time (ns): 9
Drive Source Current Typ (A): 3
Drive Sink Current Typ (A): 3
Turn On Prop. Delay Typ (ns): 15
Turn Off Prop. Delay Typ (ns): 15
Delay Matching: -
Package Type: SOT-23-5
MSL Type: 1
MSL Temp (°C): 260
ON Target: Yes
参考价格: $0.3782
FAN3100TMPX
制造商: ONSEMI数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: TTL 输入，单反向或非反向输出，峰值 3A 汲电流，3A 源电流，低侧门极驱动器
状态: 量产中
Compliance: Pb A H P
Power Switch: MOSFET
Number of Outputs: 1
Topology: Single
Isolation Type: Non-Isolated
Vin Max (V): -
VCC Max (V): 18
Rise Time (ns): 13
Fall Time (ns): 9
Drive Source Current Typ (A): 3
Drive Sink Current Typ (A): 3
Turn On Prop. Delay Typ (ns): 16
Turn Off Prop. Delay Typ (ns): 16
Delay Matching: -
Package Type: WDFN-6
MSL Type: 1
MSL Temp (°C): 260
ON Target: Yes
参考价格: $0.4449

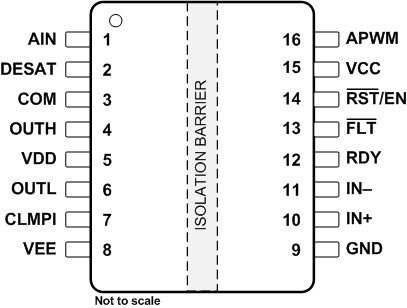

UCC21759-Q1
数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: 适用于 IGBT/SiC MOSFET 且具有 DESAT 和内部钳位的汽车类 3.0kVrms、±10A 单通道隔离式栅极驱动器
Number of channels: 1
Isolation rating: Basic
Withstand isolation voltage (VISO) (Vrms): 3000
Working isolation voltage (VIOWM) (Vrms): 990
Transient isolation voltage (VIOTM) (VPK): 4242
Power switch: IGBT, SiCFET
Peak output current (A): 10
Output VCC/VDD (max) (V): 33
Output VCC/VDD (min) (V): 13
Input supply voltage (min) (V): 3
Input supply voltage (max) (V): 5.5
Propagation delay time (µs): 0.09
Input threshold: CMOS
Operating temperature range (°C): -40 to 150
Rating: Automotive
Bootstrap supply voltage (max) (V): 990
Rise time (ns): 33
Fall time (ns): 27
Undervoltage lockout (typ) (V): 12
Number of channels: 1
更多
Isolation rating: Basic
Withstand isolation voltage (VISO) (Vrms): 3000
Working isolation voltage (VIOWM) (Vrms): 990
Transient isolation voltage (VIOTM) (VPK): 4242
Power switch: IGBT, SiCFET
Peak output current (A): 10
Output VCC/VDD (max) (V): 33
Output VCC/VDD (min) (V): 13
Input supply voltage (min) (V): 3
Input supply voltage (max) (V): 5.5
Propagation delay time (µs): 0.09
Input threshold: CMOS
Operating temperature range (°C): -40 to 150
Rating: Automotive
Bootstrap supply voltage (max) (V): 990
Rise time (ns): 33
Fall time (ns): 27
Undervoltage lockout (typ) (V): 12
FAN3100TSX
制造商: ONSEMI数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: TTL 输入，单反向或非反向输出，峰值 3A 汲电流，3A 源电流，低侧门极驱动器
状态: 量产中
Compliance: Pb A H P
Power Switch: MOSFET
Number of Outputs: 1
Topology: Single
Isolation Type: Non-Isolated
Vin Max (V): -
VCC Max (V): 18
Rise Time (ns): 13
Fall Time (ns): 9
Drive Source Current Typ (A): 3
Drive Sink Current Typ (A): 3
Turn On Prop. Delay Typ (ns): 16
Turn Off Prop. Delay Typ (ns): 16
Delay Matching: -
Package Type: SOT-23-5
MSL Type: 1
MSL Temp (°C): 260
ON Target: Yes
参考价格: $0.3876
FAN3111CSX
制造商: ONSEMI数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: CMOS 输入，单通道反相或同相输出、1.4 A 峰值灌电流、1.4 A 源电流低端栅极驱动器
状态: 量产中
Compliance: Pb A H P
Power Switch: MOSFET
Number of Outputs: 1
Topology: Single
Isolation Type: Non-Isolated
Vin Max (V): -
VCC Max (V): 18
Rise Time (ns): 9
Fall Time (ns): 8
Drive Source Current Typ (A): 1.4
Drive Sink Current Typ (A): 1.4
Turn On Prop. Delay Typ (ns): 15
Turn Off Prop. Delay Typ (ns): 15
Delay Matching: -
Package Type: SOT-23-5
MSL Type: 1
MSL Temp (°C): 260
ON Target: Yes
参考价格: $0.3471
FAN3111ESX
制造商: ONSEMI数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: 外部直流 2~5V 参考输入，非反相单输出，峰值 1.4A 接收电流，1.4A 源电流，低侧门极驱动器
状态: 量产中
Compliance: Pb A H P
Power Switch: MOSFET
Number of Outputs: 1
Topology: Single
Isolation Type: Non-Isolated
Vin Max (V): -
VCC Max (V): 18
Rise Time (ns): 9
Fall Time (ns): 8
Drive Source Current Typ (A): 1.4
Drive Sink Current Typ (A): 1.4
Turn On Prop. Delay Typ (ns): 15
Turn Off Prop. Delay Typ (ns): 15
Delay Matching: -
Package Type: SOT-23-5
MSL Type: 1
MSL Temp (°C): 260
ON Target: Yes
参考价格: $0.2621
FAN3121CMX
制造商: ONSEMI数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 驱动器
描述: CMOS 输入、单通道同相输入、11.4 A 峰值灌电流、10.6 A 源电流低端栅极驱动器
状态: 已停产
Compliance: Pb A H P
Power Switch: MOSFET
Number of Outputs: 1
Topology: Single
Isolation Type: Non-Isolated
Vin Max (V): -
VCC Max (V): 18
Rise Time (ns): 23
Fall Time (ns): 19
Drive Source Current Typ (A): 11.4
Drive Sink Current Typ (A): 10.6
Turn On Prop. Delay Typ (ns): 18
Turn Off Prop. Delay Typ (ns): 18
Delay Matching: -
Package Type: SOIC-8
MSL Type: 1
MSL Temp (°C): 260
ON Target: No
参考价格: Price N/A
