DP83822IF

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 支持光纤接口、具有 16kV ESD 保护的低功耗耐用型 10/100Mbps 以太网 PHY 收发器

Datarate (Mbps): 10/100 Interface type: MII, RGMII, RMII Number of ports: Single Rating: Catalog Supply voltage (V): 3.3 or 1.8 I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): -40 to 85 Number of LEDs: 3 ESD HBM (kV): 8 Datarate (Mbps): 10/100 Interface type: MII, RGMII, RMII Number of ports: Single Rating: Catalog Supply voltage (V): 3.3 or 1.8 I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): -40 to 85 Number of LEDs: 3 ESD HBM (kV): 8

DP83822HF

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有光纤接口和 16kV ESD 保护、支持工作温度范围的耐用型 10/100Mbps 以太网 PHY 收发器

Datarate (Mbps): 10/100 Interface type: MII, RGMII, RMII Number of ports: Single Rating: Catalog Supply voltage (V): 3.3 or 1.8 I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): -40 to 125 Number of LEDs: 3 ESD HBM (kV): 8 Datarate (Mbps): 10/100 Interface type: MII, RGMII, RMII Number of ports: Single Rating: Catalog Supply voltage (V): 3.3 or 1.8 I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): -40 to 125 Number of LEDs: 3 ESD HBM (kV): 8

TRS3122E

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有逻辑电源引脚和 +/-15kV IEC-ESD 保护的 1.65V 至 5.5V 1Mbps RS-232 线路驱动器/接收器引脚

Drivers per package: 2 Receivers per package: 2 Logic voltage (min) (V): 1.65 Data rate (max) (Mbps): 1 Main supply voltage (nom) (V): 1.65 - 5.5 Features: Auto-Powerdown Plus ESD HBM (kV): 15 Rating: Catalog Operating temperature range (°C): -40 to 85 Vout (typ) (V): 5.4 Drivers per package: 2 Receivers per package: 2 Logic voltage (min) (V): 1.65 Data rate (max) (Mbps): 1 Main supply voltage (nom) (V): 1.65 - 5.5 Features: Auto-Powerdown Plus ESD HBM (kV): 15 Rating: Catalog Operating temperature range (°C): -40 to 85 Vout (typ) (V): 5.4

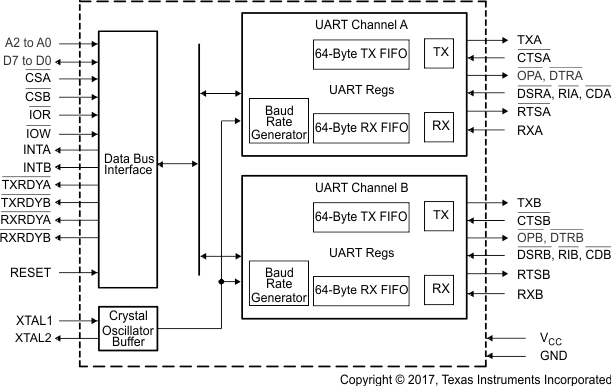

TL16C752D

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有 64 字节 FIFO 的双路 UART

Number of channels: 2 FIFO (Byte): 64 Rx FIFO trigger levels (#): 16 Tx FIFO trigger levels (#): 16 Programmable FIFO trigger levels: Yes CPU interface: X86 Baud rate at Vcc = 2.5 V & with 16x sampling (max) (Mbps): 1.5 Baud rate at Vcc = 1.8 V & with 16x sampling (max) (Mbps): 1 Baud rate at Vcc = 3.3 V & with 16x sampling (max) (Mbps): 2 Baud rate at Vcc = 5 V & with 16x sampling (max) (Mbps): 3 Operating voltage (V): 1.62 to 5.5 Auto RTS/CTS: Yes Rating: Catalog Operating temperature range (°C): -40 to 85 Number of channels: 2 FIFO (Byte): 64 Rx FIFO trigger levels (#): 16 Tx FIFO trigger levels (#): 16 Programmable FIFO trigger levels: Yes CPU interface: X86 更多

Baud rate at Vcc = 2.5 V & with 16x sampling (max) (Mbps): 1.5 Baud rate at Vcc = 1.8 V & with 16x sampling (max) (Mbps): 1 Baud rate at Vcc = 3.3 V & with 16x sampling (max) (Mbps): 2 Baud rate at Vcc = 5 V & with 16x sampling (max) (Mbps): 3 Operating voltage (V): 1.62 to 5.5 Auto RTS/CTS: Yes Rating: Catalog Operating temperature range (°C): -40 to 85

TL16C752D-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有 64 字节 FIFO 的汽车类双路 UART

Number of channels: 2 FIFO (Byte): 64 Rx FIFO trigger levels (#): 16 Tx FIFO trigger levels (#): 16 Programmable FIFO trigger levels: Yes CPU interface: X86 Baud rate at Vcc = 2.5 V & with 16x sampling (max) (Mbps): 1.5 Baud rate at Vcc = 1.8 V & with 16x sampling (max) (Mbps): 1 Baud rate at Vcc = 3.3 V & with 16x sampling (max) (Mbps): 2 Baud rate at Vcc = 5 V & with 16x sampling (max) (Mbps): 3 Operating voltage (V): 1.62 to 5.5 Auto RTS/CTS: Yes Rating: Automotive Operating temperature range (°C): -40 to 105 Number of channels: 2 FIFO (Byte): 64 Rx FIFO trigger levels (#): 16 Tx FIFO trigger levels (#): 16 Programmable FIFO trigger levels: Yes CPU interface: X86 更多

Baud rate at Vcc = 2.5 V & with 16x sampling (max) (Mbps): 1.5 Baud rate at Vcc = 1.8 V & with 16x sampling (max) (Mbps): 1 Baud rate at Vcc = 3.3 V & with 16x sampling (max) (Mbps): 2 Baud rate at Vcc = 5 V & with 16x sampling (max) (Mbps): 3 Operating voltage (V): 1.62 to 5.5 Auto RTS/CTS: Yes Rating: Automotive Operating temperature range (°C): -40 to 105

TL16C752CI-Q1

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有 64 字节 FIFO 的汽车类双路 UART

Number of channels: 2 FIFO (Byte): 64 Rx FIFO trigger levels (#): 16 Tx FIFO trigger levels (#): 16 Programmable FIFO trigger levels: Yes CPU interface: X86 Baud rate at Vcc = 2.5 V & with 16x sampling (max) (Mbps): 1.5 Baud rate at Vcc = 1.8 V & with 16x sampling (max) (Mbps): 1 Baud rate at Vcc = 3.3 V & with 16x sampling (max) (Mbps): 2 Baud rate at Vcc = 5 V & with 16x sampling (max) (Mbps): 3 Operating voltage (V): 1.8, 2.5, 3.3, 5 Auto RTS/CTS: Yes Rating: Automotive Operating temperature range (°C): -40 to 105 Number of channels: 2 FIFO (Byte): 64 Rx FIFO trigger levels (#): 16 Tx FIFO trigger levels (#): 16 Programmable FIFO trigger levels: Yes CPU interface: X86 更多

Baud rate at Vcc = 2.5 V & with 16x sampling (max) (Mbps): 1.5 Baud rate at Vcc = 1.8 V & with 16x sampling (max) (Mbps): 1 Baud rate at Vcc = 3.3 V & with 16x sampling (max) (Mbps): 2 Baud rate at Vcc = 5 V & with 16x sampling (max) (Mbps): 3 Operating voltage (V): 1.8, 2.5, 3.3, 5 Auto RTS/CTS: Yes Rating: Automotive Operating temperature range (°C): -40 to 105

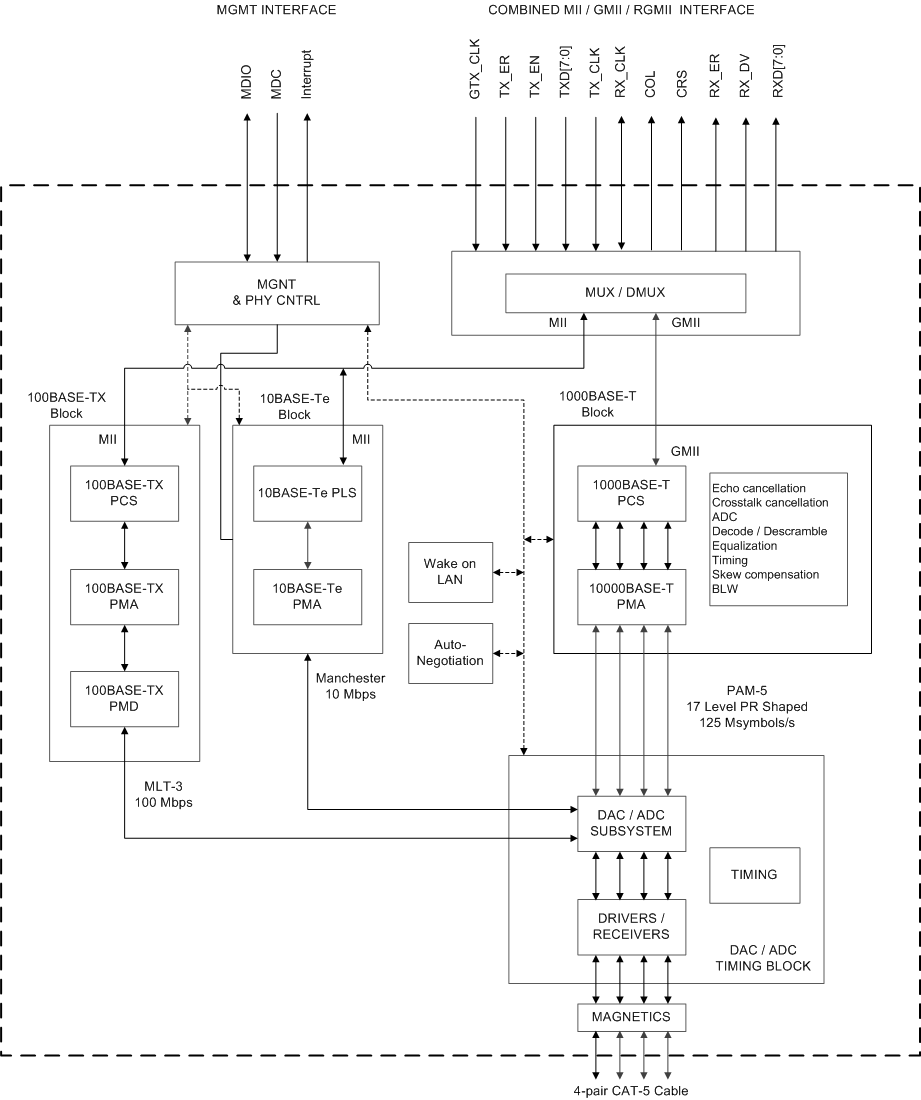

DP83867CR

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 采用小型 QFN 封装的低功耗、耐用型千兆以太网 PHY 收发器

Datarate (Mbps): 10/100/1000 Interface type: RGMII Number of ports: Single Rating: Catalog Supply voltage (V): 1 and 2.5 I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): 0 to 70 Number of LEDs: 4 ESD HBM (kV): 8 Datarate (Mbps): 10/100/1000 Interface type: RGMII Number of ports: Single Rating: Catalog Supply voltage (V): 1 and 2.5 I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): 0 to 70 Number of LEDs: 4 ESD HBM (kV): 8

DP83867CS

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 支持 SGMII 接口的低功耗、耐用型千兆位以太网 PHY 收发器

Datarate (Mbps): 10/100/1000 Interface type: RGMII, SGMII Number of ports: Single Rating: Catalog Supply voltage (V): 1 and 2.5 I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): 0 to 70 Number of LEDs: 4 ESD HBM (kV): 8 Datarate (Mbps): 10/100/1000 Interface type: RGMII, SGMII Number of ports: Single Rating: Catalog Supply voltage (V): 1 and 2.5 I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): 0 to 70 Number of LEDs: 4 ESD HBM (kV): 8

DP83867IS

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 支持 SGMII 接口、具有工业级温度范围的耐用型千兆位以太网 PHY 收发器

Datarate (Mbps): 10/100/1000 Interface type: RGMII, SGMII Number of ports: Single Rating: Catalog Supply voltage (V): 1 and 2.5 I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): -40 to 85 Number of LEDs: 4 ESD HBM (kV): 8 Datarate (Mbps): 10/100/1000 Interface type: RGMII, SGMII Number of ports: Single Rating: Catalog Supply voltage (V): 1 and 2.5 I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): -40 to 85 Number of LEDs: 4 ESD HBM (kV): 8

DP83867E

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 接收器/发送器/收发器

描述: 具有 SGMII 接口、支持工作温度范围的耐用型低延迟千兆位以太网 PHY 收发器

Datarate (Mbps): 10/100/1000 Interface type: RGMII, SGMII Number of ports: Single Rating: Catalog Supply voltage (V): 1 and 2.5 I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): -40 to 105 Number of LEDs: 4 ESD HBM (kV): 8 Datarate (Mbps): 10/100/1000 Interface type: RGMII, SGMII Number of ports: Single Rating: Catalog Supply voltage (V): 1 and 2.5 I/O supply voltage (typ) (V): 1.8, 2.5, 3.3 Operating temperature range (°C): -40 to 105 Number of LEDs: 4 ESD HBM (kV): 8
