SN74AVC4T245-Q1


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: 具有可配置电压电平转换的汽车类四位双电源总线收发器

Technology family: AVC Applications: JTAG, SPI, UART Bits (#): 4 High input voltage (min) (V): 0.78 High input voltage (max) (V): 3.6 Vout (min) (V): 1.2 Vout (max) (V): 3.6 Data rate (max) (Mbps): 380 IOH (max) (mA): -12 IOL (max) (mA): 12 Supply current (max) (µA): 16 Input type: Standard CMOS Output type: 3-State, Balanced CMOS, Push-Pull Rating: Automotive Operating temperature range (°C): -40 to 125 Technology family: AVC Applications: JTAG, SPI, UART Bits (#): 4 High input voltage (min) (V): 0.78 High input voltage (max) (V): 3.6
Vout (min) (V): 1.2 Vout (max) (V): 3.6 Data rate (max) (Mbps): 380 IOH (max) (mA): -12 IOL (max) (mA): 12 Supply current (max) (µA): 16 Input type: Standard CMOS Output type: 3-State, Balanced CMOS, Push-Pull Rating: Automotive Operating temperature range (°C): -40 to 125

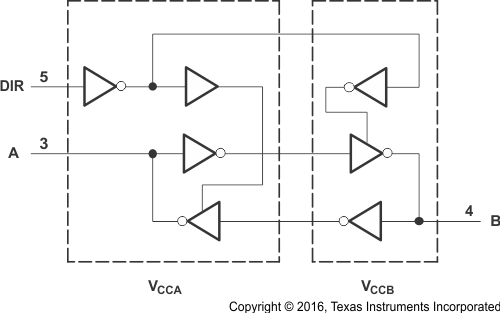

SN74LVC1T45-Q1


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: 具有可配置电压转换的汽车类 Single-Bit 双电源总线收发器

Technology family: LVC Applications: GPIO Bits (#): 1 High input voltage (min) (V): 1.08 High input voltage (max) (V): 5.5 Vout (min) (V): 1.65 Vout (max) (V): 5.5 Data rate (max) (Mbps): 300 IOH (max) (mA): -32 IOL (max) (mA): 32 Supply current (max) (µA): 4 Input type: Standard CMOS Output type: Balanced CMOS, Push-Pull Rating: Automotive Operating temperature range (°C): -40 to 125 Technology family: LVC Applications: GPIO Bits (#): 1 High input voltage (min) (V): 1.08 High input voltage (max) (V): 5.5
Vout (min) (V): 1.65 Vout (max) (V): 5.5 Data rate (max) (Mbps): 300 IOH (max) (mA): -32 IOL (max) (mA): 32 Supply current (max) (µA): 4 Input type: Standard CMOS Output type: Balanced CMOS, Push-Pull Rating: Automotive Operating temperature range (°C): -40 to 125

TXB0106-Q1


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: 具有自动方向感应的汽车类 6 位双向电压电平转换器

Technology family: TXB Applications: SPI Bits (#): 6 Data rate (max) (Mbps): 100 High input voltage (min) (V): 0.78 High input voltage (max) (V): 5.5 Vout (min) (V): 1.2 Vout (max) (V): 5.5 IOH (max) (mA): -0.02 IOL (max) (mA): 0.02 Supply current (max) (µA): 18 Input type: Standard CMOS Output type: 3-State, CMOS, Push-Pull Rating: Automotive Operating temperature range (°C): -40 to 85 Technology family: TXB Applications: SPI Bits (#): 6 Data rate (max) (Mbps): 100 High input voltage (min) (V): 0.78
High input voltage (max) (V): 5.5 Vout (min) (V): 1.2 Vout (max) (V): 5.5 IOH (max) (mA): -0.02 IOL (max) (mA): 0.02 Supply current (max) (µA): 18 Input type: Standard CMOS Output type: 3-State, CMOS, Push-Pull Rating: Automotive Operating temperature range (°C): -40 to 85

TWL1200


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: SDIO、UART 和音频电压转换收发器

Technology family: TWL Applications: MMC, SD Card, SDIO, UART Audio Rating: Catalog Operating temperature range (°C): -40 to 85 Technology family: TWL Applications: MMC, SD Card, SDIO, UART Audio Rating: Catalog Operating temperature range (°C): -40 to 85

SN74AVC8T245-Q1


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: 具有可配置电压转换和三态输出的汽车类 8 位双电源总线收发器

Technology family: AVC Applications: RGMII Bits (#): 8 High input voltage (min) (V): 0.78 High input voltage (max) (V): 3.6 Vout (min) (V): 1.2 Vout (max) (V): 3.6 Data rate (max) (Mbps): 320 IOH (max) (mA): -12 IOL (max) (mA): 12 Supply current (max) (µA): 25 Input type: Standard CMOS Output type: 3-State, Balanced CMOS, Push-Pull Rating: Automotive Operating temperature range (°C): -40 to 125 Technology family: AVC Applications: RGMII Bits (#): 8 High input voltage (min) (V): 0.78 High input voltage (max) (V): 3.6
Vout (min) (V): 1.2 Vout (max) (V): 3.6 Data rate (max) (Mbps): 320 IOH (max) (mA): -12 IOL (max) (mA): 12 Supply current (max) (µA): 25 Input type: Standard CMOS Output type: 3-State, Balanced CMOS, Push-Pull Rating: Automotive Operating temperature range (°C): -40 to 125

SN74AVCH4T245-EP


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: 具有可配置电压转换和三态输出的 4 位双电源总线收发器（增强型产品）

Technology family: AVC Applications: JTAG, SPI, UART Bits (#): 4 High input voltage (min) (V): 1.2 High input voltage (max) (V): 3.6 Vout (min) (V): 1.2 Vout (max) (V): 3.6 Data rate (max) (Mbps): 380 IOH (max) (mA): -12 IOL (max) (mA): 12 Supply current (max) (µA): 16 Features: Bus-hold, Overvoltage tolerant inputs, Partial power down (Ioff) Input type: Standard CMOS Output type: 3-State, Balanced CMOS, Push-Pull Rating: HiRel Enhanced Product Operating temperature range (°C): -55 to 125 Technology family: AVC Applications: JTAG, SPI, UART Bits (#): 4 High input voltage (min) (V): 1.2
High input voltage (max) (V): 3.6 Vout (min) (V): 1.2 Vout (max) (V): 3.6 Data rate (max) (Mbps): 380 IOH (max) (mA): -12 IOL (max) (mA): 12 Supply current (max) (µA): 16 Features: Bus-hold, Overvoltage tolerant inputs, Partial power down (Ioff) Input type: Standard CMOS Output type: 3-State, Balanced CMOS, Push-Pull Rating: HiRel Enhanced Product Operating temperature range (°C): -55 to 125

SN74LVC8T245-EP


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: 具有可配置电压转换和三态输出的 8 位双电源总线收发器（增强型产品）

Technology family: LVC Applications: GPIO Bits (#): 8 High input voltage (min) (V): 1.08 High input voltage (max) (V): 5.5 Vout (min) (V): 1.65 Vout (max) (V): 5.5 Data rate (max) (Mbps): 200 IOH (max) (mA): -32 IOL (max) (mA): 32 Supply current (max) (µA): 25 Input type: Standard CMOS Output type: 3-State, Balanced CMOS, Push-Pull Rating: HiRel Enhanced Product Operating temperature range (°C): -55 to 125 Technology family: LVC Applications: GPIO Bits (#): 8 High input voltage (min) (V): 1.08 High input voltage (max) (V): 5.5
Vout (min) (V): 1.65 Vout (max) (V): 5.5 Data rate (max) (Mbps): 200 IOH (max) (mA): -32 IOL (max) (mA): 32 Supply current (max) (µA): 25 Input type: Standard CMOS Output type: 3-State, Balanced CMOS, Push-Pull Rating: HiRel Enhanced Product Operating temperature range (°C): -55 to 125

TXS0206


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: 具有 ESD 保护和 EMI 滤波的 MMC、SD 卡、记忆棒电压转换收发器

Technology family: TXS Applications: MMC, SD Card, SDIO Rating: Catalog Operating temperature range (°C): -40 to 85 Technology family: TXS Applications: MMC, SD Card, SDIO Rating: Catalog Operating temperature range (°C): -40 to 85

SN74LVCH16T245-EP


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: 具有可配置电压转换和三态输出的 16 位双电源总线收发器（增强型产品）

Technology family: LVC Bits (#): 16 High input voltage (min) (V): 1.08 High input voltage (max) (V): 5.5 Vout (min) (V): 1.65 Vout (max) (V): 5.5 Data rate (max) (Mbps): 200 IOH (max) (mA): -32 IOL (max) (mA): 32 Supply current (max) (µA): 30 Input type: Standard CMOS Output type: 3-State, Balanced CMOS, Push-Pull Rating: HiRel Enhanced Product Operating temperature range (°C): -55 to 125 Technology family: LVC Bits (#): 16 High input voltage (min) (V): 1.08 High input voltage (max) (V): 5.5 Vout (min) (V): 1.65 Vout (max) (V): 5.5
Data rate (max) (Mbps): 200 IOH (max) (mA): -32 IOL (max) (mA): 32 Supply current (max) (µA): 30 Input type: Standard CMOS Output type: 3-State, Balanced CMOS, Push-Pull Rating: HiRel Enhanced Product Operating temperature range (°C): -55 to 125

SN74LVC1T45-EP


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 电平转换器

描述: 具有可配置电压转换和三态输出的 1 位双电源（增强型产品）总线收发器

Technology family: LVC Applications: GPIO Bits (#): 1 High input voltage (min) (V): 1.08 High input voltage (max) (V): 5.5 Vout (min) (V): 1.65 Vout (max) (V): 5.5 Data rate (max) (Mbps): 300 IOH (max) (mA): -32 IOL (max) (mA): 32 Supply current (max) (µA): 4 Input type: Standard CMOS Output type: Balanced CMOS, Push-Pull Rating: HiRel Enhanced Product Operating temperature range (°C): -55 to 125 Technology family: LVC Applications: GPIO Bits (#): 1 High input voltage (min) (V): 1.08 High input voltage (max) (V): 5.5
Vout (min) (V): 1.65 Vout (max) (V): 5.5 Data rate (max) (Mbps): 300 IOH (max) (mA): -32 IOL (max) (mA): 32 Supply current (max) (µA): 4 Input type: Standard CMOS Output type: Balanced CMOS, Push-Pull Rating: HiRel Enhanced Product Operating temperature range (°C): -55 to 125
