AD7293BCPZ


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 集成ADC、DAC、温度和电流传感器的12位功率放大器电流控制器

Product Lifecycle: 推荐用于新设计 Package: 56-Lead LFCSP (8mm x 8mm w/ EP) RF Primary Function: PA Drain Current Controller Vs+ (min): -4.5V Vs+ (max): 5.5V Igate Drive (min): -10mA Igate Drive (max): 10mA Vgate (min): -4V Vgate (max): 10V Over/Under Idrain Alarm: Yes Low Vsupply Alarm: Yes Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 125°C Package Area: 64mm² (56-Lead LFCSP (8mm x 8mm w/ EP)) (AD7293BCPZ-RL)mm² Package Height: 0.8mm (56-Lead LFCSP (8mm x 8mm w/ EP)) (AD7293BCPZ-RL)mm Launch Date: 2016-07-08 EP: No

AD7293BCPZ-RL


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 集成ADC、DAC、温度和电流传感器的12位功率放大器电流控制器

Product Lifecycle: 推荐用于新设计 Package: 56-Lead LFCSP (8mm x 8mm w/ EP) RF Primary Function: PA Drain Current Controller Vs+ (min): -4.5V Vs+ (max): 5.5V Igate Drive (min): -10mA Igate Drive (max): 10mA Vgate (min): -4V Vgate (max): 10V Over/Under Idrain Alarm: Yes Low Vsupply Alarm: Yes Eval / Ref Circuit: Evaluation board Export Classification: EAR99 Automotive: No Temp Range: -40 to 125°C Package Area: 64mm² (56-Lead LFCSP (8mm x 8mm w/ EP)) (AD7293BCPZ-RL)mm² Package Height: 0.8mm (56-Lead LFCSP (8mm x 8mm w/ EP)) (AD7293BCPZ-RL)mm Launch Date: 2016-07-08 EP: No

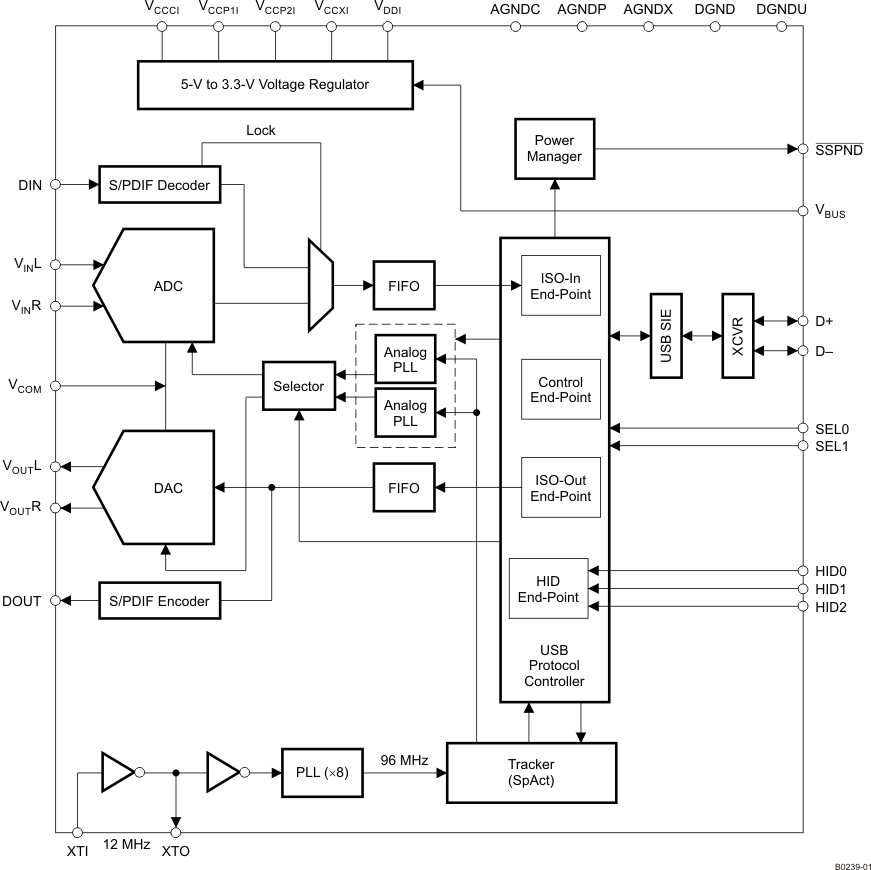

PCM2903C


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 立体声 USB1.1 编解码器，具有线路输出和 S/PDIF I/O，自供电（HID 接口）

Number of ADC channels: 2 Number of DAC channels: 2 Analog inputs: 2 Sampling rate (max) (kHz): 48 Control interface: HID Features: S/PDIF I/O Analog outputs: 2 Rating: Catalog Operating temperature range (°C): -25 to 85 Number of ADC channels: 2 Number of DAC channels: 2 Analog inputs: 2 Sampling rate (max) (kHz): 48 Control interface: HID Features: S/PDIF I/O Analog outputs: 2 Rating: Catalog Operating temperature range (°C): -25 to 85

PCM2906C


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 采用总线供电且具有线路输出和 S/PDIF 的立体声 USB 编解码器

Number of ADC channels: 2 Number of DAC channels: 2 Analog inputs: 2 Sampling rate (max) (kHz): 48 Control interface: HID Features: 500-mA max power configuration, S/PDIF I/O Analog outputs: 2 Rating: Catalog Operating temperature range (°C): -25 to 85 Number of ADC channels: 2 Number of DAC channels: 2 Analog inputs: 2 Sampling rate (max) (kHz): 48 Control interface: HID Features: 500-mA max power configuration, S/PDIF I/O Analog outputs: 2 Rating: Catalog Operating temperature range (°C): -25 to 85

PCM2900C


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 具有线性输出的立体声 USB1.1 编解码器（HID 接口）

Number of ADC channels: 2 Number of DAC channels: 2 Analog inputs: 2 Sampling rate (max) (kHz): 48 Control interface: HID Features: USB interface Analog outputs: 2 Rating: Catalog Operating temperature range (°C): -25 to 85 Number of ADC channels: 2 Number of DAC channels: 2 Analog inputs: 2 Sampling rate (max) (kHz): 48 Control interface: HID Features: USB interface Analog outputs: 2 Rating: Catalog Operating temperature range (°C): -25 to 85

PCM2902C


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 具有 USB 接口、单端模拟和 S/PDIF 输入/输出的立体声音频编解码器

Number of ADC channels: 2 Number of DAC channels: 2 Analog inputs: 2 Sampling rate (max) (kHz): 48 Control interface: HID Features: S/PDIF I/O Analog outputs: 2 Rating: Catalog Operating temperature range (°C): -25 to 85 Number of ADC channels: 2 Number of DAC channels: 2 Analog inputs: 2 Sampling rate (max) (kHz): 48 Control interface: HID Features: S/PDIF I/O Analog outputs: 2 Rating: Catalog Operating temperature range (°C): -25 to 85

PCM2912A


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 具有 USB 接口、单声道麦克风输入和立体声耳机输出的音频编解码器

Number of ADC channels: 1 Number of DAC channels: 2 Analog inputs: 1 Sampling rate (max) (kHz): 48 Control interface: H/W Features: Mic bias, PGAs, Sidetone, USB interface Analog outputs: 2 Rating: Catalog Operating temperature range (°C): -25 to 85 Number of ADC channels: 1 Number of DAC channels: 2 Analog inputs: 1 Sampling rate (max) (kHz): 48 Control interface: H/W Features: Mic bias, PGAs, Sidetone, USB interface Analog outputs: 2 Rating: Catalog Operating temperature range (°C): -25 to 85

PCM2904


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 具有线性输出、总线供电的立体声 USB1.1 编解码器（HID 接口 + 500mA USB 电流）

Number of ADC channels: 2 Number of DAC channels: 2 Analog inputs: 2 Sampling rate (max) (kHz): 48 Control interface: HID Features: 500-mA max power configuration Analog outputs: 2 Rating: Catalog Operating temperature range (°C): -25 to 85 Number of ADC channels: 2 Number of DAC channels: 2 Analog inputs: 2 Sampling rate (max) (kHz): 48 Control interface: HID Features: 500-mA max power configuration Analog outputs: 2 Rating: Catalog Operating temperature range (°C): -25 to 85

PCM2901


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 具有线性输出、自加电的立体声 USB1.1 编解码器（HID 接口）

Number of ADC channels: 2 Number of DAC channels: 2 Analog inputs: 2 Sampling rate (max) (kHz): 48 Control interface: HID Features: USB interface Analog outputs: 2 Rating: Catalog Operating temperature range (°C): 0 to 70 Number of ADC channels: 2 Number of DAC channels: 2 Analog inputs: 2 Sampling rate (max) (kHz): 48 Control interface: HID Features: USB interface Analog outputs: 2 Rating: Catalog Operating temperature range (°C): 0 to 70

AFE20408


数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 具有输出开关和电流传感器的八通道功率放大器监视器和控制器

Number of DAC channels: 8 DAC resolution (bps): 13 Temperature sensing: Local, Remote Interface type: I2C, SPI Features: Built-in sequencing control, High current drive capability Operating temperature range (°C): -40 to 125 Rating: Catalog DAC output full-scale (min) (V): -10 DAC output full-scale (max) (V): 10 Number of DAC channels: 8 DAC resolution (bps): 13 Temperature sensing: Local, Remote Interface type: I2C, SPI Features: Built-in sequencing control, High current drive capability Operating temperature range (°C): -40 to 125 Rating: Catalog DAC output full-scale (min) (V): -10 DAC output full-scale (max) (V): 10
