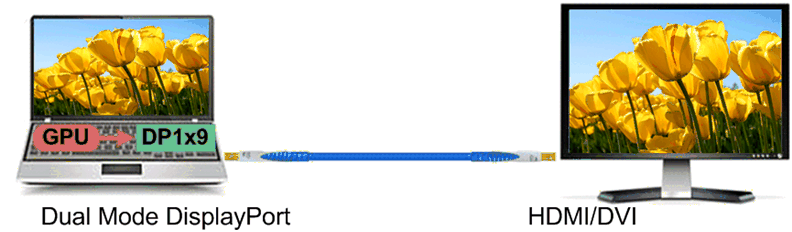

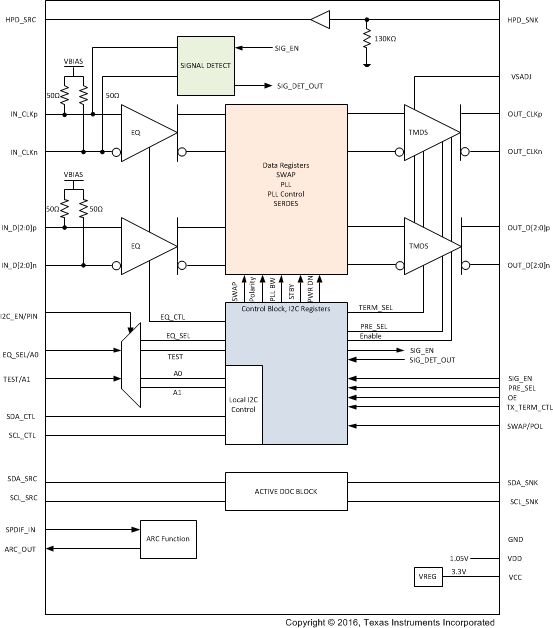

SN65DP149

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 工作温度为 -40°C 至 85°C 的 3.4Gbps DP++ 1.1 至 HDMI 1.4b 重定时器

Type: Retimer Protocols: HDMI Rating: Catalog Speed (max) (Gbpp): 3.4 Number of channels: 4 Supply voltage (V): 1.1, 3.3 Operating temperature range (°C): -40 to 85 Type: Retimer Protocols: HDMI Rating: Catalog Speed (max) (Gbpp): 3.4 Number of channels: 4 Supply voltage (V): 1.1, 3.3 Operating temperature range (°C): -40 to 85

SN75DP149

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 工作温度为 0°C 至 70°C 的 3.4Gbps DP++ 1.1 至 HDMI 1.4b 重定时器

Type: Retimer Protocols: HDMI Rating: Catalog Speed (max) (Gbpp): 3.4 Number of channels: 4 Supply voltage (V): 1.1, 3.3 Operating temperature range (°C): 0 to 70 Type: Retimer Protocols: HDMI Rating: Catalog Speed (max) (Gbpp): 3.4 Number of channels: 4 Supply voltage (V): 1.1, 3.3 Operating temperature range (°C): 0 to 70

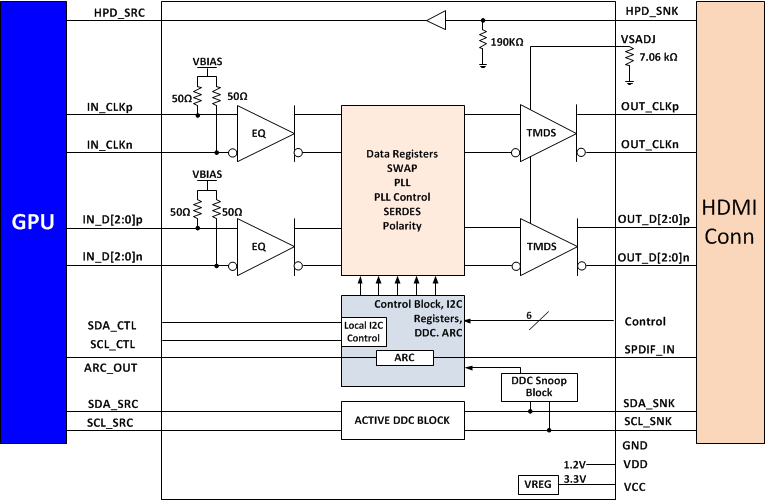

TMDS171

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 3.4Gbps HDMI 1.4b TMDS 重定时器

Type: Retimer Protocols: HDMI Rating: Catalog Speed (max) (Gbpp): 3.4 Number of channels: 4 Supply voltage (V): 1.2, 3.3 Operating temperature range (°C): -40 to 85 Type: Retimer Protocols: HDMI Rating: Catalog Speed (max) (Gbpp): 3.4 Number of channels: 4 Supply voltage (V): 1.2, 3.3 Operating temperature range (°C): -40 to 85

TMDS181

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 6Gbps HDMI 2.0 TMDS 重定时器

Type: Retimer Protocols: HDMI Rating: Catalog Speed (max) (Gbpp): 6 Number of channels: 4 Supply voltage (V): 1.2, 3.3 Operating temperature range (°C): -40 to 85 Type: Retimer Protocols: HDMI Rating: Catalog Speed (max) (Gbpp): 6 Number of channels: 4 Supply voltage (V): 1.2, 3.3 Operating temperature range (°C): -40 to 85

LMH0318

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 具有集成电缆驱动器的 3G HD/SD SDI 时钟恢复器

Function: Cable driver, Reclocker, Reclocker with cable driver Supply voltage (V): 2.5 Power consumption (mW): 300 Data rate (max) (Mbps): 2970 Control interface: SMBus, SPI Operating temperature range (°C): -40 to 85 Function: Cable driver, Reclocker, Reclocker with cable driver Supply voltage (V): 2.5 Power consumption (mW): 300 Data rate (max) (Mbps): 2970 Control interface: SMBus, SPI Operating temperature range (°C): -40 to 85

SN65DP159

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 工作温度为 -40°C 至 85°C 的 6Gbps DP++ 1.1 至 HDMI 2.0 重定时器

Type: Retimer Protocols: HDMI Rating: Catalog Speed (max) (Gbpp): 6 Number of channels: 4 Supply voltage (V): 1.1, 3.3 Operating temperature range (°C): -40 to 85 Type: Retimer Protocols: HDMI Rating: Catalog Speed (max) (Gbpp): 6 Number of channels: 4 Supply voltage (V): 1.1, 3.3 Operating temperature range (°C): -40 to 85

SN75DP159

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 工作温度为 0°C 至 85°C 的 6Gbps DP++ 1.1 至 HDMI 2.0 重定时器

Type: Retimer Protocols: HDMI Rating: Catalog Speed (max) (Gbpp): 6 Number of channels: 4 Supply voltage (V): 1.1, 3.3 Operating temperature range (°C): 0 to 85 Type: Retimer Protocols: HDMI Rating: Catalog Speed (max) (Gbpp): 6 Number of channels: 4 Supply voltage (V): 1.1, 3.3 Operating temperature range (°C): 0 to 85

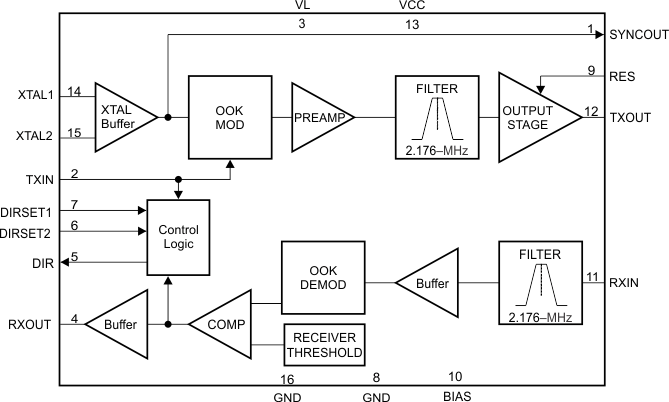

SN65HVD63

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: AISG® 3.0 开关键控同轴调制解调器收发器

Protocols: RS485 to AISG 2.0 Rating: Catalog Operating temperature range (°C): -40 to 105 Protocols: RS485 to AISG 2.0 Rating: Catalog Operating temperature range (°C): -40 to 105

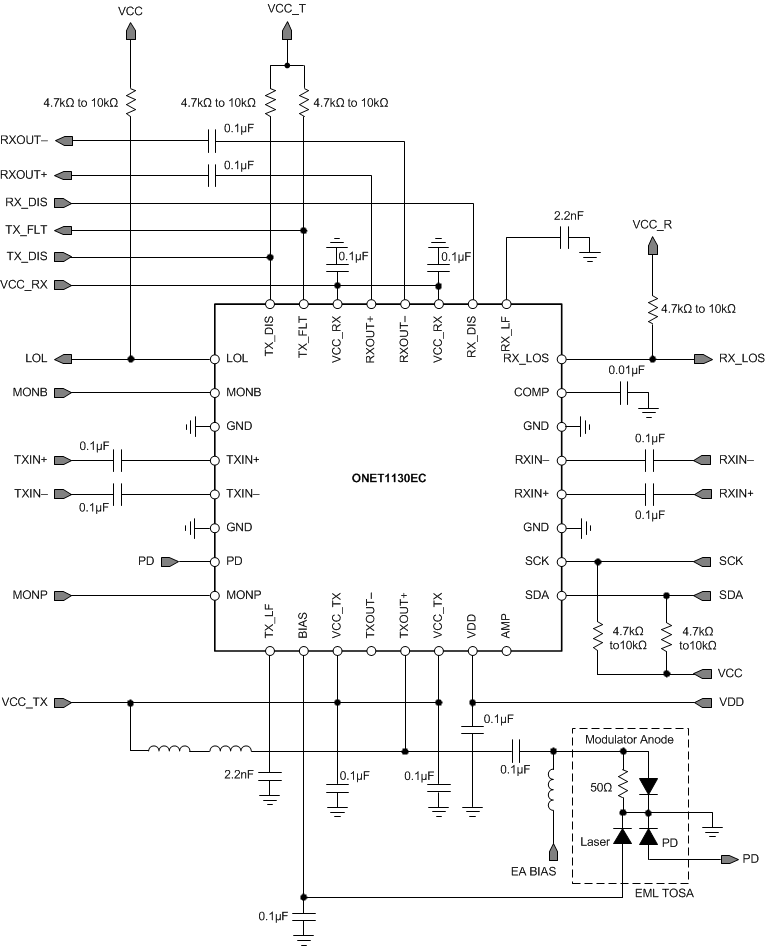

ONET1130EC

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 具有双 CDR 和集成式调制器驱动器的 11.7Gbps 收发器

Type: CDR and transceiver Data rate (max) (Mbps): 11700 Supply current (typ) (µA): 225000 Imod (A): 0.15 Supply current (max) (µA): 266000 Deterministic jitter (typ) (ps): 4 Operating temperature range (°C): -40 to 100 Type: CDR and transceiver Data rate (max) (Mbps): 11700 Supply current (typ) (µA): 225000 Imod (A): 0.15 Supply current (max) (µA): 266000 Deterministic jitter (typ) (ps): 4 Operating temperature range (°C): -40 to 100

ONET1130EP

数据:
分类: 微电路 / 半导体集成电路 / 接口电路 / 其他接口电路

描述: 具有调制器驱动器的 11.7Gbps 收发器

Type: CDR and transceiver Data rate (max) (Mbps): 11700 Supply current (typ) (µA): 161000 Imod (A): 0.15 Supply current (max) (µA): 185000 Deterministic jitter (typ) (ps): 4 Operating temperature range (°C): -40 to 100 Type: CDR and transceiver Data rate (max) (Mbps): 11700 Supply current (typ) (µA): 161000 Imod (A): 0.15 Supply current (max) (µA): 185000 Deterministic jitter (typ) (ps): 4 Operating temperature range (°C): -40 to 100
