天天芯片 - 物料搜索

DAC38RF90

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 双通道 14 位 9GSPS 12x-24x 插值 6GHz 和 9GHz PLL 数模转换器 (DAC)

Frequency (min) (MHz): 700 Frequency (max) (MHz): 3800 Resolution (Bits): 14 Sample/update rate (Msps): 9000 Number of DAC channels: 2 Interpolation: 12x, 16x, 18x, 20x, 24x Output type: Single-ended Power consumption (typ) (mW): 3800 Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (min) (MHz): 700 Frequency (max) (MHz): 3800 Resolution (Bits): 14 Sample/update rate (Msps): 9000 Number of DAC channels: 2 Interpolation: 12x, 16x, 18x, 20x, 24x Output type: Single-ended Power consumption (typ) (mW): 3800 Operating temperature range (°C): -40 to 85 Rating: Catalog

DAC38RF87

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 双通道 14 位 6.2GSPS 6x-24x 插值 6GHz GSM PLL 数模转换器

Frequency (min) (MHz): 700 Frequency (max) (MHz): 3800 Resolution (Bits): 14 Sample/update rate (Msps): 6200 Number of DAC channels: 2 Interpolation: 10x, 12x, 16x, 18x, 20x, 24x, 6x, 8x Output type: Single-ended Power consumption (typ) (mW): 3800 Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (min) (MHz): 700 Frequency (max) (MHz): 3800 Resolution (Bits): 14 Sample/update rate (Msps): 6200 Number of DAC channels: 2 Interpolation: 10x, 12x, 16x, 18x, 20x, 24x, 6x, 8x Output type: Single-ended Power consumption (typ) (mW): 3800 Operating temperature range (°C): -40 to 85 Rating: Catalog

DAC38RF97

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 双通道 14 位 6GSPS 12x-24x 插值 6GHz GSM PLL 数模转换器 (DAC)

Frequency (min) (MHz): 700 Frequency (max) (MHz): 3800 Resolution (Bits): 14 Sample/update rate (Msps): 6200 Number of DAC channels: 2 Interpolation: 12x, 16x, 18x, 20x, 24x Output type: Single-ended Power consumption (typ) (mW): 3800 Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (min) (MHz): 700 Frequency (max) (MHz): 3800 Resolution (Bits): 14 Sample/update rate (Msps): 6200 Number of DAC channels: 2 Interpolation: 12x, 16x, 18x, 20x, 24x Output type: Single-ended Power consumption (typ) (mW): 3800 Operating temperature range (°C): -40 to 85 Rating: Catalog

DAC38RF93

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 双通道 14 位 9GSPS 12x-24x 插值 6GHz 和 9GHz PLL 数模转换器 (DAC)

Frequency (min) (MHz): 0 Frequency (max) (MHz): 4000 Resolution (Bits): 14 Sample/update rate (Msps): 9000 Number of DAC channels: 2 Interpolation: 12x, 16x, 18x, 20x, 24x Output type: Differential Power consumption (typ) (mW): 3800 Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (min) (MHz): 0 Frequency (max) (MHz): 4000 Resolution (Bits): 14 Sample/update rate (Msps): 9000 Number of DAC channels: 2 Interpolation: 12x, 16x, 18x, 20x, 24x Output type: Differential Power consumption (typ) (mW): 3800 Operating temperature range (°C): -40 to 85 Rating: Catalog

DAC38RF83

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 双通道 14 位 9GSPS 6x-24x 插值 6GHz 和 9GHz PLL 数模转换器 (DAC)

Frequency (min) (MHz): 0 Frequency (max) (MHz): 4000 Resolution (Bits): 14 Sample/update rate (Msps): 9000 Number of DAC channels: 2 Interpolation: 10x, 12x, 16x, 18x, 20x, 24x, 6x, 8x Output type: Differential Power consumption (typ) (mW): 3800 Operating temperature range (°C): -40 to 85 Rating: Catalog Frequency (min) (MHz): 0 Frequency (max) (MHz): 4000 Resolution (Bits): 14 Sample/update rate (Msps): 9000 Number of DAC channels: 2 Interpolation: 10x, 12x, 16x, 18x, 20x, 24x, 6x, 8x Output type: Differential Power consumption (typ) (mW): 3800 Operating temperature range (°C): -40 to 85 Rating: Catalog

ADS58H43

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 四通道 14 位 250MSPS 接收器和反馈 IC

Number of input channels: 4 Resolution (Bits): 14 Sample rate (max) (Msps): 250 Analog input BW (MHz): 500 SFDR (typ) (dB): 85 SNR (typ) (dB): 70.5 Power consumption (typ) (mW): 1460 Operating temperature range (°C): -40 to 85 Rating: Catalog Number of input channels: 4 Resolution (Bits): 14 Sample rate (max) (Msps): 250 Analog input BW (MHz): 500 SFDR (typ) (dB): 85 SNR (typ) (dB): 70.5 Power consumption (typ) (mW): 1460 Operating temperature range (°C): -40 to 85 Rating: Catalog

AFE7071

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 集成式双路 14 位 65MSPS DAC 和射频 IQ 调制器

Applications: General purpose Operating temperature range (°C): -40 to 85 Rating: Catalog Applications: General purpose Operating temperature range (°C): -40 to 85 Rating: Catalog

AFE7070

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

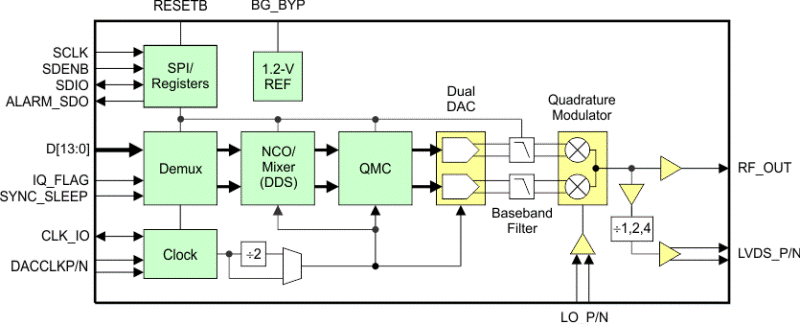

描述: 集成 NCO、双通道 14 位 65MSPS DAC、射频 IQ 调制器和 LVDS 输出选项

Applications: General purpose Operating temperature range (°C): -40 to 85 Rating: Catalog Applications: General purpose Operating temperature range (°C): -40 to 85 Rating: Catalog

ADS58H40

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 四通道 14 位 250MSPS 接收器和反馈 IC

Number of input channels: 4 Resolution (Bits): 14 Sample rate (max) (Msps): 250 Analog input BW (MHz): 500 SFDR (typ) (dB): 85 SNR (typ) (dB): 71 Power consumption (typ) (mW): 1460 Operating temperature range (°C): -40 to 85 Rating: Catalog Number of input channels: 4 Resolution (Bits): 14 Sample rate (max) (Msps): 250 Analog input BW (MHz): 500 SFDR (typ) (dB): 85 SNR (typ) (dB): 71 Power consumption (typ) (mW): 1460 Operating temperature range (°C): -40 to 85 Rating: Catalog

AX-SF10-ANT21-868-B1

制造商: ONSEMI
数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 超低功耗 AT 命令控制 Sigfox™ 就绪射频收发器模块，用于上行链路和下行链路

状态: 已停产 Compliance: Pb A H P 1064: RF 1302: 868.13 MHz 869.53 MHz 1322: 868.3 Package Type: Place holder Case Outline Variant for AXSEM integration MSL Type: NA MSL Temp (°C): 0 ON Target: N 参考价格: Price N/A
