AX-SF10-MINI21-868-B1
制造商: ONSEMI数据:
分类: 微电路 / 半导体集成电路 / 射频电路
描述: 超低功耗 AT 命令控制 Sigfox™ 就绪射频收发器模块，用于上行链路和下行链路
状态: 已停产
Compliance: Pb A H P
1064: RF
1302: 868.13 MHz 869.53 MHz
1322: 868.3
Package Type: Place holder Case Outline Variant for AXSEM integration
MSL Type: NA
MSL Temp (°C): 0
ON Target: N
参考价格: Price N/A
AX-SFUS-API-1-01-TX30
制造商: ONSEMI数据:
分类: 微电路 / 半导体集成电路 / 射频电路
描述: 射频收发器 SoC，Sigfox™ 验证的 RCZ2，超低功耗，带 API 库
状态: 已停产
Compliance: Pb A H P
1064: RF
1302: 902.2 Mhz 905.2 Mhz
1322: -
Package Type: QFN-40
MSL Type: 1
MSL Temp (°C): 260
ON Target: N
参考价格: Price N/A
状态: 量产中
Compliance: Pb A H P
Security: AES256 arm CryptoCell
Bluetooth Low Energy Feature: Extended Advertising
Package Type: QFNW40 6x6, 0.5P
MSL Type: 1
MSL Temp (°C): 260
ON Target: No
参考价格: $3.3333
状态: 量产中
Compliance: Pb A H P
Security: -
Bluetooth Low Energy Feature: -
Package Type: WLCSP-51
MSL Type: 1
MSL Temp (°C): 260
ON Target: Yes
参考价格: $4.14
状态: 量产中
Compliance: Pb A H P
Security: -
Bluetooth Low Energy Feature: -
Package Type: QFN-48
MSL Type: 3
MSL Temp (°C): 260
ON Target: Yes
参考价格: $2.6134
状态: 量产中
Compliance: Pb A H P
1064: Bluetooth Low Energy RF
1302: 2400-2480
1322: 2400-2480
Package Type: SIP-51
MSL Type: 3
MSL Temp (°C): 260
ON Target: Y
参考价格: $7.7846
状态: 量产中
Compliance: Pb A H P
Security: AES256 arm CryptoCell
Bluetooth Low Energy Feature: 2Mbps PHY AoA/AoD Extended Advertising Long Range
Package Type: QFN-40
MSL Type: 3
MSL Temp (°C): 260
ON Target: Yes
参考价格: $3.7375
状态: 量产中
Compliance: Pb A H P
Security: AES256 arm CryptoCell
Bluetooth Low Energy Feature: 2Mbps PHY AoA/AoD Extended Advertising Long Range
Package Type: WLCSP40 2.301x2.499x0.369
MSL Type: 3
MSL Temp (°C): 260
ON Target: No
参考价格: $3.3333
状态: 量产中
Compliance: Pb A H P
Security: AES256 arm CryptoCell
Bluetooth Low Energy Feature: 2Mbps PHY AoA/AoD Extended Advertising Long Range
Package Type: QFN-40
MSL Type: 3
MSL Temp (°C): 260
ON Target: No
参考价格: $3.45

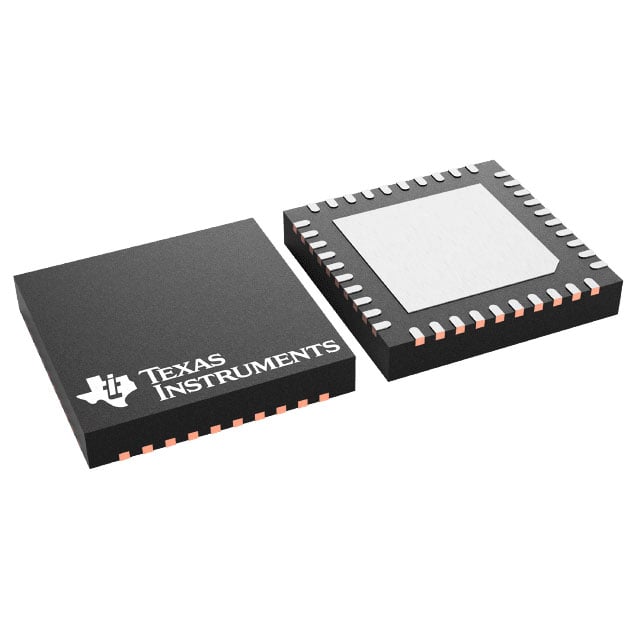

DigiKey 可编程: 未验证
类型: TxRx + MCU
射频系列/标准: 802.15.4
协议: Zigbee®
调制: -
频率: 2.4GHz
数据速率（最大值）: 250kbps
功率 - 输出: 4.5dBm
灵敏度: -97dBm
存储容量: 256kB 闪存，8kB RAM
串行接口: SPI，USART，USB
GPIO: 21
电压 - 供电: 2V ~ 3.6V
电流 - 接收: 20.5mA ~ 24.3mA
电流 - 传输: 28.7mA ~ 33.5mA
工作温度: -40°C ~ 125°C
安装类型: 表面贴装型
封装/外壳: 40-VFQFN 祼焊盘
供应商器件封装: 40-VQFN（6x6）
