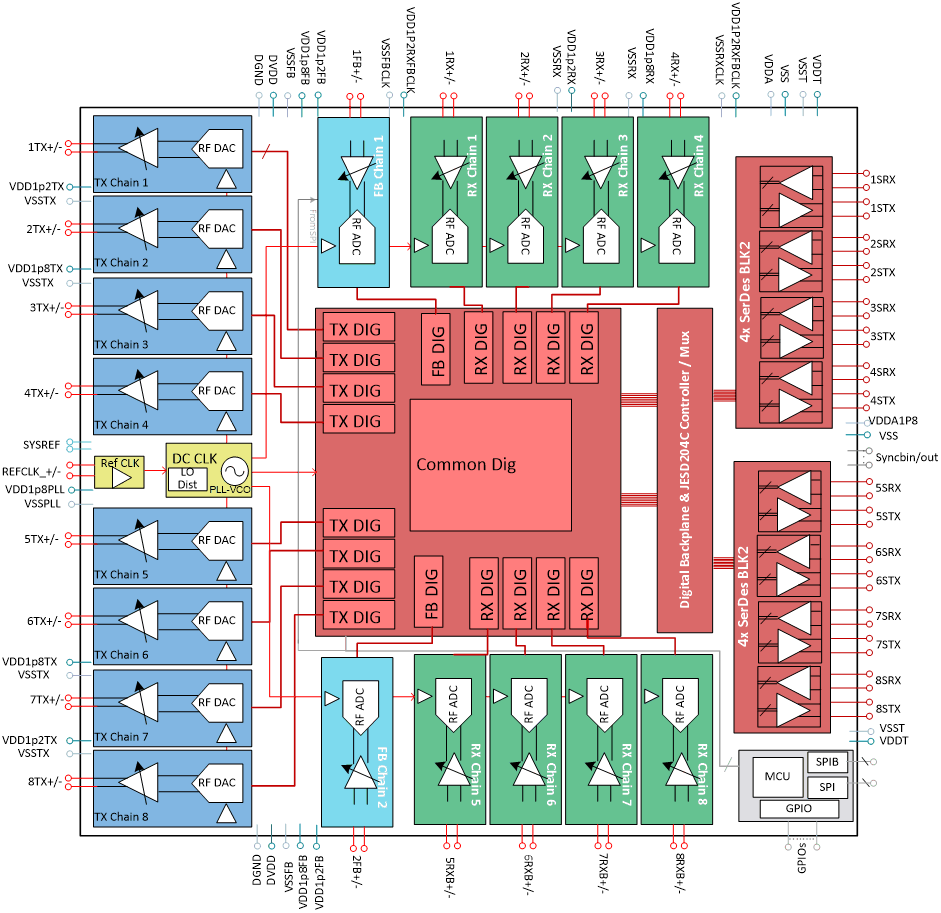

天天芯片 - 物料搜索

AFE8030

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 8 发送、8 接收、2 反馈、600MHz 至 6GHz、支持高达 1200MHz IBW 的射频采样收发器

Number of DAC channels: 8 Operating temperature range (°C): -40 to 85 Rating: Catalog Number of DAC channels: 8 Operating temperature range (°C): -40 to 85 Rating: Catalog

AWR1843AOP

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 集成封装天线、DSP 和 MCU 的单芯片 76GHz 至 81GHz 汽车雷达传感器

Frequency range: 76 - 81 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (max) (Msps): 25 Arm CPU: Arm Cortex-R4F at 200 MHz Interface type: CAN, CAN-FD, I2C, QSPI, SPI, UART DSP type: C674x DSP 600MHz Hardware accelerators: Radar hardware accelerator RAM (kByte): 2048 Rating: Automotive Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Compliant Power supply solution: LP87524B-Q1, LP87524J-Q1, LP87524P-Q1, LP87745-Q1 Frequency range: 76 - 81 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (max) (Msps): 25 Arm CPU: Arm Cortex-R4F at 200 MHz Interface type: CAN, CAN-FD, I2C, QSPI, SPI, UART DSP type: C674x DSP 600MHz 更多

Hardware accelerators: Radar hardware accelerator RAM (kByte): 2048 Rating: Automotive Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Compliant Power supply solution: LP87524B-Q1, LP87524J-Q1, LP87524P-Q1, LP87745-Q1

IWR2243

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 76GHz 至 81GHz 工业级高性能 MMIC

Frequency range: 76 - 81 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (ksps): 45000 TX power (dBm): 13 Interface type: CSI-2, I2C, SPI Operating temperature range (°C): -40 to 105 TI functional safety category: Functional Safety-Compliant Power supply solution: LP87745-Q1 Rating: Catalog Frequency range: 76 - 81 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (ksps): 45000 TX power (dBm): 13 Interface type: CSI-2, I2C, SPI Operating temperature range (°C): -40 to 105 TI functional safety category: Functional Safety-Compliant Power supply solution: LP87745-Q1 Rating: Catalog

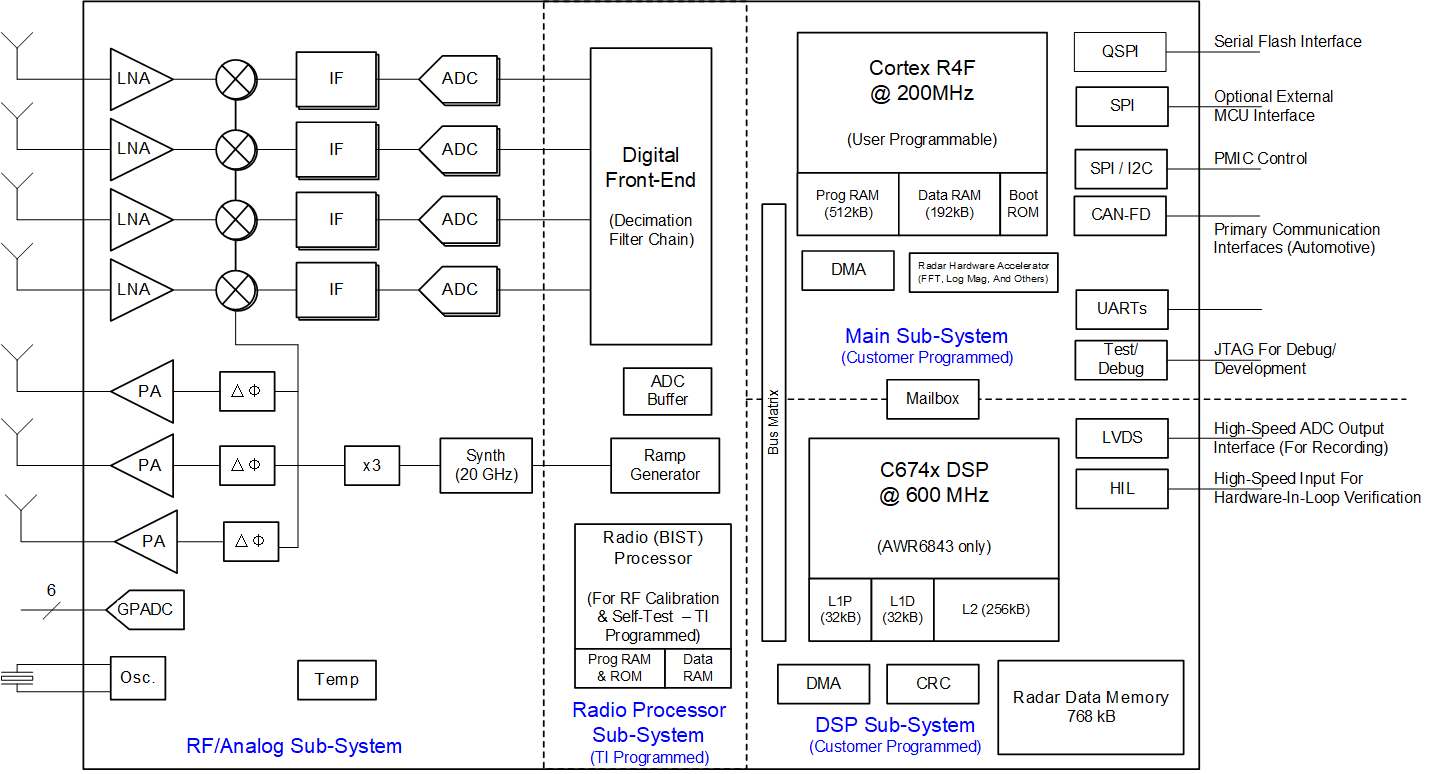

AWR6843AOP

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 集成封装天线、DSP 和 MCU 的单芯片 60GHz 至 64GHz 汽车雷达传感器

Frequency range: 57 - 64 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (max) (Msps): 25 Arm CPU: Arm Cortex-R4F at 200 MHz Interface type: 2 CAN-FD, I2C, QSPI, SPI, UART DSP type: C674x DSP 600MHz Hardware accelerators: Radar hardware accelerator RAM (kByte): 1792 Rating: Automotive Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Compliant Power supply solution: LP87524B-Q1, LP87524J-Q1, LP87524P-Q1, LP876242-Q1 Frequency range: 57 - 64 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (max) (Msps): 25 Arm CPU: Arm Cortex-R4F at 200 MHz Interface type: 2 CAN-FD, I2C, QSPI, SPI, UART DSP type: C674x DSP 600MHz 更多

Hardware accelerators: Radar hardware accelerator RAM (kByte): 1792 Rating: Automotive Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Compliant Power supply solution: LP87524B-Q1, LP87524J-Q1, LP87524P-Q1, LP876242-Q1

AFE8092

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 8 发送、8 接收、600MHz 至 6GHz、提供高达 1200MHz IBW 的射频采样收发器

Number of DAC channels: 8 Operating temperature range (°C): -40 to 85 Rating: Catalog Number of DAC channels: 8 Operating temperature range (°C): -40 to 85 Rating: Catalog

IWR6843AOP

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 具有集成封装天线 (AoP) 的单芯片 60GHz 至 64GHz 智能毫米波传感器

Frequency range: 60 - 64 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (ksps): 25000 TX power (dBm): 10 Arm CPU: Arm Cortex-R4F at 200 MHz Coprocessors: Radar Hardware Accelerator DSP type: 1 C67x DSP @ 600MHz Interface type: CAN-FD, I2C, LVDS, QSPI, SPI, UART RAM (kByte): 1792 Operating temperature range (°C): -40 to 105 TI functional safety category: Functional Safety-Compliant Power supply solution: LP87745-Q1 Rating: Catalog Frequency range: 60 - 64 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (ksps): 25000 TX power (dBm): 10 Arm CPU: Arm Cortex-R4F at 200 MHz 更多

Coprocessors: Radar Hardware Accelerator DSP type: 1 C67x DSP @ 600MHz Interface type: CAN-FD, I2C, LVDS, QSPI, SPI, UART RAM (kByte): 1792 Operating temperature range (°C): -40 to 105 TI functional safety category: Functional Safety-Compliant Power supply solution: LP87745-Q1 Rating: Catalog

AWR6443

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 集成 MCU 和雷达加速器的单芯片 60GHz 至 64GHz 汽车雷达传感器

Frequency range: 60 - 64 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (max) (Msps): 25 Arm CPU: Arm Cortex-R4F at 200 MHz Interface type: 2 CAN-FD, I2C, QSPI, SPI, UART Hardware accelerators: Radar hardware accelerator RAM (kByte): 1472 Rating: Automotive Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Compliant Power supply solution: LP87524B-Q1, LP87524J-Q1, LP87524P-Q1, LP876242-Q1 Frequency range: 60 - 64 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (max) (Msps): 25 Arm CPU: Arm Cortex-R4F at 200 MHz Interface type: 2 CAN-FD, I2C, QSPI, SPI, UART Hardware accelerators: Radar hardware accelerator RAM (kByte): 1472 更多

Rating: Automotive Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Compliant Power supply solution: LP87524B-Q1, LP87524J-Q1, LP87524P-Q1, LP876242-Q1

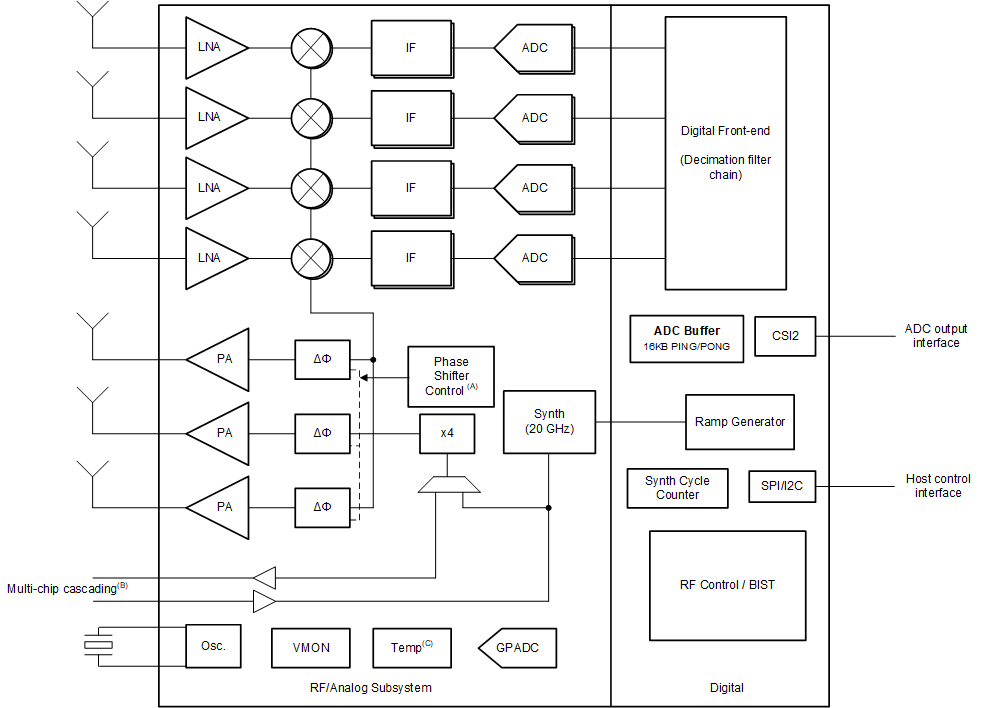

AWR2243

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 76GHz 至 81GHz 汽车级第二代高性能 MMIC

Frequency range: 76 - 81 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (max) (Msps): 45 Interface type: MIPI-CSI2, SPI Rating: Automotive Operating temperature range (°C): -40 to 140 TI functional safety category: Functional Safety-Compliant Power supply solution: LP87745-Q1 Frequency range: 76 - 81 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (max) (Msps): 45 Interface type: MIPI-CSI2, SPI Rating: Automotive Operating temperature range (°C): -40 to 140 TI functional safety category: Functional Safety-Compliant Power supply solution: LP87745-Q1

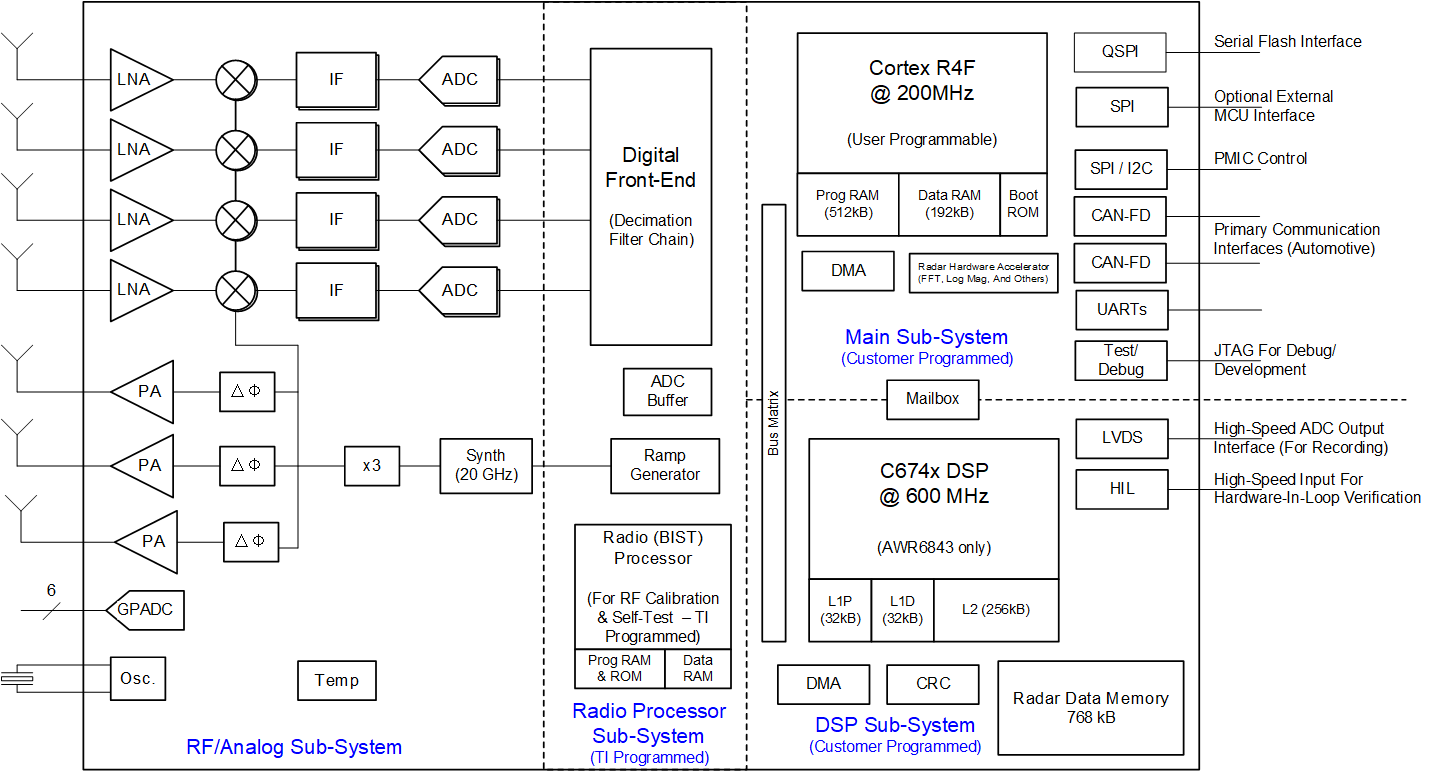

AWR6843

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 集成 DSP、MCU 和雷达加速器的单芯片 60GHz 至 64GHz 汽车雷达传感器

Frequency range: 60 - 64 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (max) (Msps): 25 Arm CPU: Arm Cortex-R4F at 200 MHz Interface type: 2 CAN-FD, I2C, QSPI, SPI, UART DSP type: C674x DSP 600MHz Hardware accelerators: Radar hardware accelerator RAM (kByte): 1792 Rating: Automotive Operating temperature range (°C): -40 to 125 TI functional safety category: Functional Safety-Compliant Power supply solution: LP87524B-Q1, LP87524J-Q1, LP87524P-Q1, LP876242-Q1 Frequency range: 60 - 64 GHz Number of receivers: 4 Number of transmitters: 3 ADC sampling rate (max) (Msps): 25 Arm CPU: Arm Cortex-R4F at 200 MHz Interface type: 2 CAN-FD, I2C, QSPI, SPI, UART DSP type: C674x DSP 600MHz 更多

AFE7921

数据:
分类: 微电路 / 半导体集成电路 / 射频电路

描述: 4 发送、4 接收、2 反馈、600MHz 至 6GHz、支持高达 800MHz IBW 的射频采样收发器

Number of DAC channels: 4 Operating temperature range (°C): -40 to 85 Rating: Catalog Number of DAC channels: 4 Operating temperature range (°C): -40 to 85 Rating: Catalog
